Descrizione
Descrizione
- 12" 2-vie attivo altoparlante
- 1500 W capacità di alimentazione
- Amplificatore di classe D
- 132 dB SPL
- Affidabilità operativa ottimale

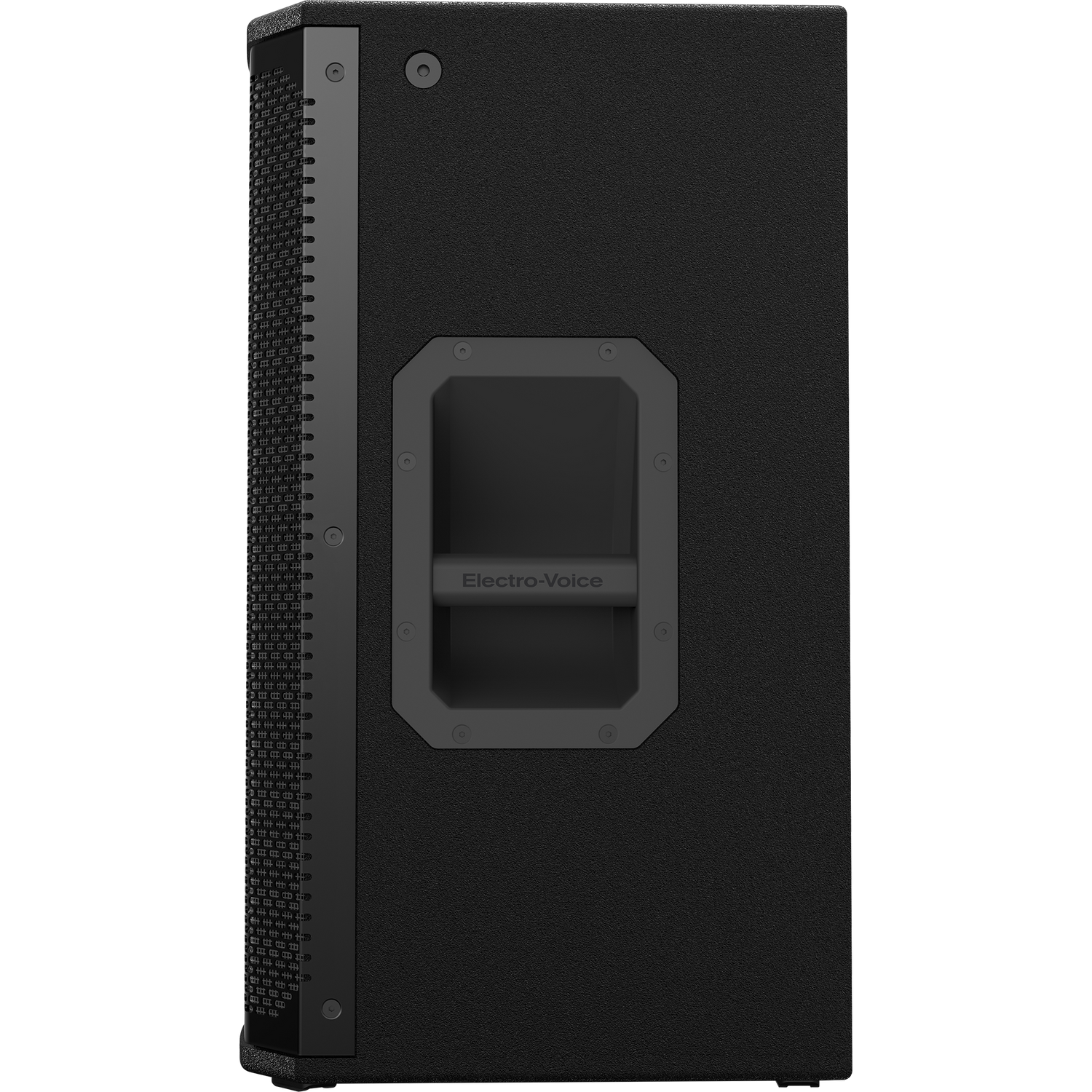

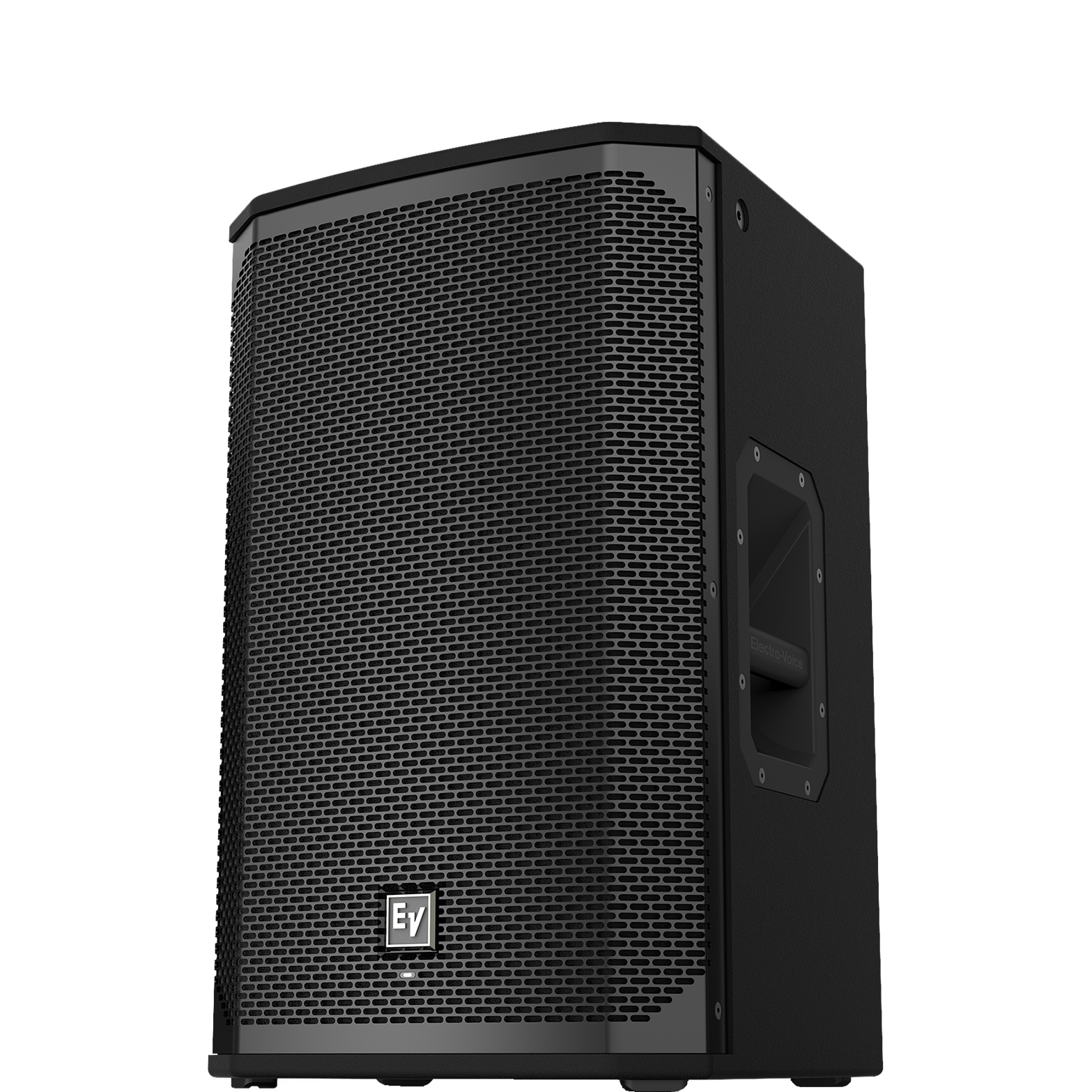

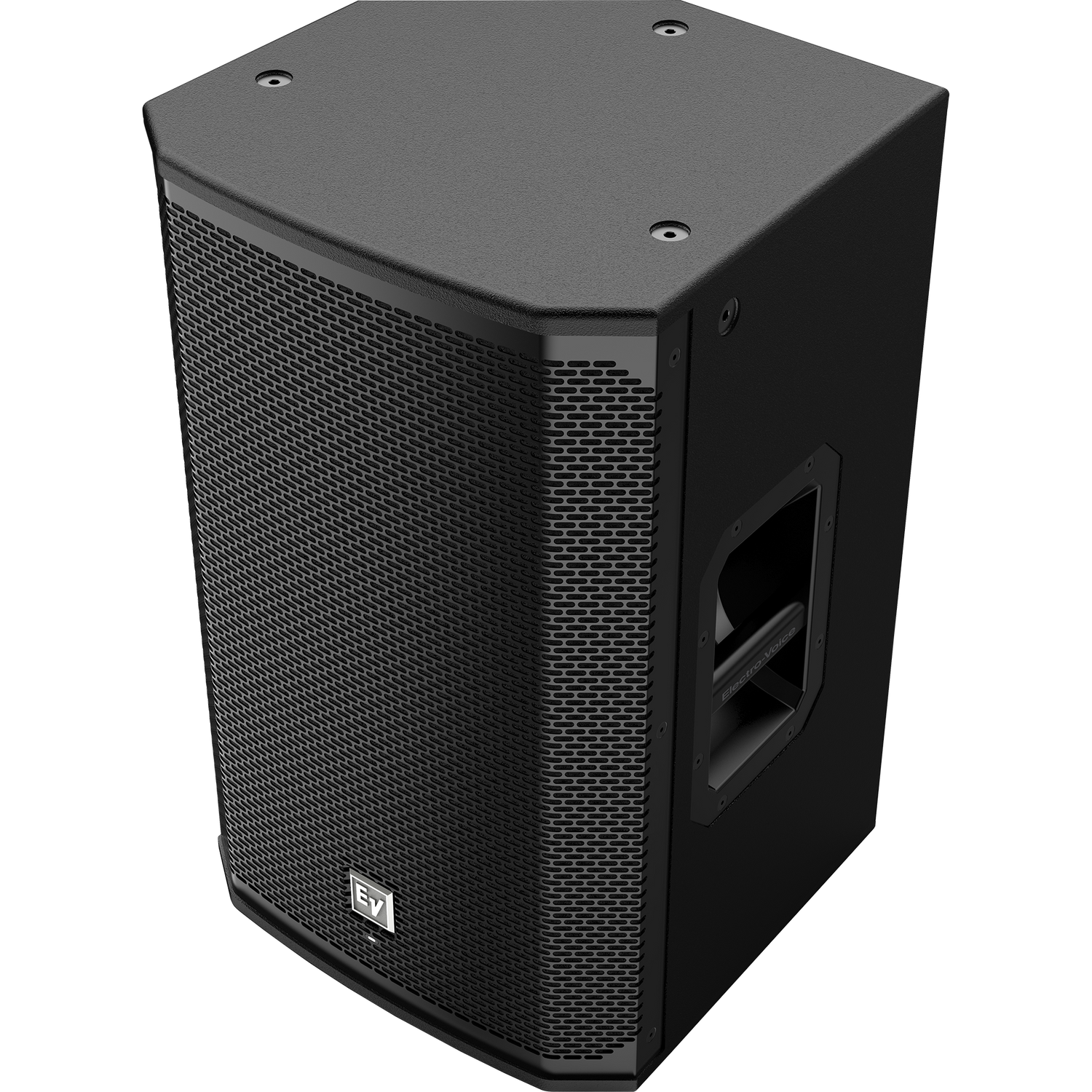

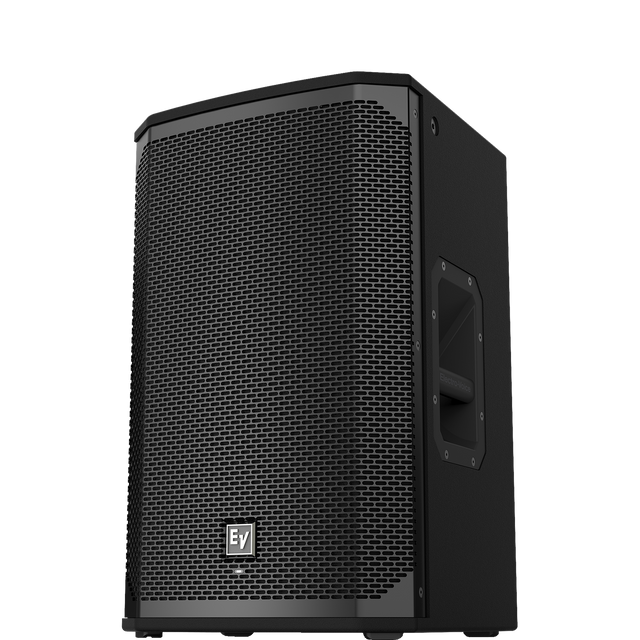

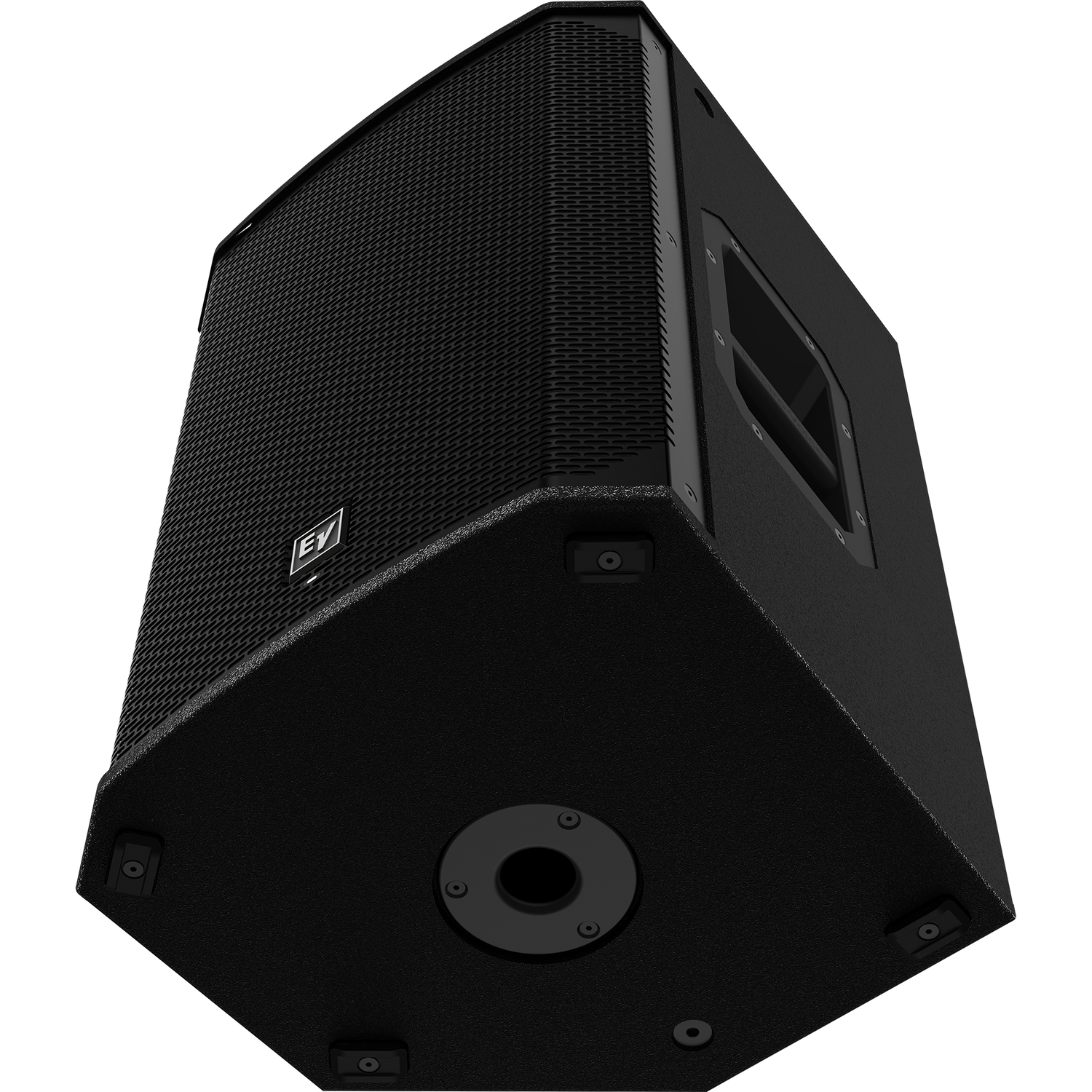

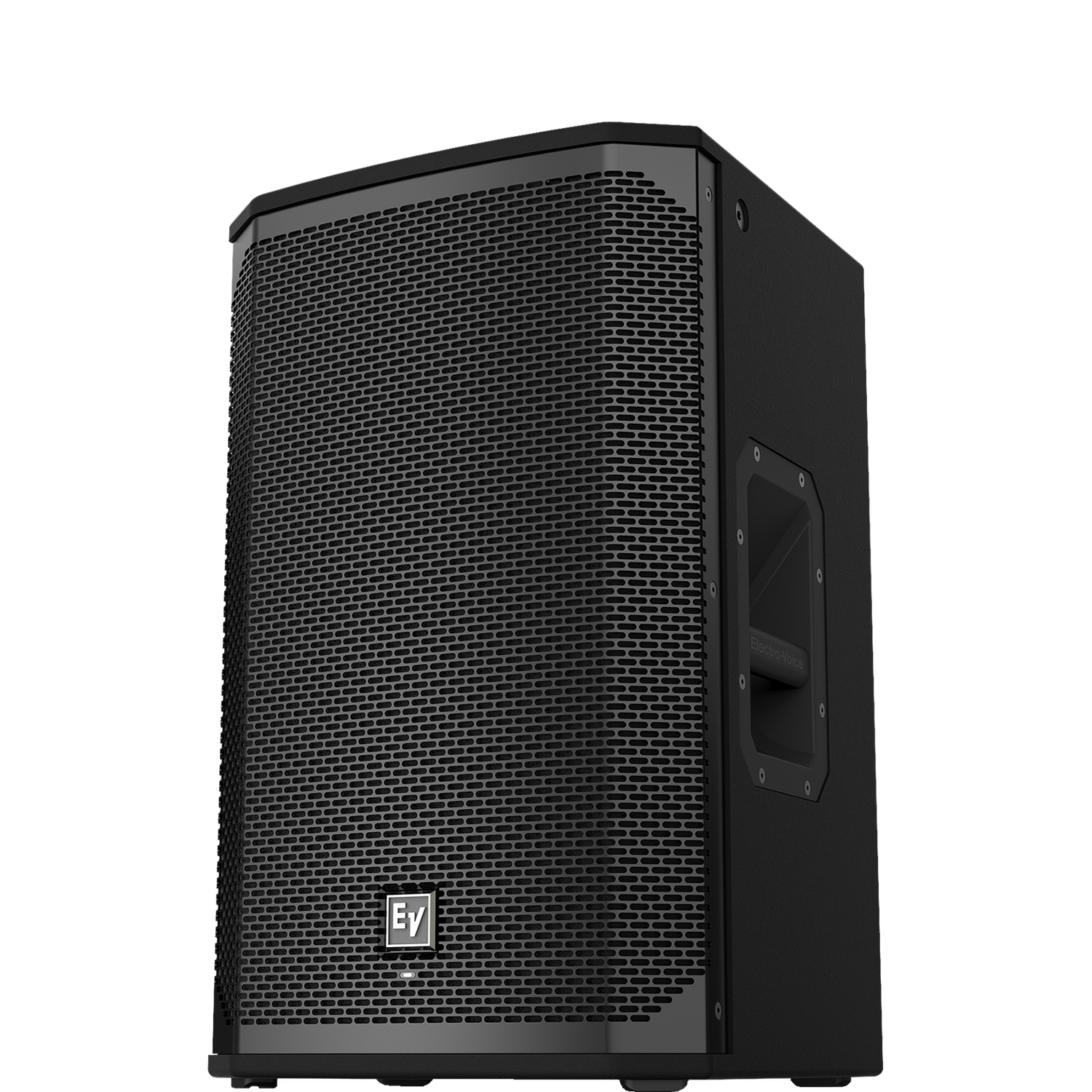

Electro-Voice EKX-12P Altoparlante Attivo
Electro-Voice EKX-12P è un altoparlante attivo a 2 vie da 12'' con una capacità di alimentazione di 1500 W. L'altoparlante utilizza un design a guida d'onda SST, funzionalità QuickSmartDSP e ha un menu intuitivo con LCD e navigazione.
Amplificatore di Classe D
Electro-Voice EKX-12P è dotato di un amplificatore di Classe D che produce fino a 132 dB SPL grazie a trasduttori ad alta sensibilità.
Gestione termica intelligente
Con una gestione termica intelligente e una ventola integrata, l'Electro-Voice EKX-12P è protetto contro il surriscaldamento e offre sempre un'affidabilità operativa ottimale.
Specifiche
Specifiche
-
Weight (kg)
Altre specifiche
Altre specifiche
Specifications | |

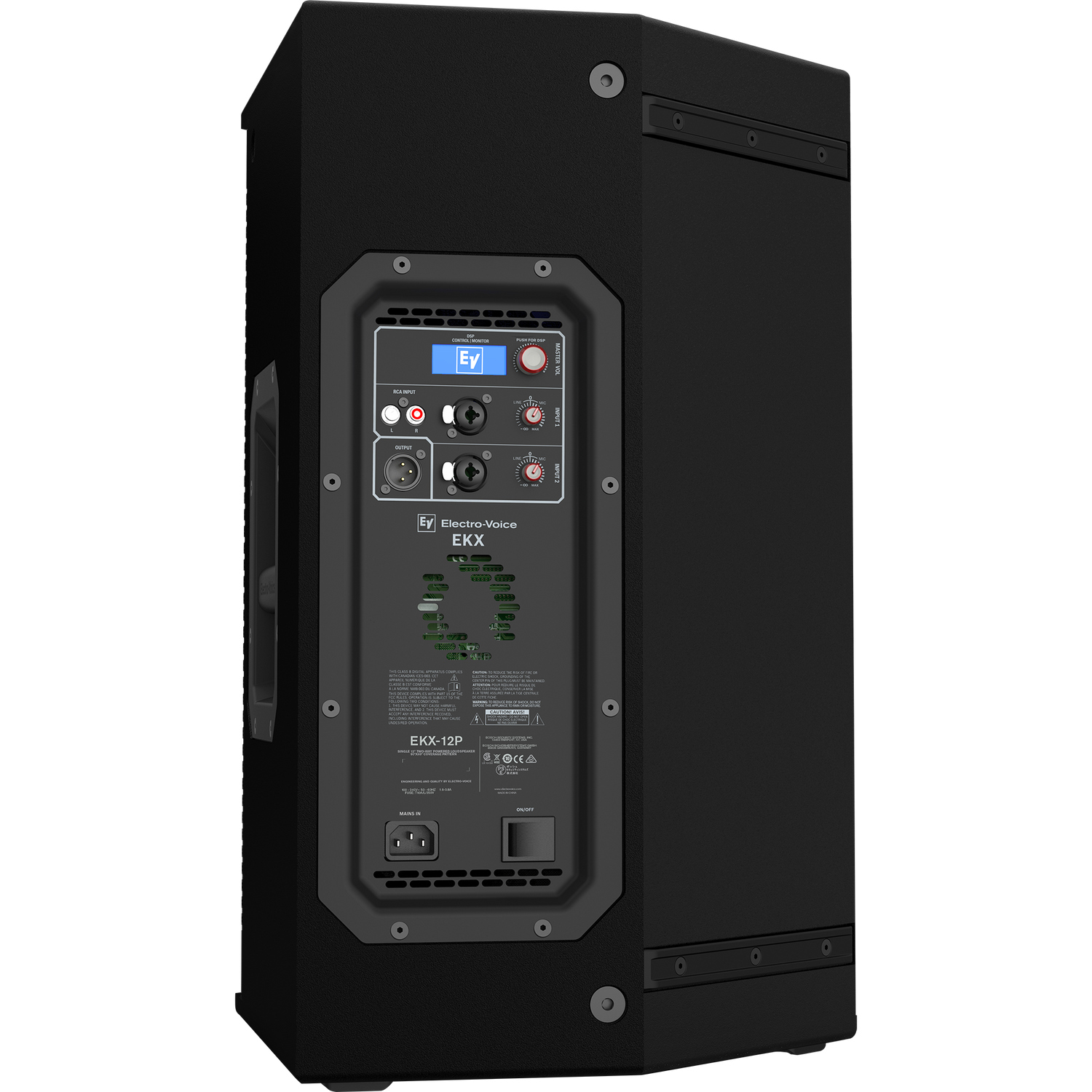

Connector Type | (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
Coverage (Nominal -6 dB) H | 90 ° |
Coverage (Nominal -6 dB) V | 60 ° |
Crossover Frequency | 1.7 k Hz |
Enclosure Material | 15 mm, plywood with EVCoat |
Frequency Response (-10 dB) | 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset. |
Frequency Response (-3 dB) | 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset. |
Grill | 18 AWG steel with powdercoat |
HF Transducer | DH-1M 1-inch titanium compression driver |
LF Transducer | EVS-12M 300 mm (12 in) |
Maximum SPL | 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output. |
Power Consumption | 1.8 A Current rating is 1/8 power |
Power Rating | 1500 W |
Shipping Weight | 22.9 kg (50.49 lbs) |
Suspension | (8) M10 threaded mounting points |
Height | 14RU 607 mm (23.9") |
Width | 375 mm (14.76") |
Depth | 356 mm (14.02") |
Weight Net | 18.8 kg (41.45 lbs) |
