• 5 x 5 LED Matrix Panel con controllo pixel singolo
• 25 x 3 W LED bianchi caldi
• 4 modalità DMX + attivazione sonora
• Master, slave e standalone
• Effetto Blinder + Strobe
• Compatto e facile da installare

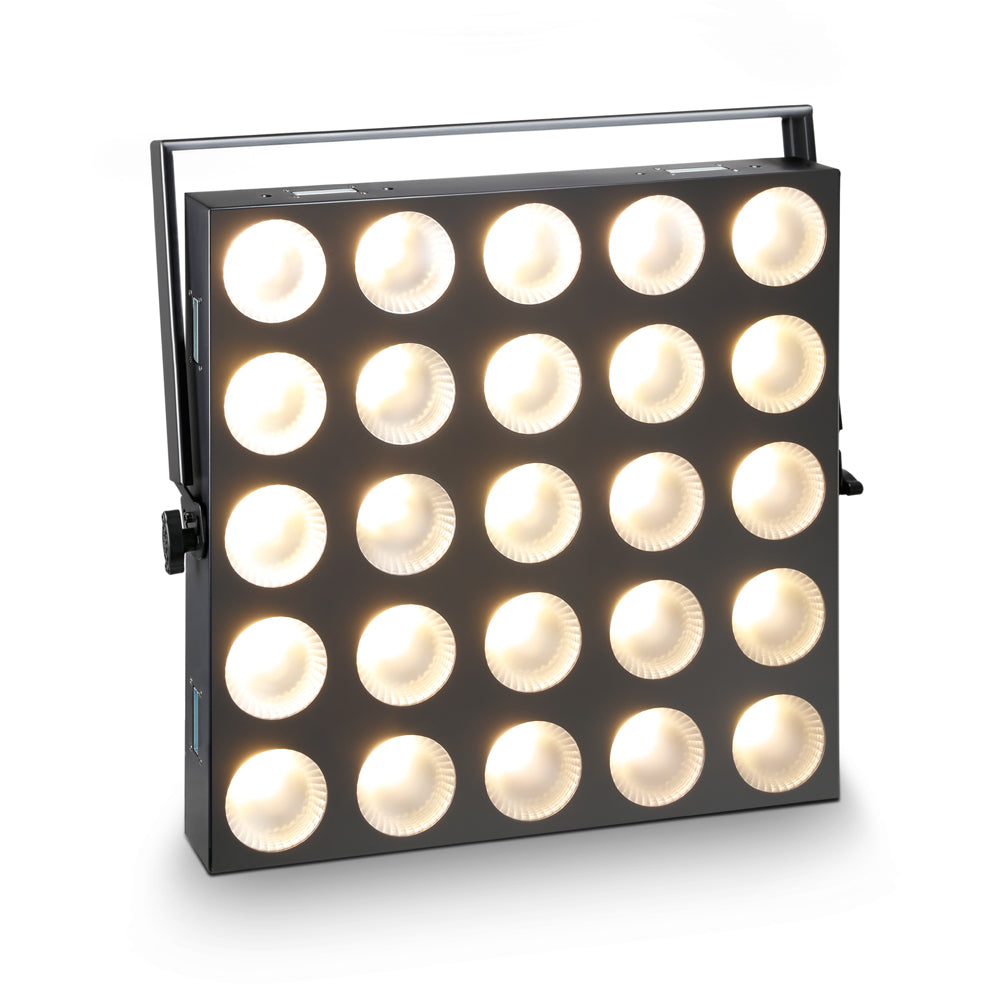

5 x 5 LED Matrix Panel

Con una ventata di 5 x 5 calde luci LED bianche da 3 watt e prestazioni senza sfarfallio, il Cameo Matrix Panel crea emozionanti effetti di blinding, chase e strobe.

Con un potente controllo pixel singolo, è la scelta perfetta per la mappatura di lettere, numeri e testi completi.

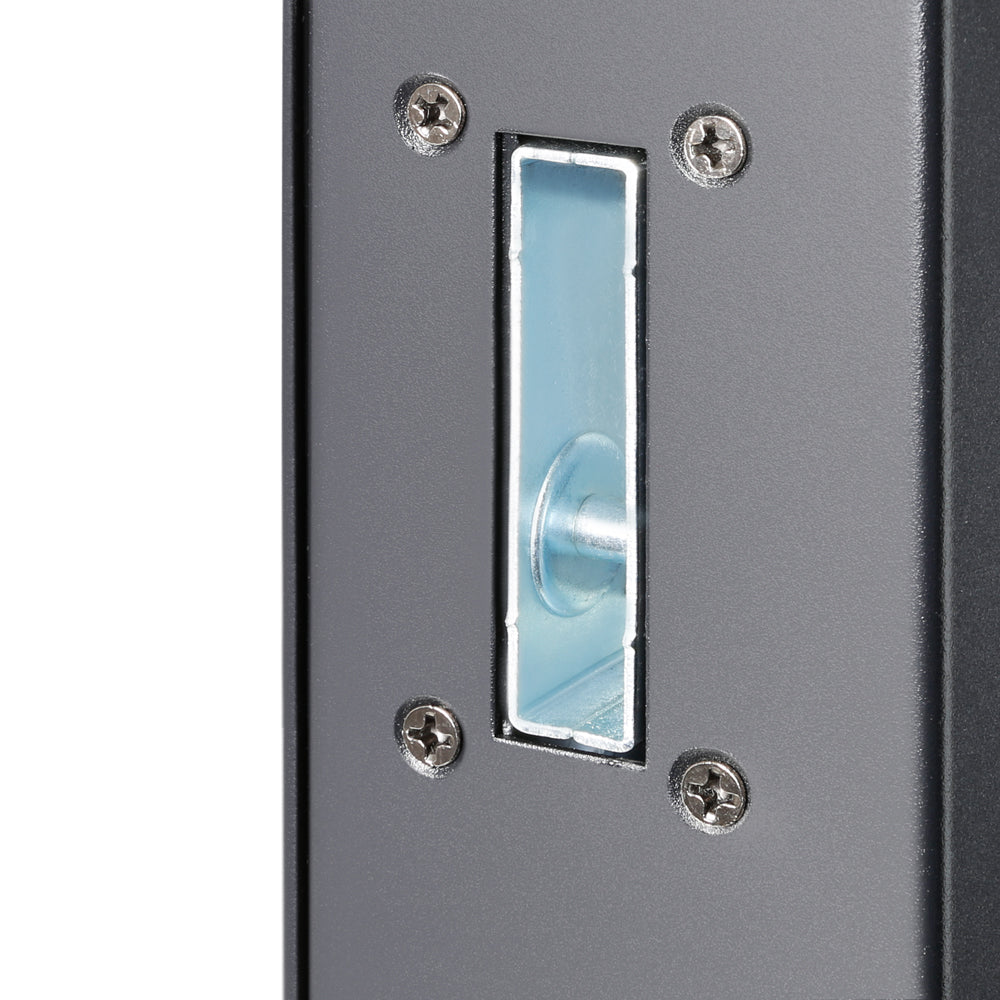

Le serrature a scomparsa sui lati consentono il collegamento di più pannelli.

Il Matrix Panel include quattro forme di controllo DMX, attivazione audio e 4 curve di dimmer selezionabili. Master, slave e standalone.

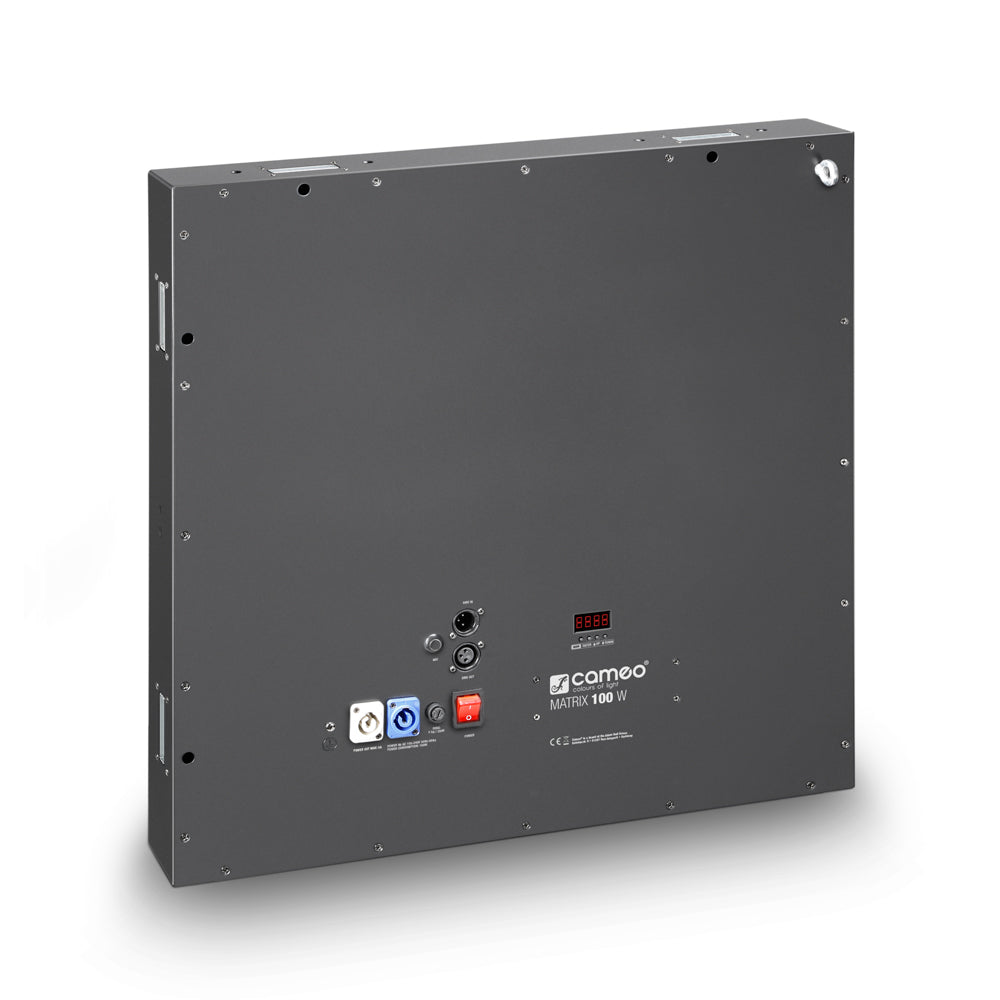

Ingresso + uscita DMX a 3 poli, connettori powercon in + out, menu display e occhio di sicurezza.

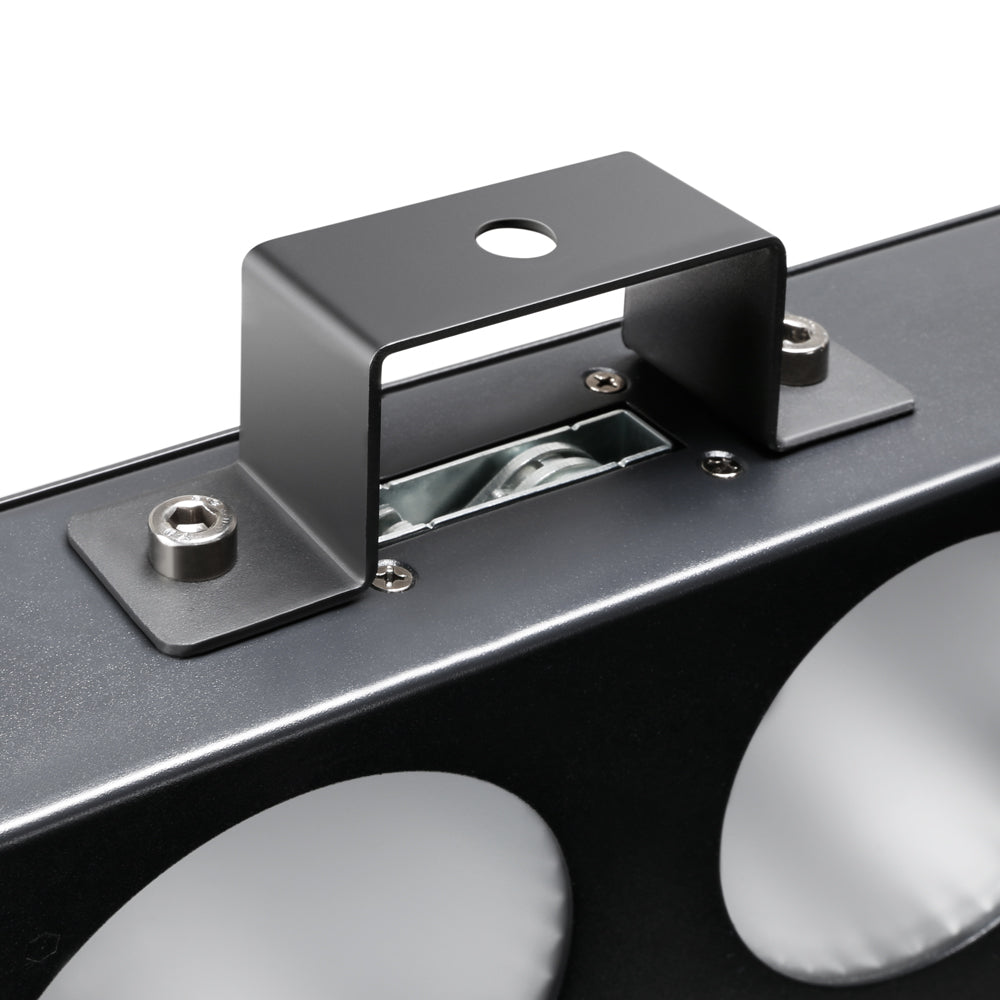

Il Matrix Panel è fornito con un supporto di montaggio.

• 5 x 5 LED Matrix Panel with single pixel control
• 25 x 3 W warm white LEDs
• 4 DMX modes, sound activation
• Master, slave and standalone capability
• Blinder, chase and strobe effects
• Alphabetic character and numeral mapping
• 4 selectable dimming curves
• Noiseless and flicker-free operation
• Ultra flat enclosure

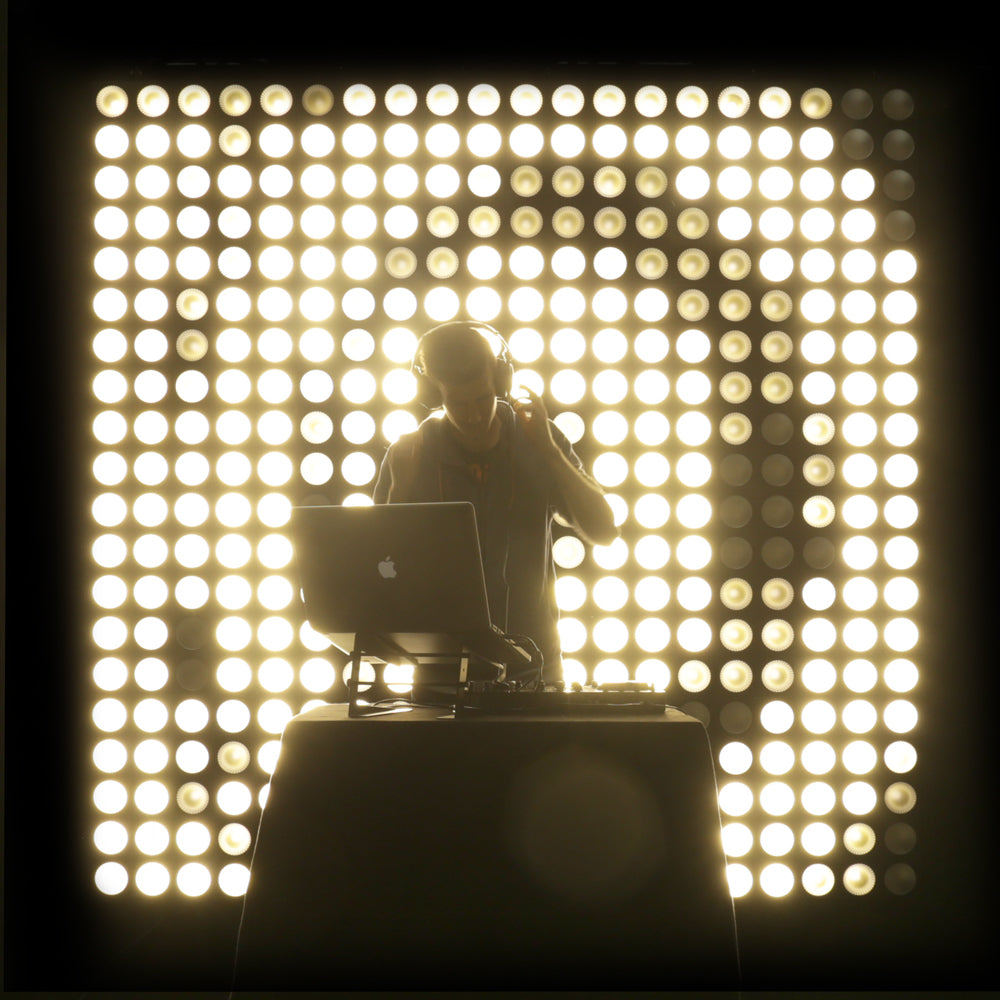

• Even more impressive in multiples

• Product Type: LED MATRIX PANEL
• Type: 5 X 5 Matrix
• Colour Spectrum: warm white
• Colour temperature: 3300 K
• Number of LEDs: 25
• LED Type: 3 W Single LED
• Refresh Rate: 3400 Hz
• Beam Angle: 40°
• DMX Input: 3-pin XLR male
• DMX Output: 3-pin XLR female
• DMX Mode: 2-channel, 5-channel, 10-channel, 28-channel
• DMX Functions: Master Dimmer, Dimmer Fine, Auto programs, Sound programs, Stroboscope
• Standalone Functions: Music Control, Master/Slave
• Control: DMX512
• Controls: Mode, Enter, Up, Down
• Display Elements: 4-digit LED display
• Power Connector: blue power input socket, white power output socket
• Operating Voltage: 100 V - 240 V AC, 50 - 60 Hz
• Power Consumption: 100 W
• Illuminance (  1 m): 6100 lx
• Fuse: F5A / 250 V
• Operating Temperature: 10°C - 40°C
• Relative Humidity: <85% non-condensing
• Housing Material: metal
• Housing Colour: black
• Housing Cooling: convection
• Dimensions (W x H x D, excluding bracket): 580 x 580 x 67 mm
• Weight (excluding bracket): 8 kg
• Other Features: swivel bracket included, 2 omega brackets, safety eyeletintegrated connection system for the installation of an unlimited numberof units in the horizontal plane and vertical installation of up to 5 units.
