Yamaha TF1
€3.524,00
Prezzo unitario
/
Non disponibile
Descrizione
Descrizione
Questo è un prodotto outlet, che esce dal nostro assortimento e quindi viene venduto a un prezzo extra basso.
- Compatto e trasportabile
- Montabile su rack
- Il mixer Yamaha TF1 offre tutto ciò di cui hai bisogno per sistemi più piccoli
- 17 fader motorizzati (16 fader canali + 1 master)
- 40 canali di input per il mix (32 mono + 2 stereo + 2 return)
- 20 bus Aux (8 mono + 6 stereo) + Stereo + Sub
- 8 gruppi DCA con Roll-out
- 16 ingressi combo mic/line XLR/TRS analogici + 2 ingressi phono stereo analogici
- 16 uscite XLR analogiche
- 34 x 34 canali di registrazione/playback digitale tramite USB 2.0 + 2 x 2 tramite USB-stick
- 1 slot di espansione per schede audio interfaccia NY64-D

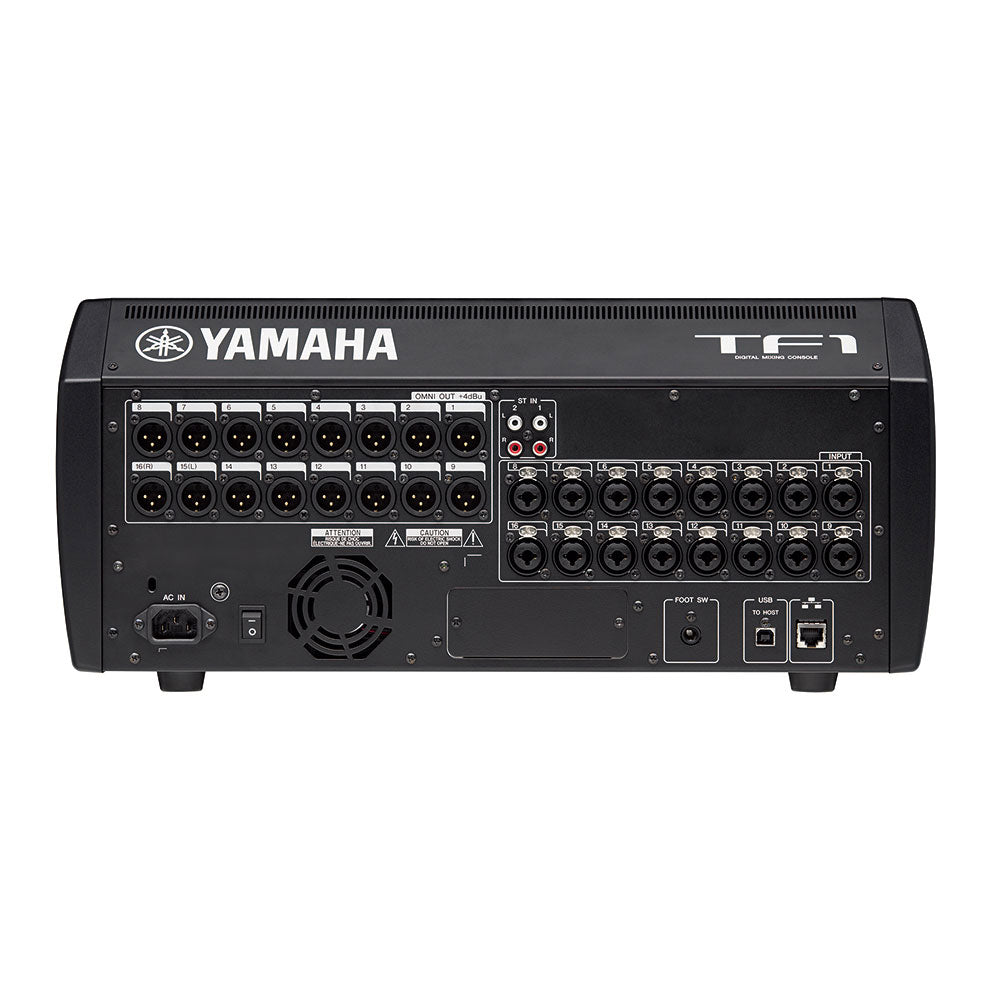

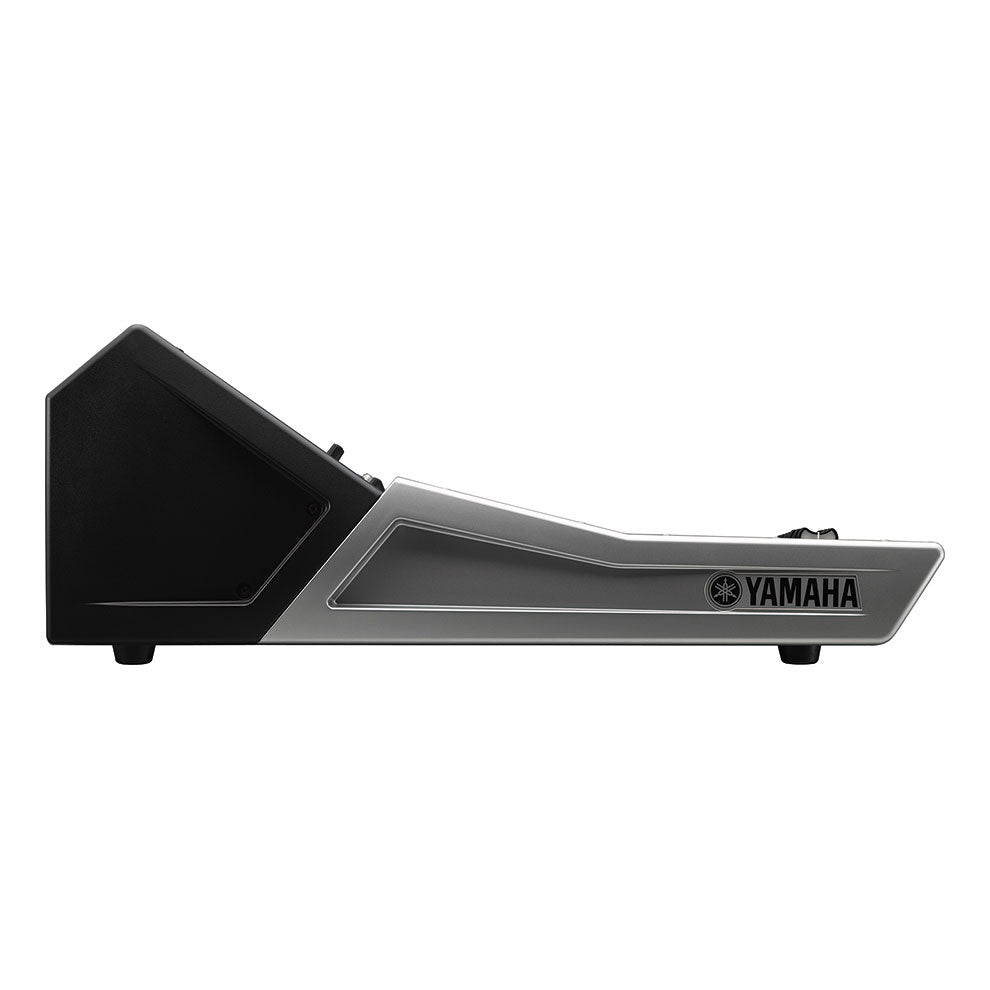

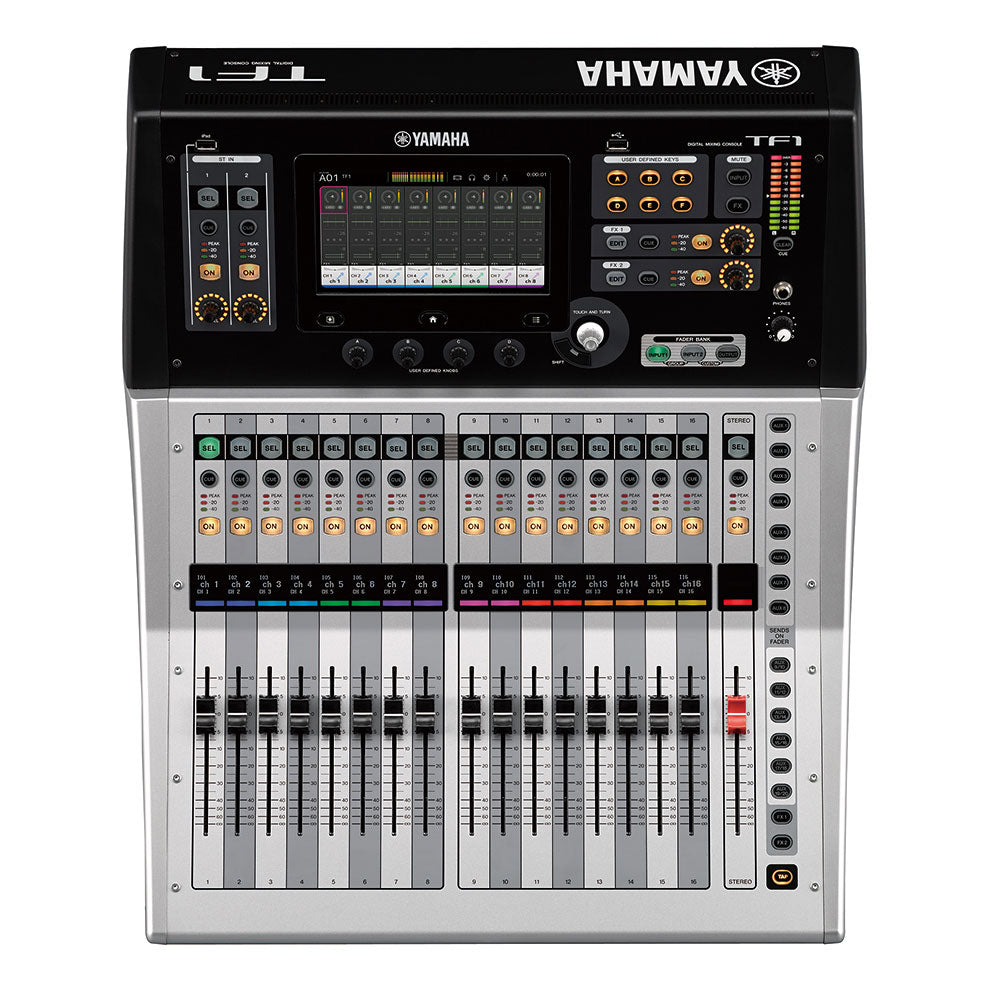

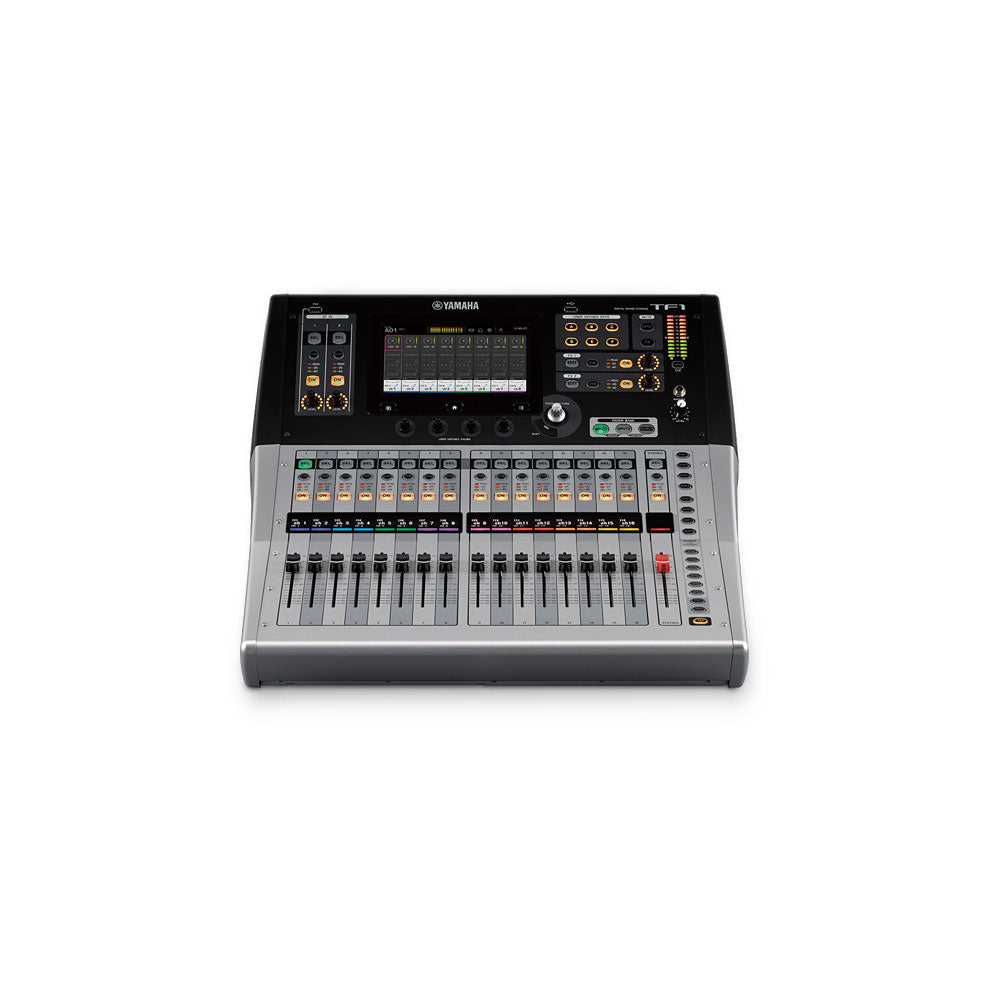

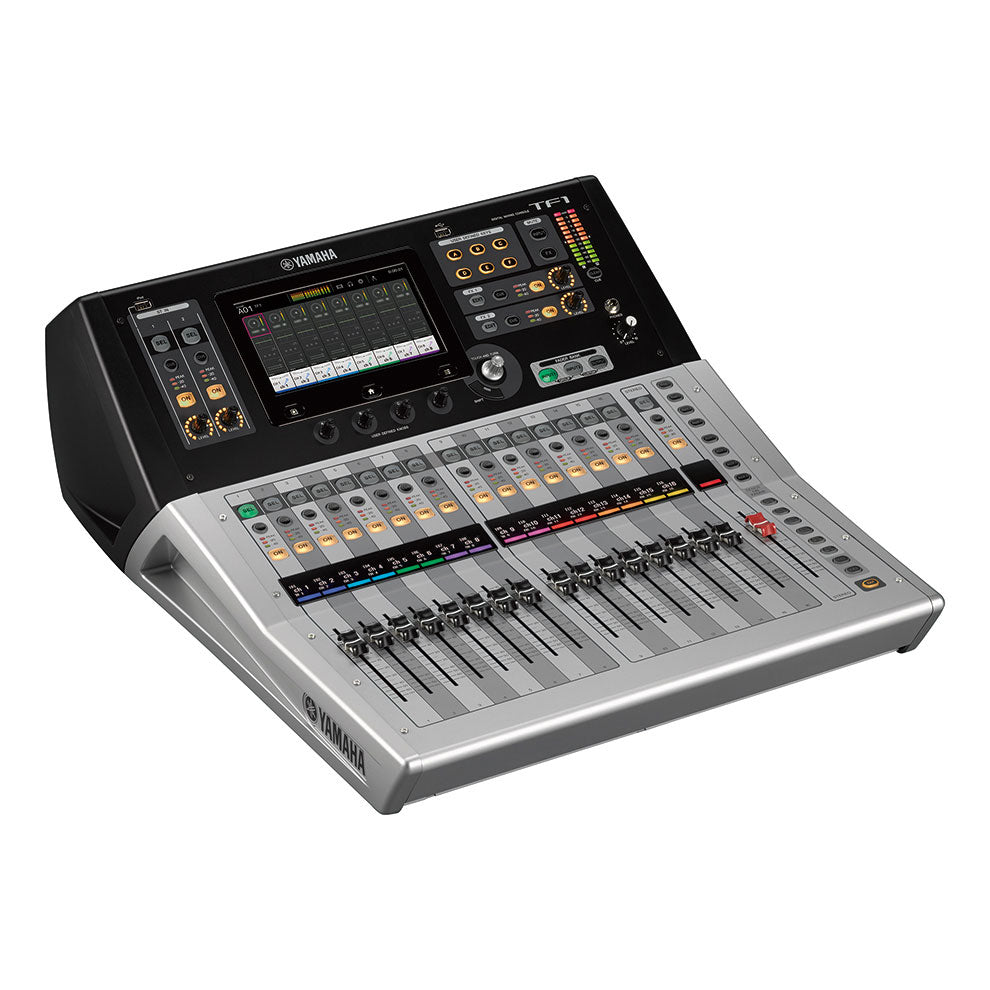

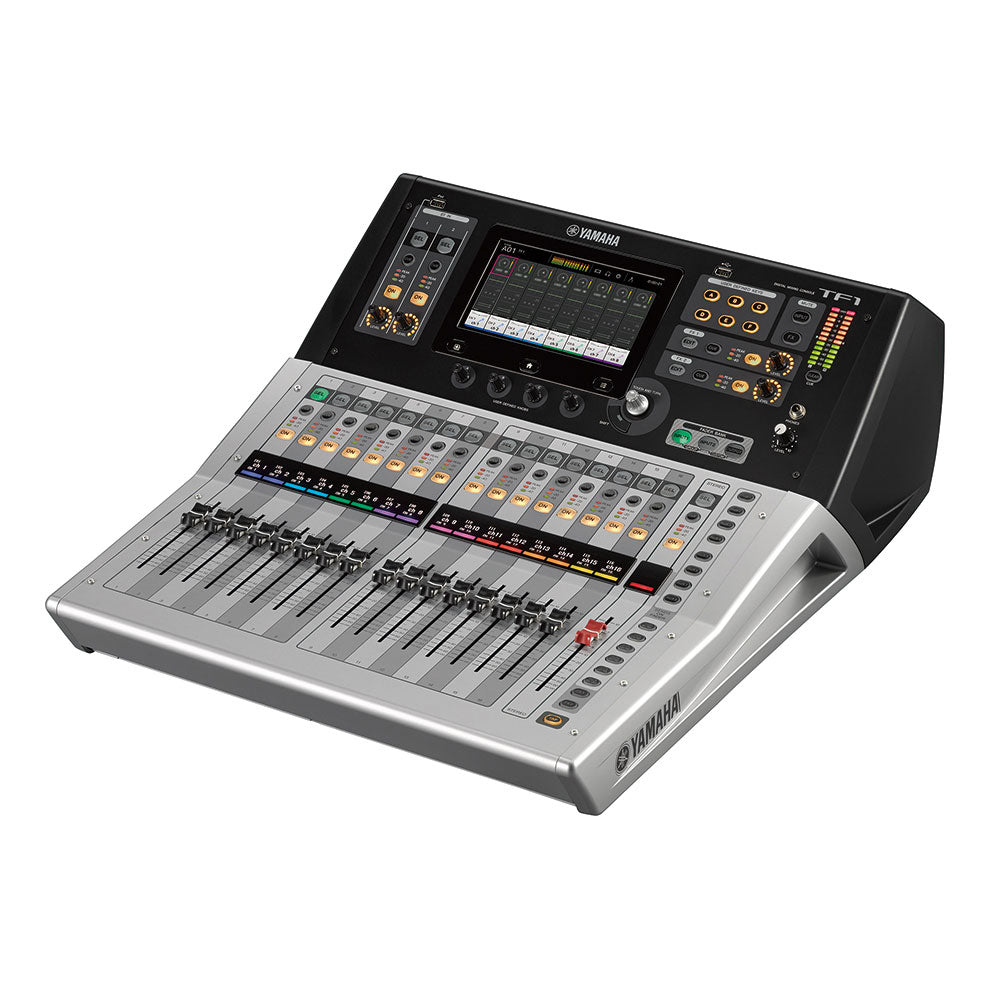

Mixer digitale Yamaha TF1
Specifiche
Specifiche
-
Weight (kg)
Altre specifiche
Altre specifiche
Specifications of Yamaha TF 1 Digital Mixer
Outline
| Fader Configuration | 16 + 1 (Master) | |
|---|---|---|
| Mixing Capacity | Input Channels | 40 (32 mono + 2 stereo + 2 return) |
| Aux Buses | 20 (8 mono + 6 stereo) | |
| Stereo Buses | 1 | |
| Sub Buses | 1 | |
| Input channel functions | 8 DCA groups | |
| I/O | Inputs | 16 mic/line (XLR/TRS combo) + 2 stereo line (phono) |
| Outputs | 16 (XLR) | |
| Expansion slots | 1 | |
| On-board processors | DSP | 8 effects + 10 GEQ |
| USB | 34x34 USB Audio Interface, 2-track recording to USB stick | |
General specifications
| Sampling frequency rate | Internal | 48 kHz |
|---|---|---|
| Signal delay | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | |
| Fader | 100 mm motorized, resolution = 10-bit, +10 dB to -138 dB, - dB all faders | |
| Total harmonic distortion | Less than 0.05% 20 Hz-20 kHz @+4 dBu into 600 ohms, INPUT to OMNI OUT, Input Gain=Min. (Measured with a -18 dB/octave filter@80 kHz) | |
| Frequency response | +0.5, -1.5 dB 20 Hz-20 kHz, at +4 dBu output @1kHz, INPUT to OMNI OUT | |
| Dynamic range | 110 dB typ., DA-converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. | |
| Hum & noise level | Equivalent input noise | -128 dBu typ., Input Gain=Max. (Measured with A-weighting filter) |
| Residual output noise | -85 dBu, ST master off (Measured with A-weighting filter) | |
| Crosstalk | -100 dB (Measured with a -30 dB/octave filter@22 kHz), consecutive INPUT/OMNI OUT channels, Input Gain=Min. | |
| Power requirements | 100-240 V 50/60 Hz | |
| Power consumption | 100 W | |
| Dimensions | W | 510 mm (20.1in) |
| H | 225 mm (8.9in) | |
| D | 599 mm (23.6in) | |
Yamaha TF1 General Specifications
| Net weight | 13.5 kg (29.8lb) | |
|---|---|---|
General specifications
| Accessories | Quick Guide, Power cable, CUBASE AI download information | |
|---|---|---|
| Options | Rack-mount Kit RK5014, Expansion board, Foot pedal (FC5) | |
| Others | Operating temperature: 0-40 °C, Storage temperature: -20-60 °C | |
Analog input characteristics
| Input Terminals | GAIN | Load Impedance | For Use With Nominal | Input Level | Connector | balanced / Unbalanced | ||
|---|---|---|---|---|---|---|---|---|
| Sensitivity*1 | Nominal | Max. before clip | ||||||
| INPUT1-16 | +66dB | 7.5K | 50-600 Mics or 600 Lines | -82dBu (61.6 V) | -62dBu (0.616mV) | -42dBu (6.16mV) | Combo Jack (XLR-3-31 type *2 or TRS phone *3) | Balanced |
| -6dB | -10dBu (245mV) | +10dBu (2.45V) | +30dBu (24.5V) | |||||
| ST IN 1,2 | - | 10k | 600 Lines | -30dBV (31.6 V) | -10dBV (316mV) | +10dBV (3.16V) | RCA Pin Jack | Unbalanced |
*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*In these specifications, 0dBu = 0.775Vrms.
*+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.
Analog output characteristics
| Output Terminals | Source Impedance | For Use With Nominal | GAIN SW | Output Level | Connector | balanced / Unbalanced | |
|---|---|---|---|---|---|---|---|
| Nominal | Max. before clip | ||||||
| OMNI OUT 1-16 | 75 | 600 Lines | "+24dBu" position (default) | +4dBu (1.23 V) | +24dBu (12.3 V) | XLR-3-32 type *1 | Balanced |
| PHONES *3 | 100 | 40 Phones | - | 3mW | 75mW | Stereo Phone Jack (TRS) *2 | Unbalanced |
*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 The position of the level control is lowered by 16dB from the maximum.
*In these specifications, 0dBu = 0.775Vrms.
*All output DA converters are 24bit, 128times oversampling.
Digital input/output specifications
| Terminals | Format | Data length | Audio | Connector |
|---|---|---|---|---|
| USB (TO HOST) | USB | 24bit | 34ch input / 34ch output, PCM | USB (B type) |
| iPad | USB | - | Playback: MP3 or WAV file data / Record: WAV file data | USB (A type) |
Control I/O specifications
| Terminals | Format | Level | Connector |
|---|---|---|---|
| NETWORK | IEEE802.3 | 10BASE-T/100Base-TX | RJ-45 |
| FOOT SW | - | - | TS Phone |
Brand: Yamaha
SKU: YAM-TF1
Peso: 14.0 kg
