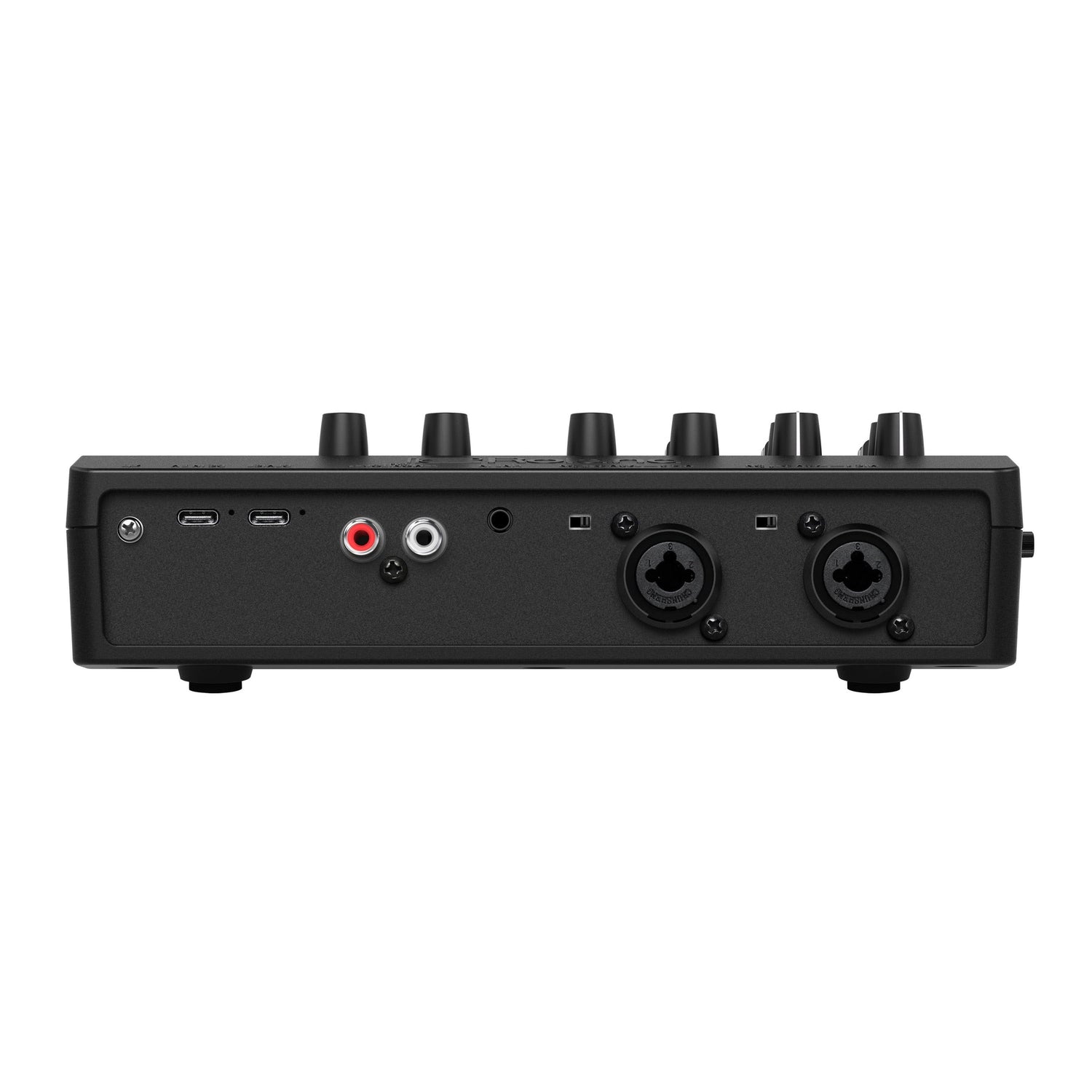

MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max)
LINE IN jack: Stereo miniature type
MONITOR OUT jack: RCA phono type

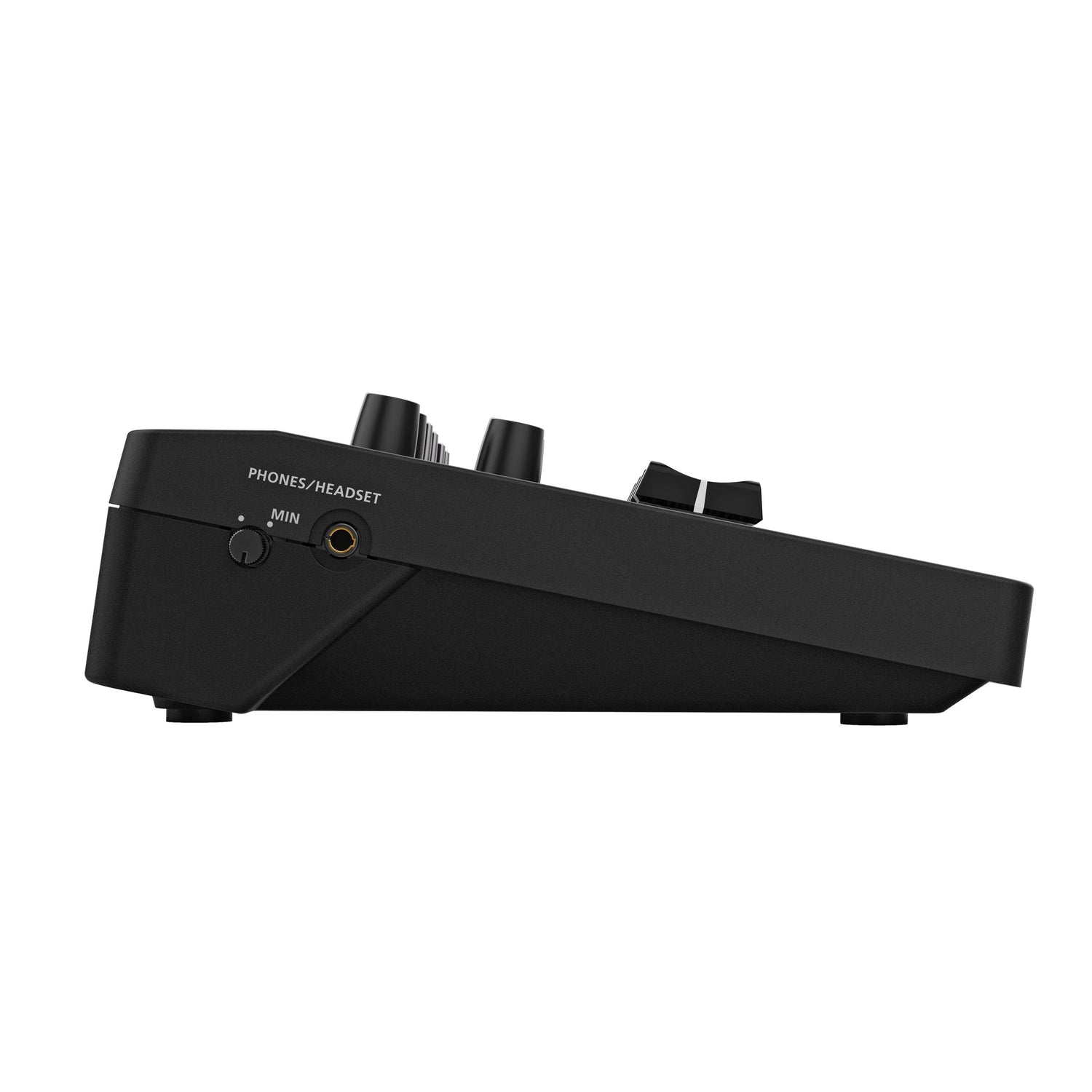

PHONES/HEADSET jack: Stereo miniature type
DC IN 5V port: USB Type-C (R)
DEVICE port: USB Type-C (R)

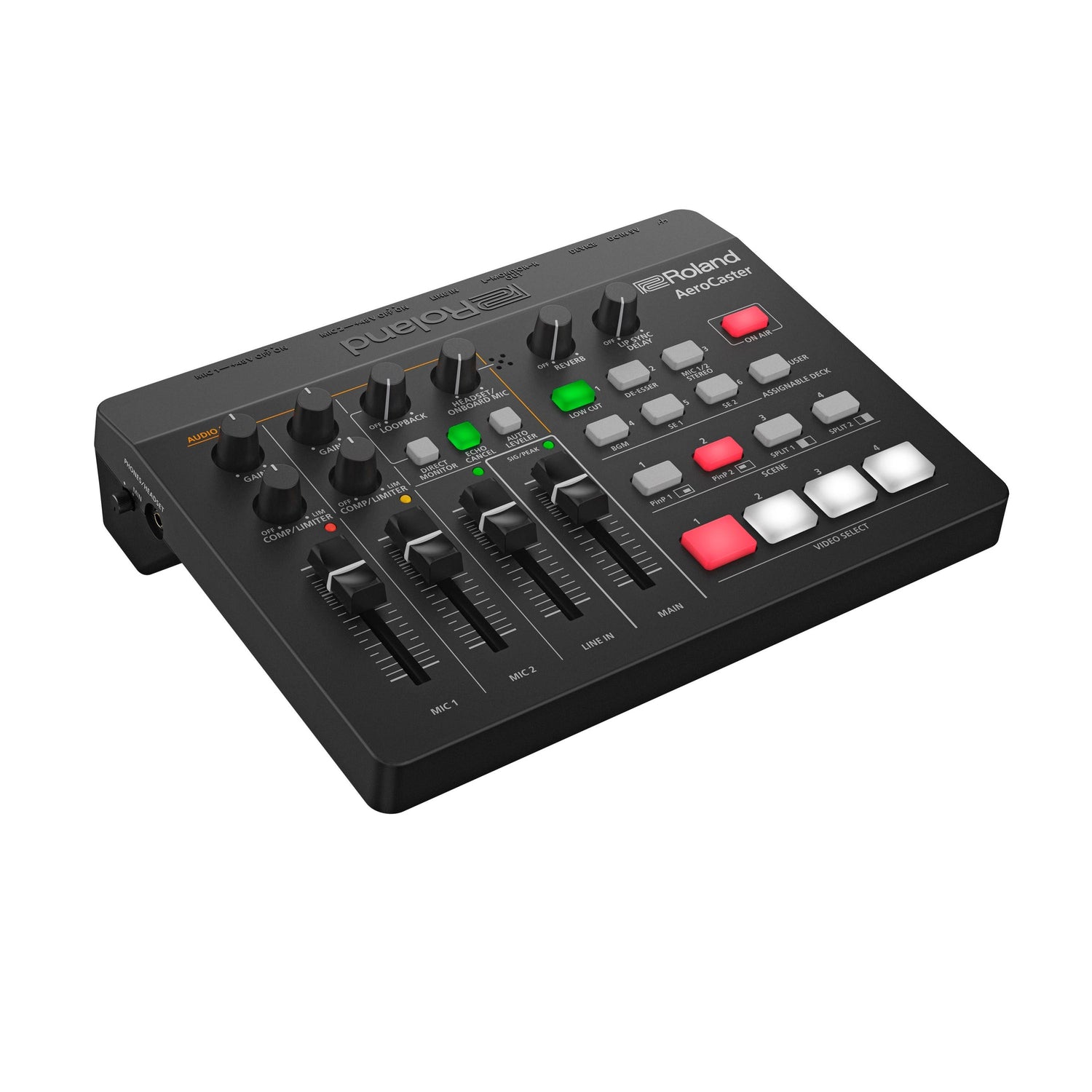

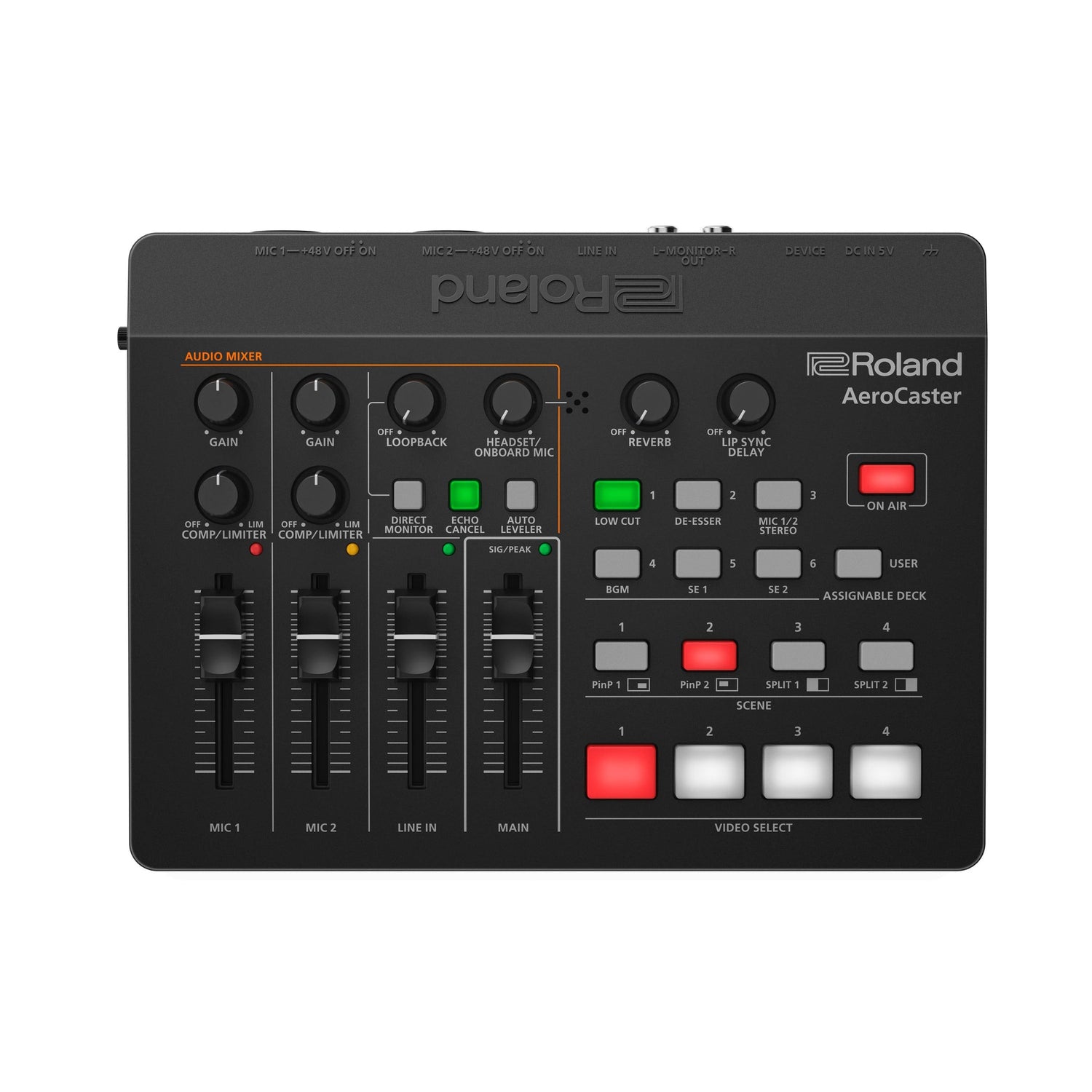

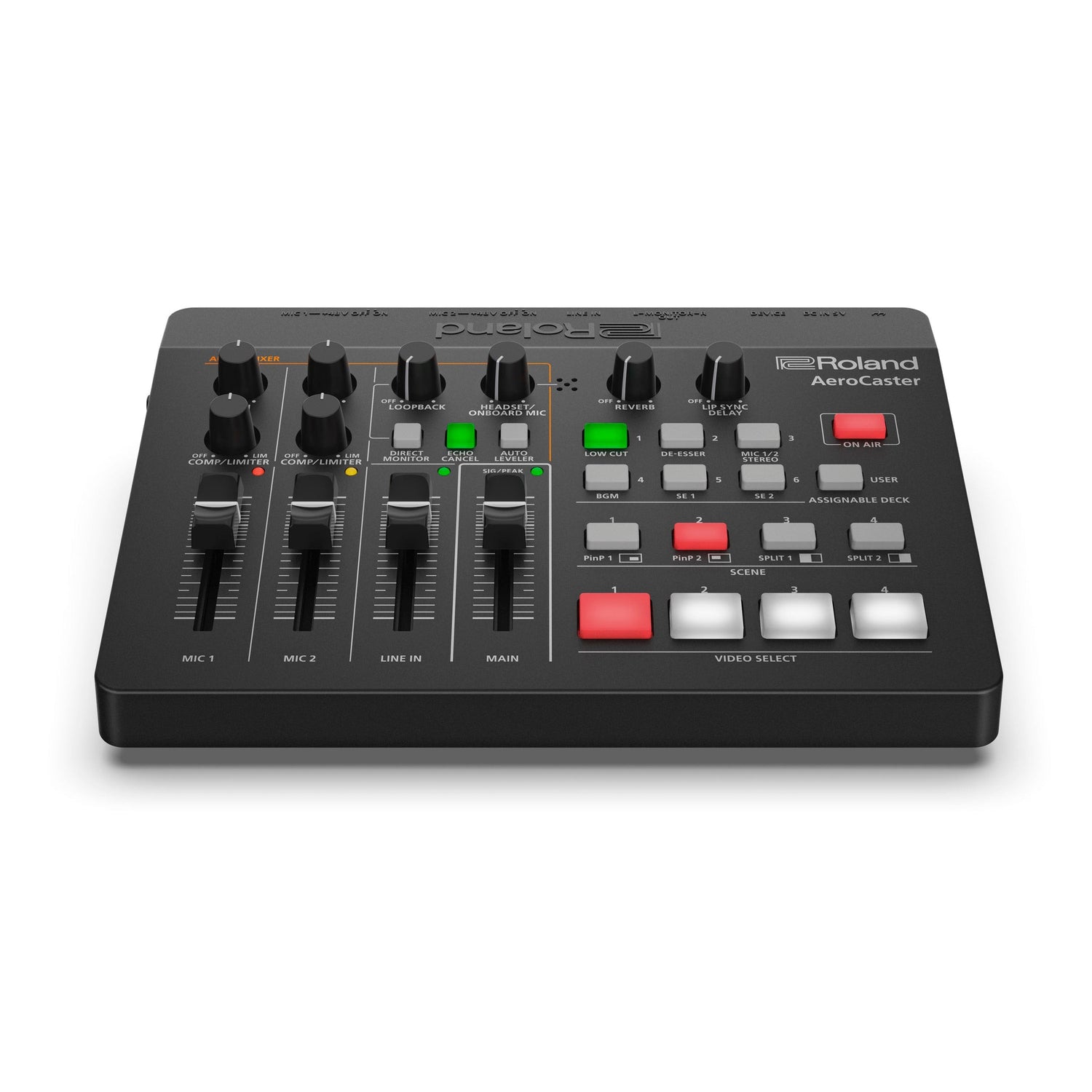

Controller

MIC 1 LEVEL fader
MIC 2 LEVEL fader
LINE IN LEVEL fader
MAIN LEVEL fader

MIC 1 COMP/LIMITER knob
MIC 2 COMP/LIMITER knob
MIC 1 GAIN knob
MIC 2 GAIN knob
LOOP BACK knob
HEADSET/ONBOARD MIC knob
REVERB knob
LIP SYNC DELAY knob
PHONES/HEADSET knob

MIC 1 +48V switch
MIC 2 +48V switch

Indicator

POWER
DEVICE
SIG/PEAK

Nominal Input Level

MIC 1, 2 jacks: -64 to +4 dBu (Maximum input level: +24 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +10 dBu)

Input Impedance

MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN < 24 dBu)
LINE IN jacks: 15 k ohms

Nominal Output Level

MONITOR OUT jacks: -10 dBu (Maximum output level: +10 dBu)
PHONES/HEADSET jack: 15 mW + 15 mW (32 ohms load)

Output Impedance

MONITOR OUT jacks: 1 k ohms

Audio Effects

Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter

Power Supply

USB AC adaptor (commercially available)
* Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more.
USB Bus power

Current Draw

700 mA (AC adaptor)
500 mA (USB bus power)

Operation Temperature

+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

Dimensions

220(W) x 166(D) x 60(H) mm
8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches

Weight (without cables)

600 g
1 lb 6 oz

Accessories

Leaflet "Read Me First"
USB Type-C to Lightning cable
USB Type-C to USB Type-A cable



* 0 dBu = 0.775 Vrms

* Switching between 3 or more camera lenses is supported only for Xperia and Google Pixel series
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
