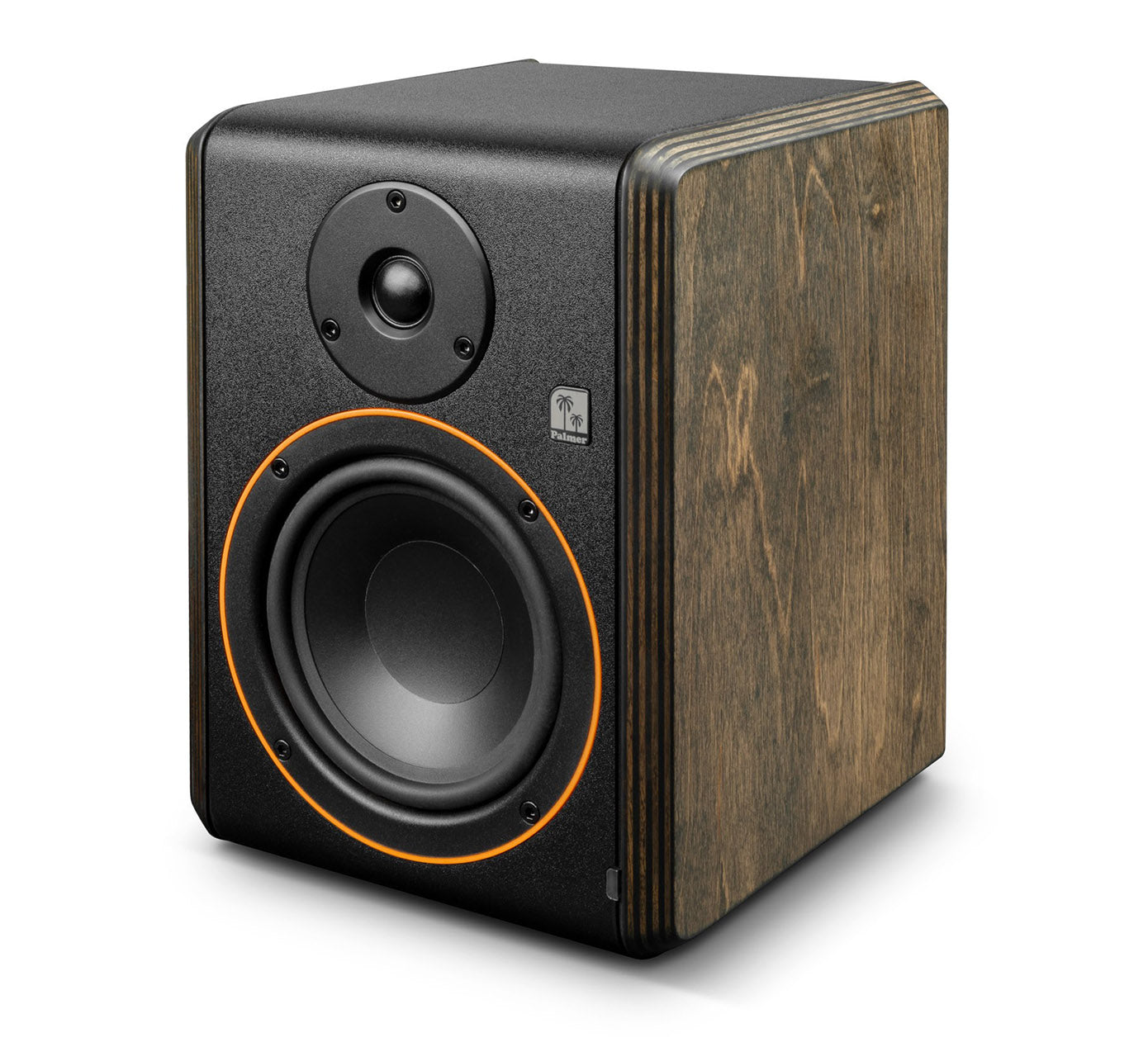

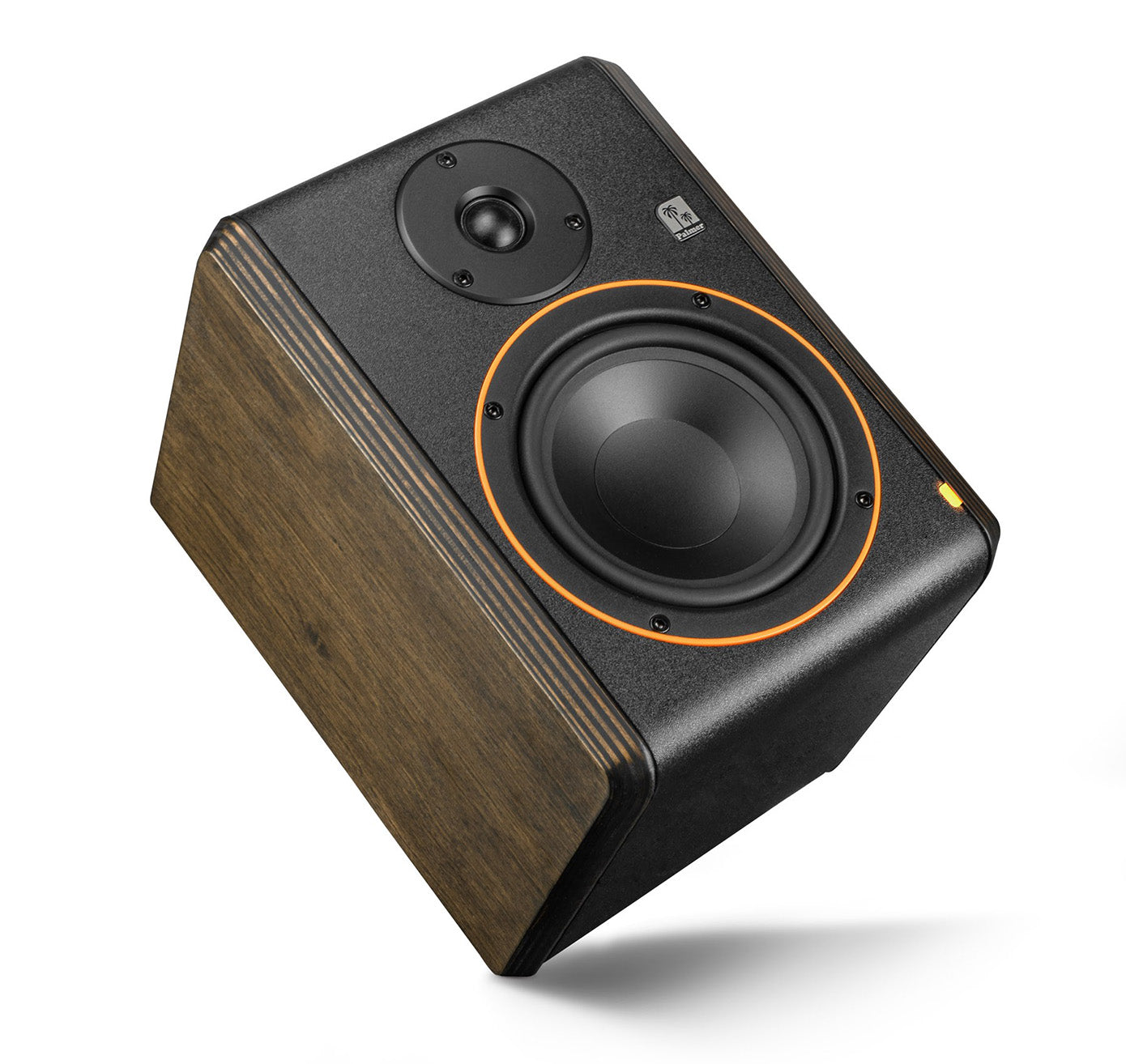

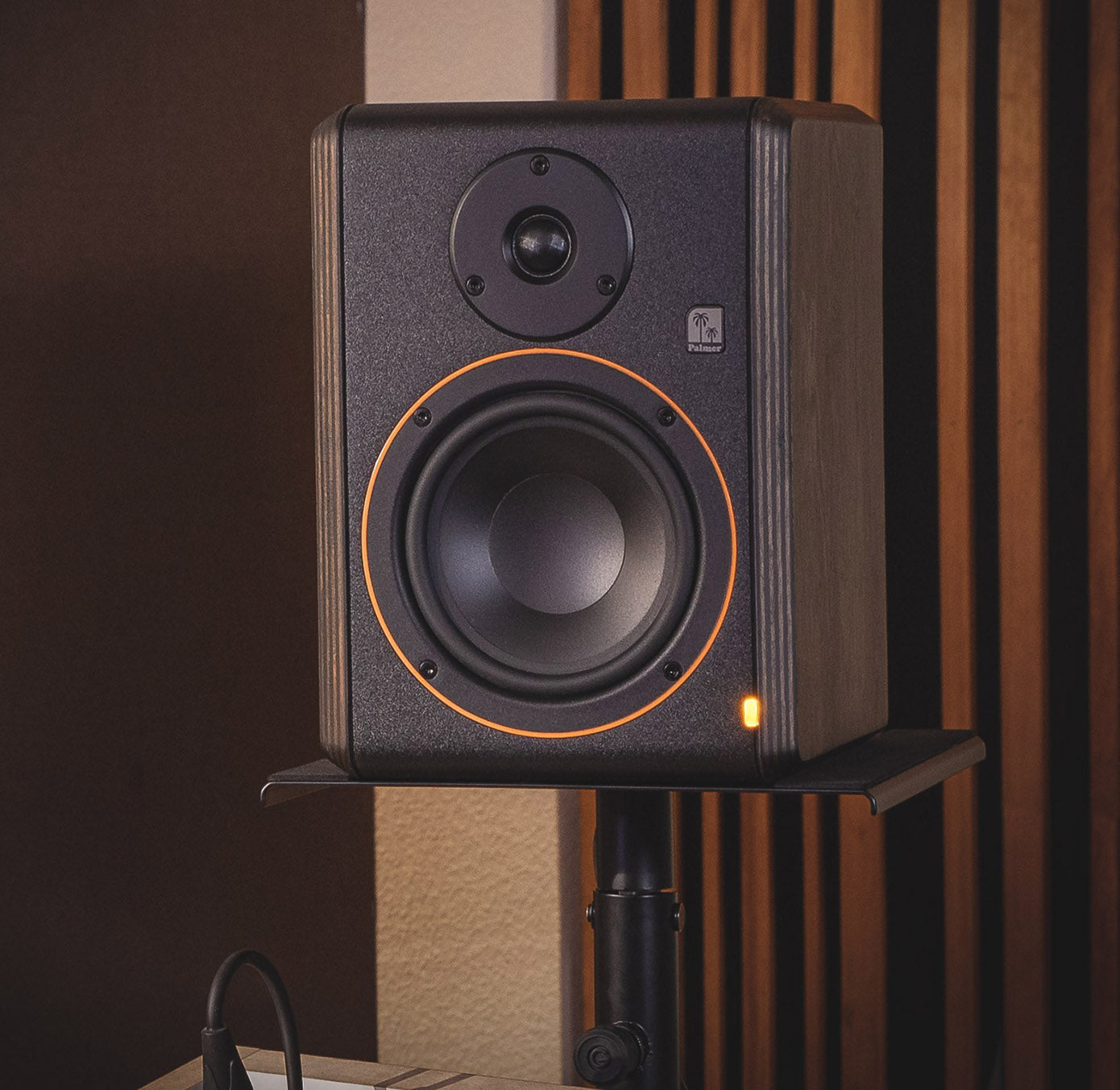

Palmer Aktiv riferimento studio monitor

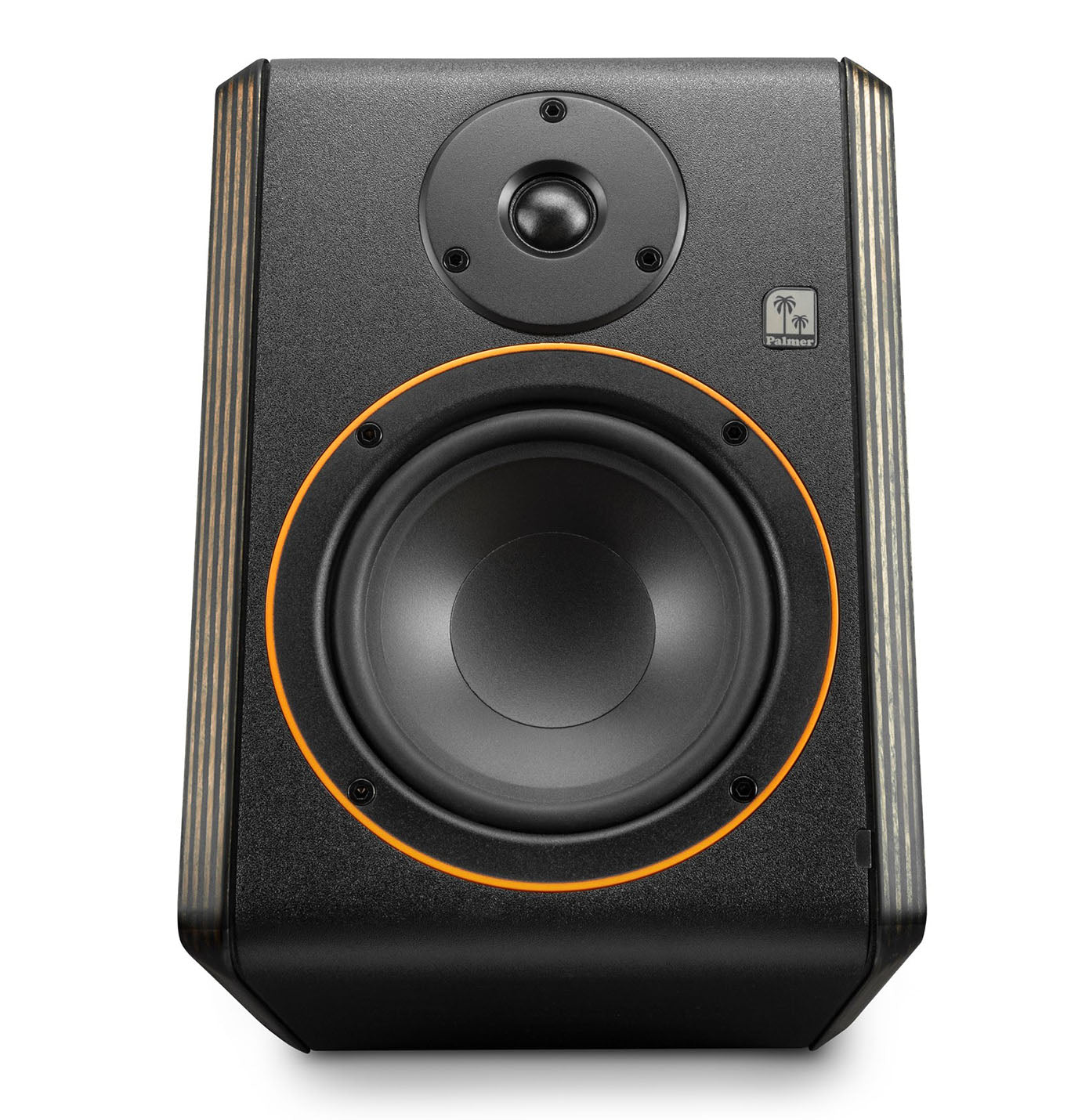

- Woofer da 5" e tweeter a cupola morbida da 0.75"
- Design bass reflex
- Amplificatore classe AB da 30 watt
- 70 Hz a 20 kHz
- Ingresso XLR bilanciato e jack stereo da 6,35 mm
- Design compatto
- Scatola elegante e robusta
Specifiche
Specifiche
-
Weight (kg)
Altre specifiche
Altre specifiche
Low/mid driver dimensions
5 "

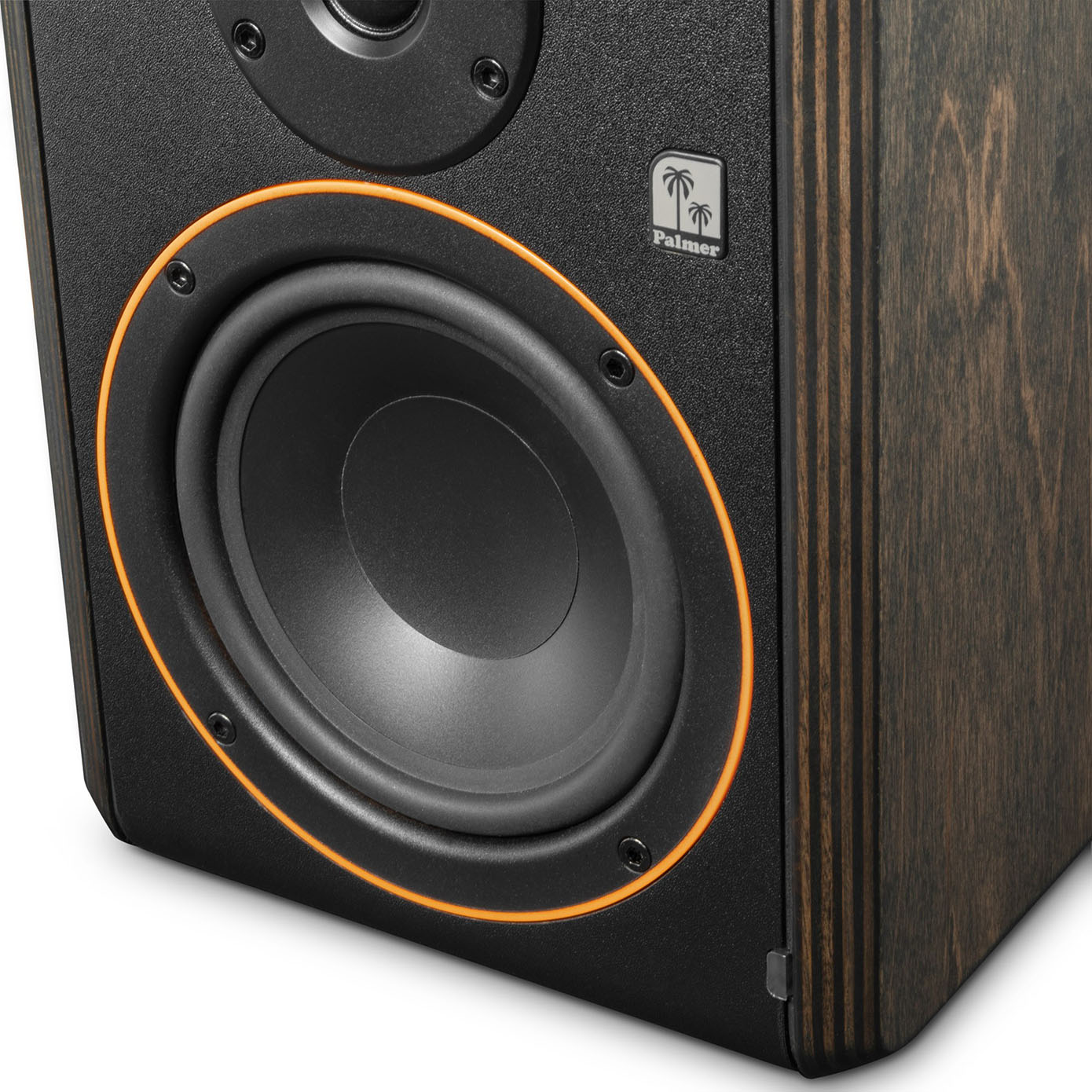

Woofer size
127 mm
Woofer magnet
80 mm Ferrit
Woofer brand
Custom-made

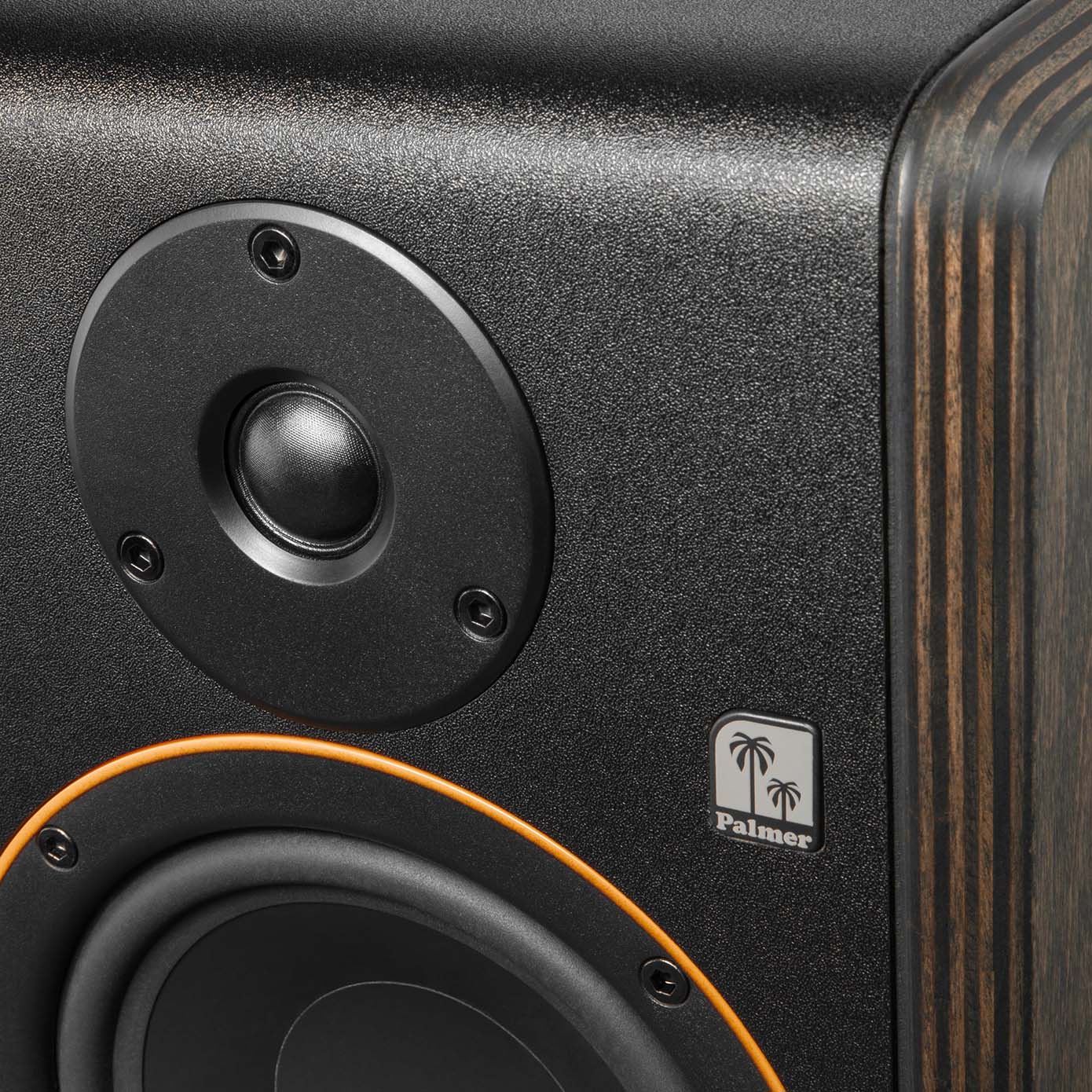

HF driver dimensions
0.75 "
HF Driver Size
19 mm
HF driver magnet
28 mm Neodym
HF driver brand
Custom-made
Power amplifier (Class A)
Class A/B
Dispersion (H x V)
120 ° x 120 °
RMS
2 x 30 W
Frequency response
70 - 20.000 Hz
Crossover frequency
2500 Hz
Max. SPL
110 dBU @ 1 kHz dB
Signal-to-noise ratio
85 dB
Protection circuits
Overtemperature , short circuit
Input impedance
10,000 Ohm(s)

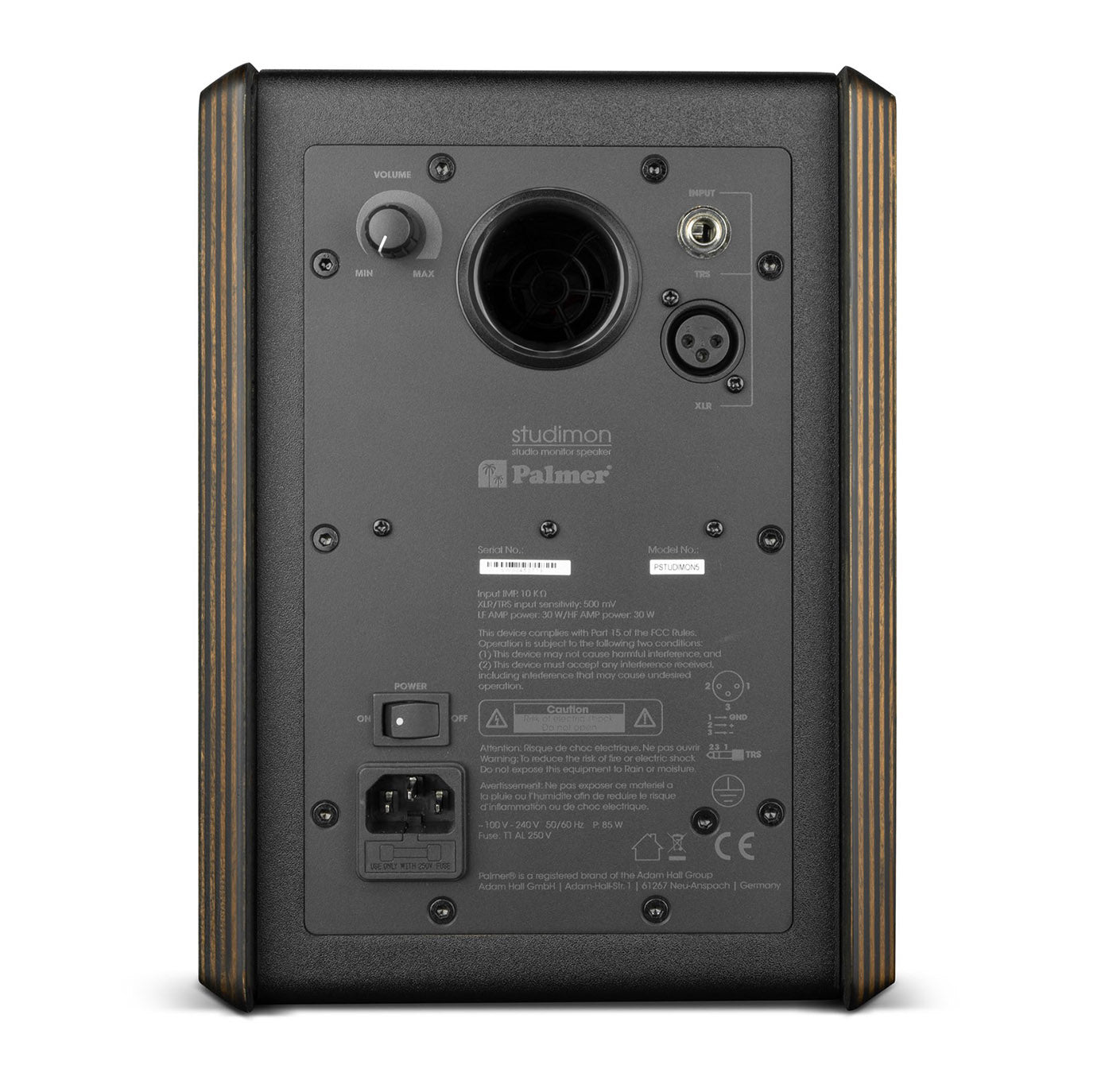

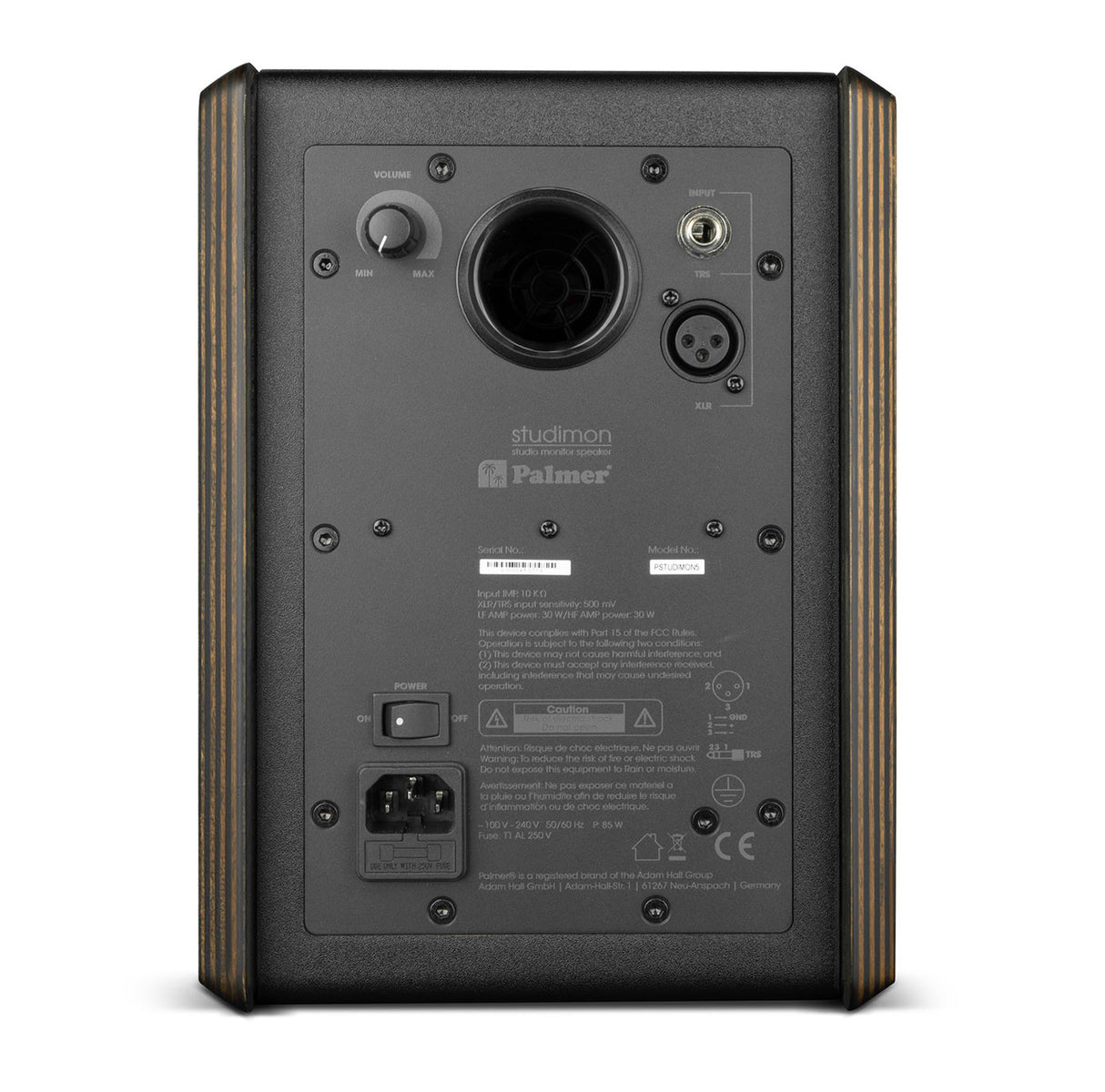

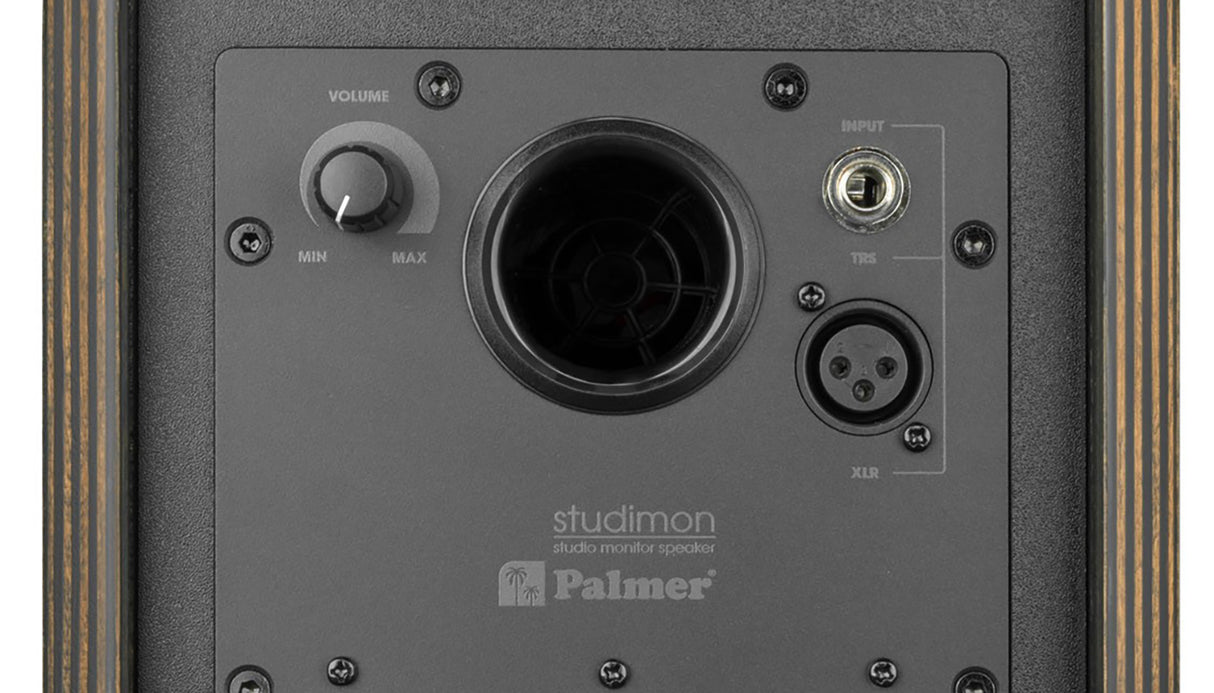

Controls
mains switch (on/off) , volume control
Indicators
orange (LED)

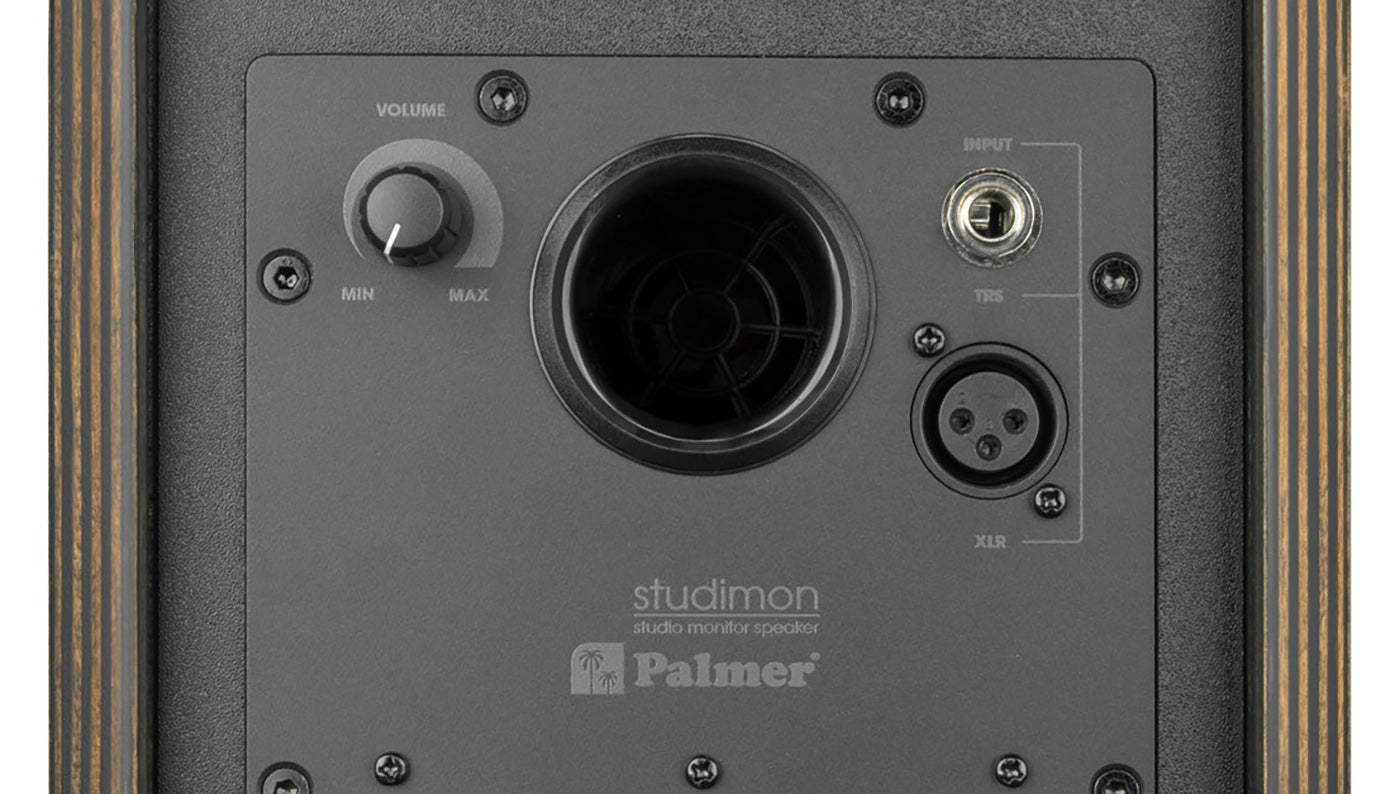

Line input connectors
6.3 mm stereo jack (balanced) , XLR (balanced)
Operating voltage
Switching power supply
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Cabinet material
Birch Plywood , MDF
Housing Wall Strength
15 mm
Cabinet surface
Laminated , stained
Cabinet colour
Black
Cabinet construction
vented
