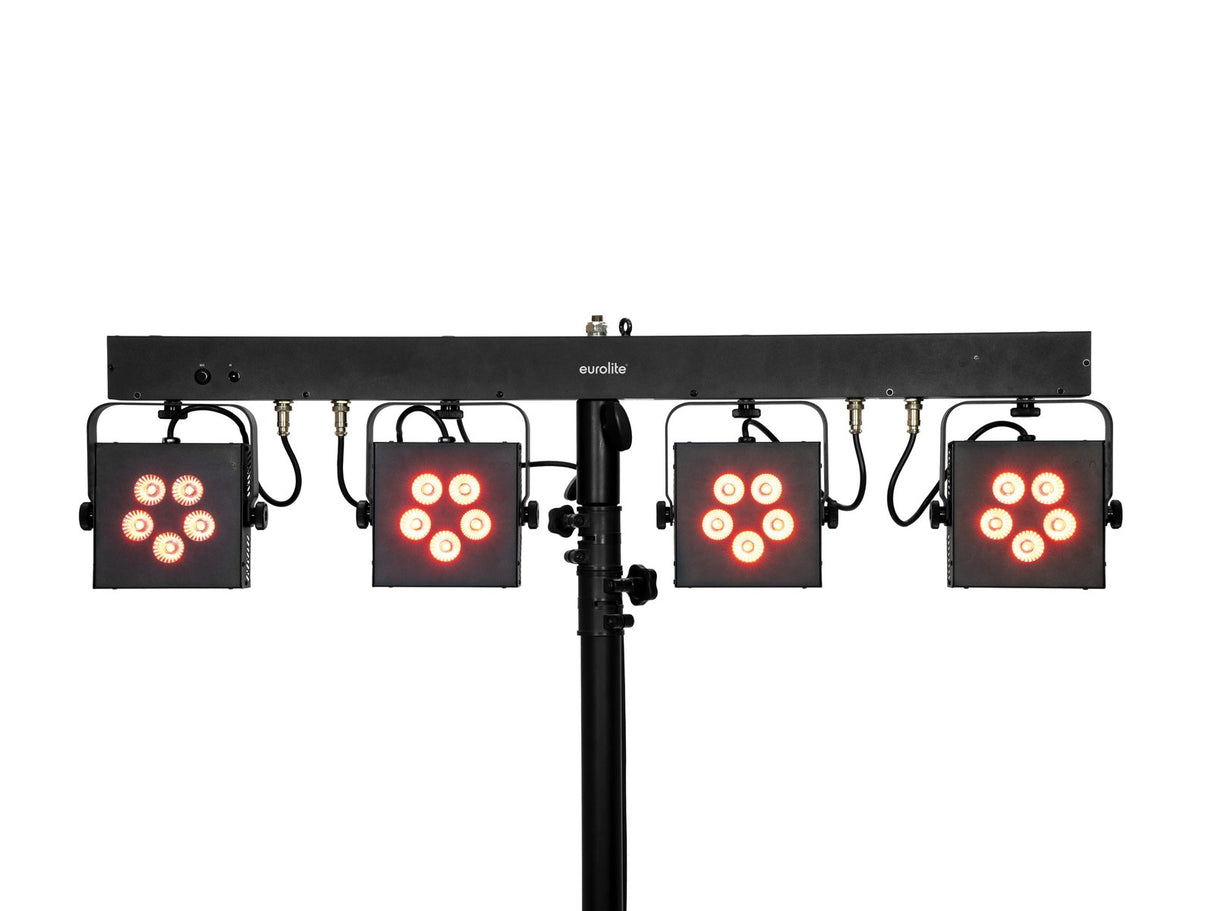

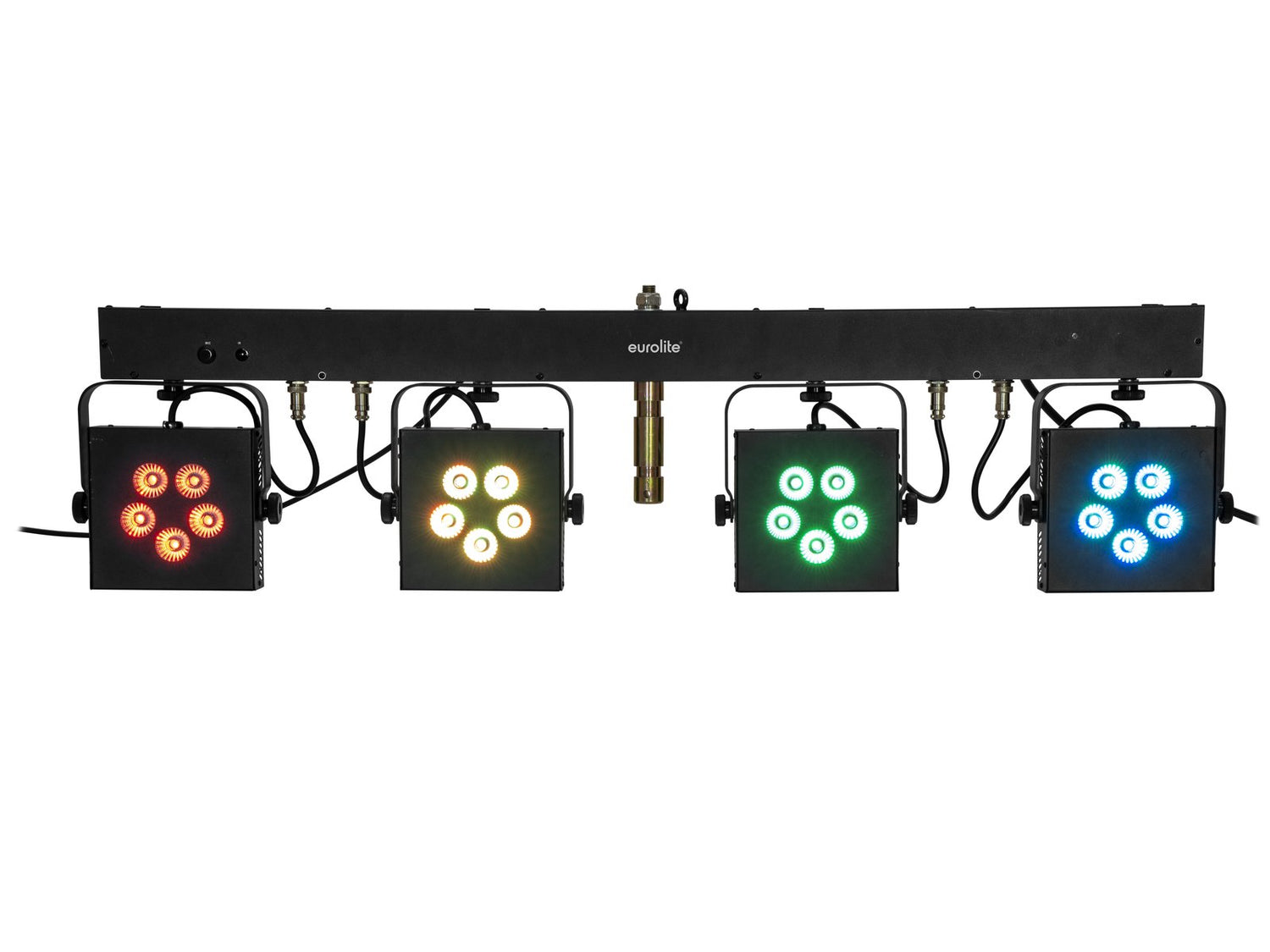

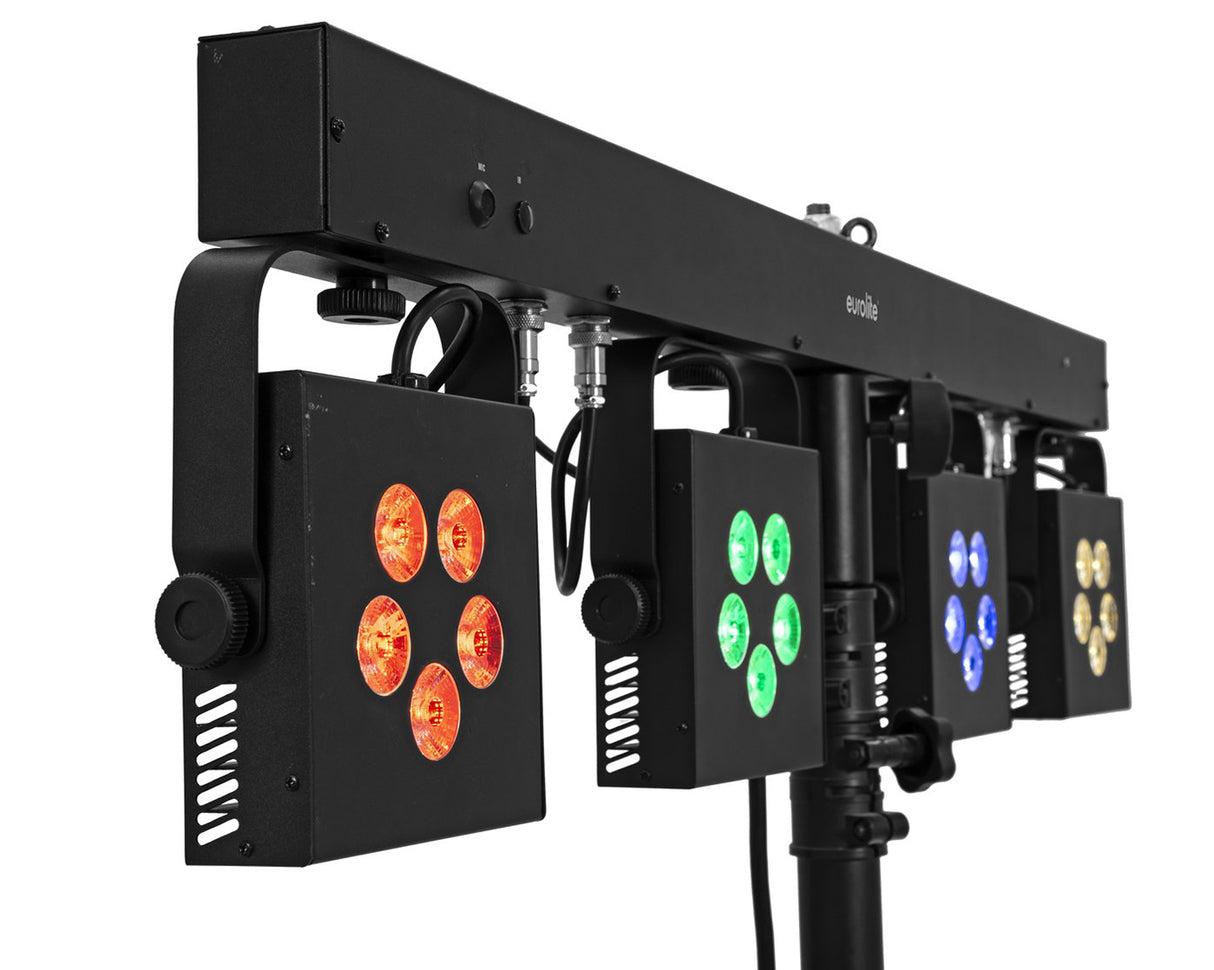

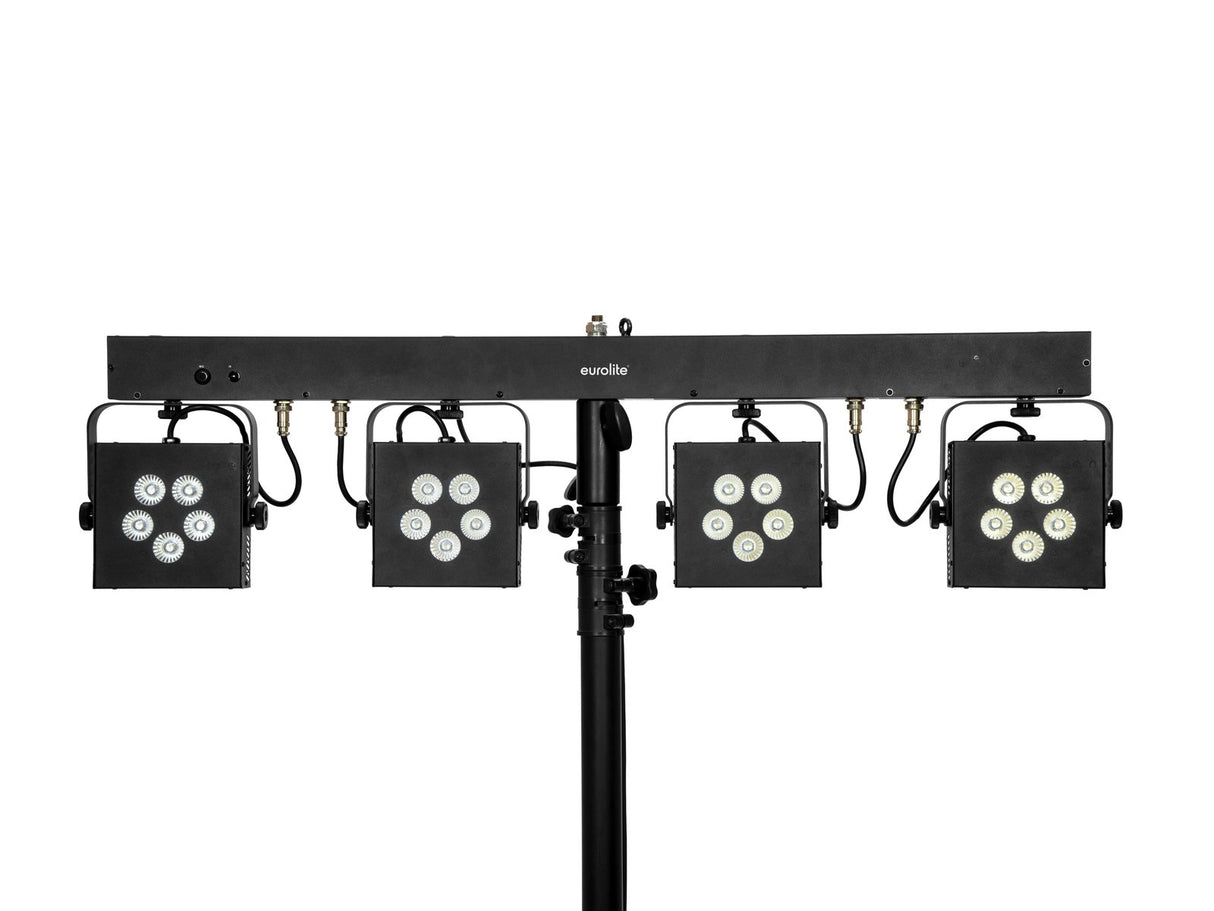

- DMX Light Bar with 4 powerful RGB+WW spots
- QuickDMX support
- 5 high-efficiency 7 W RGBWW LEDs (4-in-1) per spot
- Color and brightness can be adjusted individually for each spot directly on the control unit

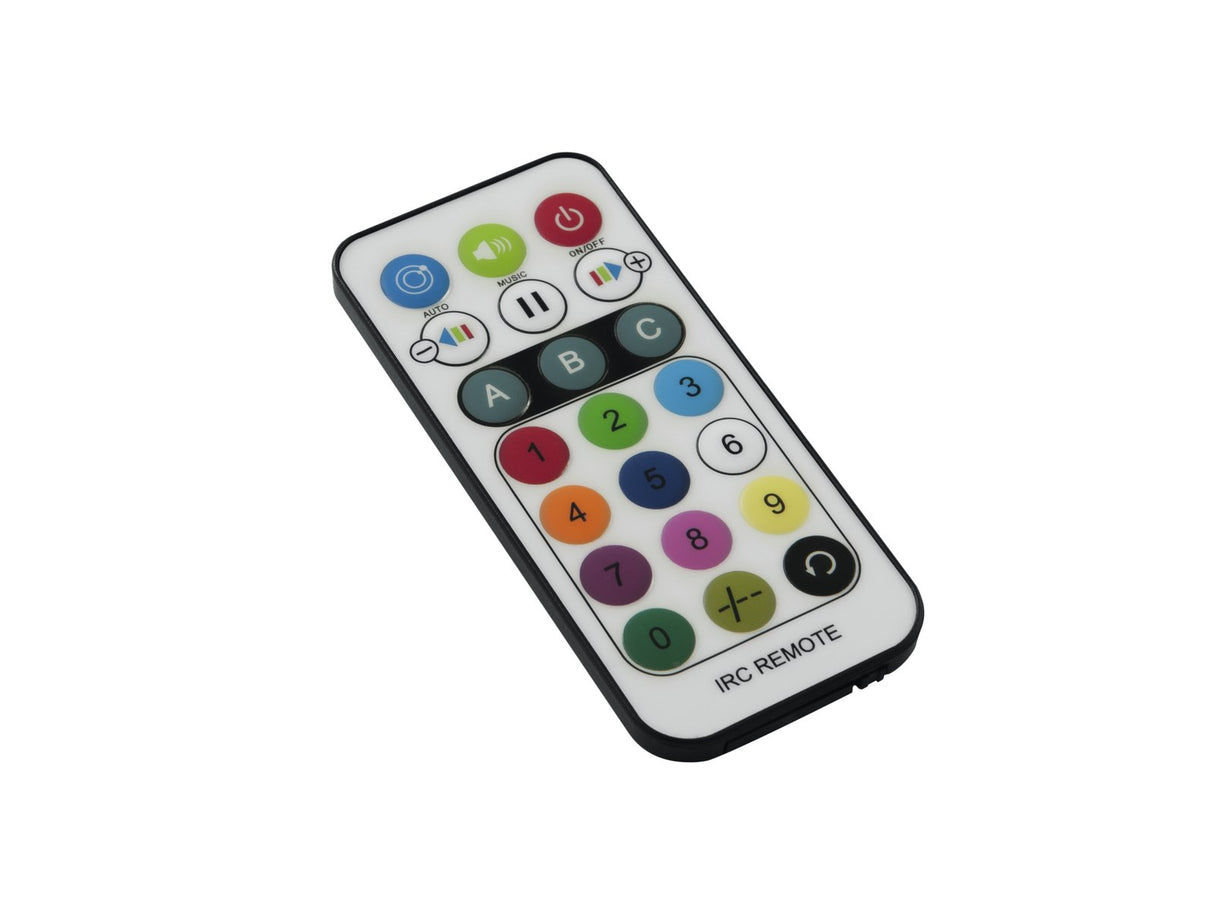

- Remote control included
- Software con programmi intelligenti
- Ultra-leggero, ideale per l'uso mobile
- Barra TV con controller DMX integrato
- Attacco TV per installazione su stativo

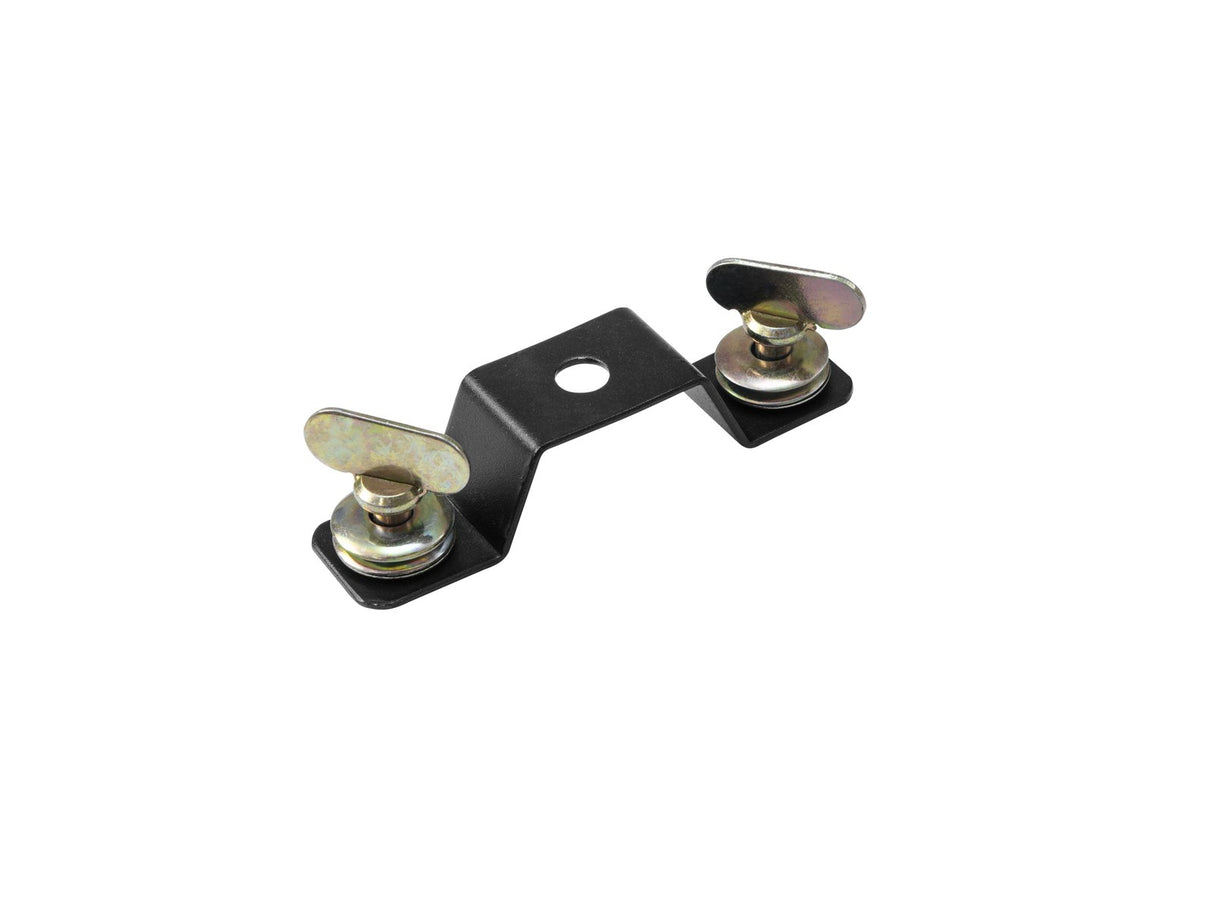

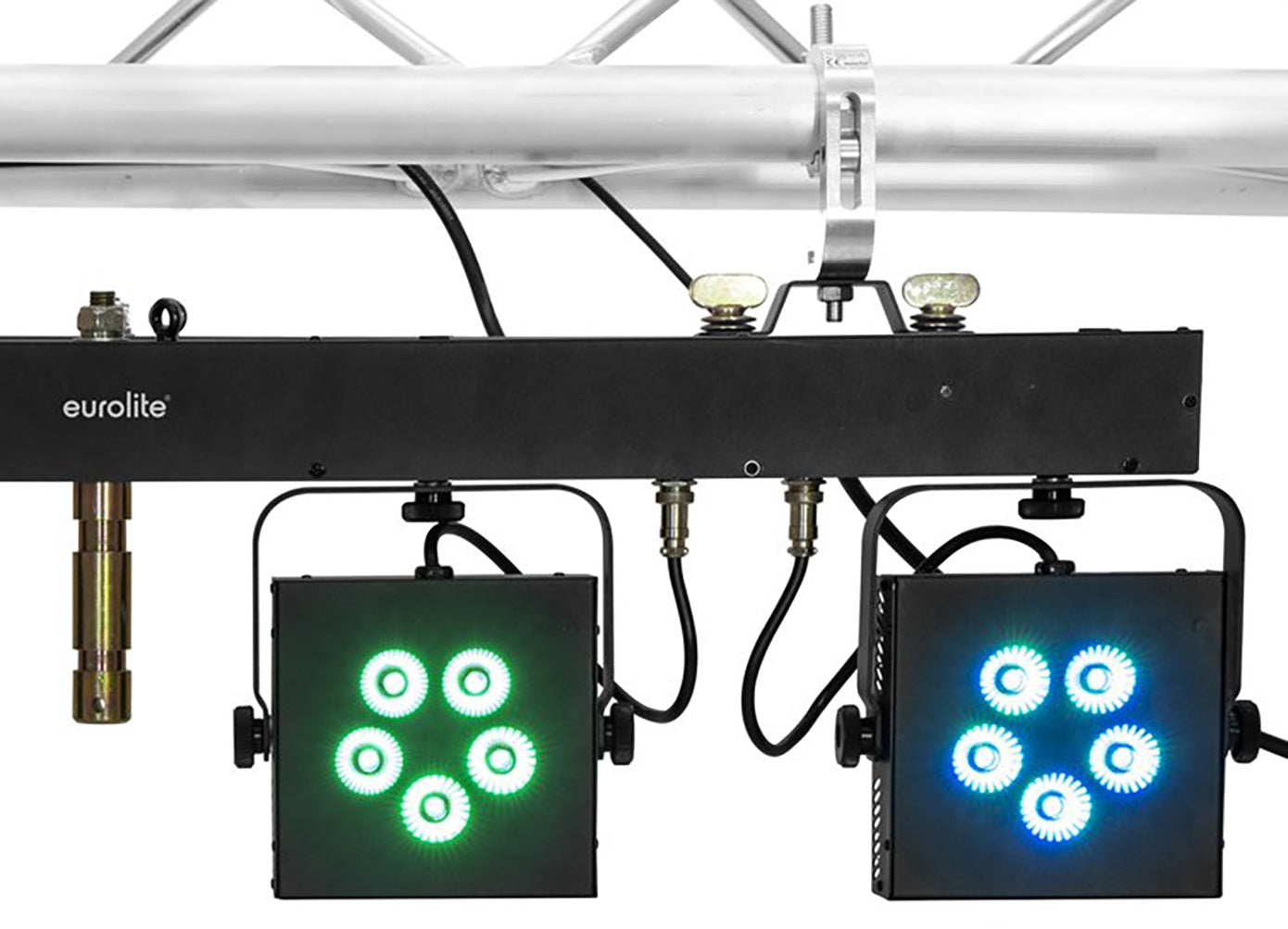

- Installazione rapida della truss tramite supporti omega a bloccaggio rapido
- Spot regolabili e inclinabili, con angolo di fascio di 16°

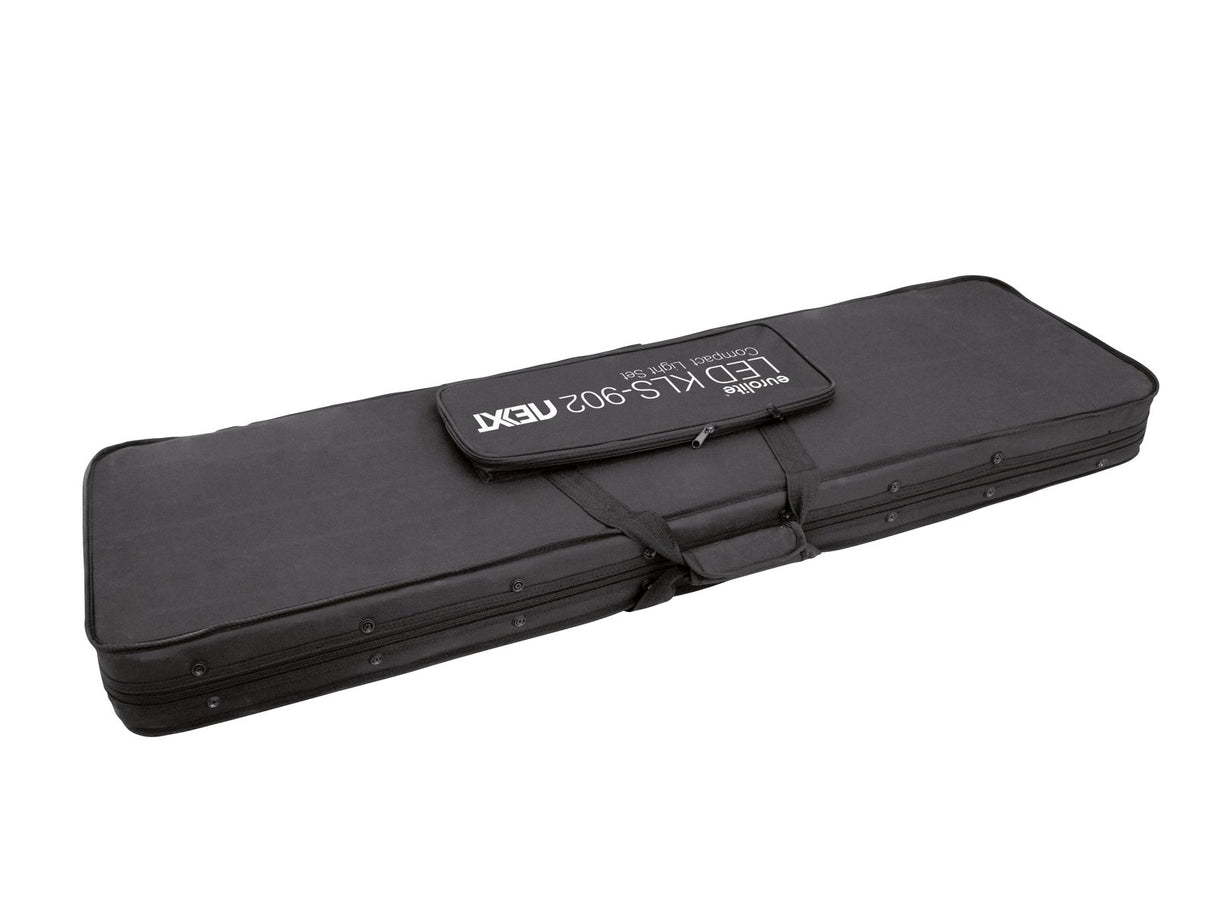

- Fornito preassemblato con borsa da trasporto pratica e telecomando
- Modalità auto, musica, colore, master/slave e DMX
- 20 programmi automatici e musicali incorporati
- Raffreddamento a convezione per un funzionamento silenzioso
- Indirizzamento e impostazione tramite pannello di controllo con display LED a 4 cifre
- Pronto per il collegamento con cavo di alimentazione e connettore PowerCon
- Batteria: 1 x Batteria a bottone 3.0 V CR2025 litio-manganese
Specifiche
Specifiche
-
ColorBlack
-
Weight (kg)
Altre specifiche
Altre specifiche
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 125 W
- IP classification: IP20

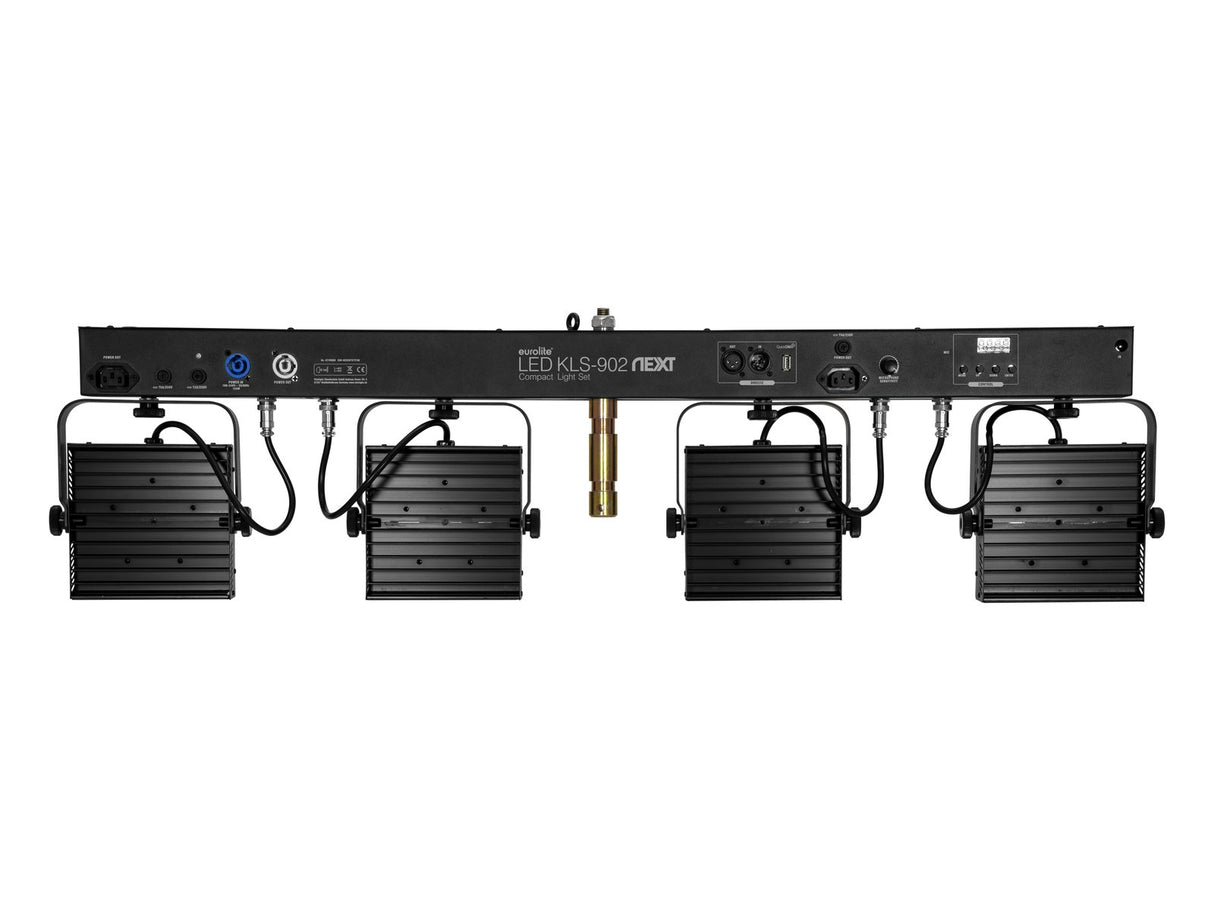

- Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
- Cable length: 3 m
- Power output:
- 2 x IEC connector (F) mounting version
- 1 x P-Con (gray), mounting version
- Device fuse: 5 x 20 mm, T 2 A Fuse replaceable
- Power output fuse per channel: 5 x 20 mm, T 5 A Fuse replaceable
- Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
- Lamp type: LED lamp
- LED: 5 x 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
- DMX channels: 3; 4; 6; 8; 16; 20; 18
- DMX input: 3-pin XLR (M) mounting version
- DMX output: 3-pin XLR (F) mounting version
- Cooling: Passive convection cooling
- Control:
- DMX
- Stand-alone
- Sound to light via Microphone
- IR remote control
- Wireless footswitch (optional)
- QuickDMX via USB (optional)
- W-DMX by wireless solution via USB (optional)
- CRMX by LumenRadio via USB (optional)
- Preprogrammed in:
- EASY SHOW 1
- LED EASY OPERATOR DELUXE
- Light Captain
- EASY SHOW 2
- Light´J
- EASY SHOW 3
- Beam angle: 16°
- Beam angle (1/2 peak): 16°
- Beam angle (1/10 peak): 32°
- Housing color: Black
- Attachment system: TV spigot Ø 28mm, Omega bracket
- Dimensions:
- Width: 1.08 m
- Depth: 6 cm
- Height: 28 cm
- Weight: 9.80 kg
- Noise classification: Class 1 (very slight noise, suitable for noise-sensitive environments)
