• Versatile bass amplifier
• 3 distinct voicings
• Lots of adjustment options
• 4 band EQ
• Store up to 6 presets

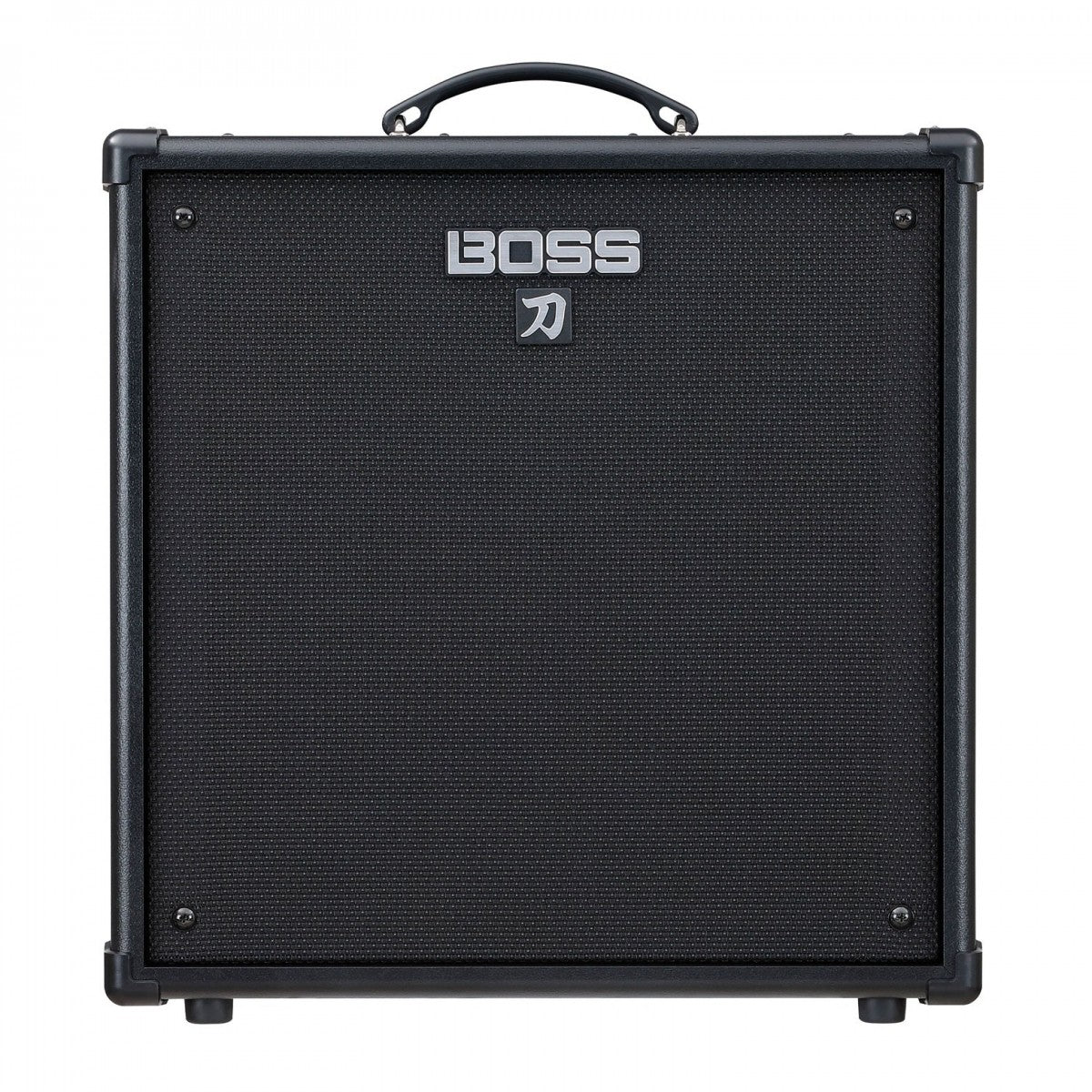

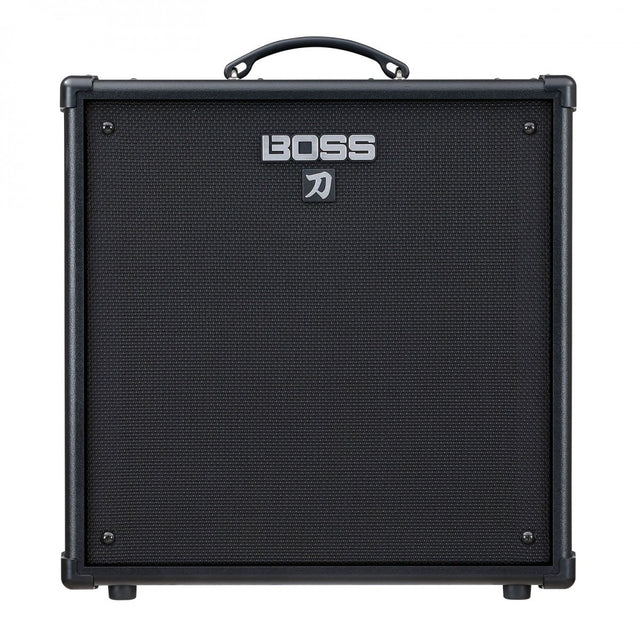

Boss Katana-110 Bass Amplifier

• Lots of versatile bass sound in a compact combo amp from Boss's new Katana series.
• Big sound from the well-playing 10" custom speaker and switchable 1" horn.
• Three distinct voicings: Vintage (great warmth and richness), modern (punchy and cleaner tone) and Flat.
• Fine-tune the sound and create the perfect sound profile with a wealth of tonal adjustment options.
• 4-band EQ with 4 independent sections (comp, drive, FX1/FX2).
• Store up to 6 user presets to quickly set the perfect sound.
• Multiple operating modes: full to 1W for standby mode.
• Play in silence via headphone/USB input.
• Supports Boss Tone Studio where you can further modify and personalise the sound settings.
• Also available in a 2x10" speaker version (Katana-220)

Rated Power Output

60 W

Nominal Input Level

INPUT: -10 dBu (1 M ohm)
POWER AMP IN: -10 dBu (20 k ohms)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm)

Speaker

25 cm (10 inches) x 1
TWEETER: x 1

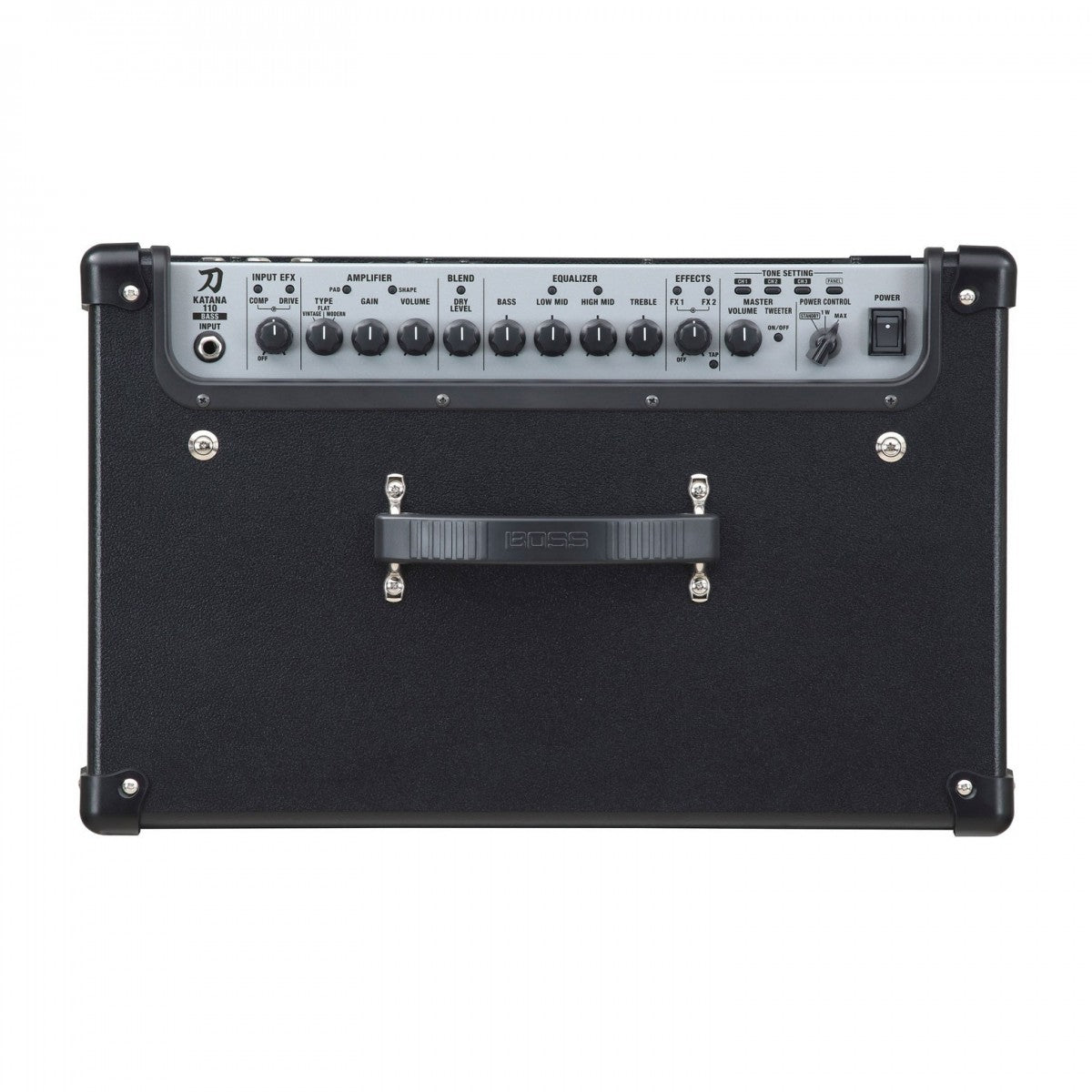

Controls

POWER switch
MASTER VOLUME knob
POWER CONTROL switch (STANDBY, 1 W, MAX)
TWEETER button

[INPUT EFX]
COMP button
DRIVE button
COMP knob
DRIVE knob

[AMPLIFIER]
PAD button
SHAPE button
TYPE knob (VINTAGE, FLAT, MODERN)
GAIN knob
VOLUME knob

[BLEND]
BLEND button
DRY LEVEL knob

[EQUALIZER]
LOW MID button
HIGH MID button
BASS knob
LOW MID knob
HIGH MID knob
TREBLE knob

[EFFECTS]
FX1 button
FX2 button
TAP button
FX1 knob
FX2 knob

[TONE SETTING]
CH1 button
CH2 button
CH3 button
PANEL button

[BALANCED OUT]
GND LIFT switch (OFF, ON)
SELECT (POST, PRE, DIRECT)

Indicators

COMP
DRIVE
PAD
SHAPE
BLEND
LOW MID
HIGH MID
FX1
FX2
TAP
CH1
CH2
CH3
PANEL
TWEETER

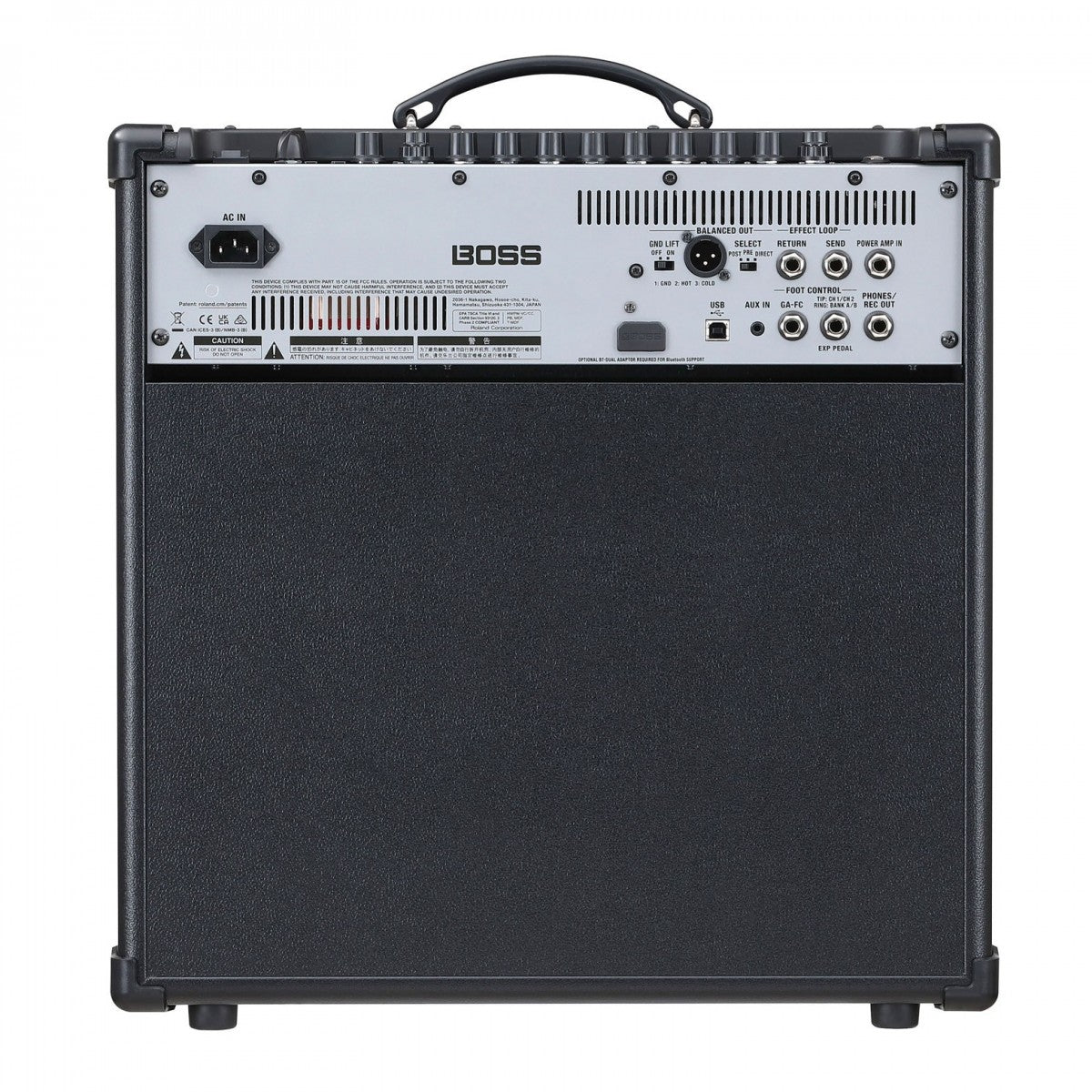

Connectors

INPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
BALANCED OUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
SPEAKER OUT 4 ohms jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: Bluetooth Audio MIDI Dual Adaptor
AC IN jack

Power Consumption

77 W

Accessories/

Owner's manual
Power cord
GA-FC sticker

Options (sold separately)

Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC)
Bluetooth Audio MIDI Dual Adaptor (Model BT-DUAL)

SIZE AND WEIGHT

Width

470 mm
18-9/16 inches

Depth

300 mm
11-13/16 inches

Height

500 mm
19-11/16 inches

Weight

16.8 kg
37 lbs 0.6 oz
