• High-performance active speaker
• Class D amplification of 2000 W
• Full range speaker design
• SPL 127 dB, Frequency response 60 Hz - 20 kHz
• DSP modes

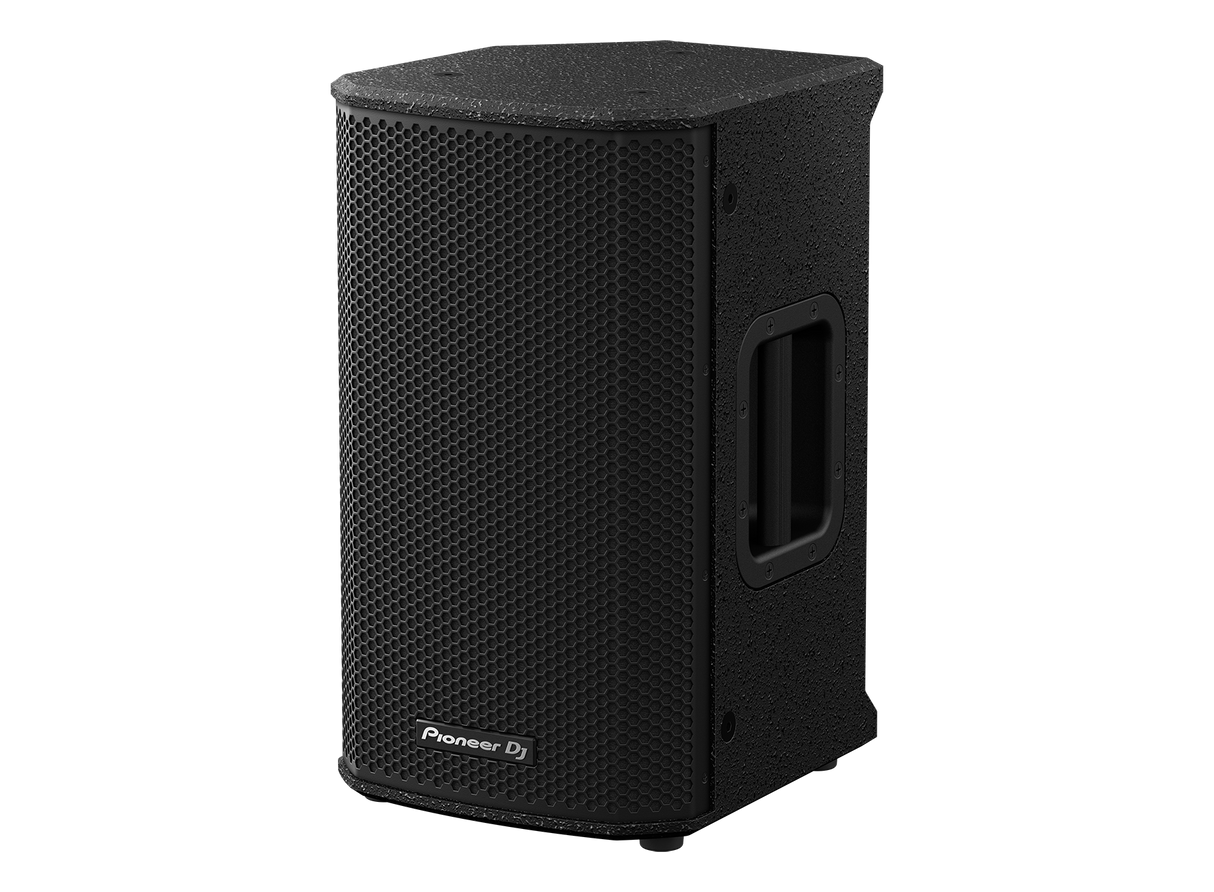

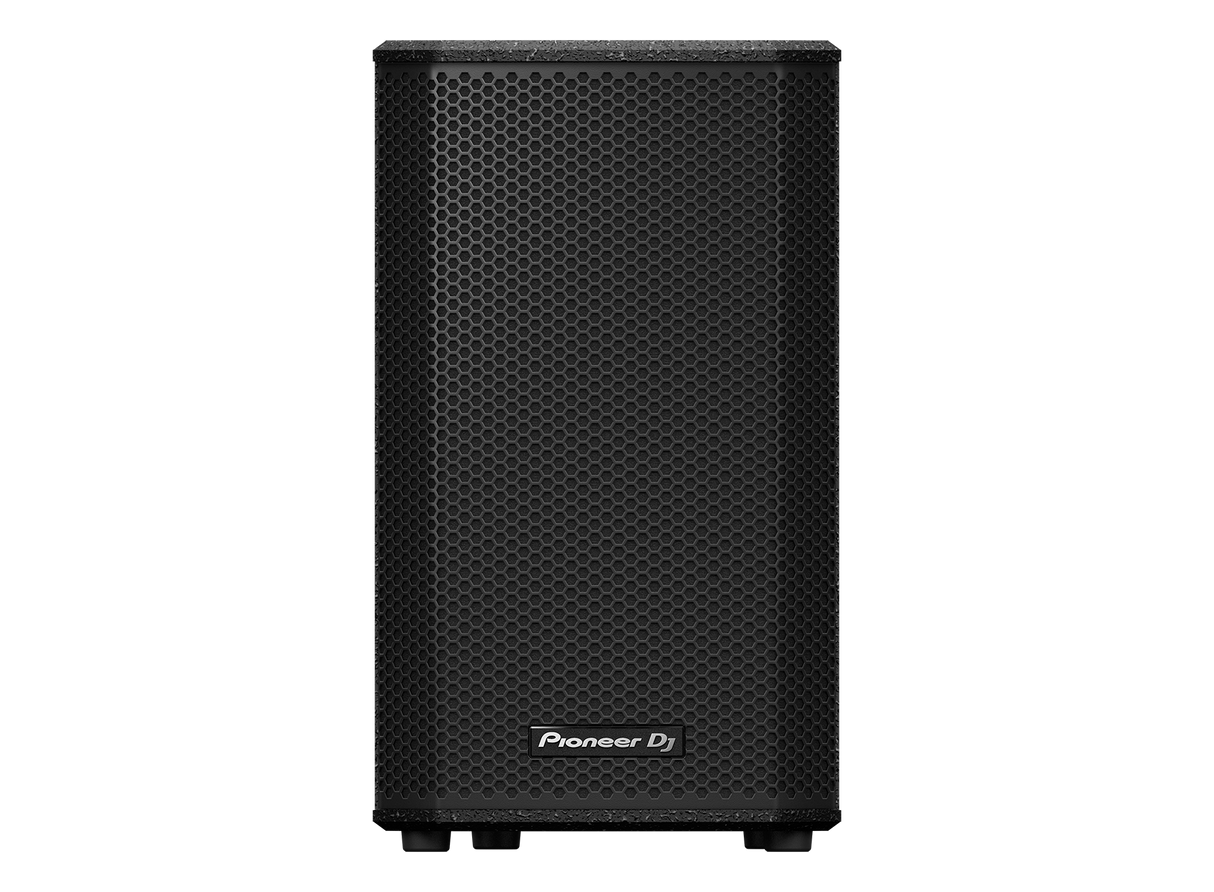

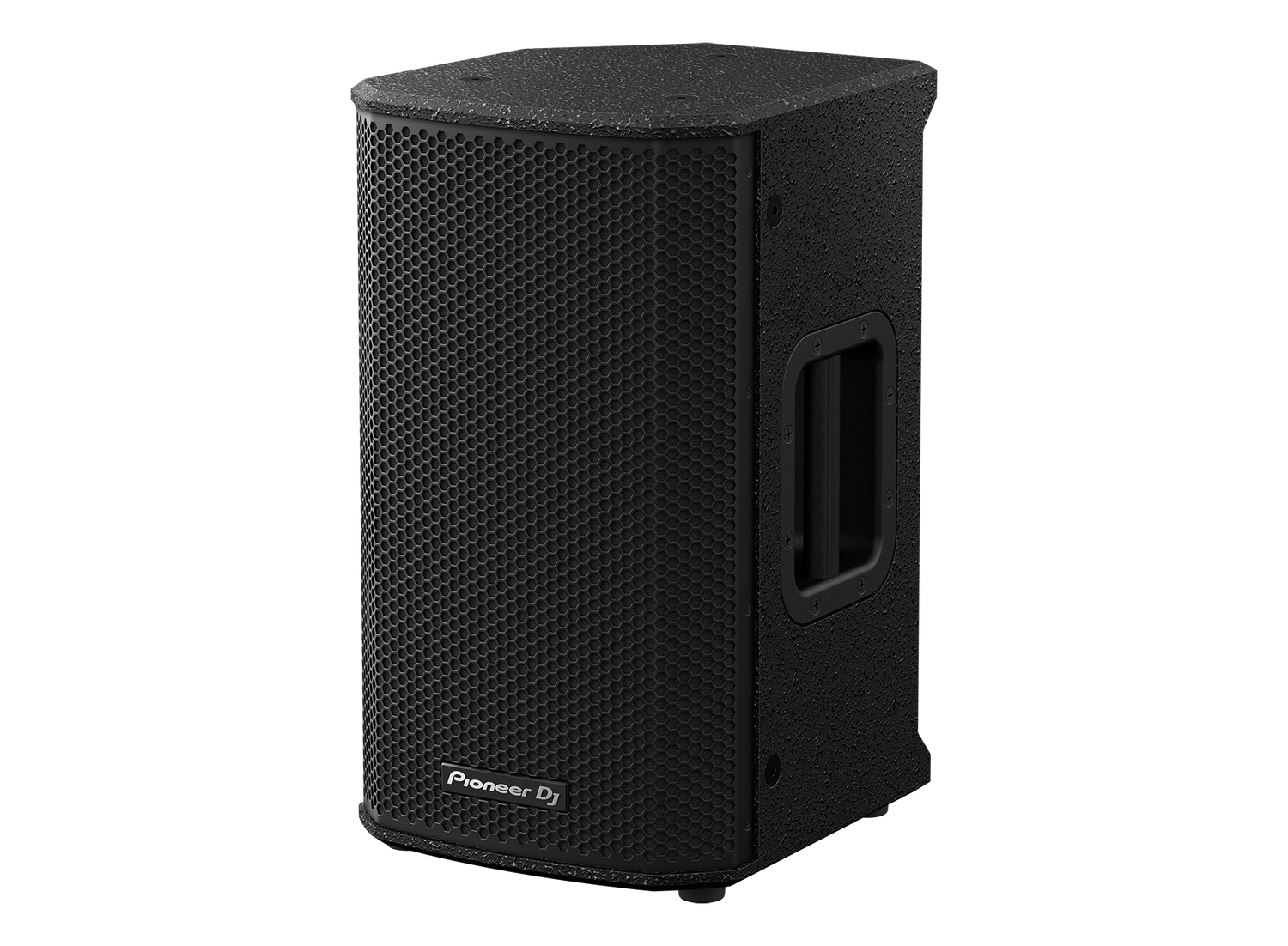

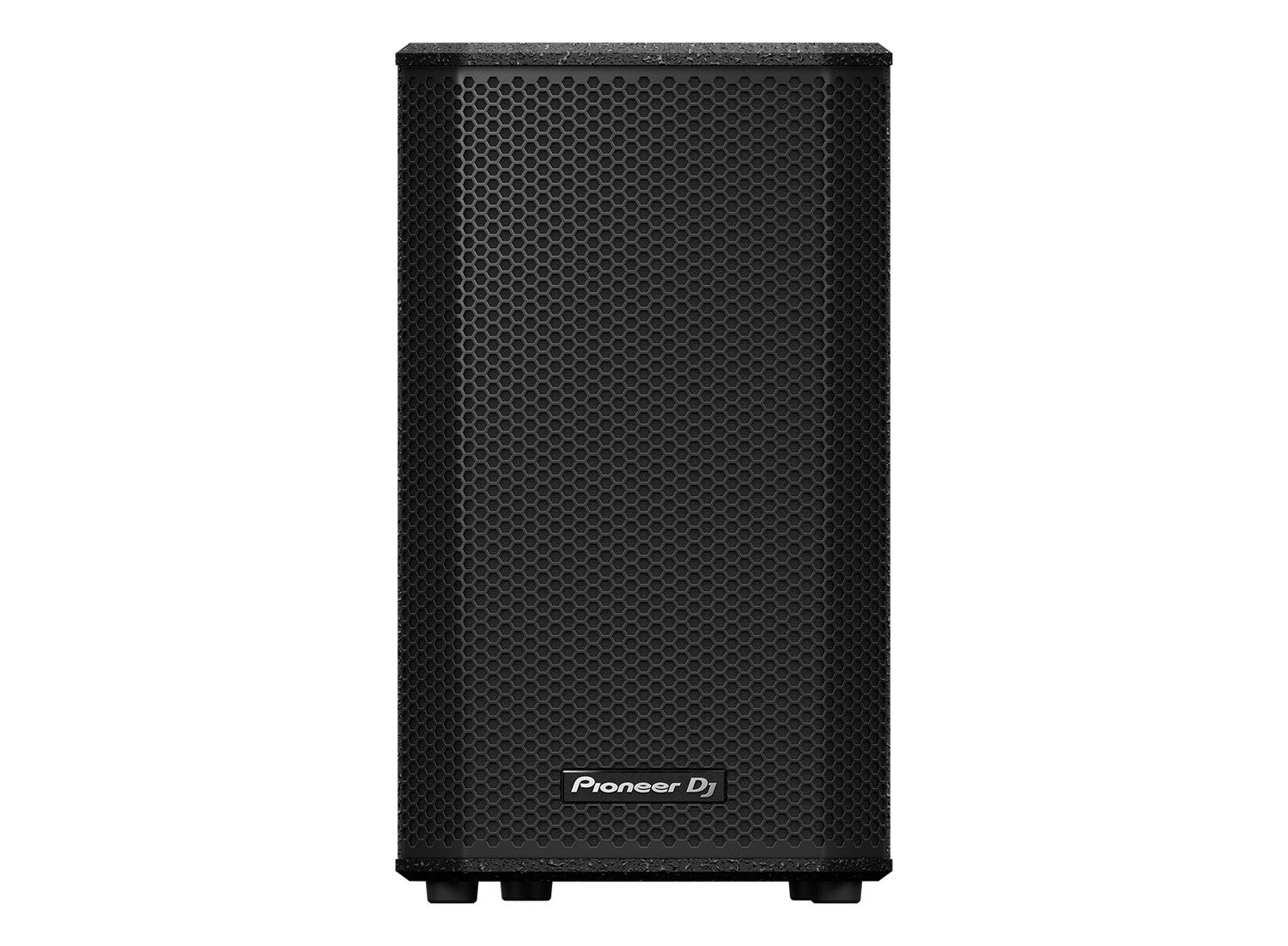

Pioneer DJ XPRS82 Active Speaker

• High-performance active speaker ideal for DJs, live use, fixed installations and more.
• Powerful 2000 W Class D amplification.
• Full range speaker design with 8" woofer, 2" voice coil with 1" exit compression driver and 1.75" voice coil.
• Max SPL of 127 dB - plenty of headroom.
• Frequency response 60 Hz - 20 kHz.
• 1 x Mic/Line combo input.
• 1 x Hi-Z/ Line combo input.
• 3.5mm stereo mini jack input.
• Mix (XLR) output.
• Solidly constructed for indoor and outdoor use.
• 4 built-in DSP modes - Live, Music, Speech and Studio Monitoring.
• 16 user DSP Modes that can be saved.

Type
8 inch 2-way active loudspeaker

Amplifier Output
Class D
2000W peak

Accessories
XPRS82 x 1 (not sold as a pair)
Power cord
Quick start guide
Important Safety Precautions

Supported voltages
110 V to 240 V (50 Hz/60 Hz)

Power consumption
800 W

Width
272.7 mm

Height
460 mm

Depth
302 mm

Weight
13.2 kg

Frequency Range
60 - 20000 Hz

DSP modes
Factory Presets (4 types)
Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
EQ (4-band equalizer)
User Programs (16 presets)

DSP presets modes
Factory presets
LIVE
MUSIC
SPEECH
MONITOR

Maximum Sound Pressure
127 dB

Cross Over Frequency
2 kHz

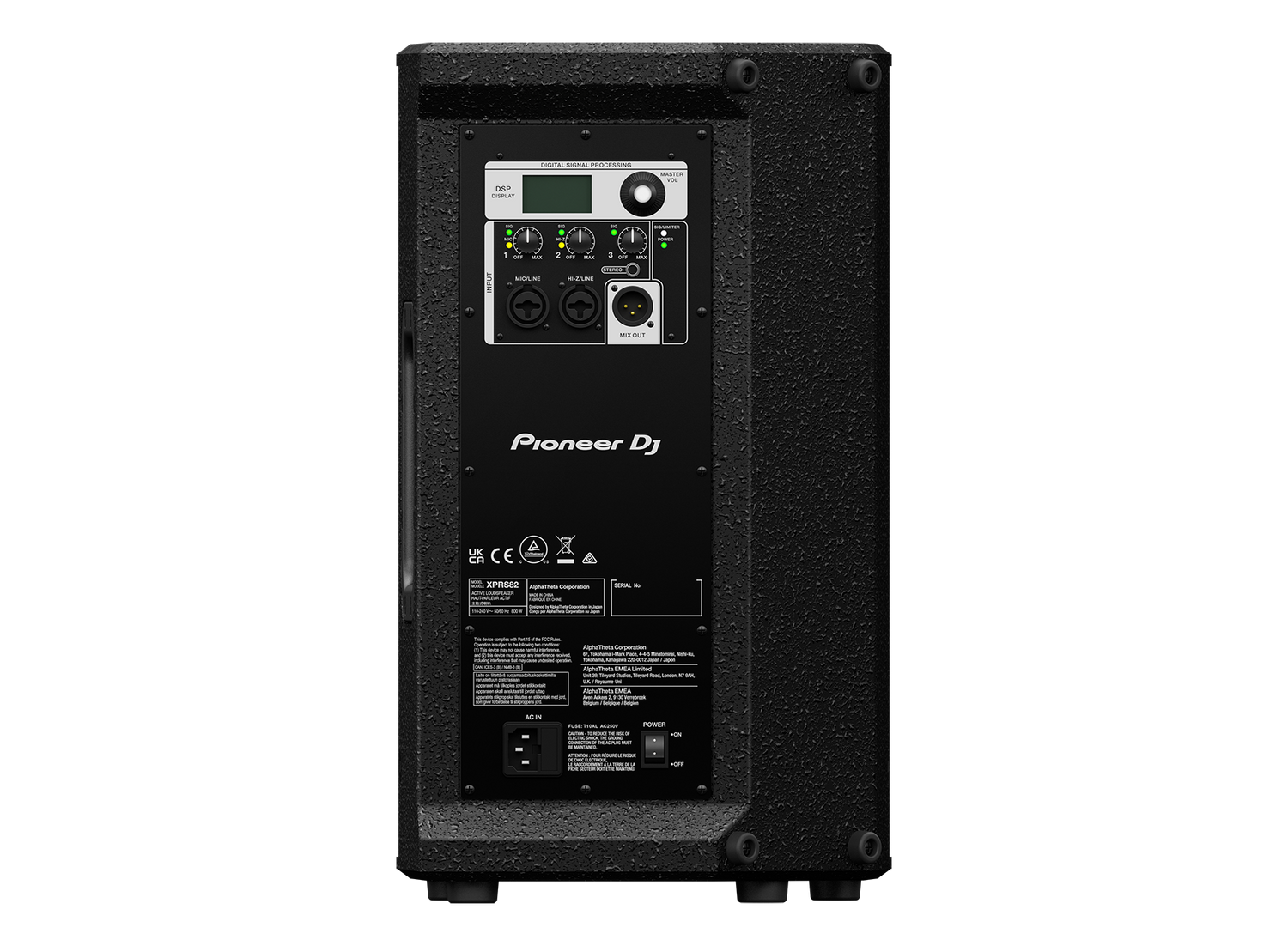

Inputs
MIC / LINE x 1 (Combo)
HI-Z / LINE x 1 (Combo)
3.5 mm stereo mini jack x 1 (Unbalanced input)

Outputs
MIX (XLR)

Driver
8 inch ferrite LF cone driver
1.75 inch compression driver

Finish
Black paint, Rubber feet

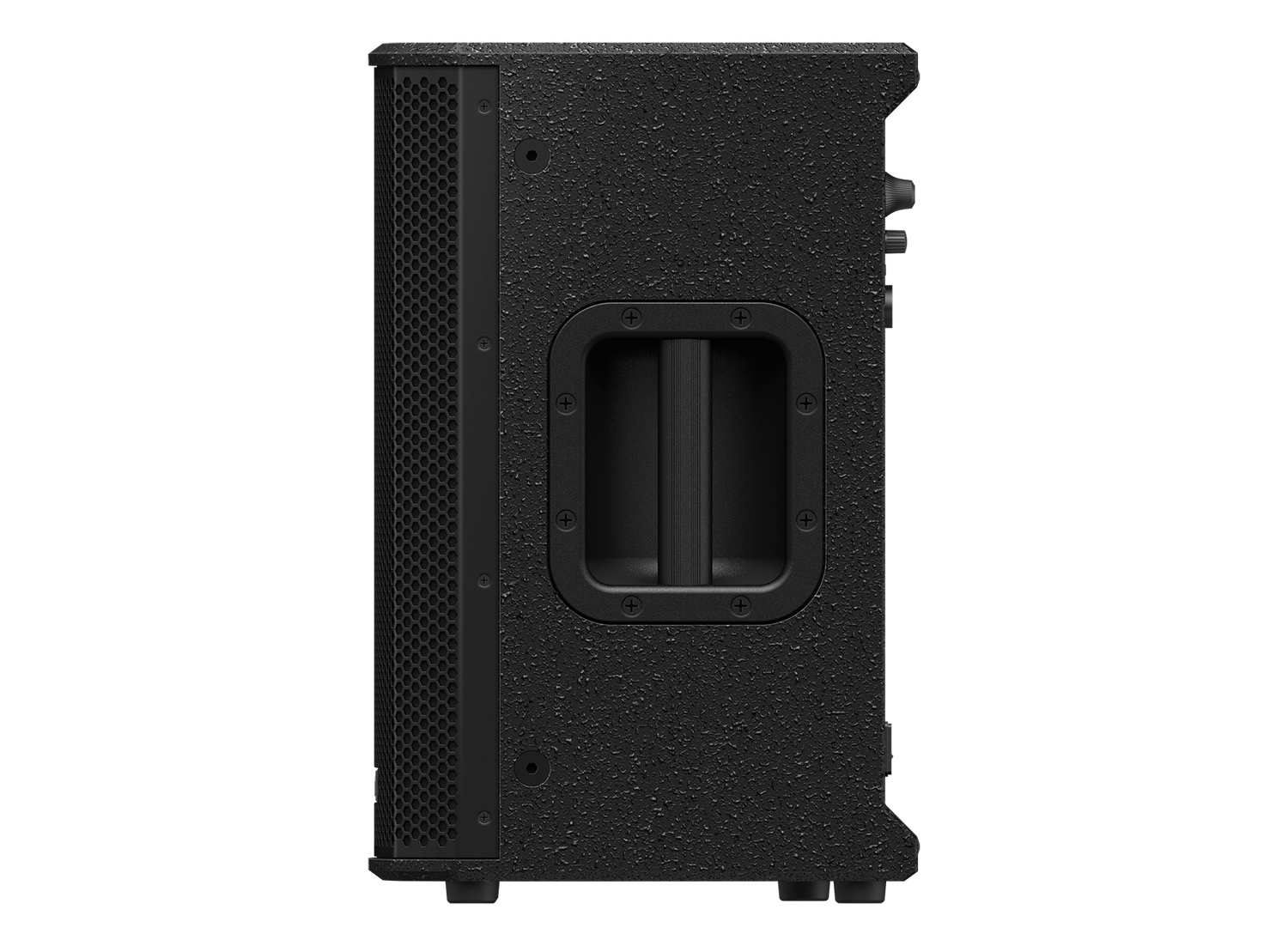

Handle
1 metal handle (on left side)

Pole socket
35 mm socket

Rigging point
10x M10

Enclosure
Plywood (TSCA)

Amplifier Protection
Thermal limiting
Digital Limiter
Digital compressor

Driver Protection
Short circuit protection

Power unit Protection
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection
