• 10" full range active speaker
• 10" woofer
• 2.5" voice coil with a 1" exit compression driver
• 1.75" voice coil
• Superb sonic performance
• SPL)of 129 dB
• Frequency range from 50 Hz up to 20 kHz
• Powerful Class D amplification of 2000 W
• 16 User DSP Modes, 4 presets

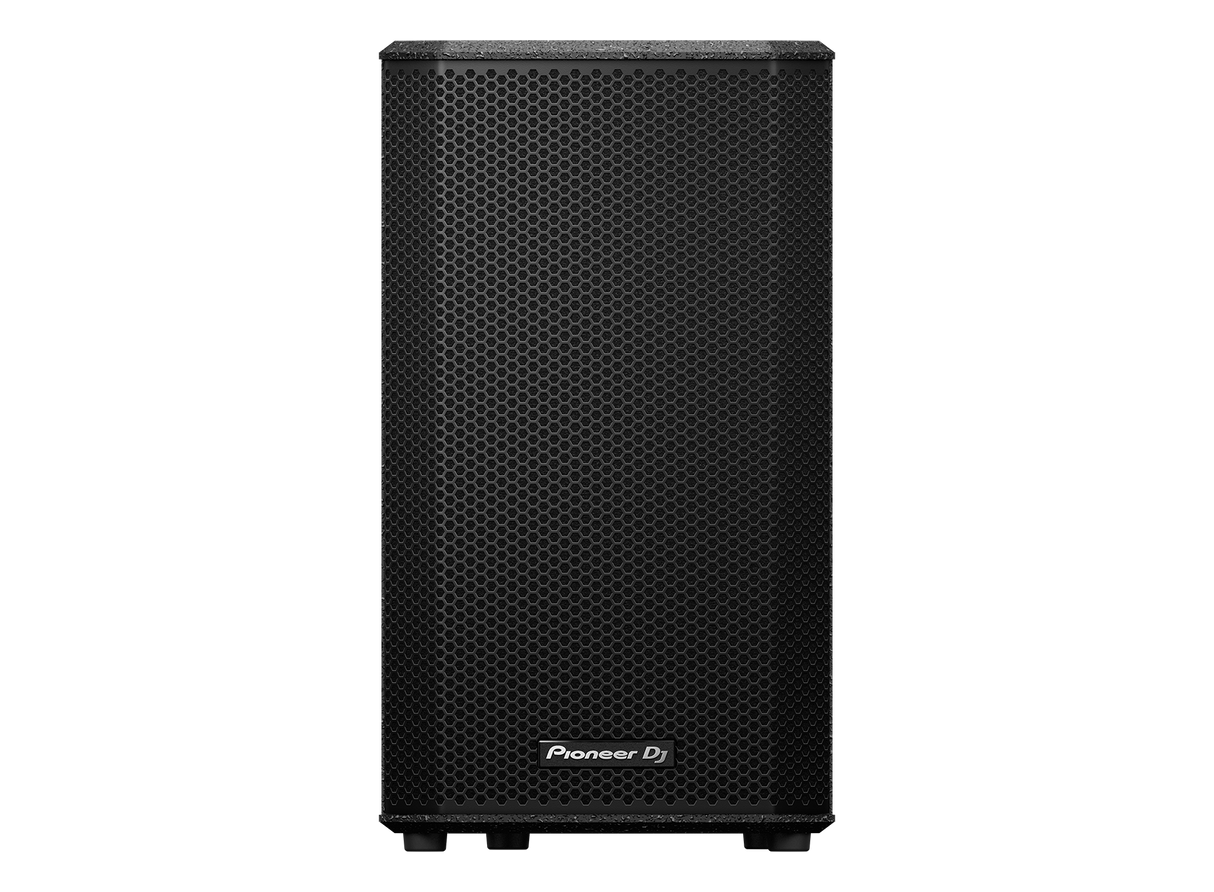

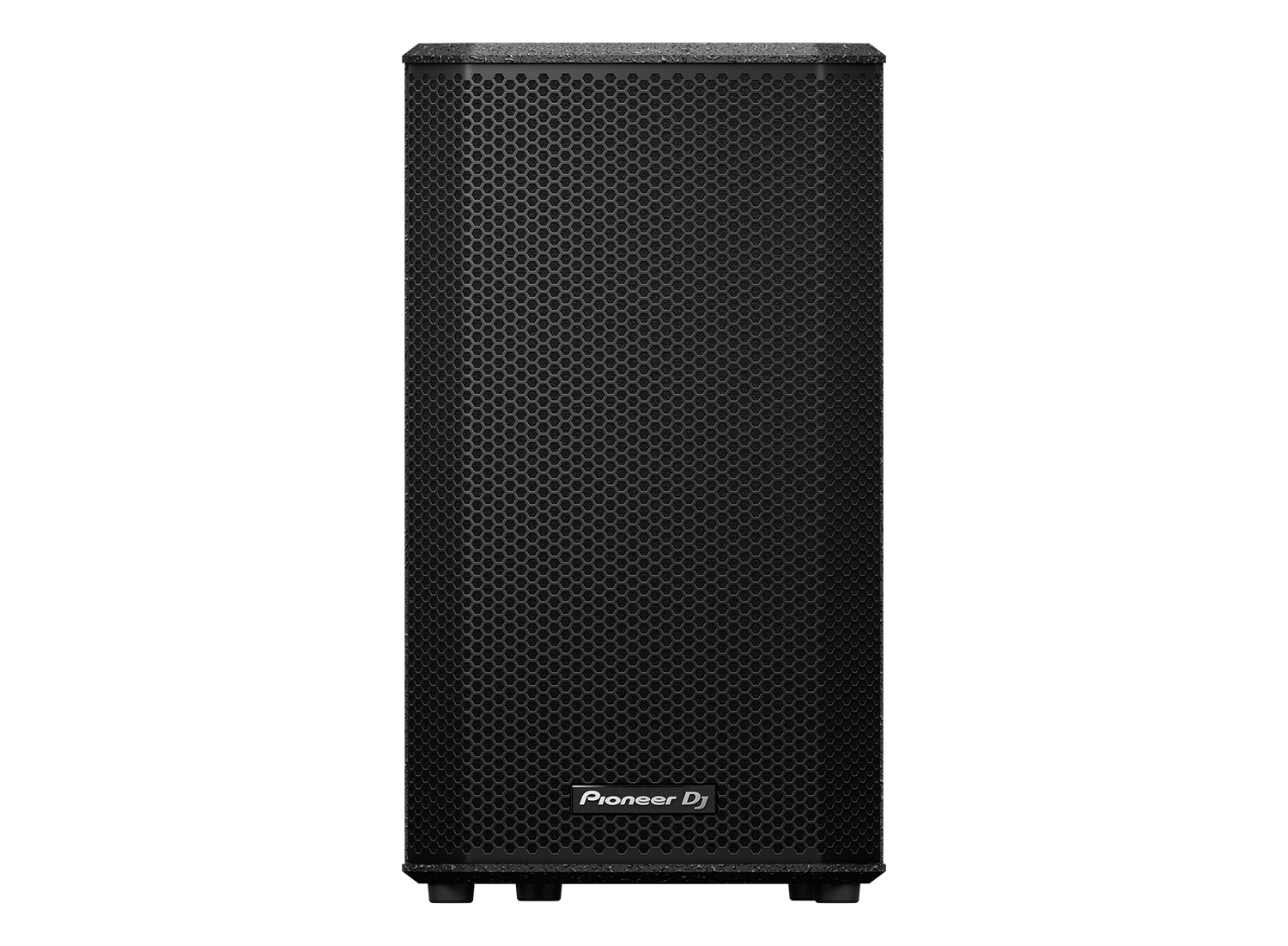

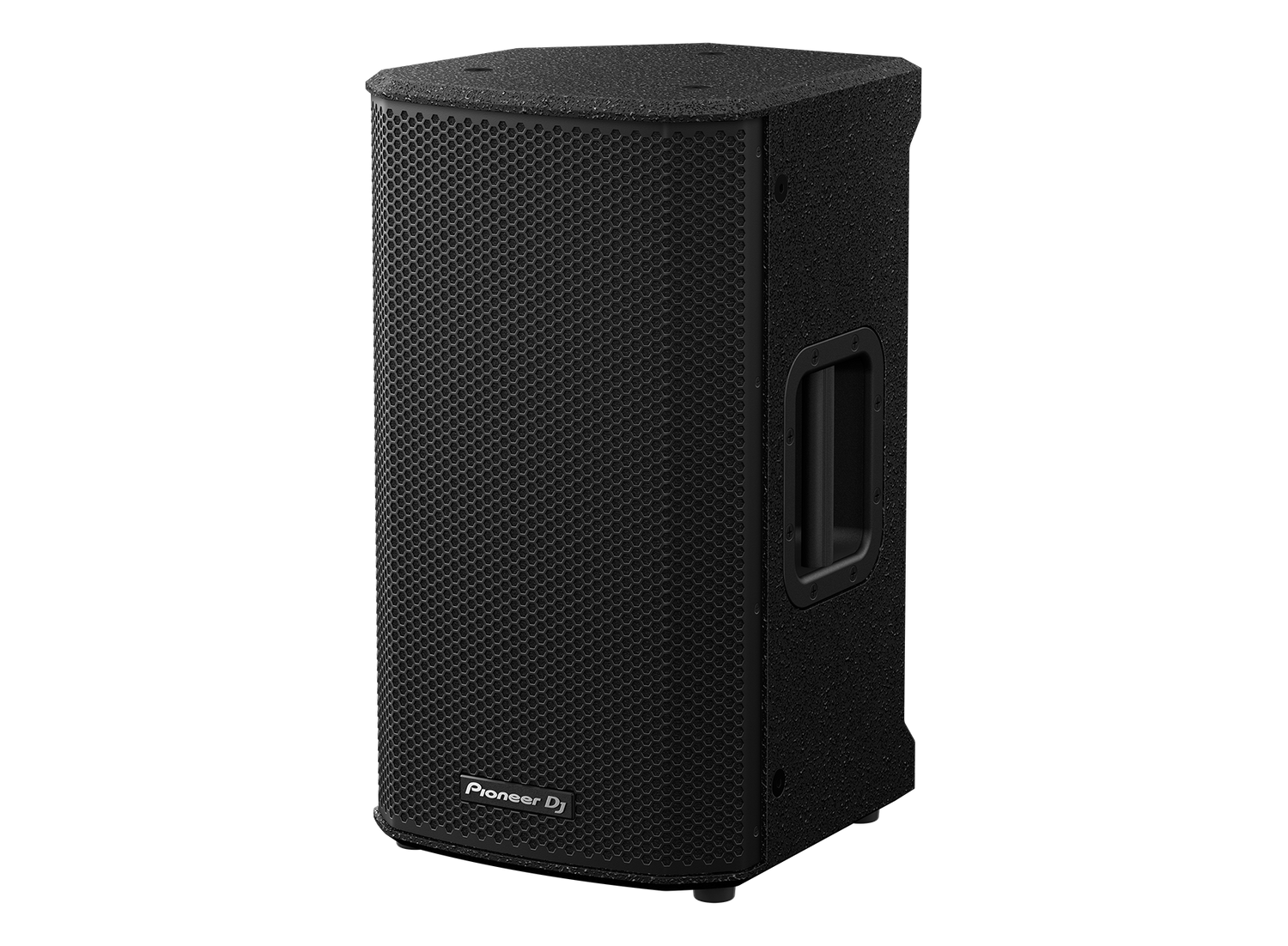

Pioneer DJ XPRS102 Active speaker

• 10" full range active speaker.
• The combination of a 10" woofer, a 2.5" voice coil with a 1" exit compression driver and 1.75" voice coil gives you a superb sonic performance.
• Max sound power level (SPL) of 129 dB, and a frequency range from 50 Hz up to 20 kHz.
• Accurate and clear sound reproduction.
• Powerful Class D amplification of 2000 W.
• 16 editable User DSP Modes that can be saved, in addition to 4 presets (Live, Music, Speech and Studio Monitoring).
• Ruggedly constructed enclosure that can handle life on the road.

Main Features
Type - 10 inch 2-way active loudspeaker
Amplifier Output - Class D 2000W peak

What's in the box
XPRS102 x 1 (not sold as a pair)

Power d cord
Quick start guide
Important Safety Precautions

Specifications
Supported voltages
110 V to 240 V (50 Hz/60 Hz)

Power consumption
800 W

Frequency Range
50 - 20000 Hz

Width
11.77 in

Height
20.47 in

Depth
12.2 in

Weight
34.17 lb

System characteristic
DSP modes

Factory Presets (4 types)

Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)

EQ (4-band equalizer)

User Programs (16 presets)

DSP presets modes

Factory presets

LIVE
MUSIC
SPEECH
MONITOR

Maximum Sound Pressure
129 dB

Cross Over Frequency
2 kHz

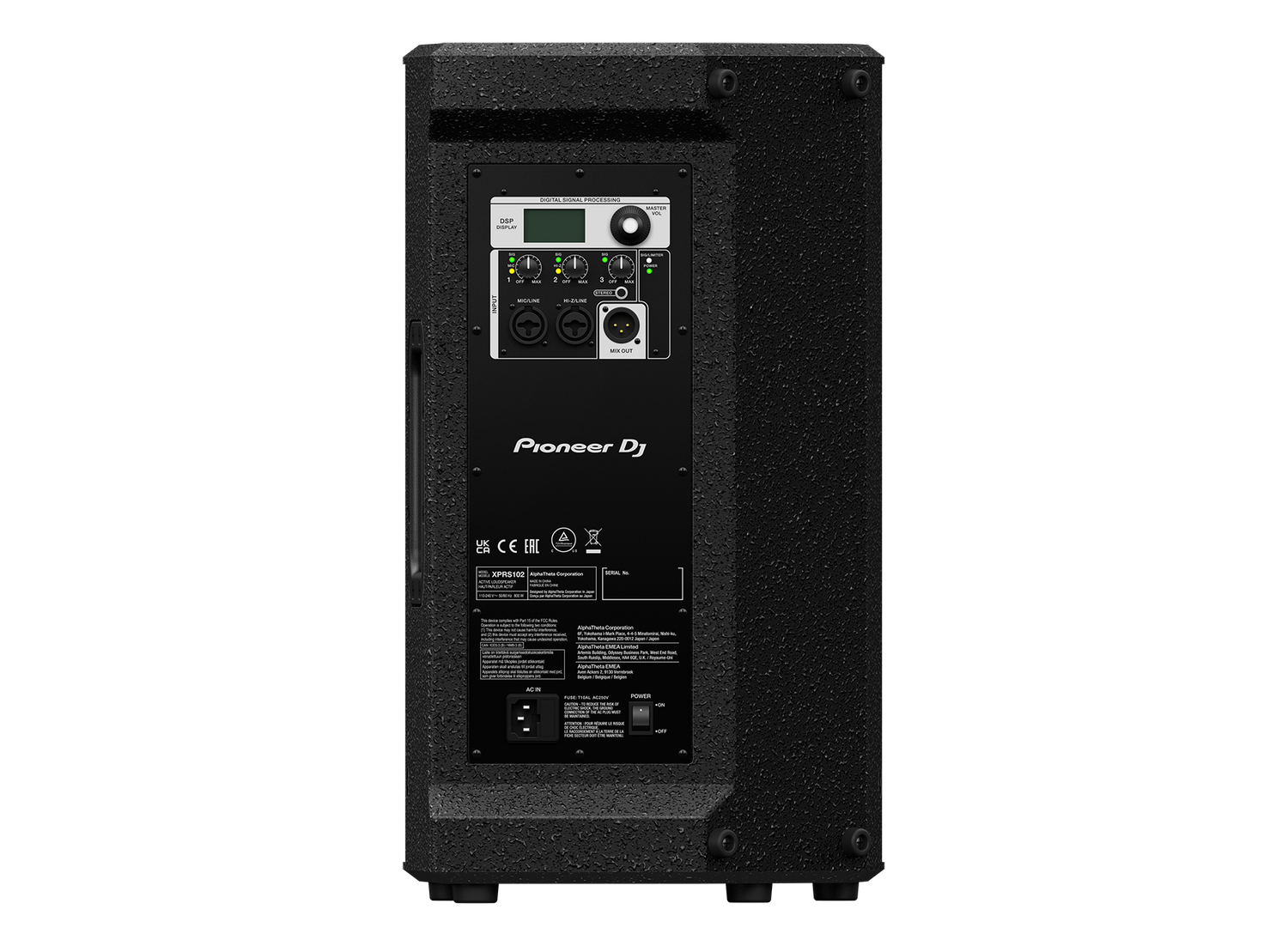

Terminals

nputs
MIC / LINE x 1 (Combo)
HI-Z / LINE x 1 (Combo)
3.5 mm stereo mini jack x 1 (Unbalanced input)

Outputs
MIX (XLR)

Speaker
Driver
10 inch ferrite LF cone driver
1.75 inch compression driver

Finish
Black paint, Rubber feet

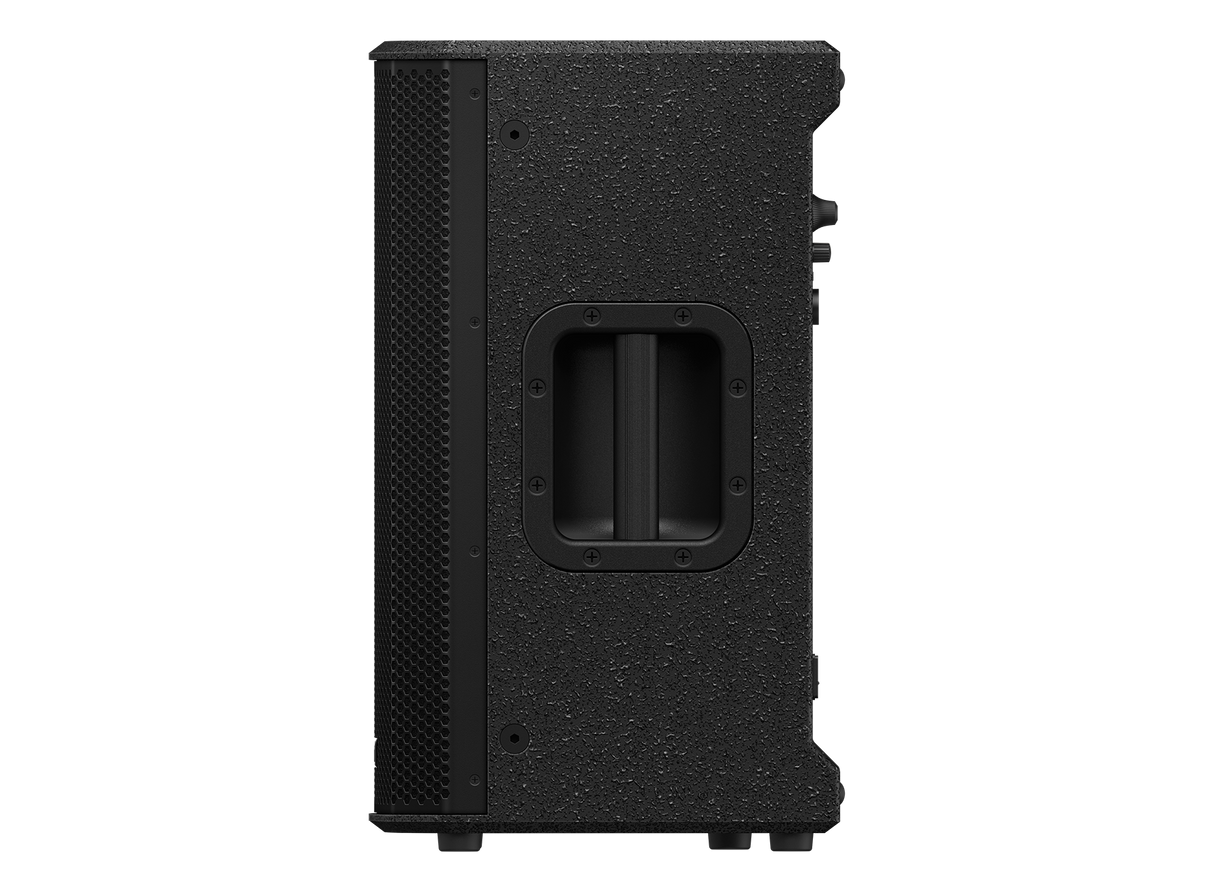

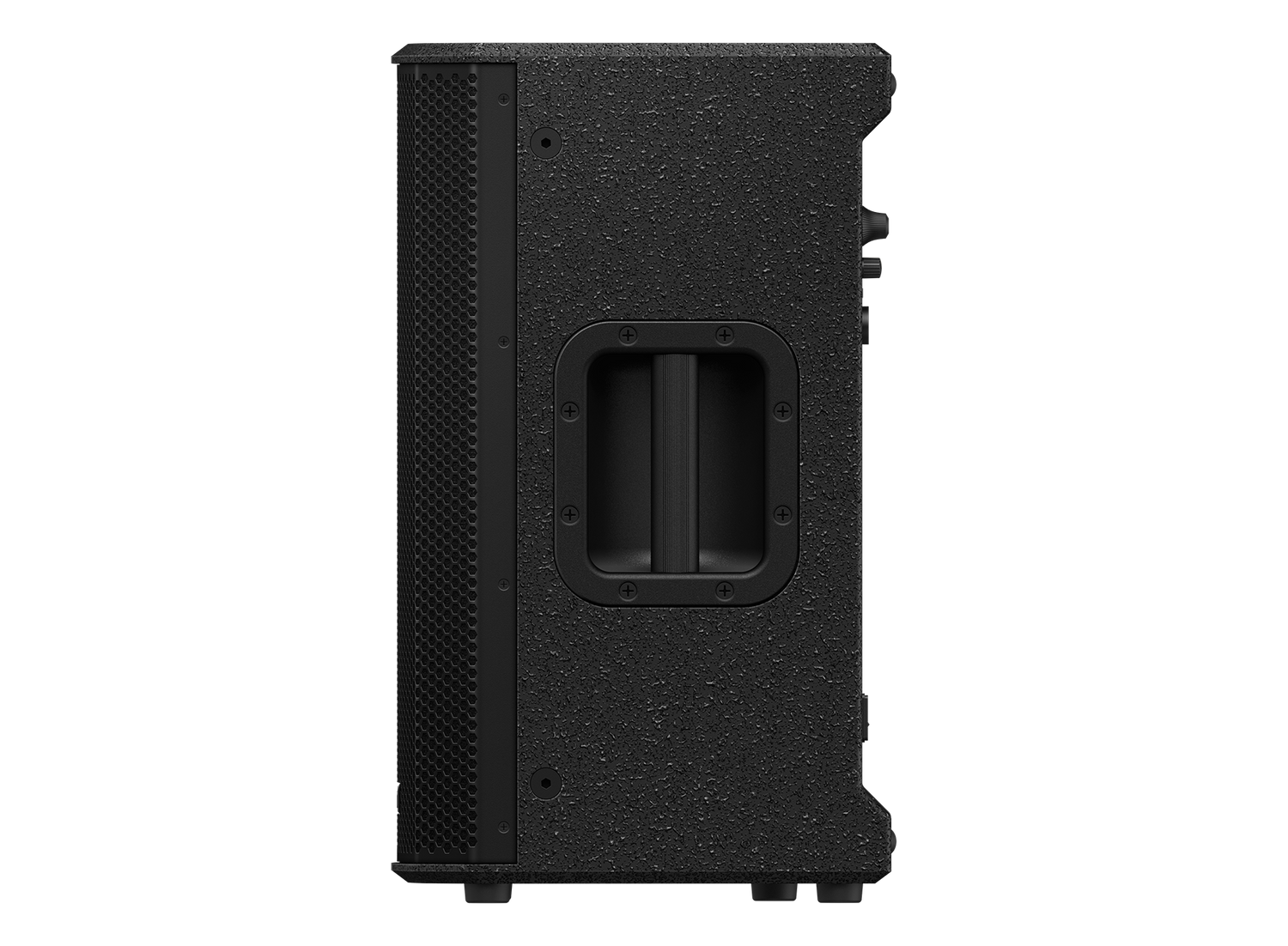

Handle
1 metal handle (on left side)

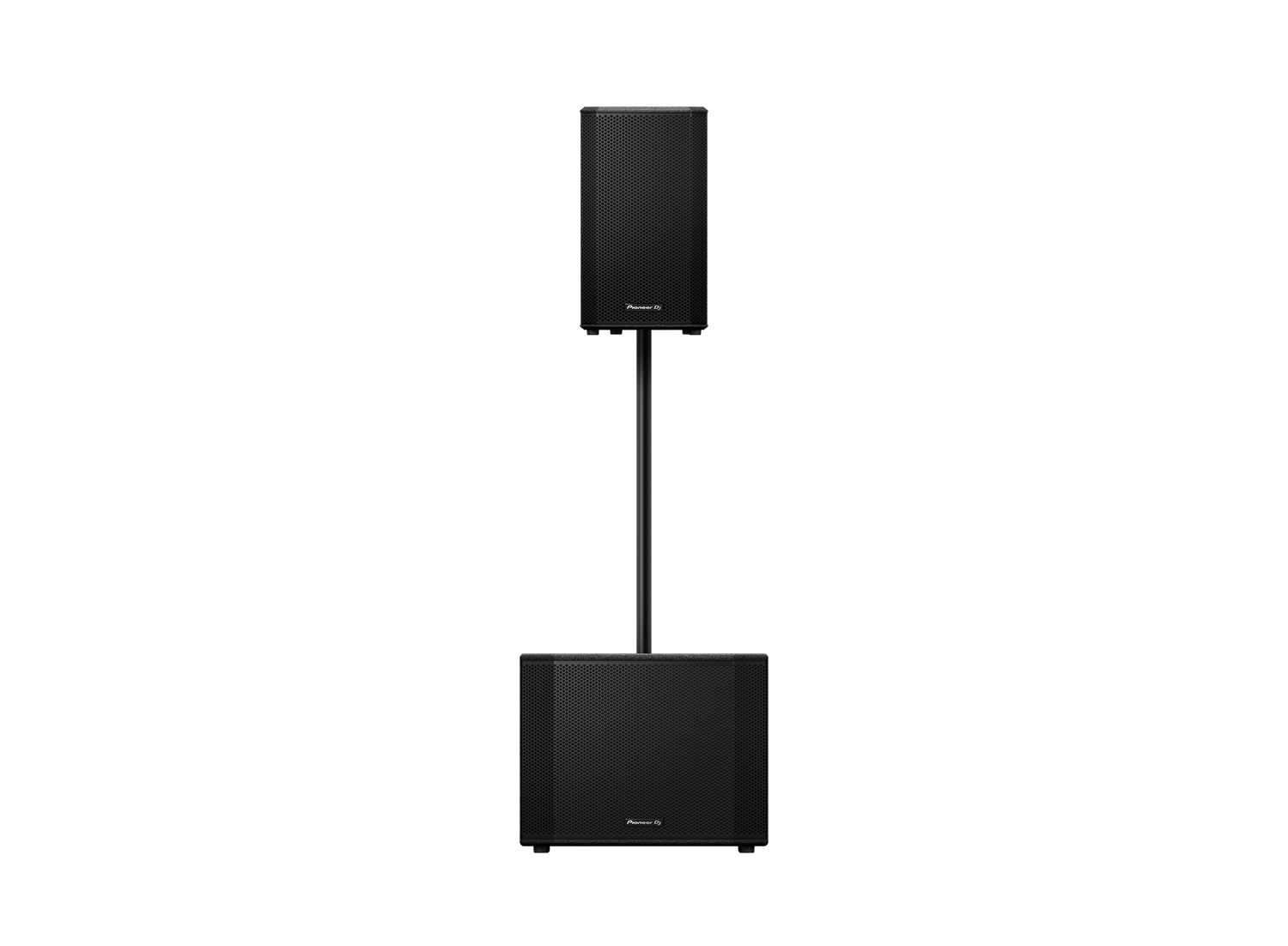

Pole socket
35 mm socket

Rigging point
10x M10

Enclosure
Plywood (TSCA)

Protection
Amplifier Protection
Thermal limiting
Digital Limiter
Digital compressor
Driver Protection
Short circuit protection
Power unit Protection
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection
