• Cool active full range speaker
• 12" woofer, 3" voice coil with 1" exit compression driver and 1.75" voice coil
• Superb full range sound
• For bands, DJ use etc
• Frequency range of 48Hz to 20 kHz
• Maximum SPL of 131 db
• Powerful Class D amplification - 2000 W
• 16 editable User DSP Modes
• Rugged construction

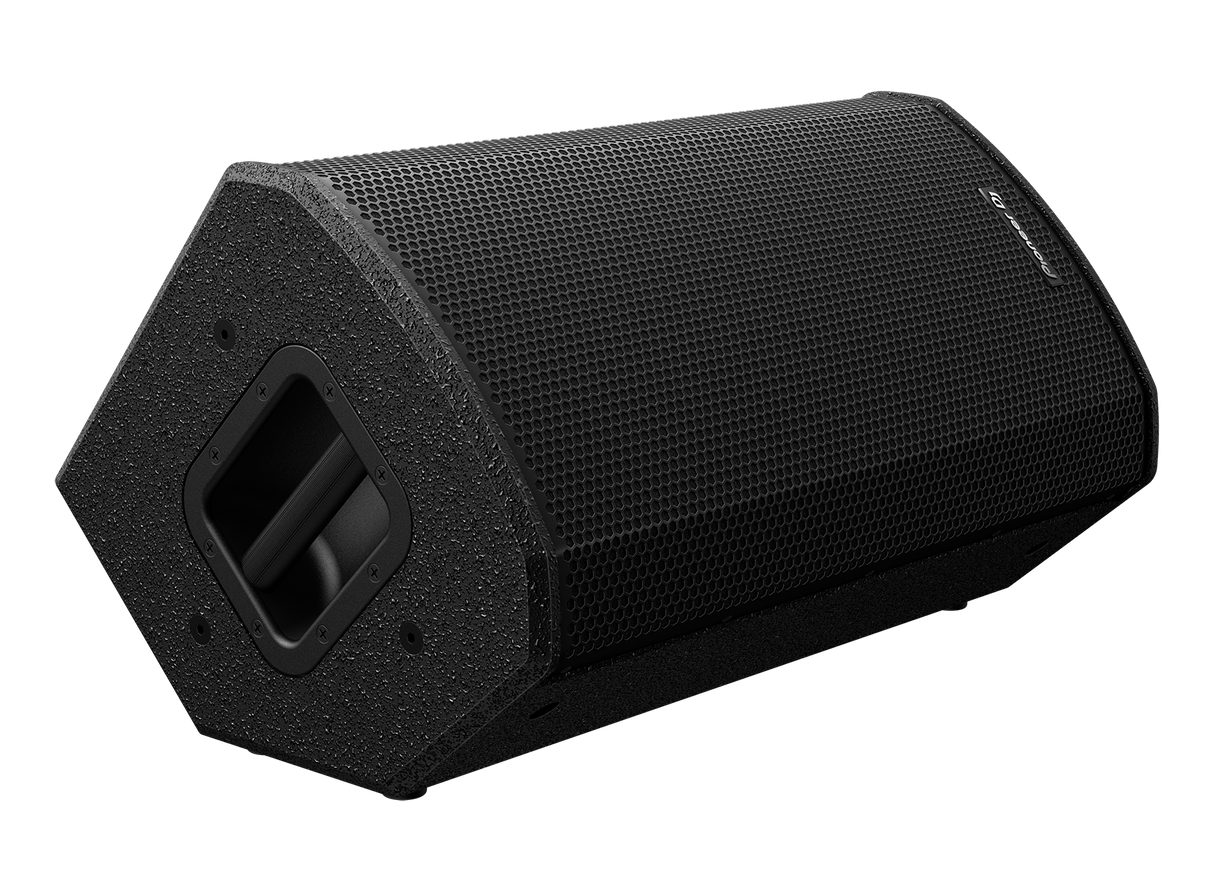

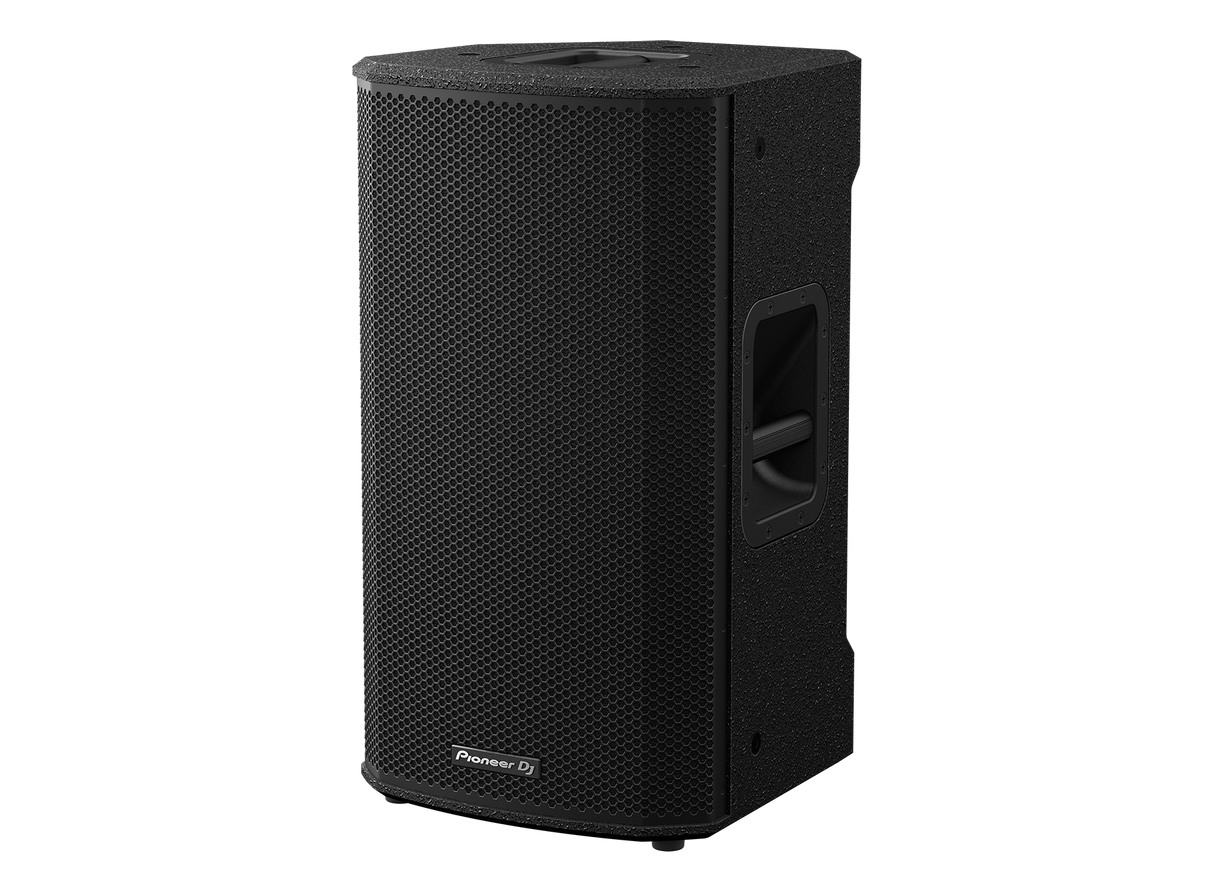

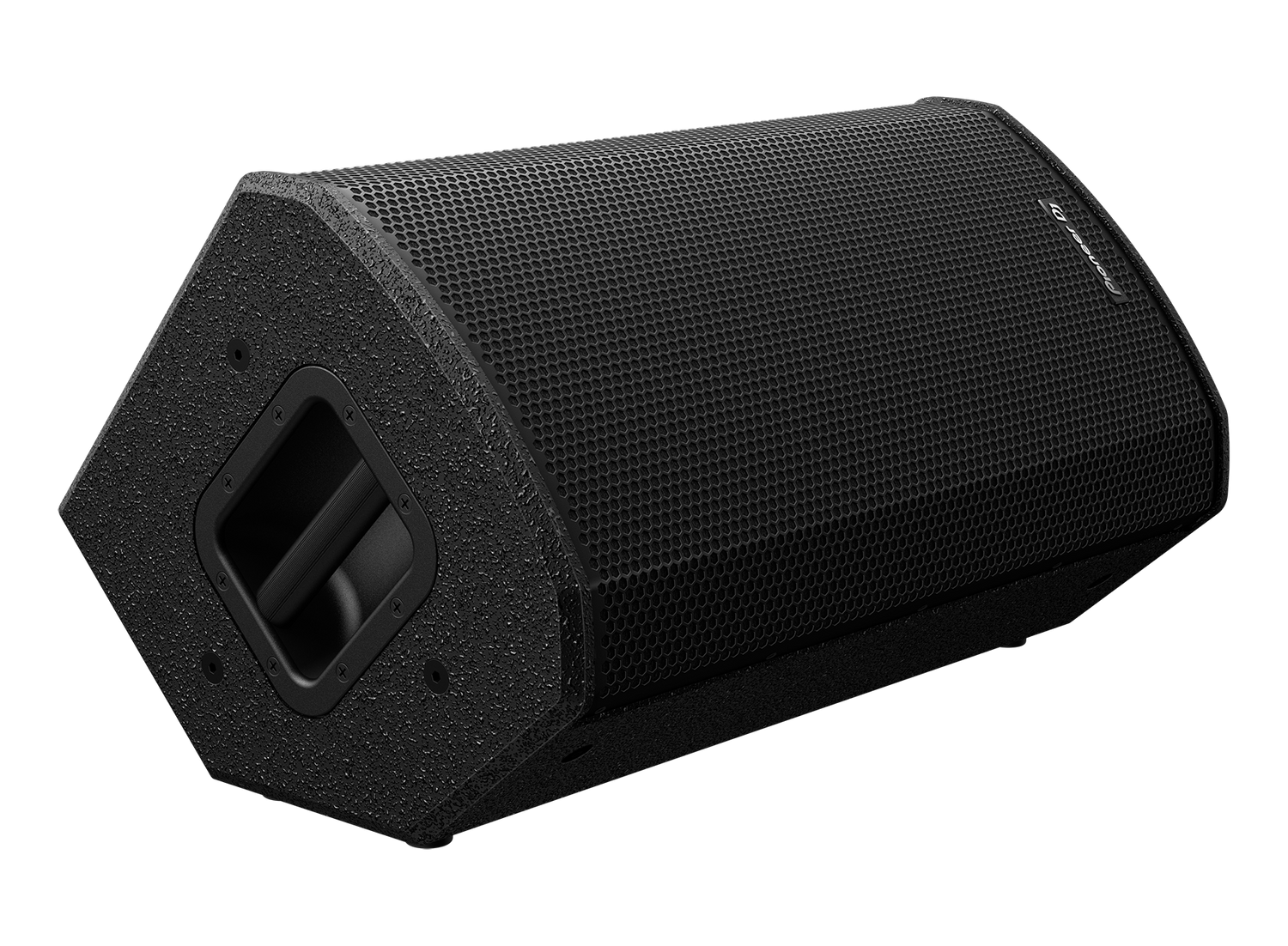

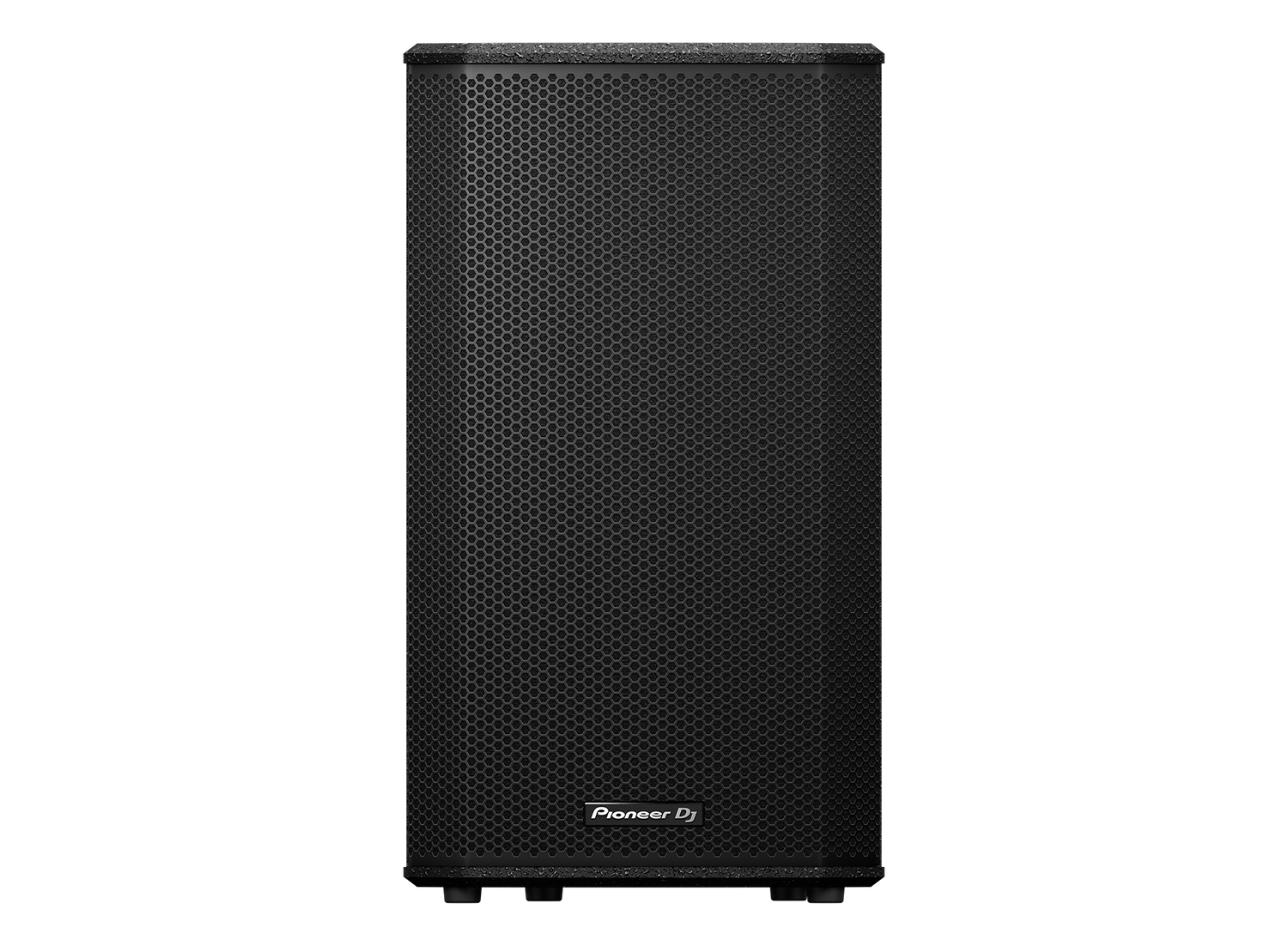

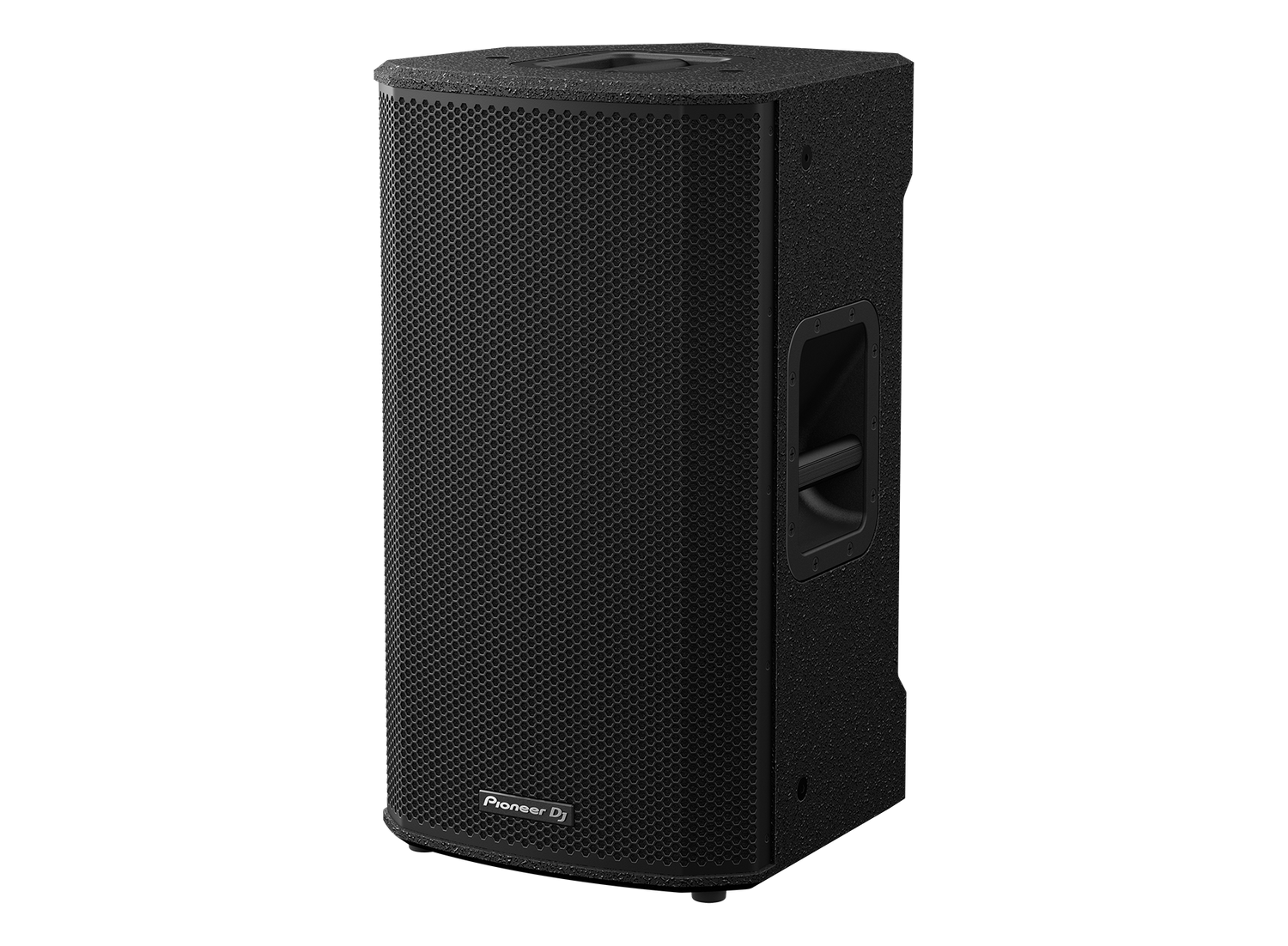

Pioneer DJ XPRS122 Active speaker

• Great active full range speaker.
• 12" woofer, 3" voice coil with 1" exit compression driver and 1.75" voice coil.
• Superb full range sound - ideal for medium and large sized gatherings.
• For bands, DJ use etc.
• Frequency range of 48Hz to 20 kHz.
• Maximum SPL of 131 db.
• Powerful Class D amplification - 2000 W.
• 16 editable User DSP Modes - plus 4 fixed presets for EQ adjustment; Live, Music, Speech and Studio Monitoring.
• Ruggedly constructed in durable pollywood enclosure - that can handle life on the road.

Supported voltages
110 V to 240 V (50 Hz/60 Hz)
Power consumption
800 W
Frequency Range
48 - 20000 Hz
Width
14.28 in
Height
25.08 in
Depth
13.78 in
Weight
44.53 lb
System characteristic
DSP modes
Factory Presets (4 types)

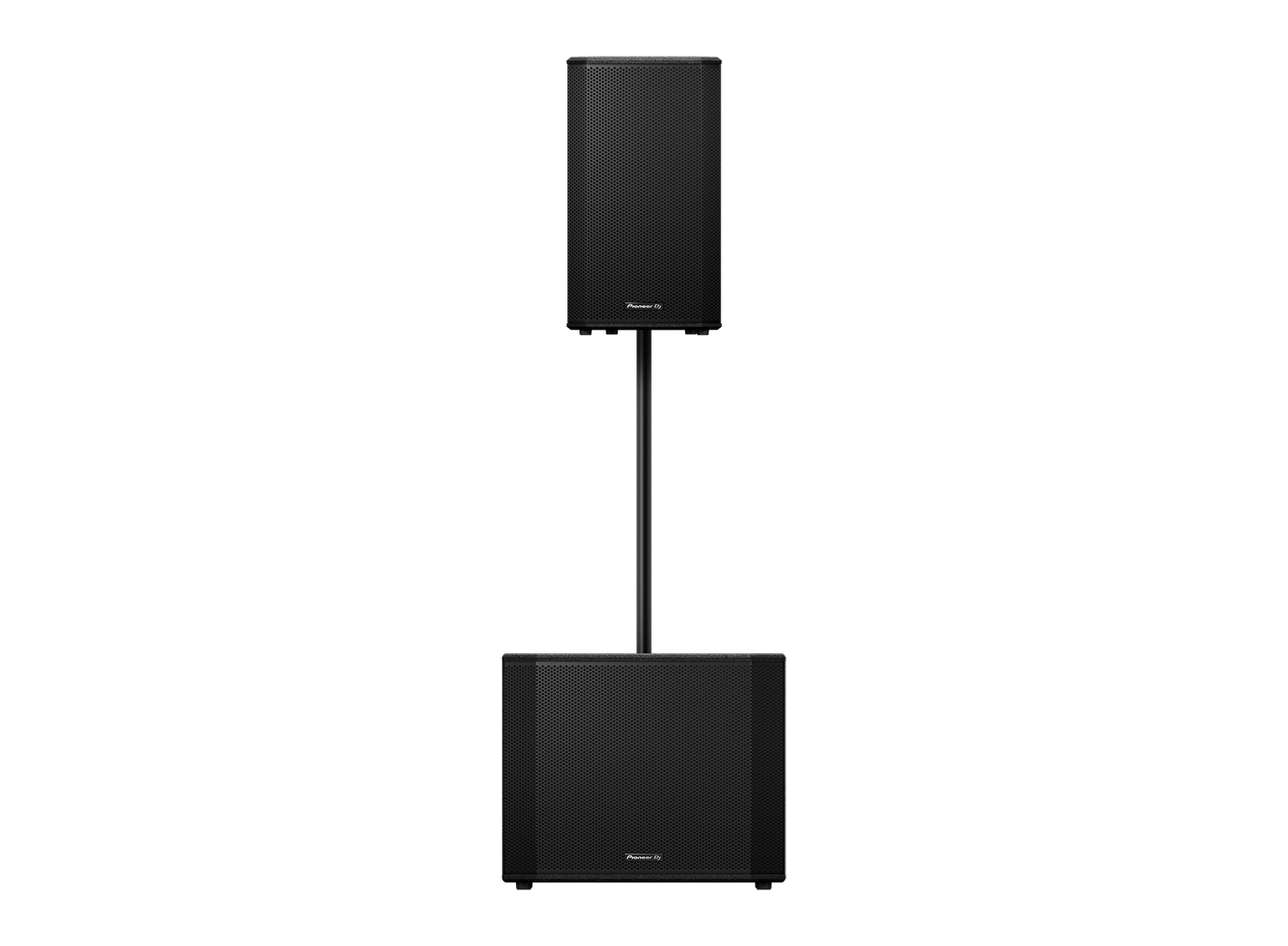

Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
EQ (4-band equalizer)
User Programs (16 presets)
DSP presets modes
Factory presets
LIVE
MUSIC
SPEECH
MONITOR
Maximum Sound Pressure
131 dB
Cross Over Frequency
2 kHz

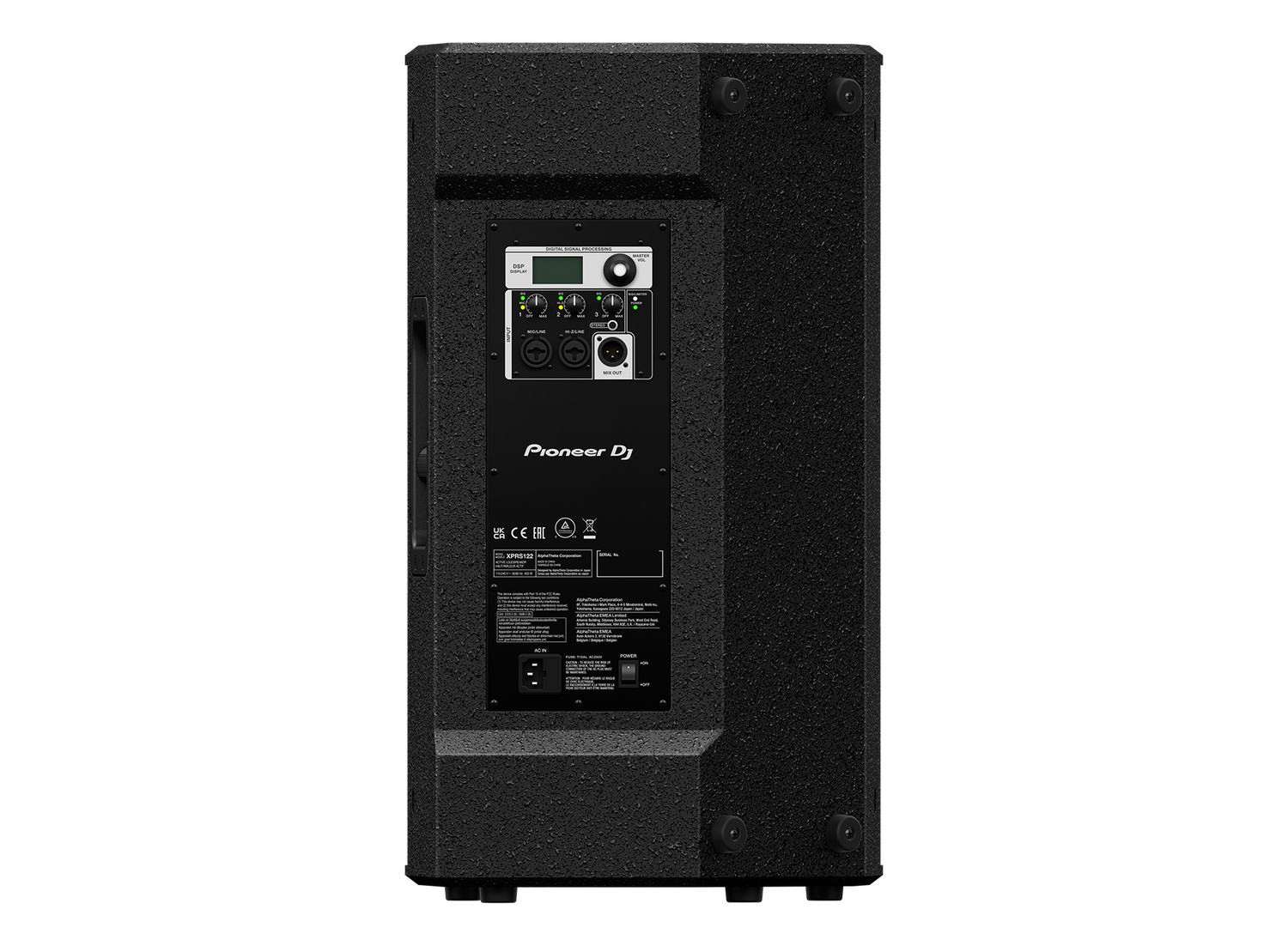

Terminals
Inputs
MIC / LINE x 1 (Combo)
HI-Z / LINE x 1 (Combo)
3.5 mm stereo mini jack x 1 (Unbalanced input)
Outputs
MIX (XLR)
Speaker
Driver
12-inch ferrite LF cone driver
1.75 inch compression driver
Finish
Black paint, Rubber feet

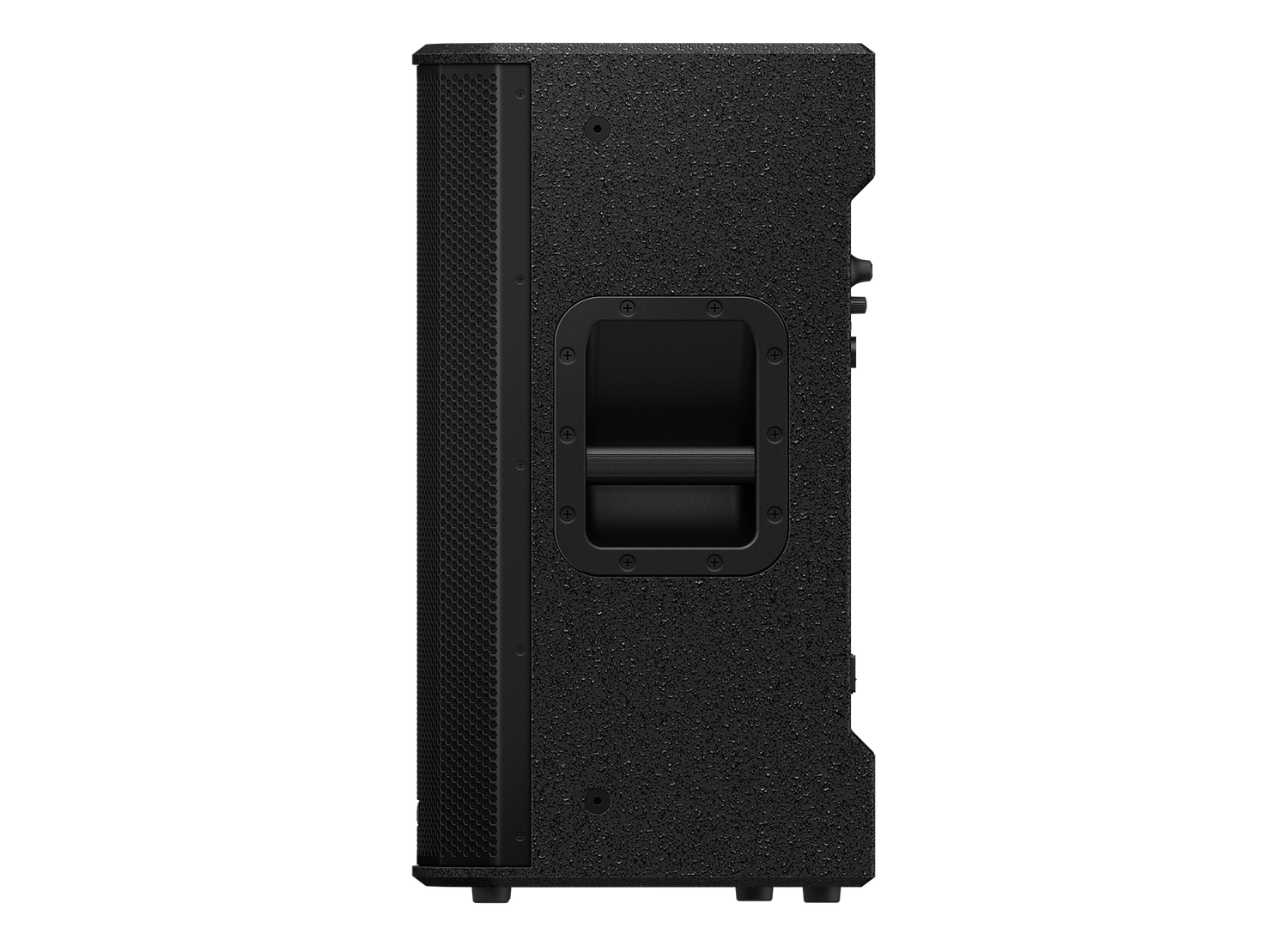

Handle
2 metal handles (on left side and top)

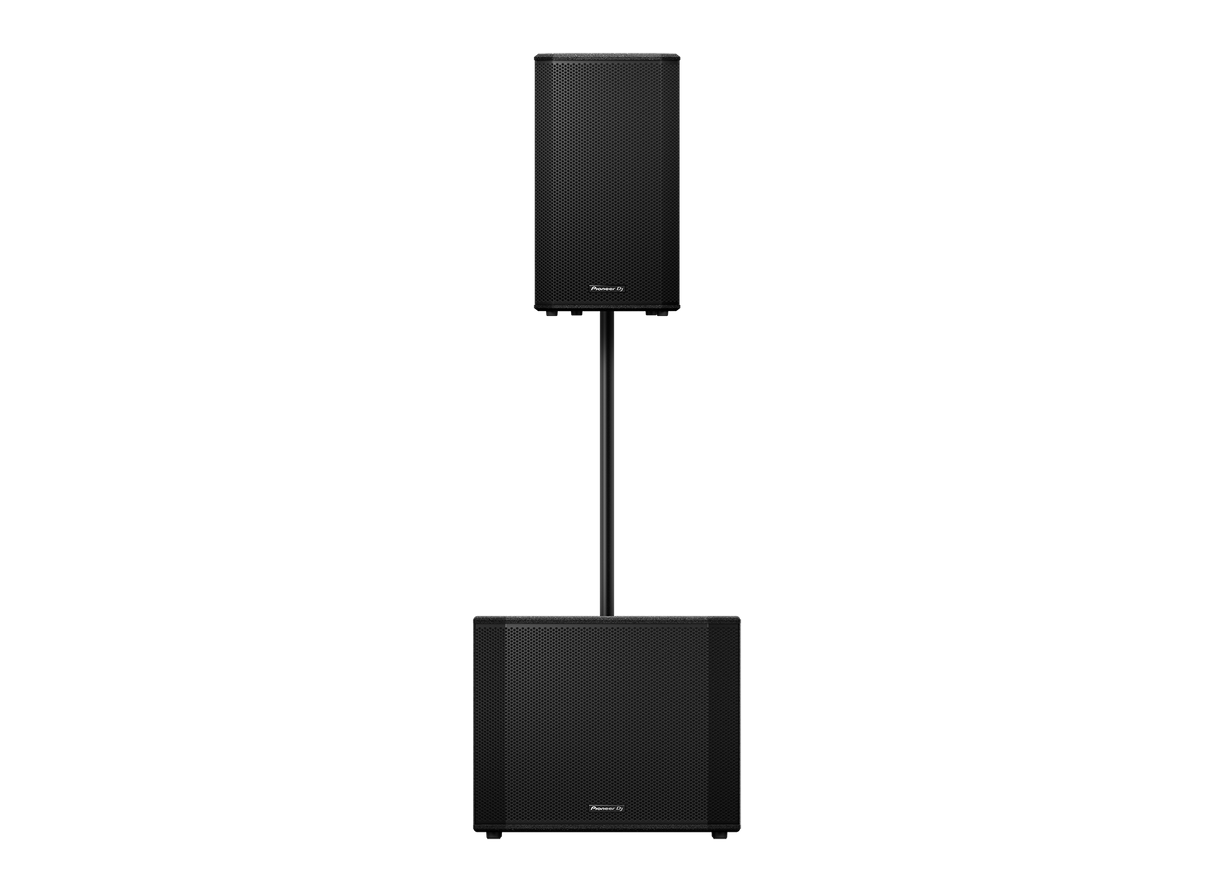

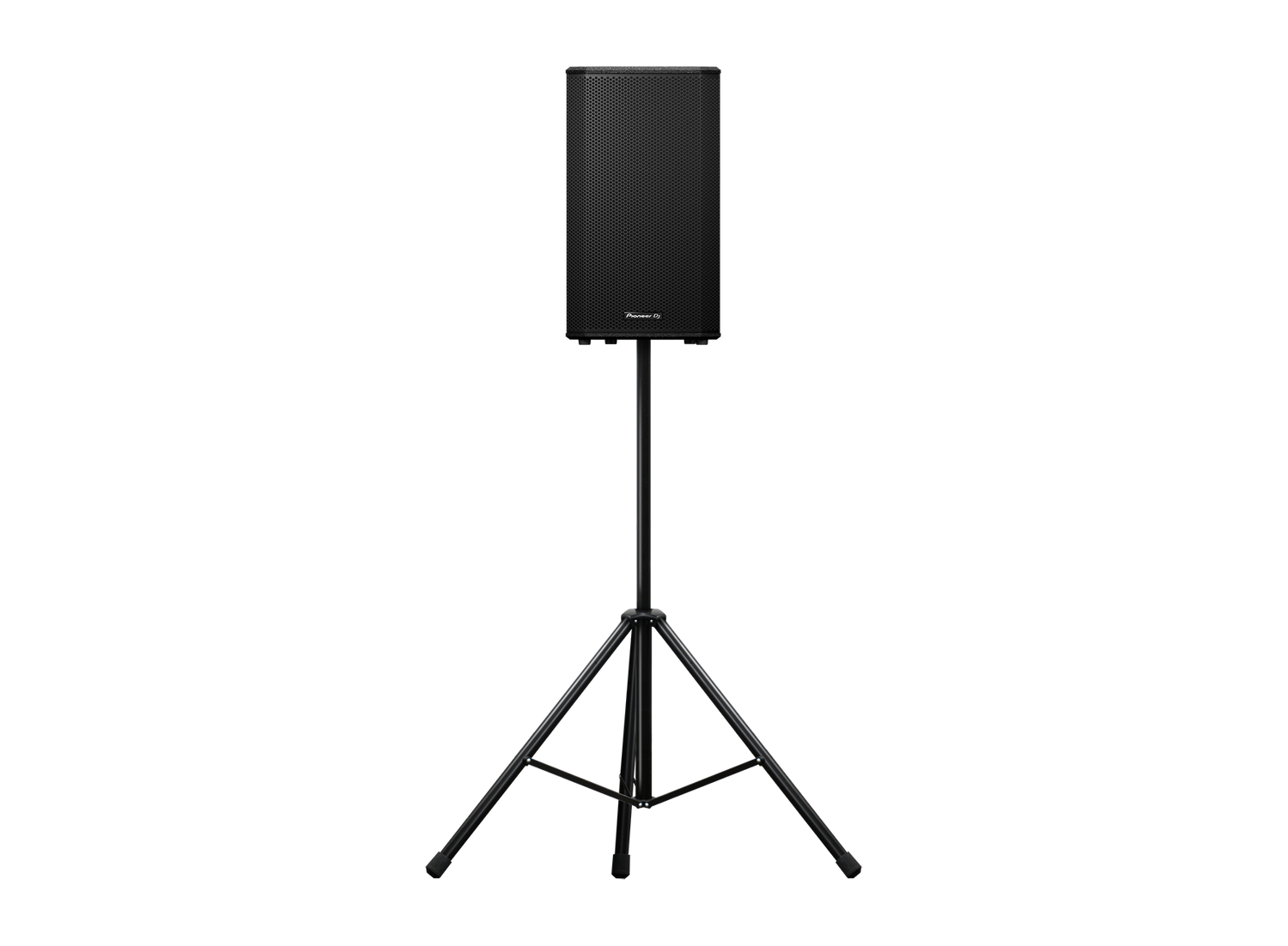

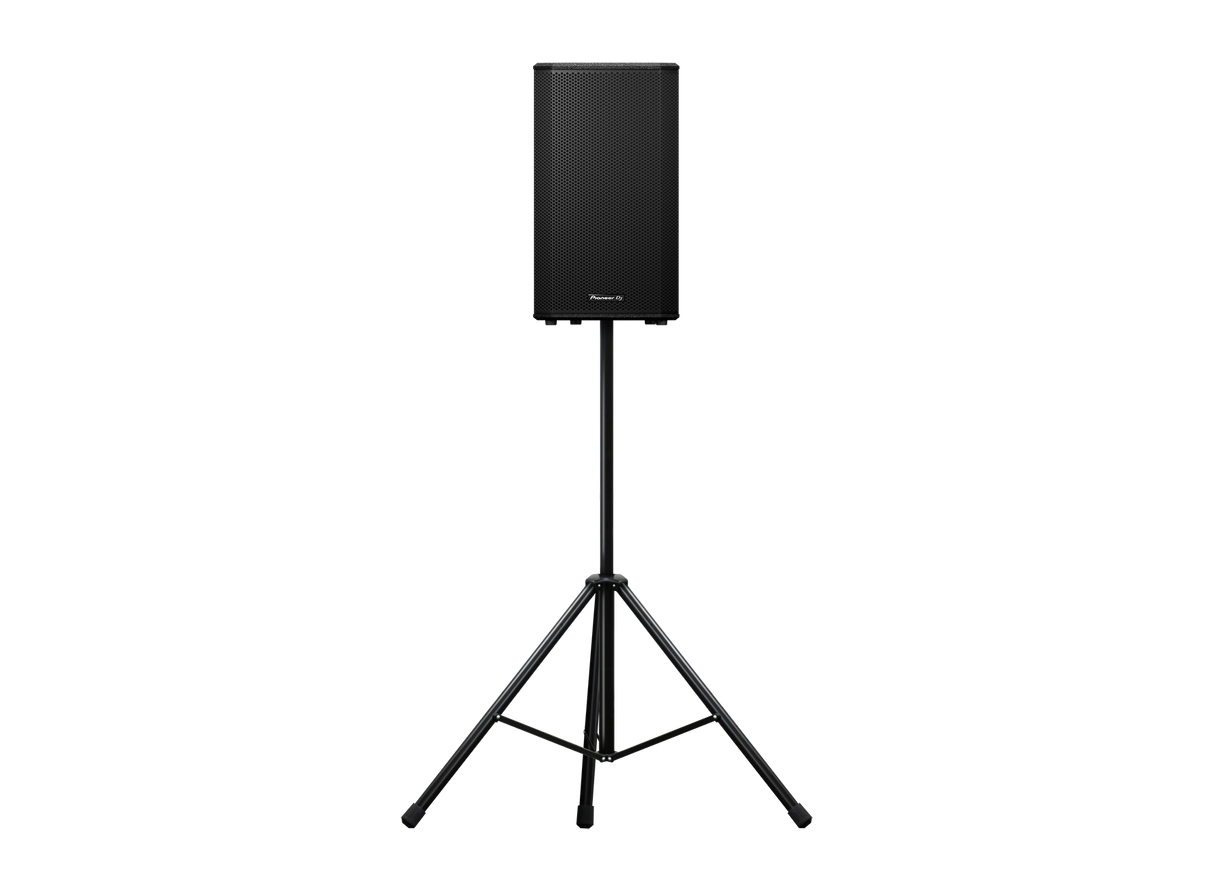

Pole socket
35 mm socket
Rigging point
10x M10
Enclosure
Plywood (TSCA)
Protection
Amplifier Protection
Thermal limiting
Digital Limiter
Digital compressor
Driver Protection
Short circuit protection
Power unit Protection
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection
