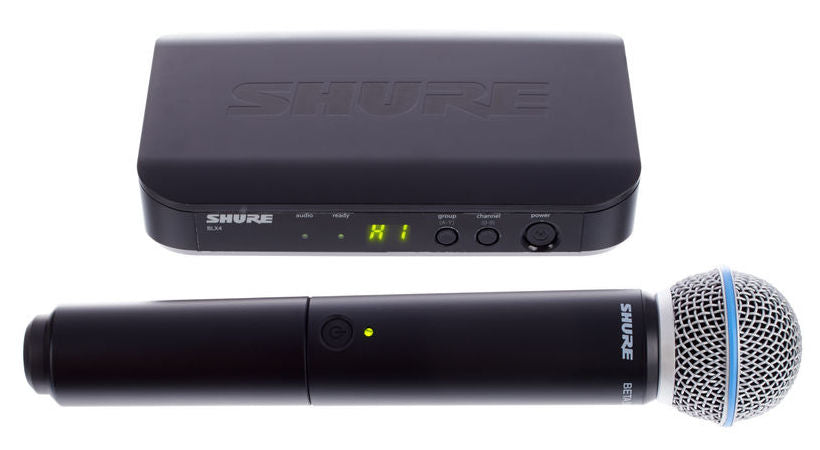

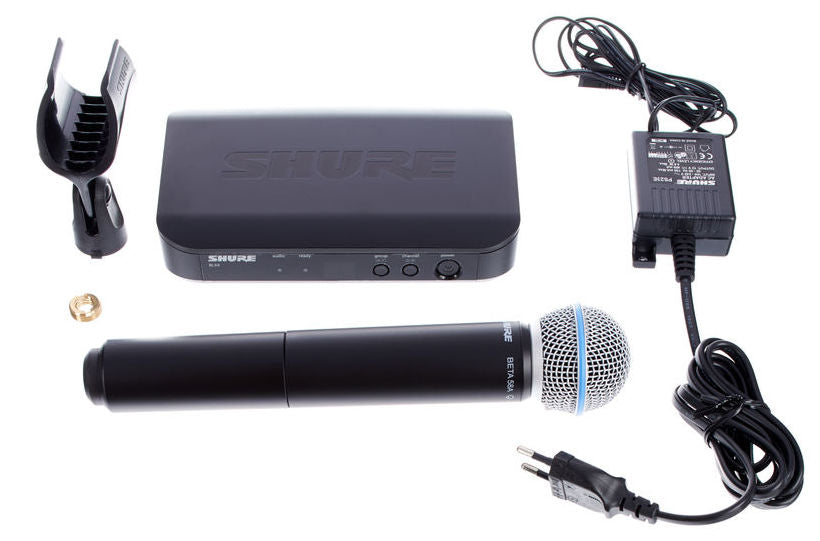

Shure BLX24 B58A Microfoni Wireless (S8)

SYSTEM TECHNICAL SPECIFICATIONS

• Compatible systems per frequency band (up to): 12
• Selectable frequencies: 150
• Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
• Audio Reference Companding: No
• Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
• Antenna Options: No
• Receiver Network Ability: No
• PC Control: No
• Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
• Case: Included Only with BLX4 Sets
• Transmitter Display: LED
• Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
• Battery, Endurance: 2AA, up to 14h
• Environment: Demanding acoustic environments

FURTHER TECHNICAL SPECS

• Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
• Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)
• Audio Range: 50–15,000 Hz (dependent on microphone type)
• Transmitter RF Output Power: 10 mW, typical (varies by region)
• Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
• Battery Life: Up to 14 hours
• Dynamic Range: 100 dB A-weighted
• System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
• Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
• Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
• BLX4: 12–18 V DC at 150 mA, supplied by external power supply

COMPONENT SPECIFICATIONS:

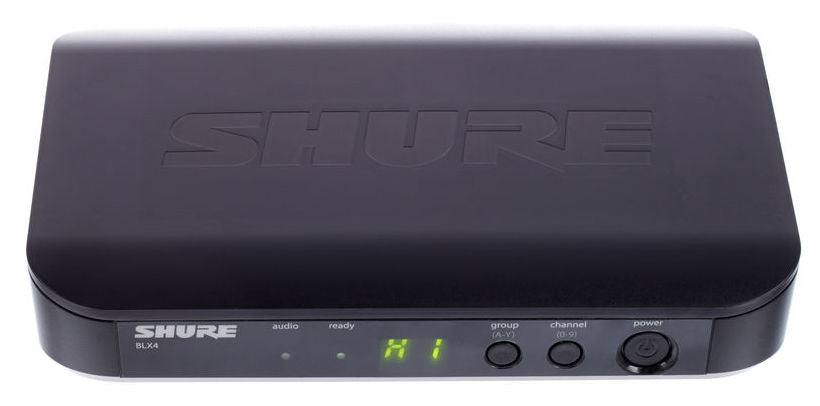

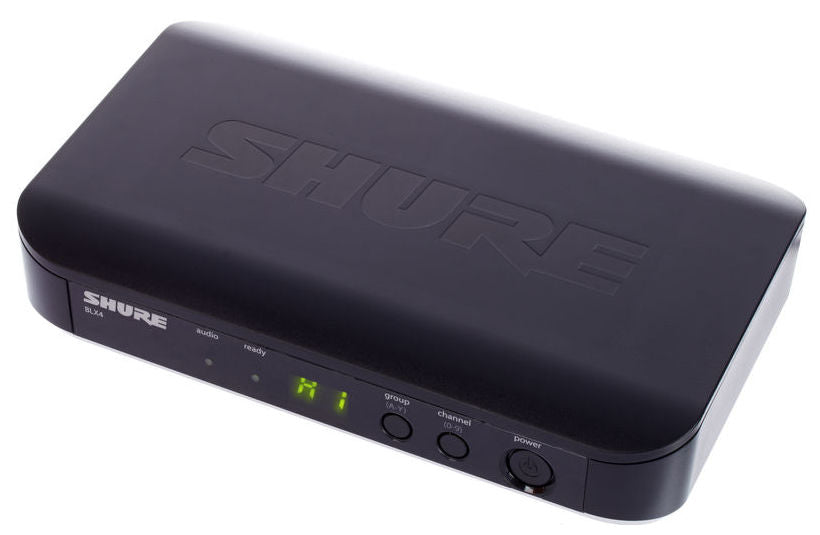

BLX4 RECEIVER

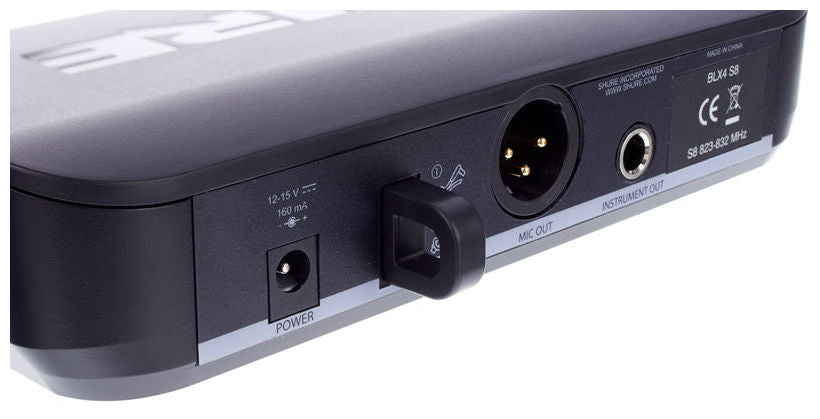

• Output Impedance:
  • - XLR connector 200 Ω
  • - 6.35 mm (1/4") connector: 50 Ω
• Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
  • - XLR connector –27 dBV (into 100 kΩ load)
  • - 6.35 mm (1/4") connector –13 dBV (into 100 kΩ load)
• RF Sensitivity: 105 dBm for 12 dB SINAD, typical
• Image Rejection: >50 dB, typical
• Dimensions: 40 mm X 188 mm X 103 mm (H x W x D)
• Weight: 241 g
• Housing: Molded ABS
• Power Requirements: 12–15 V DC @ 160 mA, supplied by external power supply (tip positive)

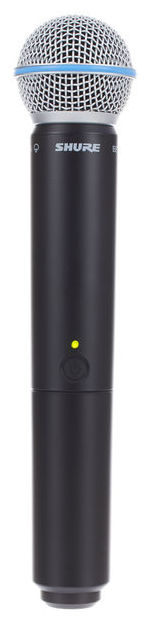

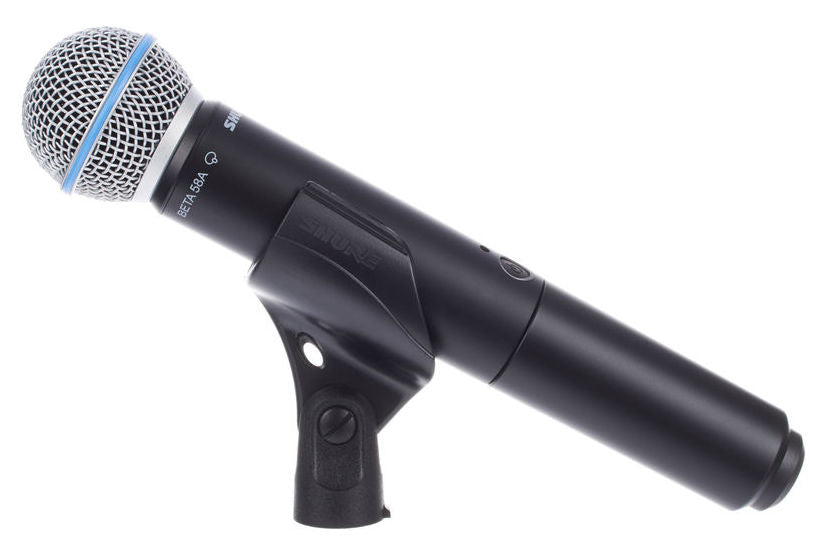

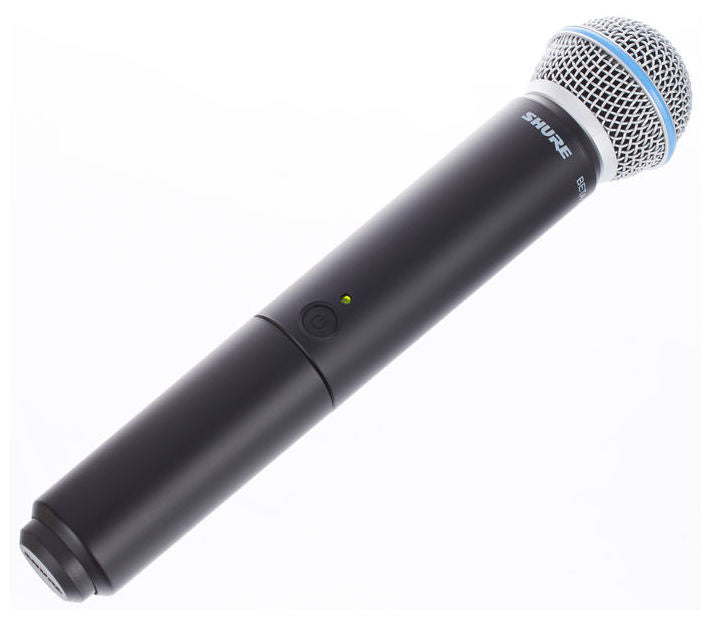

BLX2 HANDHELD TRANSMITTER

• Audio Input Level
  • - gain 0dB: -20 dBV maximum
  • - gain -10dB: -10 dBV maximum
• Gain Adjustment Range: 10 dB
• RF Transmitter Output: 10 mW, typical, varies by region
• Dimensions: 224 mm X 53 mm dia.
• Weight: 218 g (without batteries)
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)
