• Zoom range of 11.9° to 42.5° to easily cover stages and surfaces from a distance
• Perfect gobo morphing between gobo wheels
• Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 3-facet prism, and frost for beam control
• Beautiful 16-bit LED dimming for ultimate fade control
• Neutrik® powerCON® power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable PWM settings to maintain flicker free operation on camera
• Simple and complex DMX channel profiles for programming versatility

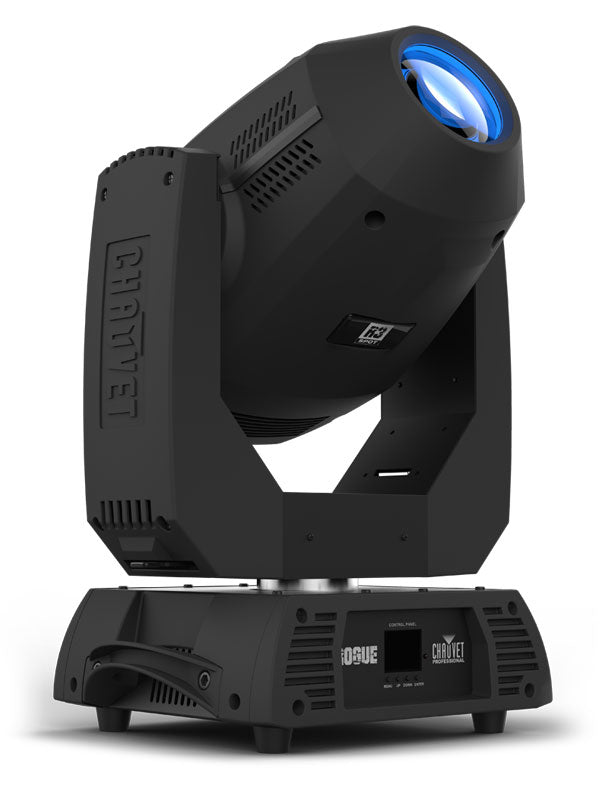

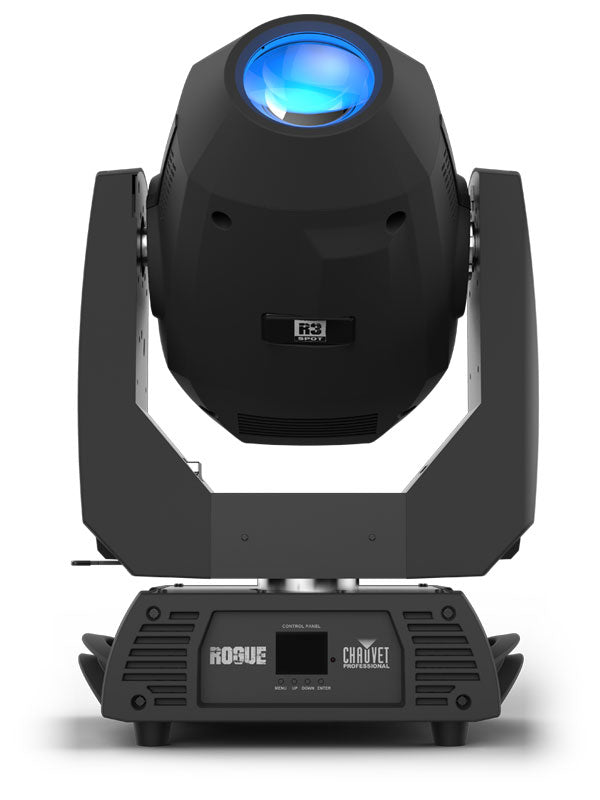

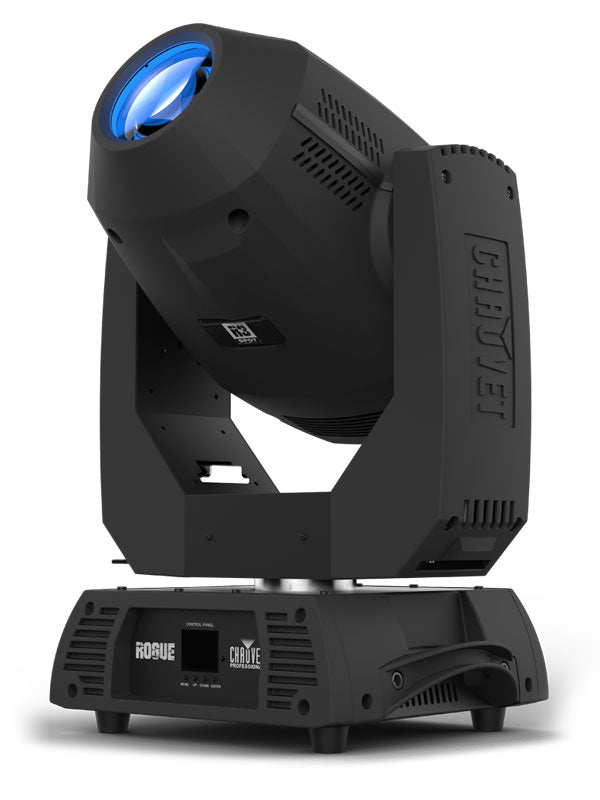

Rogue R3 Spot

• Rogue R3 Spot delivers intense output, crisp optics, sharp focus and maintains a value proposition designed to maximize ROI.
• This feature-packed moving spot has a bright 300 W LED light engine that produces an even field of light, as well as rotating and static gobos, an 8 position and split-color enabled color wheel, and three facet prism to create stunning looks.
• A quick moving zoom range of 11.9 – 42.5° adds to its flexibility of use by giving the Rogue R3 Spot the ability to cover large areas.

OPTICAL

• Light Source: 1 LED (CW) 300 W, (8.8 A), 8324 K, 50,000 hours life expectancy.
• Color Temperature (at full): 8324 K
• Front lens diameter: 104 mm
• CRI: 73.1
• Beam Angle: 12° to 36°Field Angle: 13° to 37°
• Cutoff Angle: 15.5° to 42.5°
• Zoom Range: 11.9° to 42.5°
• Lumens - Source: 23,000
• Lumens - Output: 12,800
• Illuminance (14.9°): 12,997 lux @ 5 m
• lluminance (39.5°): 1,803 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/250°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
• Colors (1): 7 + white, split colors, continuous scroll at variable speeds
• Colors (2): 7 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
• Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 22 Hz
• Move in Black: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 373 x 282 x 601mm
• Weight: 22.7 kg
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

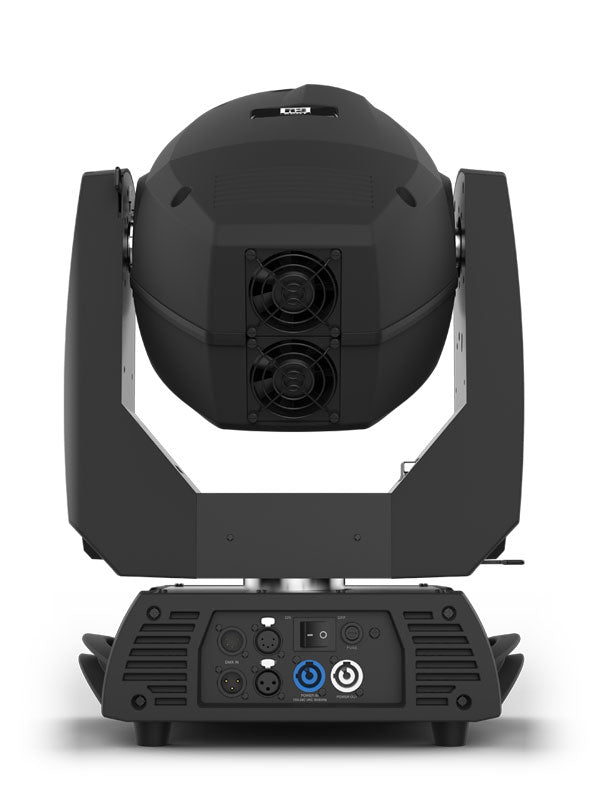

CONNECTIONS

• Power Connection: Edison (local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power):1.5 m

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 19 or 25
• Modes/Personalities: 2 personalities (19, 25)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
• Power and Current: 529 W, 4.48 A @ 120 V, 60 Hz
• Power and Current: 520 W, 2.45 A @ 208 V, 60 Hz
• Power and Current: 521 W, 2.22 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC, UKCAIP Rating: IP20, dry locationTemperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Rogue R3 Spot
• Neutrik powerCON power cord
• 2 Omega brackets with mounting hardware
