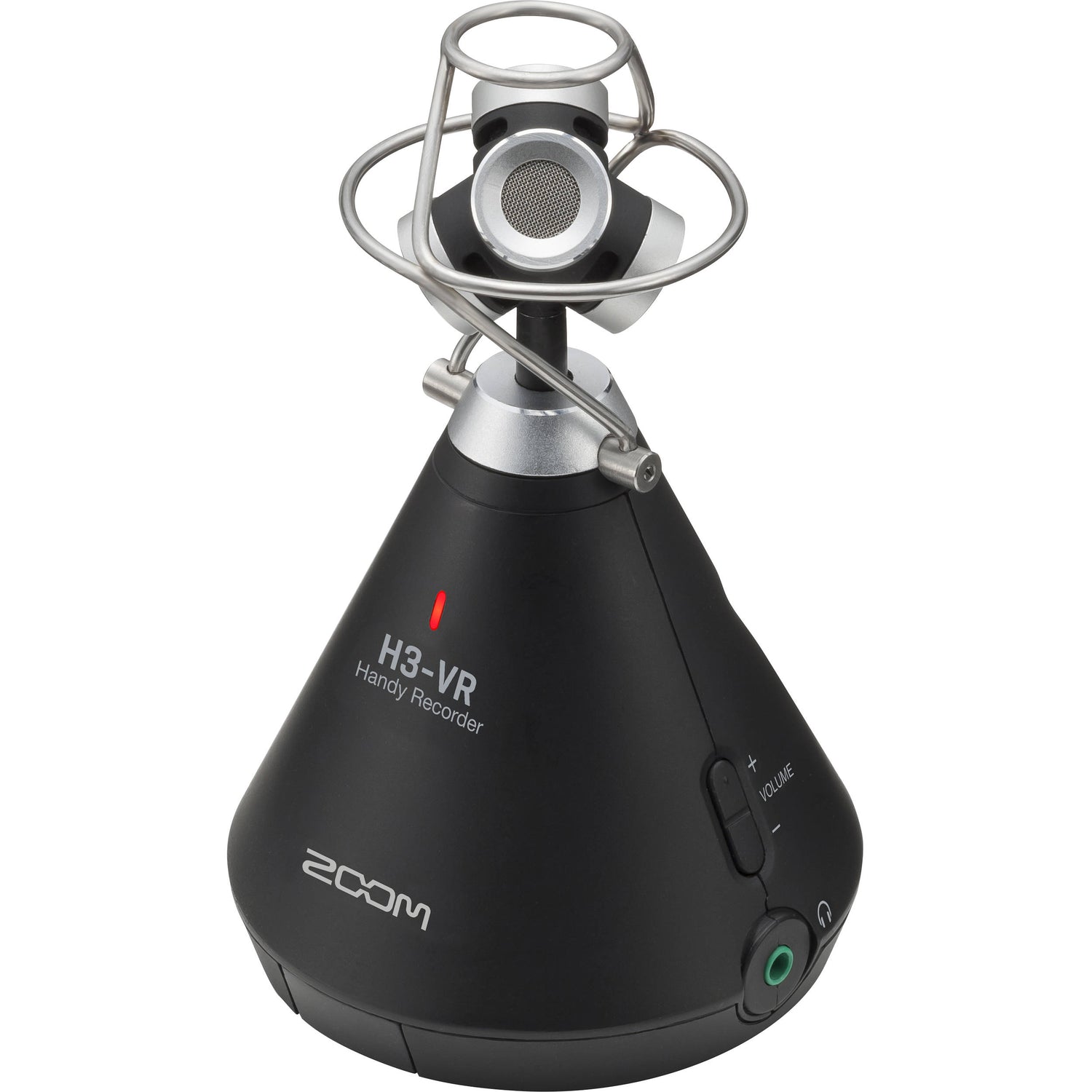

Zoom H3-VR Handy Recorder

• 4 microfoni integrati
• Registrazione audio a 360 gradi
• Ideale per film, live-streaming, giochi e molto altro
• Sensore di movimento a 6 assi
• Limiter integrato e filtro Low cut
• Display LCD
• SD card non inclusa

Zoom H3-VR Handy Recorder

Zoom H3-VR Handy Recorder è la scelta ideale se devi registrare effetti sonori per film, live-streaming, giochi e simili. I 4 microfoni integrati, disposti in un array Ambisonic, offrono una sensazione spaziale. Proprio questo effetto, combinato con immagini per film e giochi, offre al pubblico esperienze straordinarie

Recording Media:

Cards compatible with microSD/microSDHC/microSDXC specifications

(Class 4 or higher)

Recording formats:

Ambisonics  A,  Ambisonics  B  (FuMa/AmbiX)

WAV  4ch  poly  (supports  BWF  and  iXML):  44.1  kHz/16-bit,  44.1  kHz/24-bit,  48  kHz/16-bit,  48  kHz/24-bit,  96  kHz/16-bit,  96  kHz/24-bit

Stereo

WAV  stereo  (supports  BWF  and  iXML):  44.1  kHz/16-bit,  44.1  kHz/24-bit,  48kHz/16-bit,  48  kHz/24-bit,  96  kHz/16-bit,  96  kHz/24-bit

Binaural

WAV  stereo  (supports  BWF  and  iXML):  44.1  kHz/16-bit,  44.1  kHz/24-bit,  48kHz/16-bit,  48  kHz/24-bit

Display:

1.25" monochrome LCD (96×64)

Motion sensor:

6 axes (3-axis gyro, 3-axis acceleration)

Built-in Ambisonic mic:

4 matched unidirectional condenser mics

Maximum sound pressure input: 120 dB SPL

Mic gain: +18 – +48 dB

LINE OUT:

Connector: 3.5 mm stereo mini

Maximum output level: −10 dBu (1 kHz, 10 kΩ load)

PHONE OUT:

Connector: 3.5 mm stereo mini

Maximum output level: 20 mW + 20 mW (into 32Ω load)

USB:

Connector: microUSB

Mass storage operation

• USB 2.0 High Speed

Audio interface operation

• 2 in/2 out (stereo/binaural input), USB 2.0 Full Speed

• 44.1 kHz/16-bit, 48 kHz/16-bit

• 4 in/2 out ( Ambisonics A/FuMa/AmbiX input), USB 2.0 High Speed

• 44.1 kHz/24-bit, 48 kHz/24-bit

Power:

2 AA batteries (alkaline, rechargeable NiMH or lithium)

AC adapter (ZOOM AD-17): DC 5V/1A (supports USB bus power)

Estimated continuous recording time using batteries:

48 kHz/24-bit, FuMa Rec Mode

• 　Alkaline batteries: about 11.5 hours

• 　NiMH batteries (1900 mAh): about 11.5 hours

• 　Lithium batteries: about 24 hours

• The above values are approximate.

• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

External dimensions:

76 mm (W) × 78 mm (D) × 123 mm (H)

Weight (main unit only):

120 g
