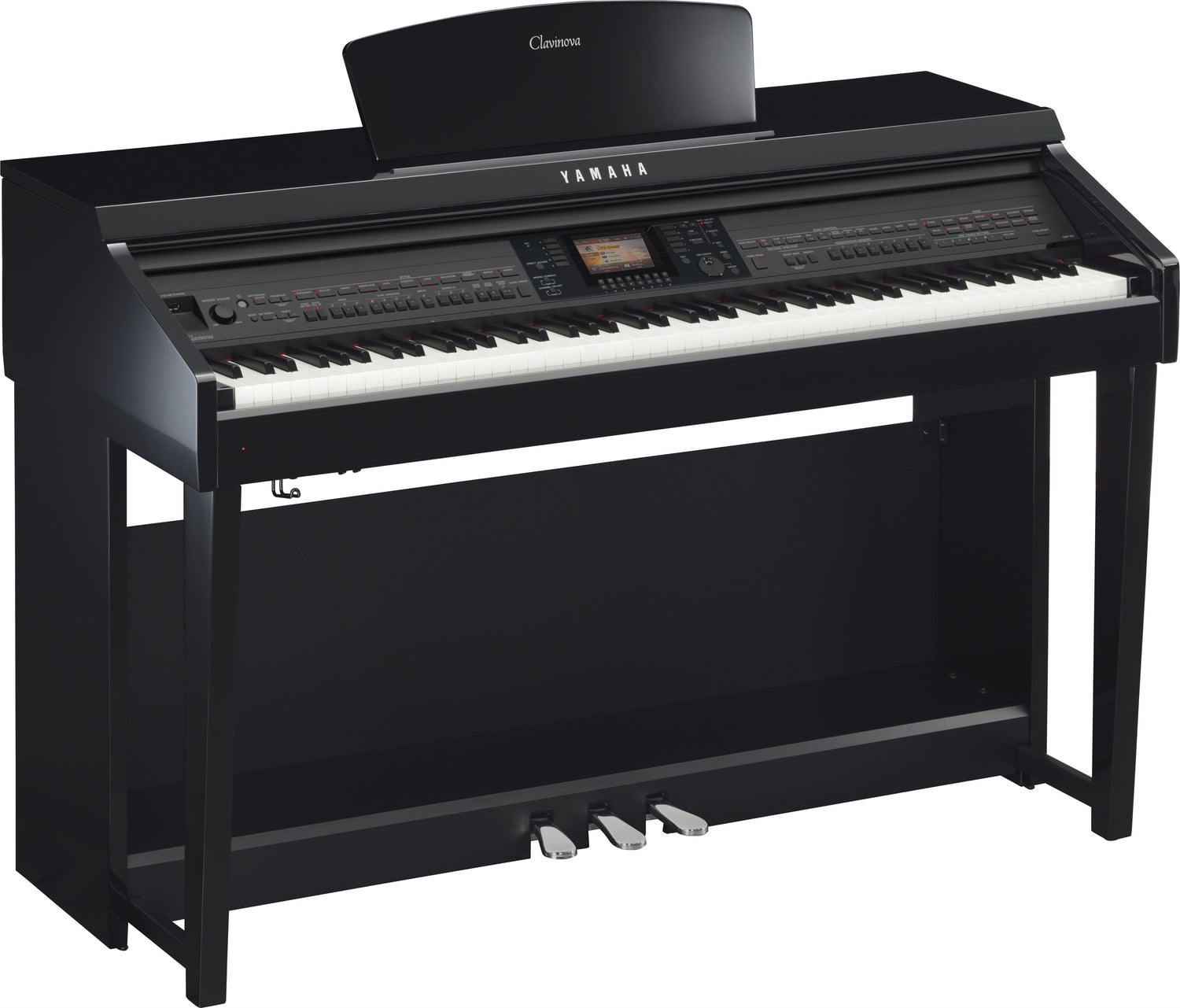

Yamaha CVP-701 Pianoforte Elettrico (Lucido Ebony)

Size/Weight

• Width: 1,352 mm (53-1/4") (Polished finish: 1,355 mm (53-3/8"))
• Height: 918 mm (36-1/8") (Polished finish: 921 mm (36-1/4"))
• Depth: 595 mm (23-7/16") (Polished finish: 596 mm (23-7/16"))
• Weight 59.0 kg (130 lbs., 1 oz) (Polished finish: 61.5 kg (135 lbs., 9 oz))

Control Interface

• Number of Keys: 88
• Keyboard Type: GH3X (Graded Hammer 3X) keyboard with synthetic ivory keytops, escapement
• Touch Sensitivity Settings: Hard2, Hard1, Medium, Soft1, Soft2, Fixed
• Number of Pedals: 3
• Half Pedal: Yes
• Functions: Sustain, Sostenuto, Soft, Glide, Song Play / Pause, Style Start / Stop, Volume, etc.
• Display Type: TFT Color LCD
• Display Size: 4.3 inch (480 x 272 dots)
• LCD Brightness Control: Yes
• Colour Display: Yes
• Score Display Function: Yes
• Lyrics Display Function: Yes
• Operating System Language Options: English, Japanese, German, French, Spanish, Italian
• Panel Language: English only

Cabinet

• Key Cover Style: Sliding
• Music Rest Included: Yes

Voices

• Piano Sounds: Yamaha CFX, Bösendorfer Imperial
• Key-off Samples: Yes
• Smooth Release: Yes
• VRM: Yes
• Polyphony (Max.): 256
• Preset Number of Voices: 777 Voices + 29 Drum / SFX Kits + 480 XG Voices
• Featured Voices: 10 VRM Voices, 49 Super Articulation Voices, 23 Mega Voices, 13 Natural! Voices, 26 Sweet! Voices, 58 Cool! Voices, 70 Live! Voices, 20 Organ Flutes! Voices
• Custom Voice Edit: Yes
• Compatibility: XG, GS (for Song playback), GM, GM2

Effects

• Reverb: 58 Preset + 3 User
• Chorus: 106 Preset + 3 User
• DSP: 295 Preset + 3 User
• Master Compressor: 5 Preset + 5 User
• Master EQ: 5 Preset + 2 User
• Part EQ: 27 Parts
• Intelligent Acoustic Control (IAC): Yes
• Stereophonic Optimizer: Yes
• Functions Dual/Layers: Yes
• Split: Yes

Accompaniment Styles

• Number of Preset Styles: 310
• Featured Styles: 253 Pro Styles, 21 Session Styles, 36 Pianist Styles
• Fingering Single: Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
• Style Control: INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
• Custom Style Creator: Yes
• Other Features: Music Finder 1,200 Records
• One Touch Setting (OTS): 4 for each Style
• Style Recommender: Yes
• File Format Style File Format: GE (Guitar Edition)

Songs

• Number of Preset Songs: 65
• Recording Number of Tracks: 16
• Data Capacity: approx. 300 KB / Song
• Recording Function: Yes
• Compatible Data Format Playback: SMF (Format 0 & 1), XF
• Recording: SMF (Format 0)

Functions

• Demo: Yes
• Registration Number of Buttons: 8
• Control Registration: Sequence, Freeze
• Lesson/Guide: Follow Lights, Any Key, Karao-Key, Your Tempo
• Guide Lamps: Yes
• Performance Assistant Technology (PAT): Yes
• Piano Room: Yes
• USB Audio Recorder Playback: WAV
• Recording: WAV
• USB Audio Time Stretch: Yes
• Pitch Shift: Yes
• Vocal Cancel: Yes
• Miscellaneous Metronome: Yes
• Tempo Range: Yes
• Transpose: Yes
• Tuning: Yes
• Scale Type: 9

Storage and Connectivity

• Internal Memory: approx. 2.8 MB
• External Drives: USB Flash Drive
• Headphones: x2
• Microphone Controls/Connections: Input Volume, Mic / Line In
• MIDI: IN / OUT / THRU
• AUX IN: Stereo mini
• AUX OUT: L / L + R, R
• AUX Pedal: Yes
• USB TO DEVICE: Yes
• USB TO HOST: Yes

Amplifiers and Speakers

• Amplifiers: 25 W x 2
• Speakers: 16 cm x 2 [6 - 5/16" x 2]
• Acoustic Optimizer: Yes

Power Supply

• Power Consumption: 22 W
