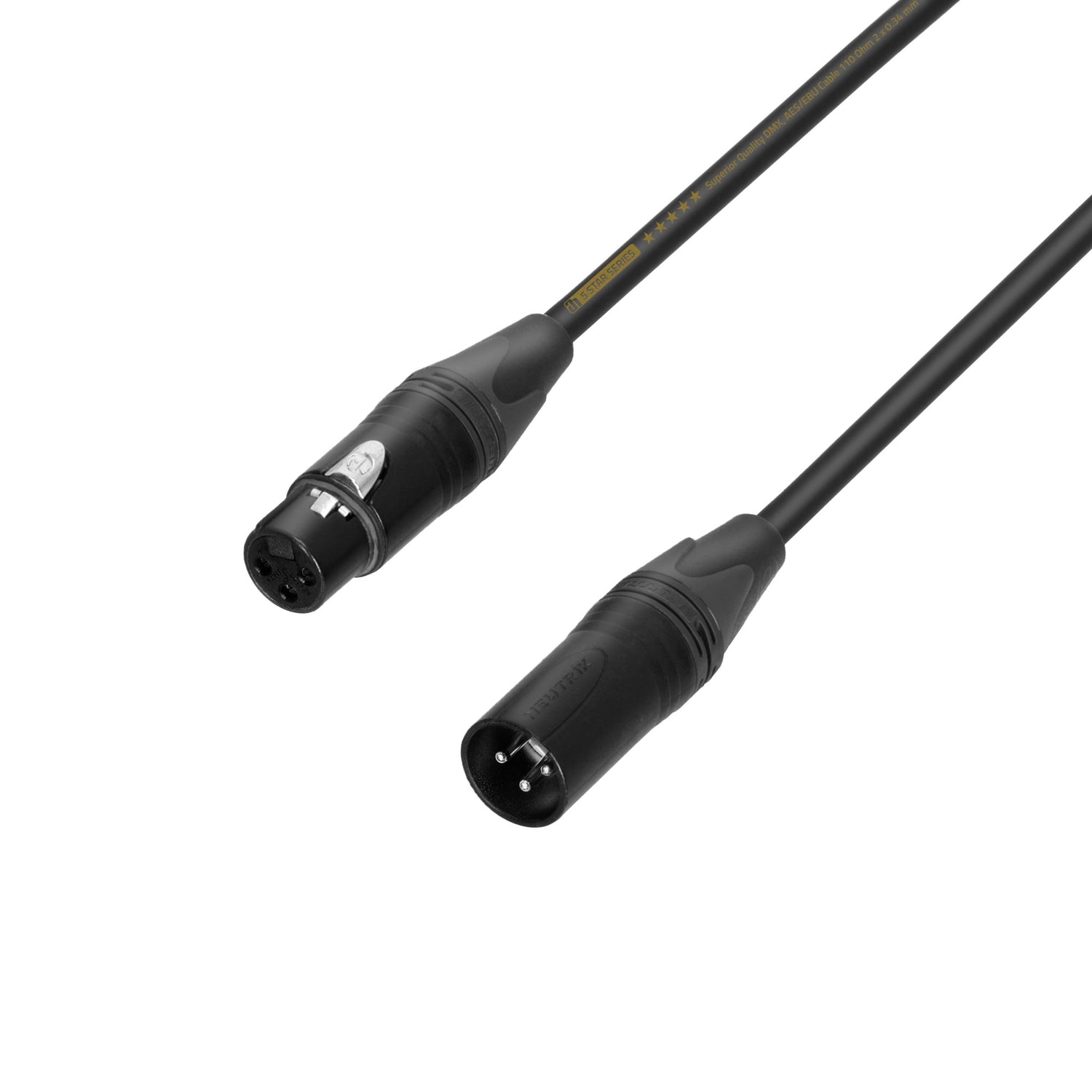

Adam Hall Cables 5 STAR DMF 0750 - DMX-kabel | Neutrik® XLR 3-polet | 7,5 m
Caricamento...
€41,95
Prezzo unitario
/
Non disponibile
IVA incl. • B2B esente IVA
Spedizione €10 (gratuita oltre €199)
Descrizione
Descrizione
3-pols-versionen af vores DMX-kabler i topklassen leverer enestående ydeevne og pålidelighed til krævende anvendelser. Dette DMX-, AES/EBU-kabel i førsteklasses kvalitet er specifikt designet til at sikre signaloverførsel i topklasse, hvilket gør det ideelt til professionel brug.
Samlet med originale Neutrik© 5-polede stik og sølvbelagte kontakter, et bulk-kabel helt fremstillet i EU, et stort ledertværsnit på 0,34 mm² og afskærmning af flettet kobber er dette kabel virkelig værdigt til sit 5 STAR SERIES stempel.
Kablet leveres med en kabelbinder og to gennemsigtige, løse krympeflex til mærkning.
Specifiche tecniche
Specifiche tecniche
Version without single-packaging
- This DMX, AES/EBU Cable from our 5 STAR SERIES is manufactured in the EU
- For this cable we only use original Neutrik® connectors with silver-plated contacts. For a long-life plugging-cycle and superior transmission quality we use NC3FXX-BAG & NC3MXX-BAG
- The line with 0.34 mm² (AWG22) inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany and made in the EU. With it's resistance of 110Ω it is fully compliant to DMX standards
- It comes with an UV-resistant jacket and we only use a special soft-PVC compound for the highest flexibility values. The copper braided shielding prevents magnetic interferences
- The product comes with a cable tie and two transparent, loose heat-shrinks for labeling
General
| Cable length | 7.5 m |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 6.4 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 3-pole female |
| Model name plug 1 | Neutrik NC3FXX-BAG |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 3-pole male |
| Model name plug 2 | Neutrik NC3MXX-BAG |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,34 mm² |
| Capacity/m | 63 pF |
| Conductor impedance/km | 53 Ohm/km |
| Wave impedance | 110 Ω |
| Shielding | Spiral copper shielding |
Environmental
| Ambient temperature | -20 - 70 °C |
Dimensions & weight
| Weight | 513 g |
