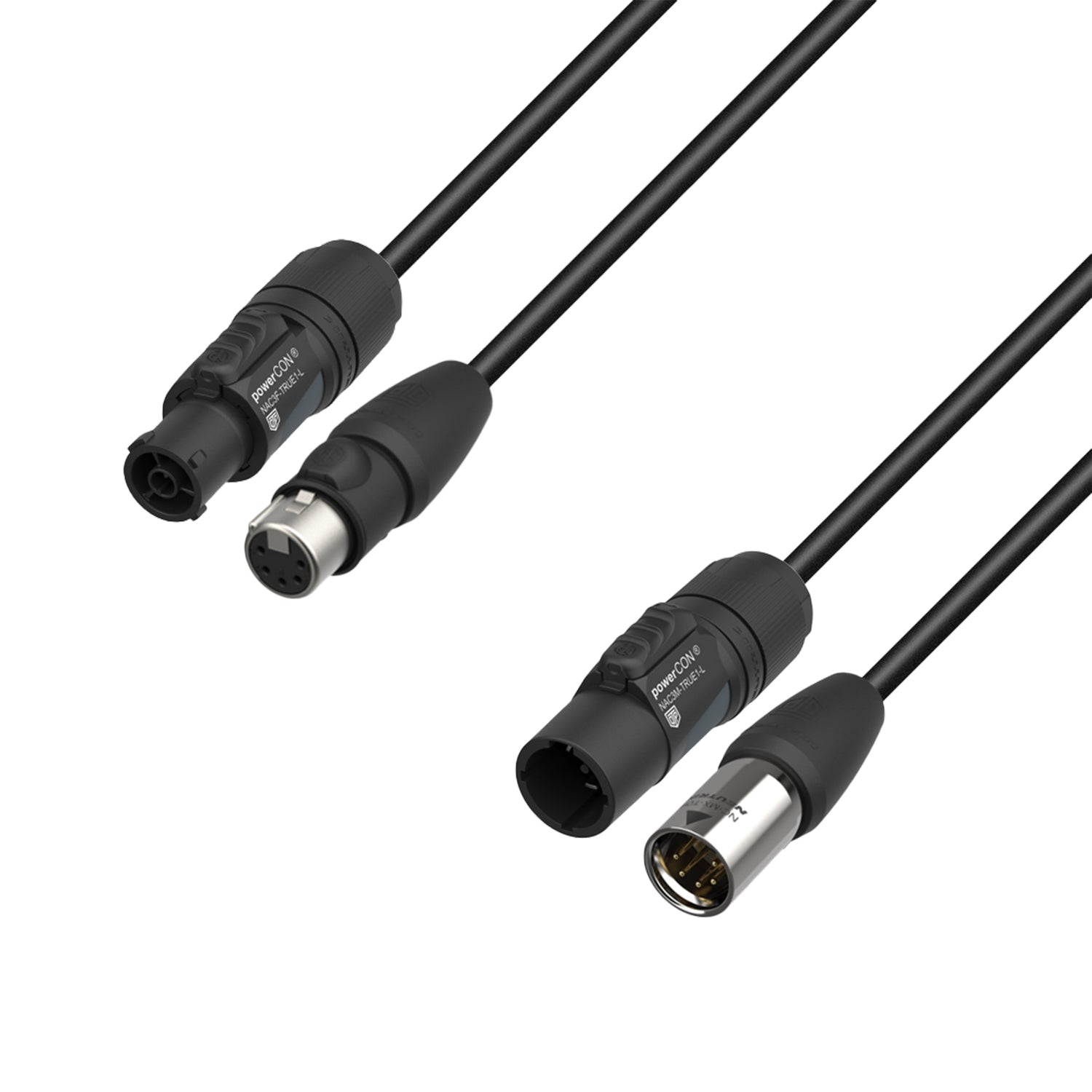

Adam Hall-kabler 5 STAR H TCON 5D 0150 IP65 - hybridkabel | strøm og DMX | Neutrik® XLR 5-polet IP65 x TRUE1® | 1,5 m
Inkl. moms
Opgrader dit lyssetup med vores banebrydende Hybrid DMX- & strømkabel fra vores 5 STAR SERIES. Dette alsidige kabel er designet til professionelle lysfolk og muliggør samtidig transmission af DMX-signaler og strøm, hvilket strømliner dit rig og sikrer en gnidningsfri afvikling.
Effektive og ryddelige opsætninger kræver dette smarte kabel, som er perfekt til at forbinde to Cameo OTOS H5 f.eks. Udstyret med originale Neutrik® premium-stik, kendt for deres holdbarhed og overlegne signaltransmissionsværdier, som minimerer signaltab og spændingsfald.
Uanset om du sætter op til en koncert, teaterproduktion eller et arrangement, der kræver avanceret lysstyring, er vores Hybrid DMX- og strømtransmissionskabel den ultimative løsning til effektivitet og driftssikkerhed. Stol på dets europæiske håndværk og kvalitet til at holde dit show kørende problemfrit.
- This Hybrid Cable from our 5 STAR SERIES is manufactured in the EU
- For this cable we only use original Neutrik® connectors. For a long-life plugging-cycle and superior transmission quality we use the IP rated XLR plugs for the DMX line and the power will be provided by the NeutrikTRUE1® connectors
- The XLR connectors such as the TRUE1 connectors are IP65 rated. The TRUE1 is pluggable under load. Furthermore, they are compliant to the highest standards
- The line with 0.34 mm² DMX & 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany and is made in the EU
- It comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
- The product comes with a cable tie and two transparent, loose heat-shrinks for labeling
General
| Cable length | 1.5 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 5-pole female |
| Model name plug 1 | Neutrik NC5FX-TOP |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 5-pole male |
| Model name plug 2 | Neutrik NC5MX-TOP |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,34 mm² |
| AWG | 22 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Wave impedance | 120 Ω |
| Shielding | Braided copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug device outdoor female & TRUE1® |
| Model name connector 1 | Neutrik NAC3F-TRUE1 |
| Plug type connector 2 | Mains plug device outdoor male & TRUE1® |
| Model name connector 2 | Neutrik NAC3M-TRUE1 |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Environmental
| Protection class | IP65 |
| Ambient temperature | -20 - 70 °C |
Dimensions & weight
| Weight | 430 g |
