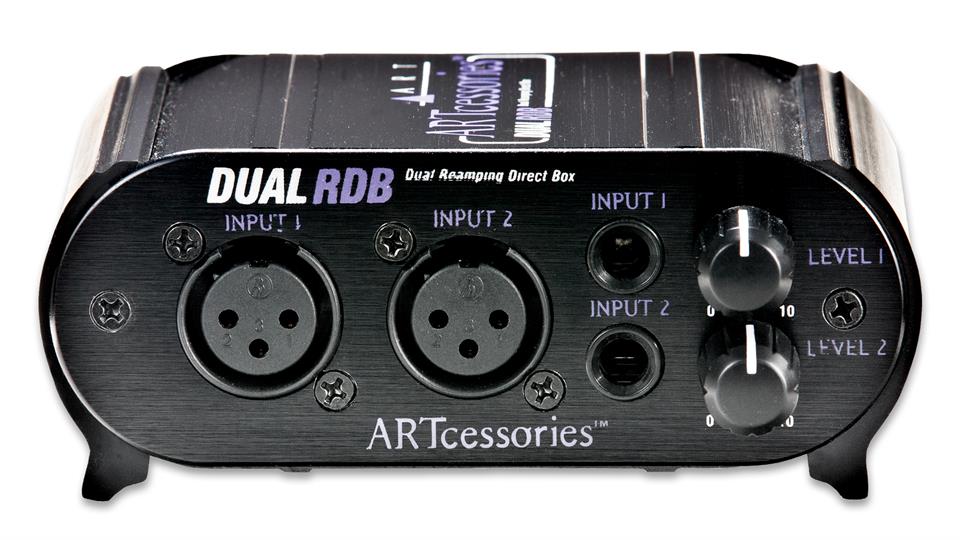

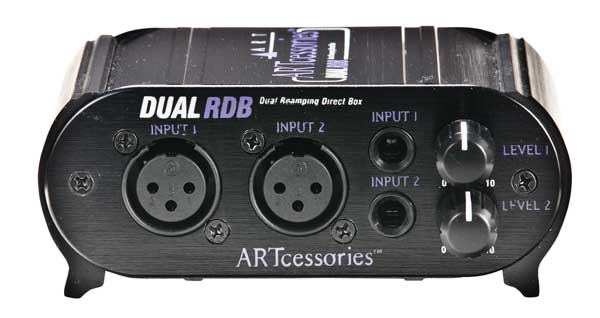

ART Dual ReAmping aktiv Di-Box

ART DUALRDB Dual ReAmping aktiv Di-Box

Dual RDB er den ideelle interface-løsning til enhver applikation hvor stereo eller dual line-level signaler fra optagelses-interfaces, computere, mixere, iPods, forbrugerlyd eller videomaskiner skal forbindes til en XLR-mikrofon, eller 1/4" instrument level-inputs. Enheden har to isolations-transformerer af høj kvalitet som forhindrer ground-loops når forskellige systemer forbindes med hinanden. Dual RDB accepterer 1/4" TRS og XLR line-level inputs og outputs mic, eller instrument-niveauer. Dual RDB's variable niveaustyring gør det muligt at kontrollere volumen via kilden i stedet for inde i studioet, AV-rummet, lydskabet eller installations-rack'en. En 20 Hz til 20 kHz frekvensrespons sikrer at Dual RDB vil fungerer gennemskueligt med enhver lydkilde af høj kvalitet.

Dual ¼-inch TRS and XLR balanced line level inputs
Transformer isolated XLR balanced microphone level outputs
Transformer isolated ¼-inch TRS balanced instrument level outputs
20Hz to 20kHz Frequency Response
Variable Level Controls with Mute
Channel Two source selectable between Channel One or Channel Two Input
Channel Two output phase switch

Frequency Response: 20 Hz - 20 kHz, ± 0.5 dB @ +4 dBu
Total Harmonic Distortion: .01% @ 1kHz, +18 dBu, Channel Separation: > 80 dB (typical)
Input Connections: 1/4" TRS balanced, XLR: balanced female
Thru Connections: 1/4" TRS balanced, XLR: balanced female
Insertion Loss: -20dB @100k Ohm; load, -25dB @600 Ohm; load
Dimensions: 1.85"H x 4.6"W x 3.9"D (47mm x 117mm x 99mm)
Weight: 0.88 lbs (0.40 kg)
