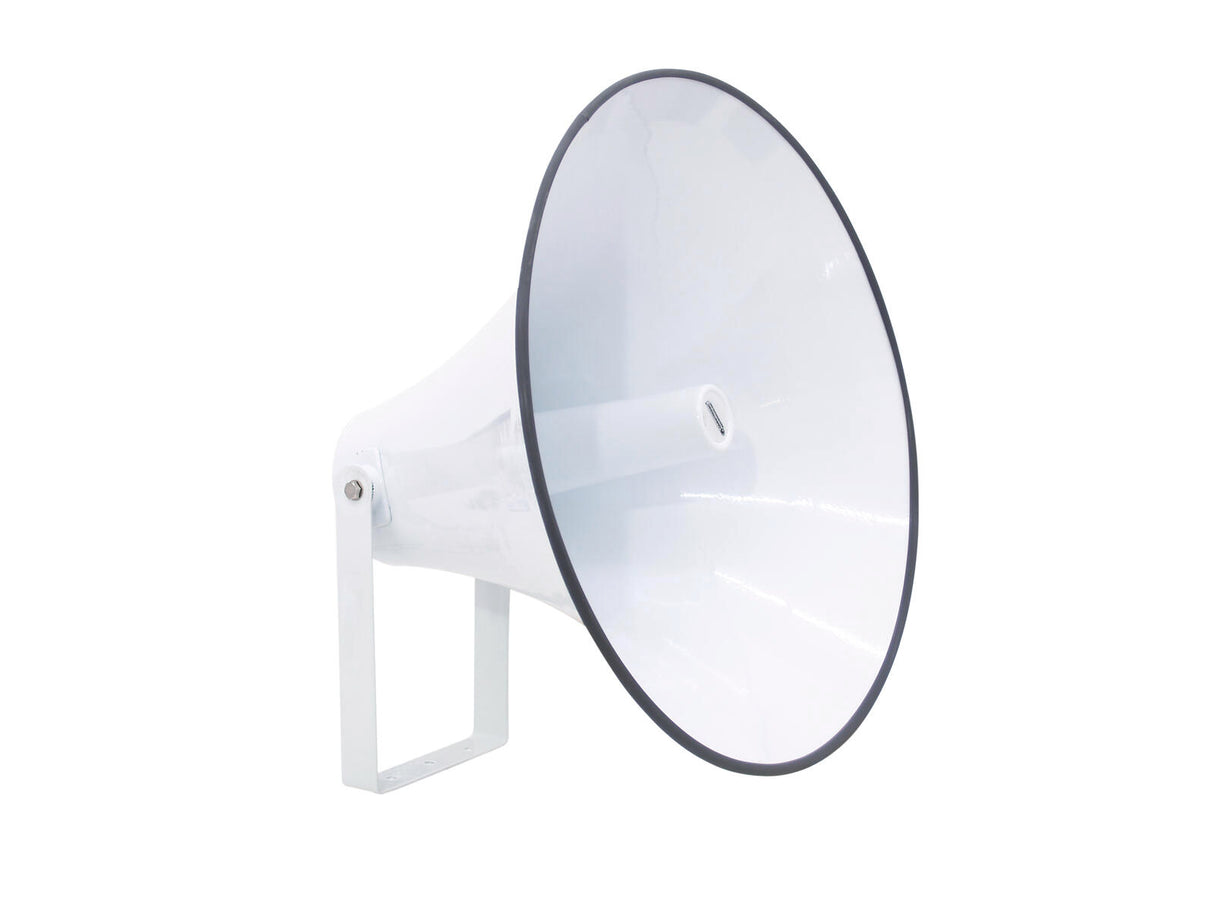

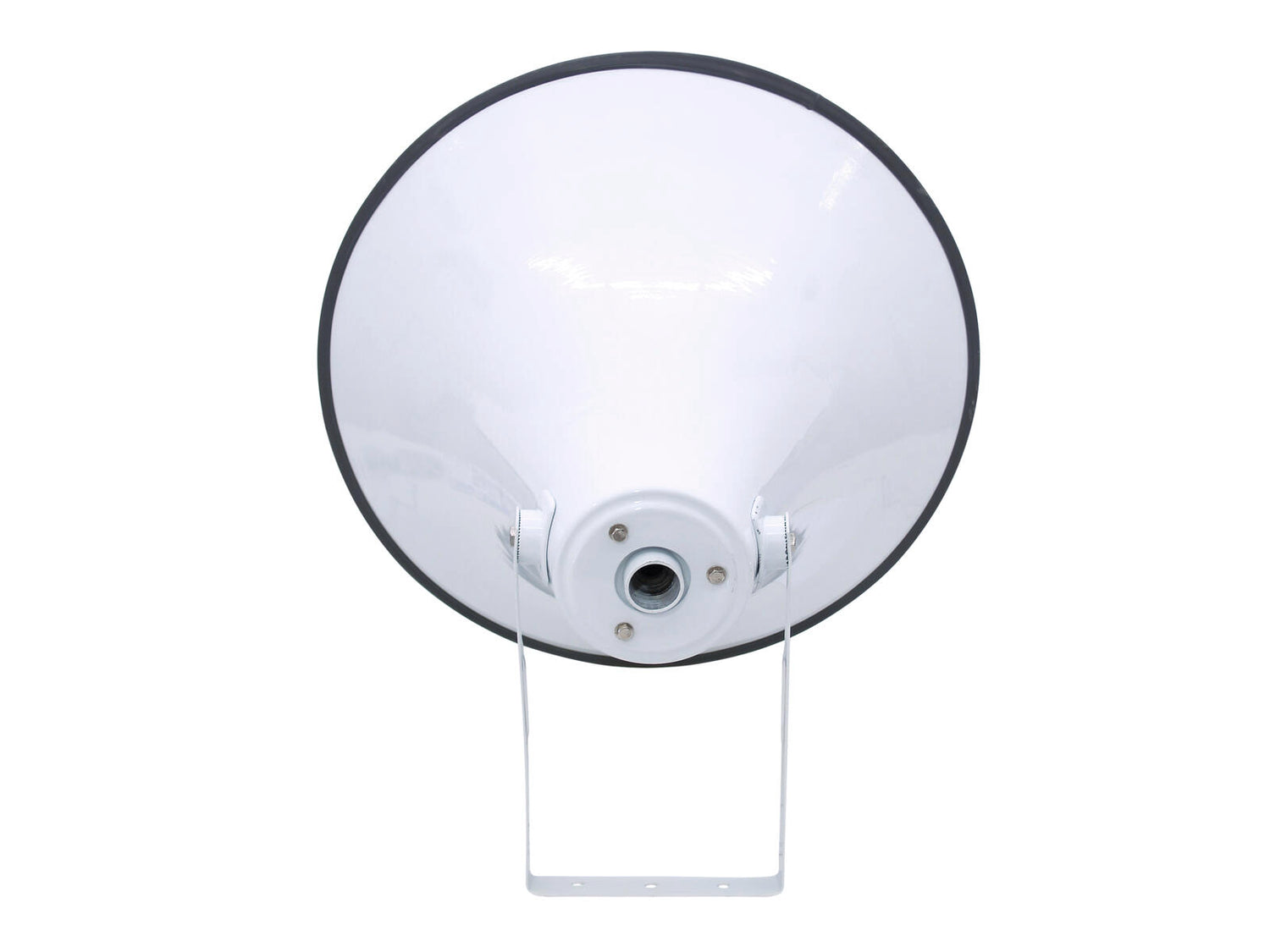

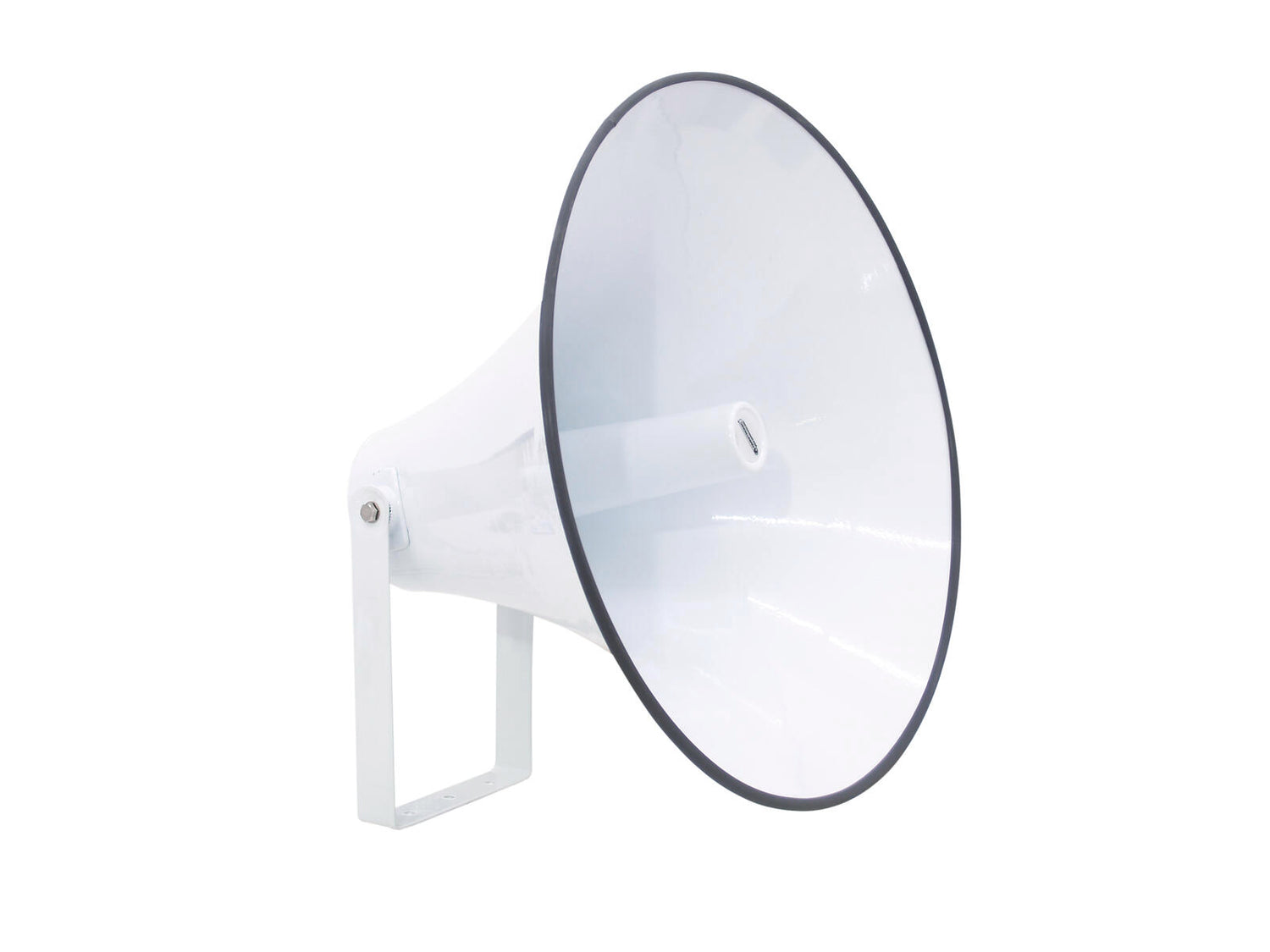

OMNITRONIC EH-560 Horn

These ELA horns are best suited for announcements, can be used outdoors and impress with their high sound pressure, wide frequency range and their attractive price. Depending on the place of action, you have to choose between the two different horns and the two different drivers - ED-60T and ED-100T.

Swivel-mounted horn made of aluminum, without driver

• High sound pressure and wide frequency range
• Particularly applicable in loud surroundings
• Durable aluminum version
• For outdoor amplifying systems in football stadiums, outdoor pools, open air events
• The driver ED-60T or ED-100T is necessary for operation
• With mounting bracket
• Suitable for outdoor use IP44
• With extra large installation depth

Scope of delivery

• 1 x device
• 1 x washer

IP classification:	IP44
Impedance:	Public address systems 100V
Attachment system:	Mounting bracket
Speaker:	Horn vent 1.35"
Type of speaker:	Horn
Material:	Aluminum
Mounting depth:	540 mm
Dimensions:	Depth: 38 cm Diameter: Ø 51 cm
Weight:	1.90 kg
Mounting bracket
Diameter mounting holes:	3 x Ø9.2mm
Material:	Steel, 2.5 mm
