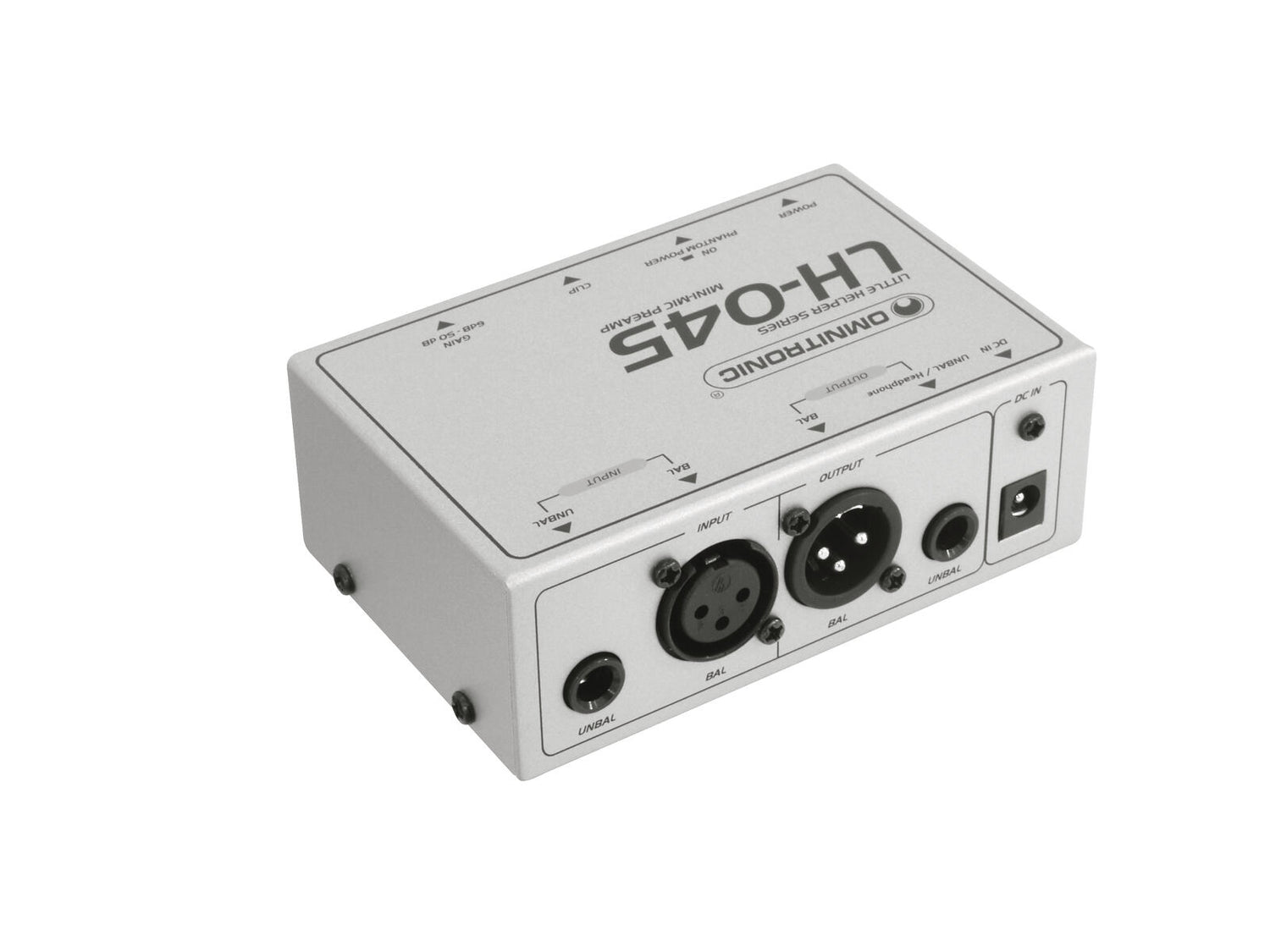

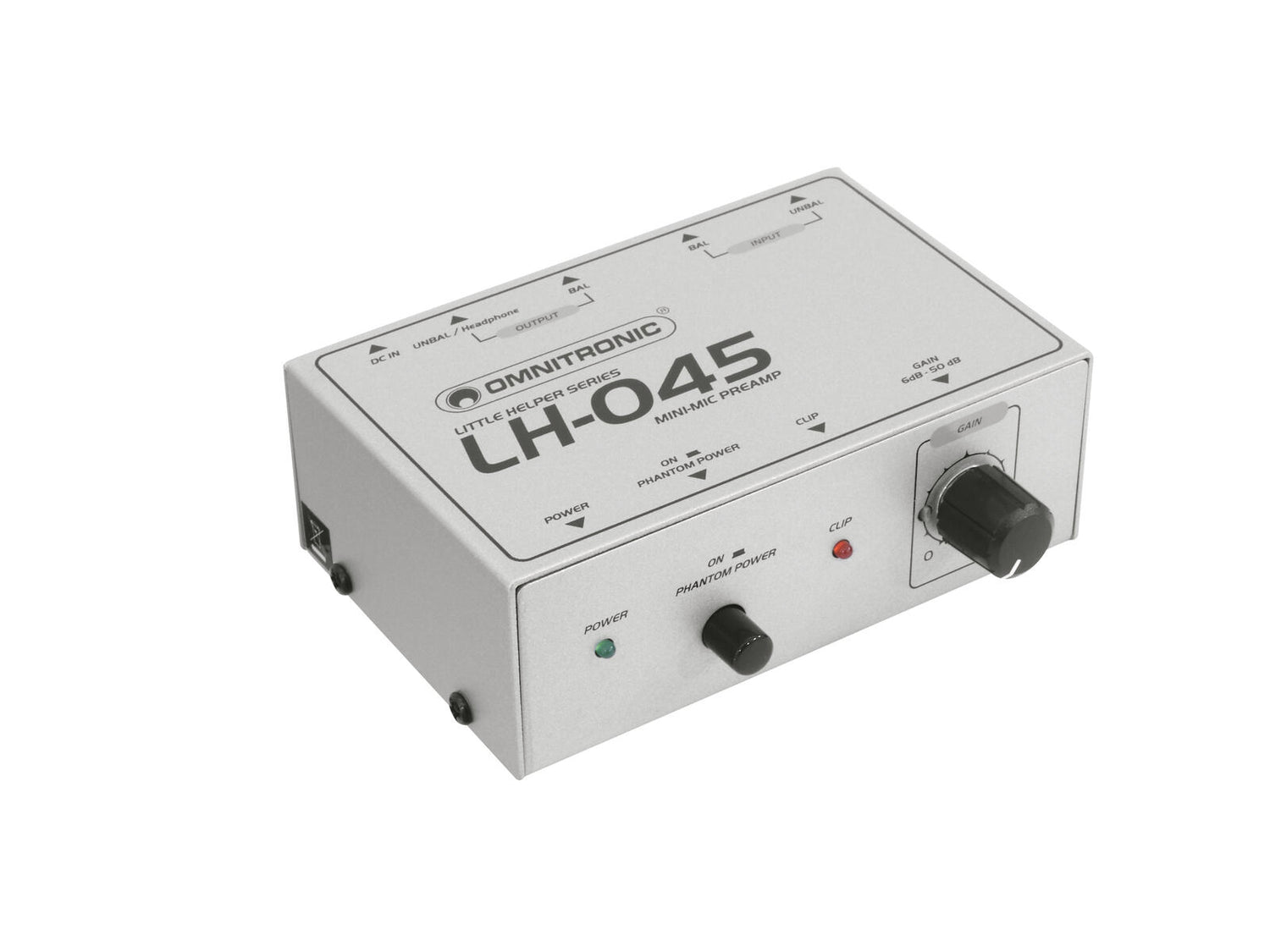

OMNITRONIC LH-045 Microphone Preamplifier
1
di
3
Caricamento...
€74,95
Prezzo unitario
/
Non disponibile
IVA incl. • B2B esente IVA
Spedizione €10 (gratuita oltre €199)
Descrizione
Descrizione
1-channel microphone preamplifier
- 1 microphone, XLR (bal.) or 6.3 mm jack (unbal.)
- Variable gain control (6-50 dB)
- Phantom power can be switched on
- Clip LED
- 1 line output, XLR (bal.) or 6.3 mm (unbal.)
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Scope of delivery
- 1 x device

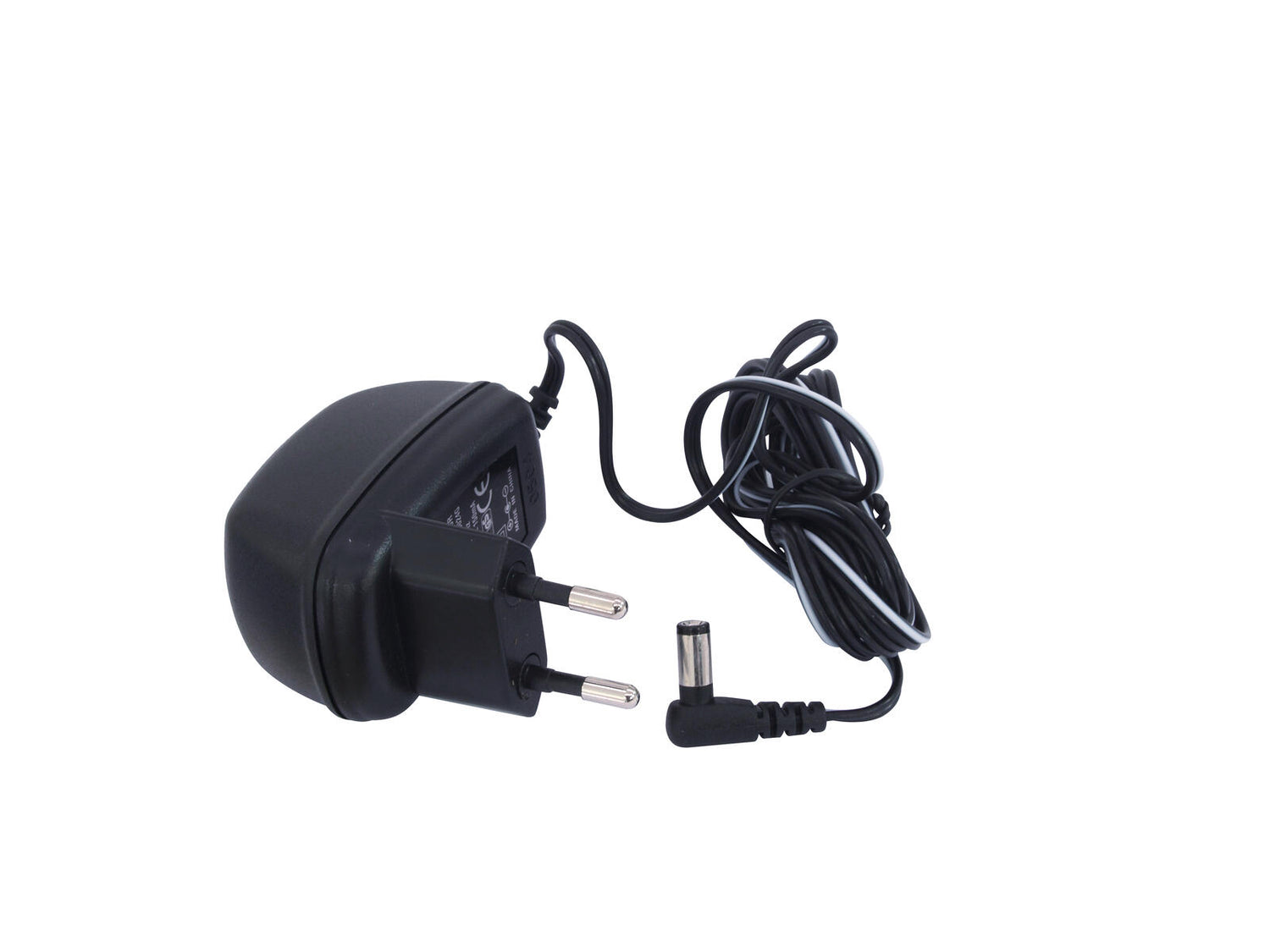

- 1 x external mains adapter
- 4 x foot
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz 12V 150 mA |
| Pin configuration: | Inside - / outside + |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 1 |
| Frequency range: | 25 - 16000 Hz |
| S/N ratio: | >75 dB |
| THD: | <0.01 % at 1 kHz |
| Phantom power: | 30 V DC |
| Impedance: | Input: 10 kOhm |
| Gain: | 50 dB |
| Control elements: | Level control, phantom power switch |
| Connections: | Input: microphone via 1 x 3-pin XLR (F) mounting version Input: microphone via 1 x 6.3 mm plug (unbal.) Output: line via 1 x 3-pin XLR (M) mounting version Output: line via 1 x 6.3 mm plug (unbal.) |
| Max. level: | Input: +4 dB, bal. Input: +10 dB, unbal. |
| Material: | Metal |
| Color: | Silver |
| Dimensions: | Width: 11.7 cm Depth: 9.2 cm Height: 4 cm |
| Weight: | 0.54 kg |
