OMNITRONIC XDA-1206 6-channel Class D Amplifier
1
di
5
Caricamento...
€416,95
Prezzo unitario
/
Non disponibile
IVA incl. • B2B esente IVA
Spedizione gratuita
Descrizione
Descrizione
Class D multi-channel PA amplifier with SMPS, 6 x 200 W RMS (4 ohms), 6 x 150 W RMS (8 ohms)
- Extremely low weight and height due to integrated switch mode power supply
- Level control per channel
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
Scope of delivery
- 1 x amplifier
- 1 x user manual
- 1 x power cord
- 6 x screw plug-in terminal
- 4 x foot
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1440 W |
| Protection class: | Protection class I |
| Output power: | 6 x 200 W RMS (4 ohms) 6 x 150 W RMS (8 ohms) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 8 A fuse replaceable |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0.05 % at 1 kHz |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Gain: | 29 dB/ 0.775 V |
| Housing color: | Black matte |
| Circuitry: | Class D |
| Slew rate: | >20 V/µs |
| Damping factor: | >300 |
| Control elements: | Power switch, level control per channel |
| Controls: | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: | Power, signal, clip |

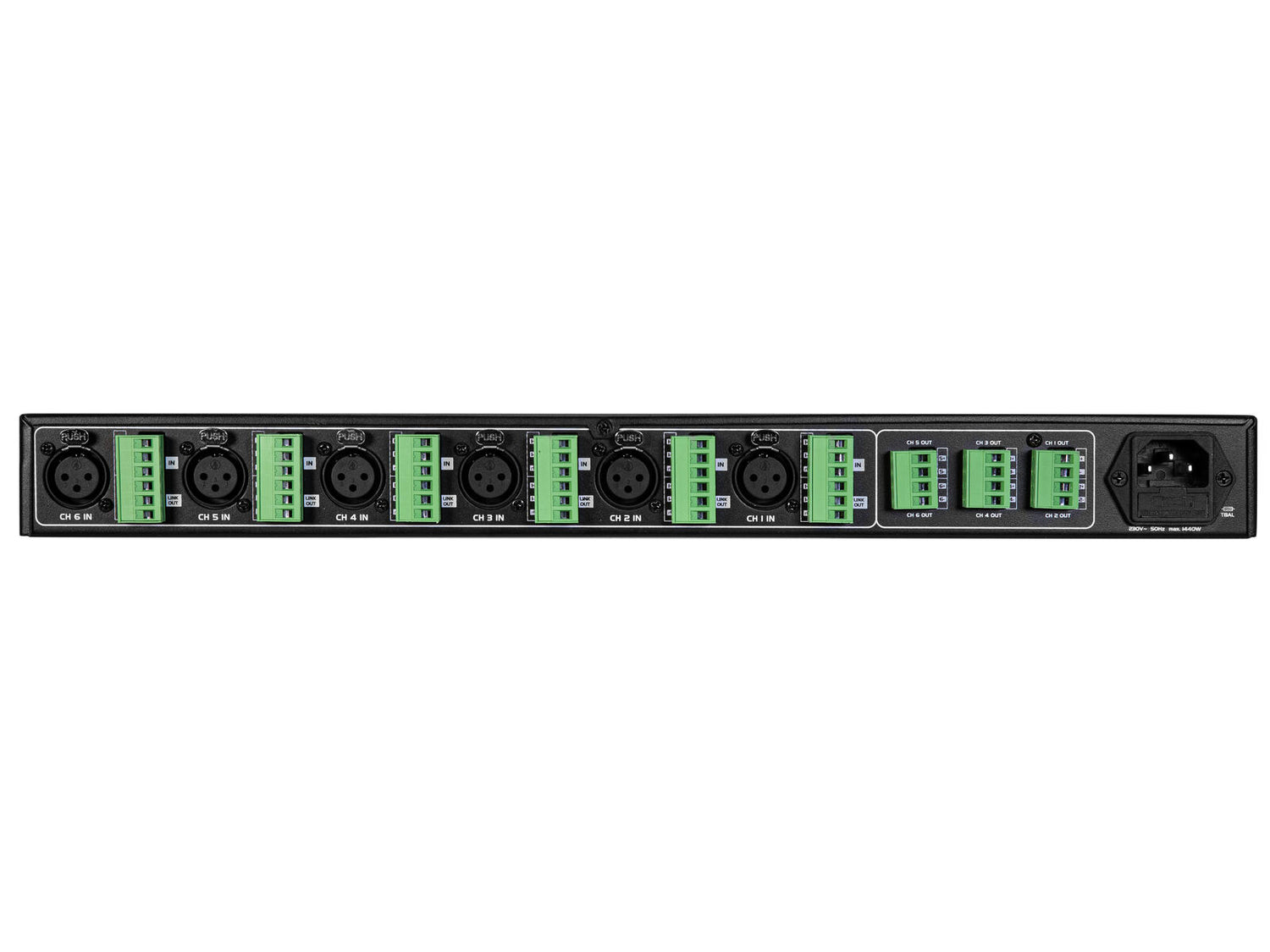

| Connections: | Input: line via 6 x 3-pin XLR Input: 6 x screw plug-in terminal Link: line via 6 x screw plug-in terminal Output: speaker via 6 x screw plug-in terminal |
| Input sensitivity: | 0.775 V |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48.3 cm Depth: 20.5 cm Height: 4.4 cm |
| Weight: | 3.75 kg |
