ROADINGER Amplifier Rack PR-1, 3U, 47cm deep

Flightcase for 483 mm devices (19")The ROADINGER amplifier rack PR-1 with 3 U is optimally suited for your 19" equipment such as power amplifiers and other accessories. The maximum installation depth is 420 mm plus 90 mm per cover. The case features high-quality, 7 mm thick sides made of multi-layer glued and black laminated wood. The aluminium profile frame with rounded corners and the three-legged, medium-sized steel ball corners provide additional stability. The amplifier rack is equipped with four snap locks, two chrome-plated case folding handles and two wooden sliding rails on the floor. Both lids are removable.The maximum load is 50 kg.

Rack case

• 3 U
• High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated

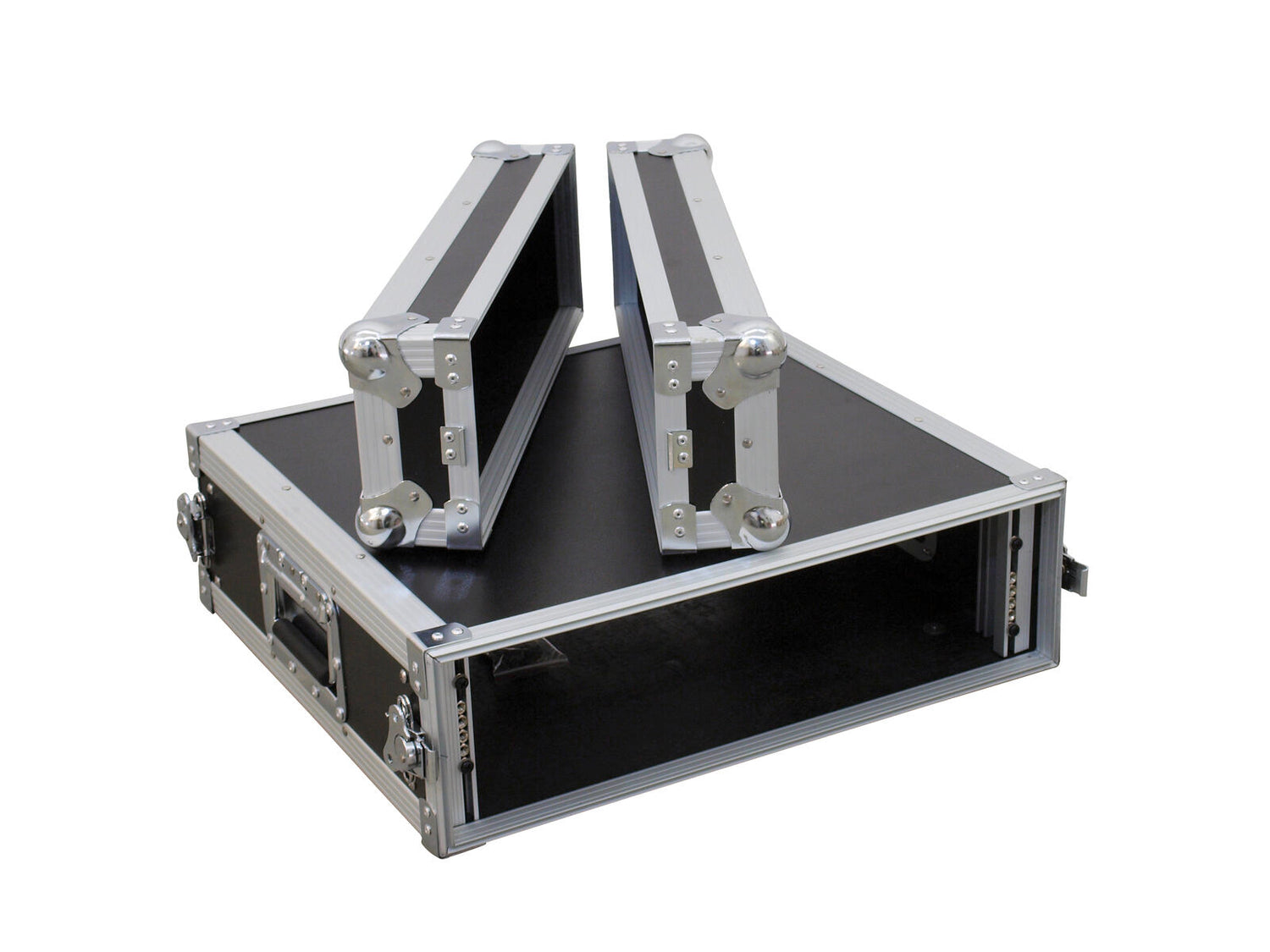

• 2 removable covers (double-Door-Version)
• Aluminum profile frames 30mm with rounded edges
• 2 hinged, chromium plated case handles
• 4 high-quality spring locks
• 2 x wooden slide rails on the bottom
• Available in different height units (1 U = 44 mm)

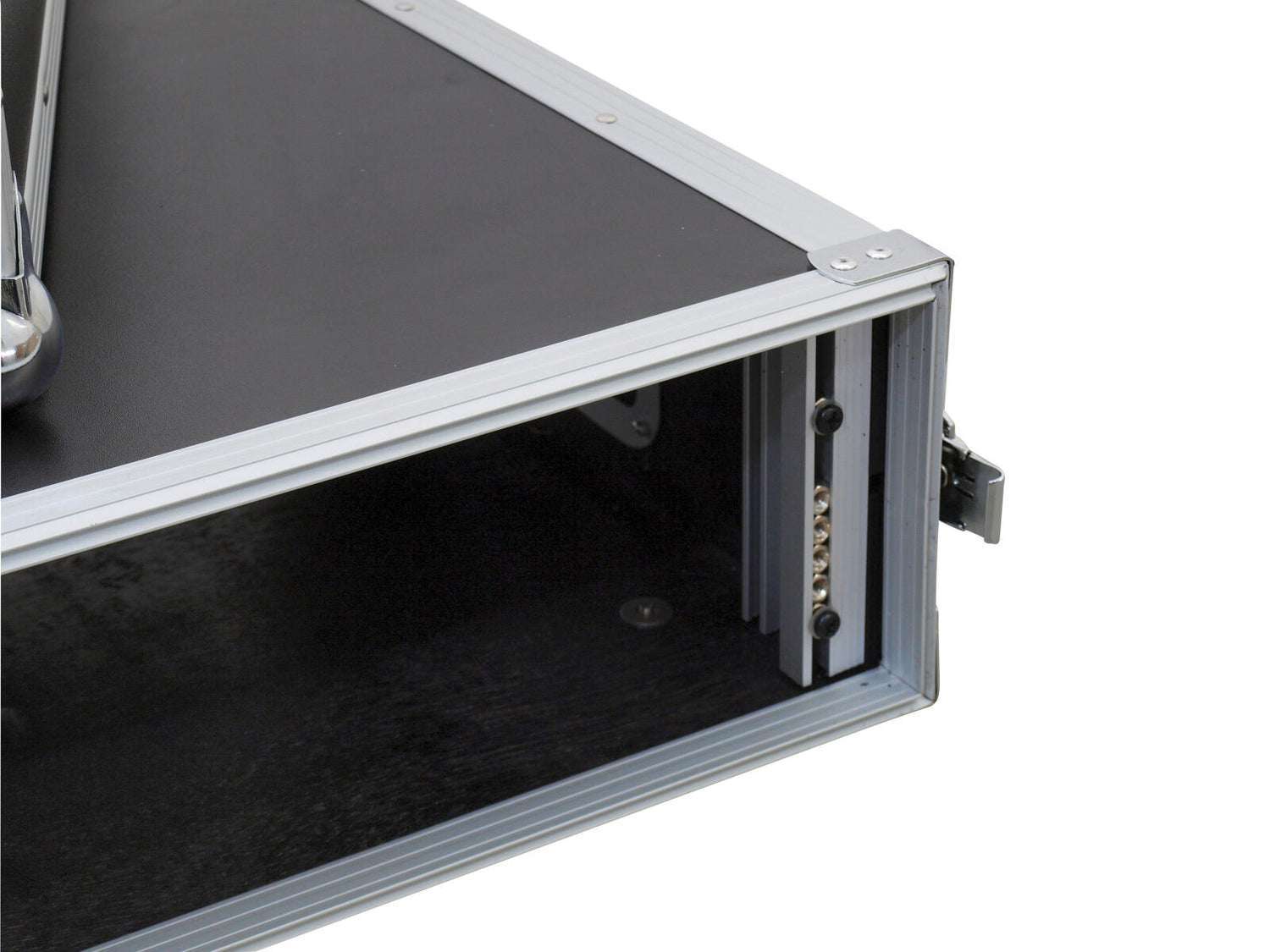

• With profile rails suitable for 19" units
• For further information about this product, please refer to the Data Sheet under "Downloads"

Scope of delivery

Maximum load:	50 kg
Removable covers:	2 pc/pcs
Aluminum profile frames:	30 mm
Case handle:	2 pc/pcs
Lock:	Spring lock: 4 pc/pcs
Transport aid:	2 x wooden slide rails on the bottom
Material:	Plywood multi-layer glued, 7 mm
Color:	Black, laminated
Front panel width:	19"
Mounting height:	Approx. 13.5 cm (3 U)
Mounting depth:	470 mm
Housing design:	3 U

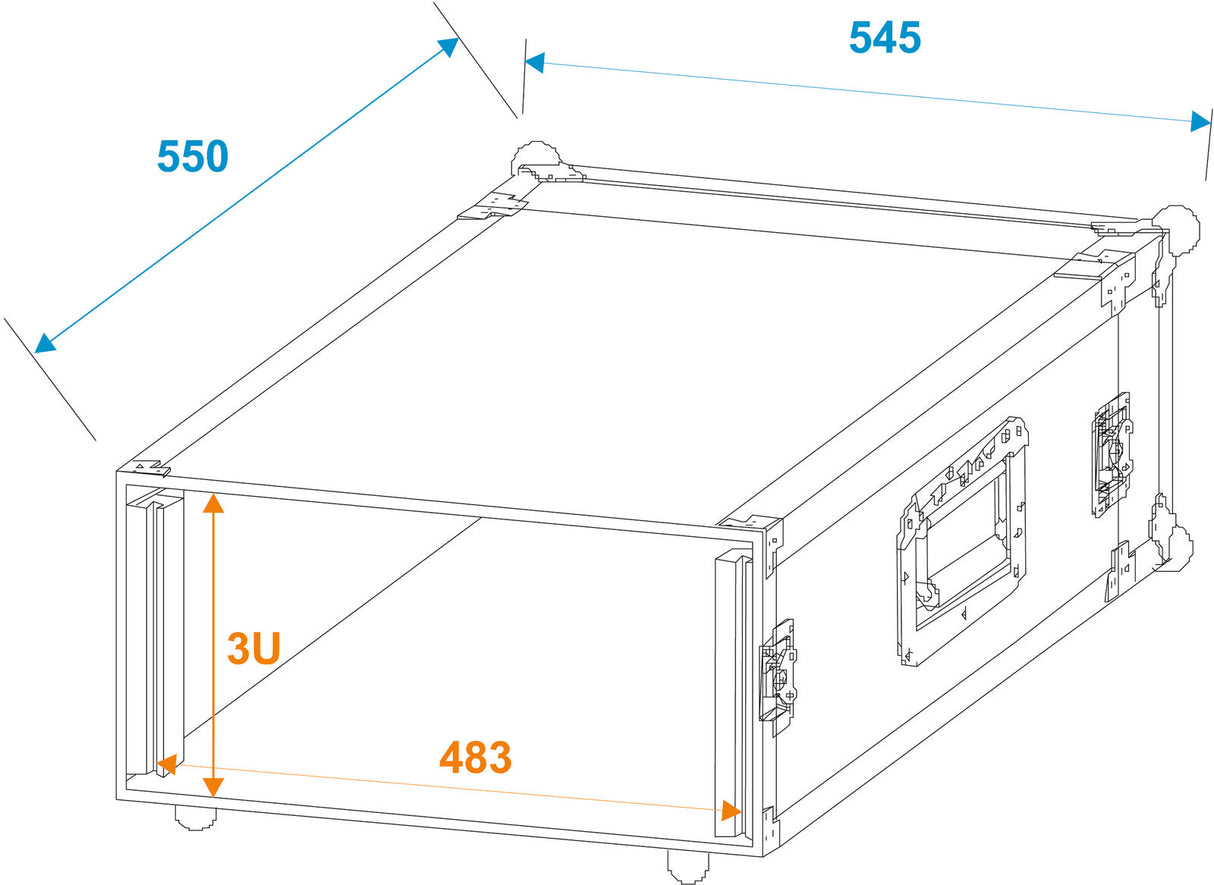

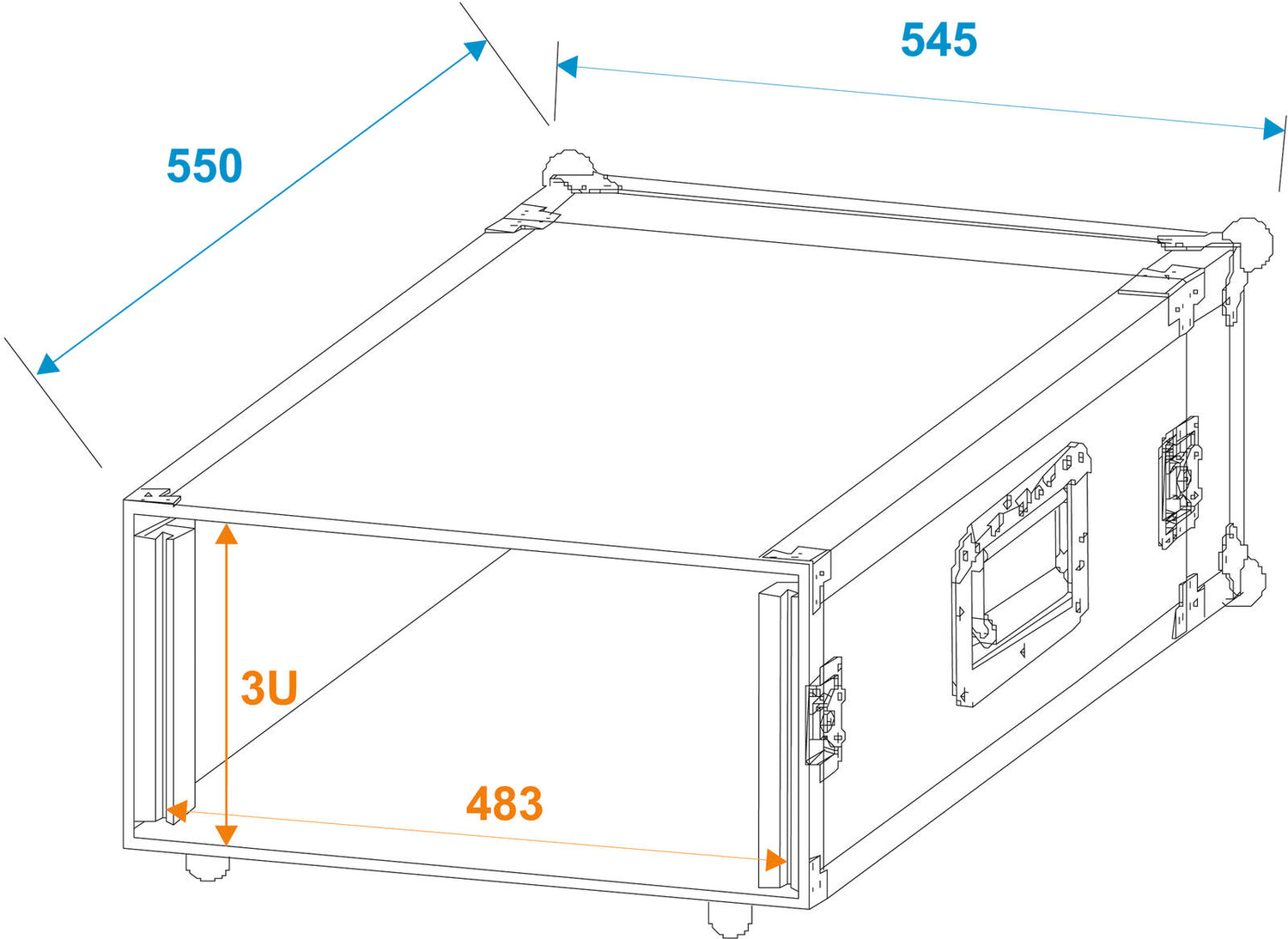

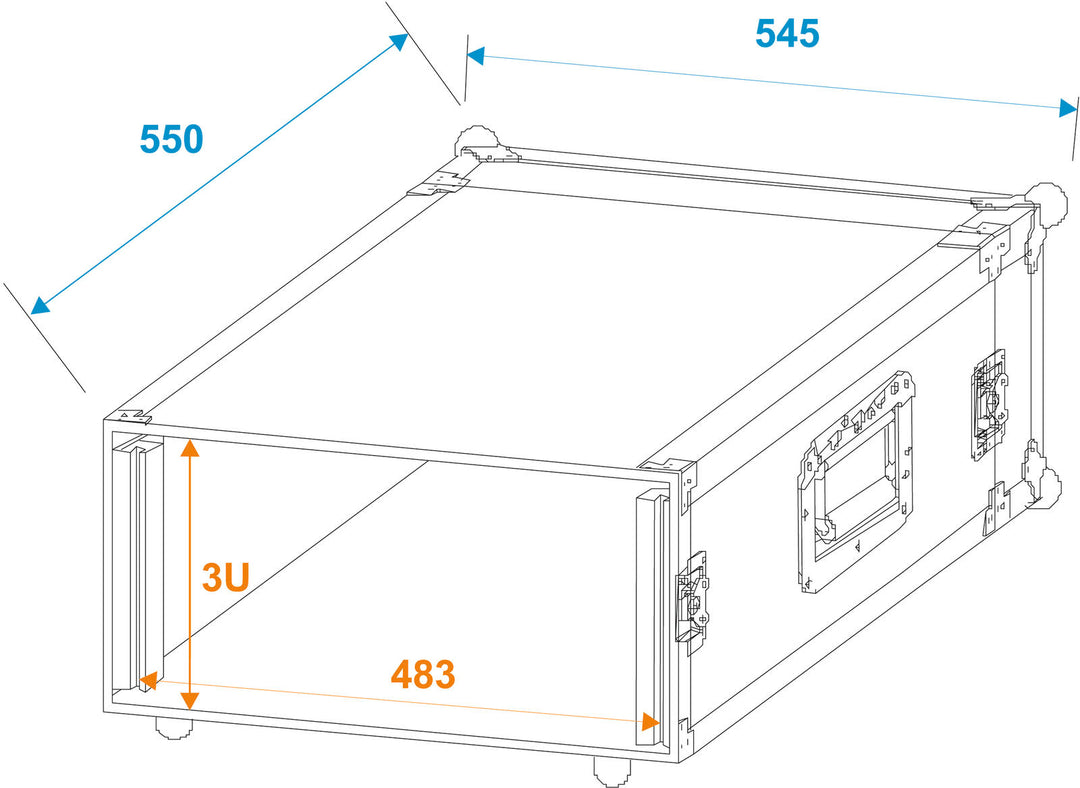

Dimensions:	Width: 54.5 cm Depth: 64 cm Height: 17.5 cm
Weight:	8.60 kg
