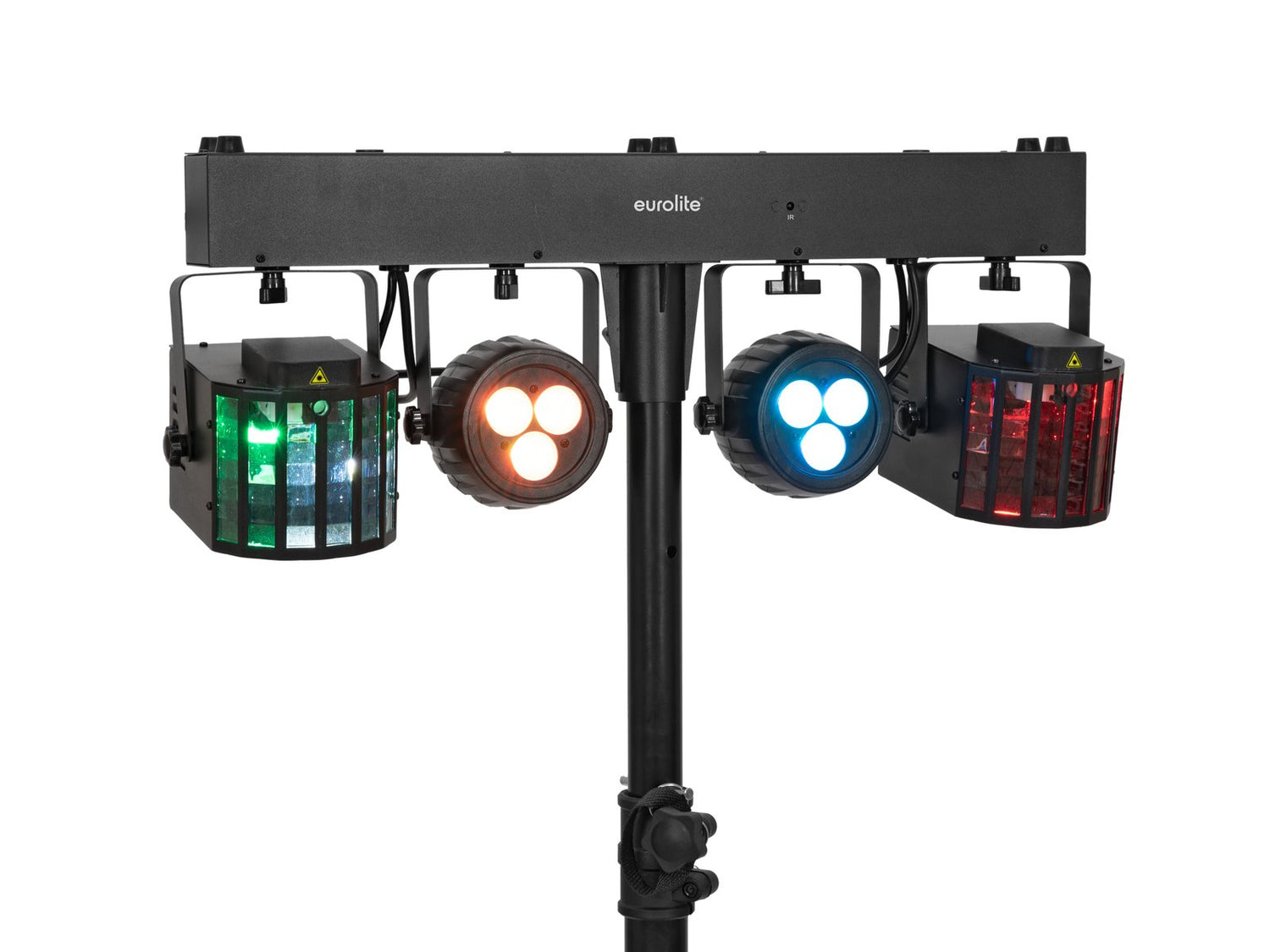

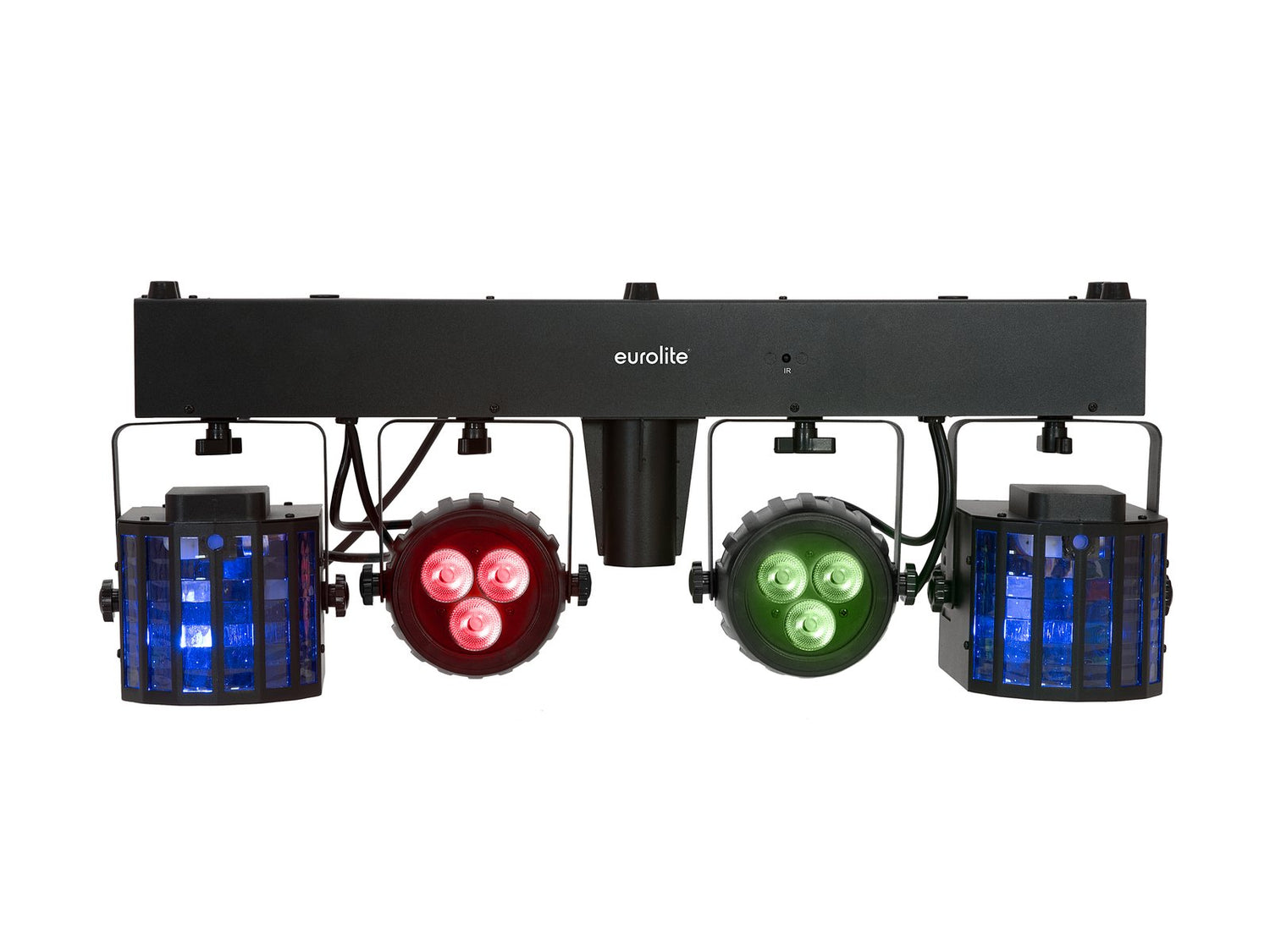

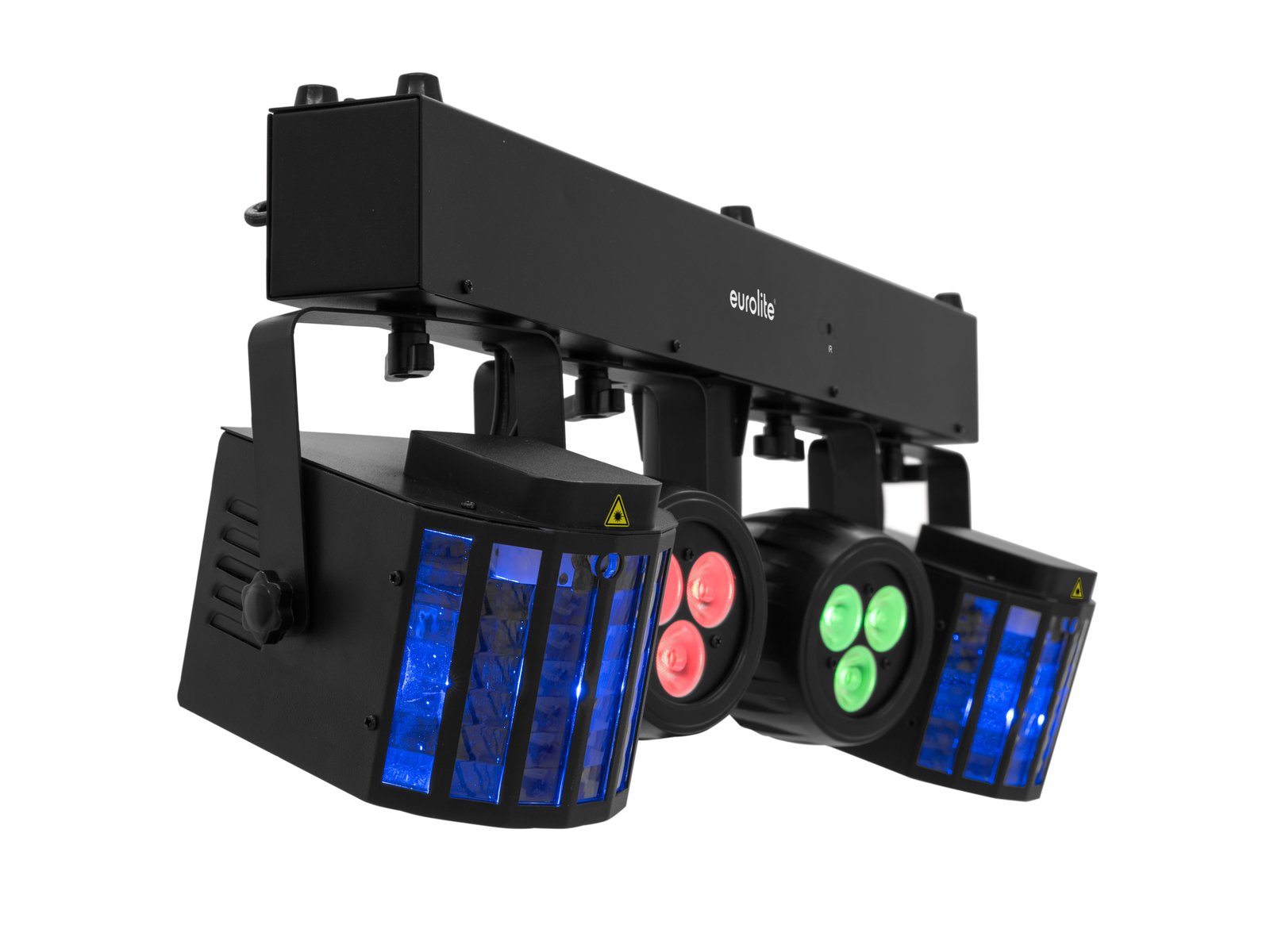

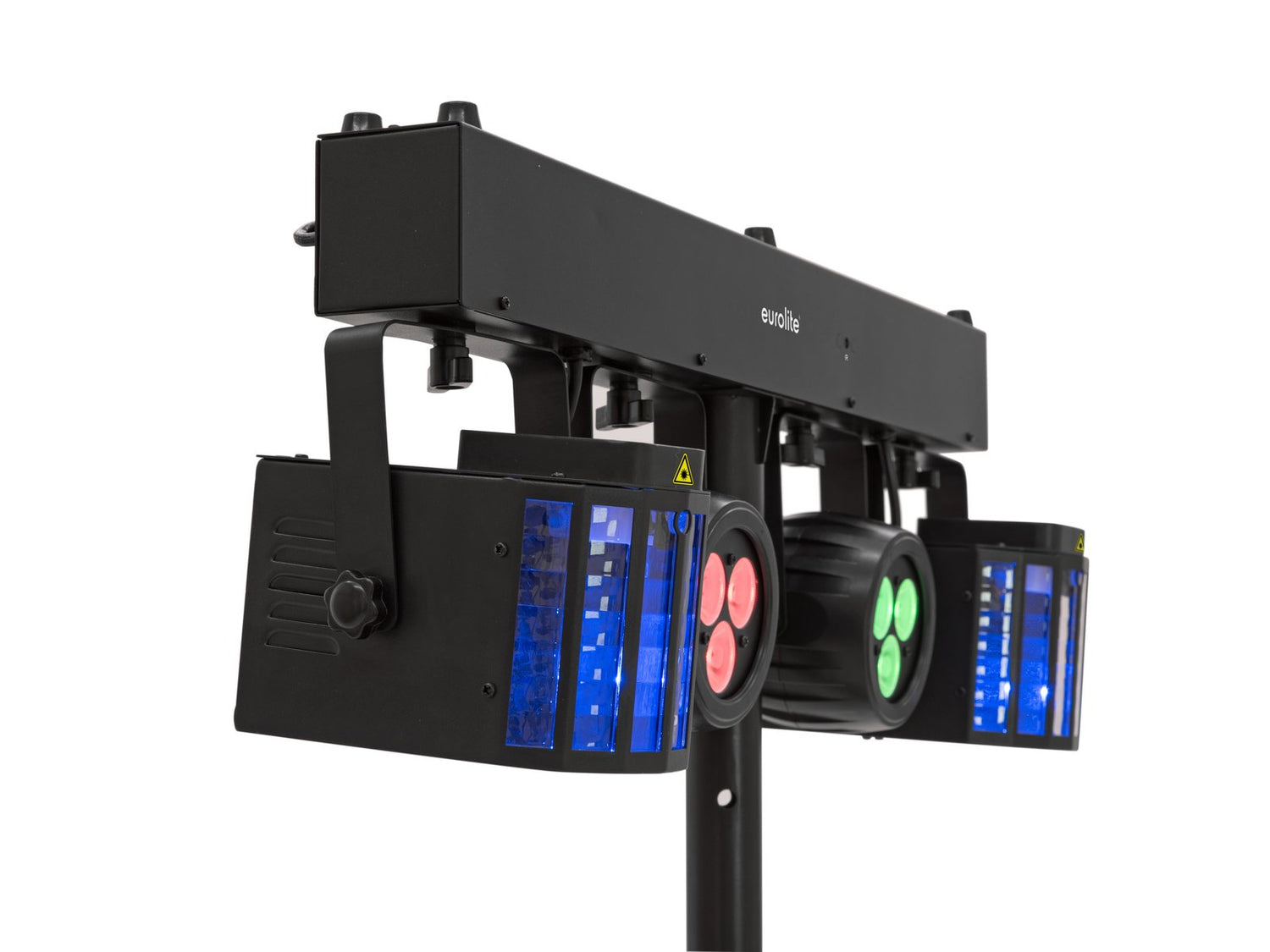

EUROLITE LED KLS-120 Laser FX II

• 2 rotating LED derbies, 2 LED spots and 2 RG laser diodes with hundreds of laser beams
• Control via DMX, IR remote, stand-alone, audio activation, and wireless QuickDMX or W-DMX via USB (optional)
• 15 preset colors, color mixing, strobe, dimmer, and 7 integrated show programs
• Passive cooling, flicker-free, and quiet drift
• Can be used on a stand or suspended; suitable for mobile DJs, party rooms and small rental applications

EUROLITE LED KLS-120 Laser FX II

• Crossbar with integrated DMX controller and tripod mount
• 2 laser diodes project hundreds of røde and green laser beams
• 2 rotating derby light effects for mirror ball effects
• Direct color selection with 15 preset colors
• Stepless color mixing; adjustable color shift; adjustable color fade; electronic dimmer
• Strobe effect and 7 built-in show programs
• Flicker-free technology and passive convection cooling
• 4-digit 7-segment LED display
• Control via DMX, IR remote control, stand-alone, audio controlled via microphone, master/slave function
• QuickDMX, W-DMX and CRMX available via USB (optional)
• Power input and output for powering up to 8 devices
• Application options: On stand or suspended
• Suitable for mobile use, venues, mobile DJs/entertainers and small rentals
• Pre-programmed for Light Captain, EASY SHOW 2 and EASY SHOW 3
• Rubber feet and silent drift
• Laser class 2M: Requires no additional protective measures or laser safety officer
• 3 powerful 8W COB LED spotlights with RGBW color mixing and 18° beam angle
• 4 powerful 3 W RGBW LED light effects, individually controllable

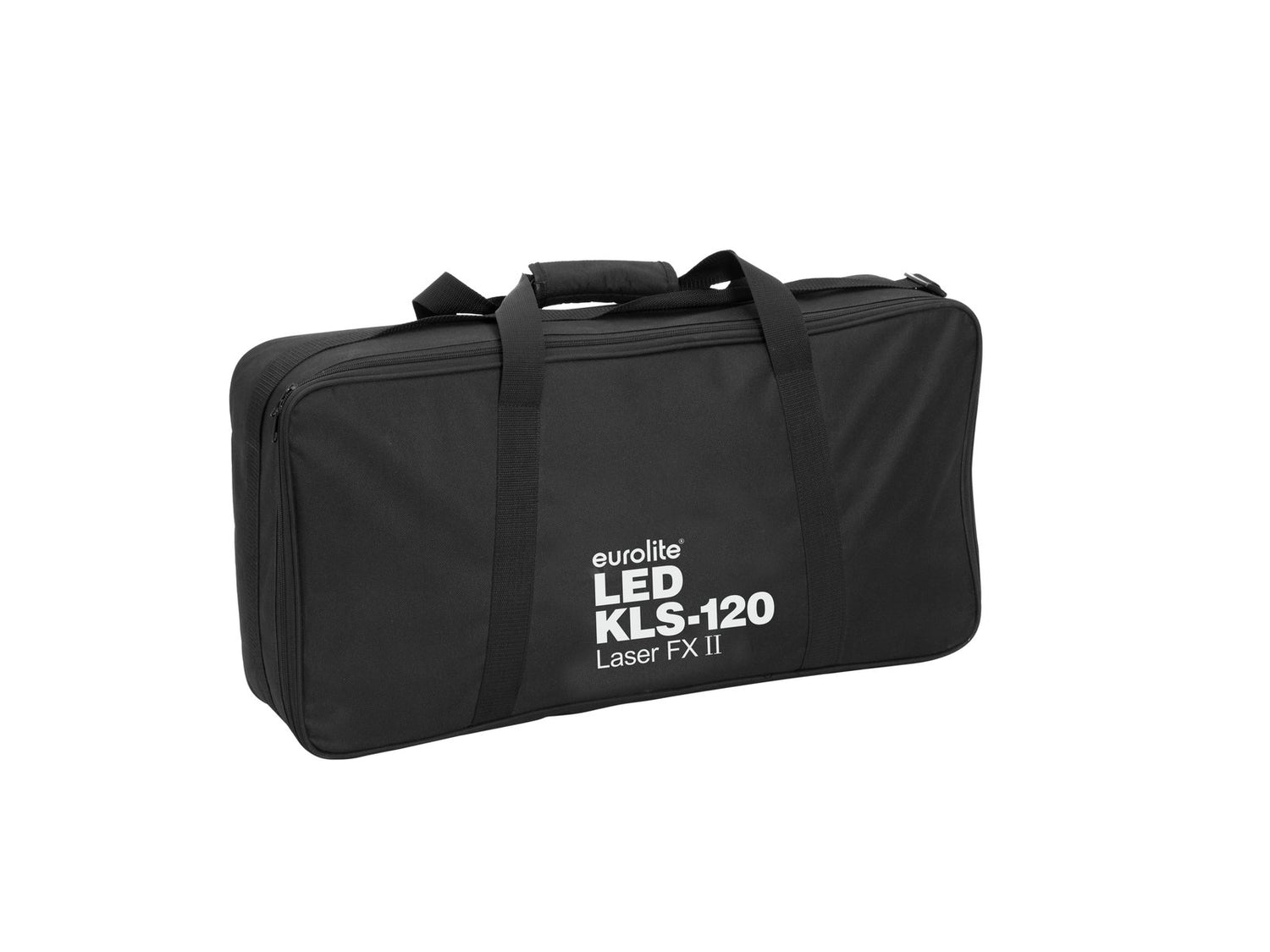

• Package includes: Unit, user manual, power cable, remote control, battery and bag

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 40 W
IP rating: IP20
Protection class: Protection class I

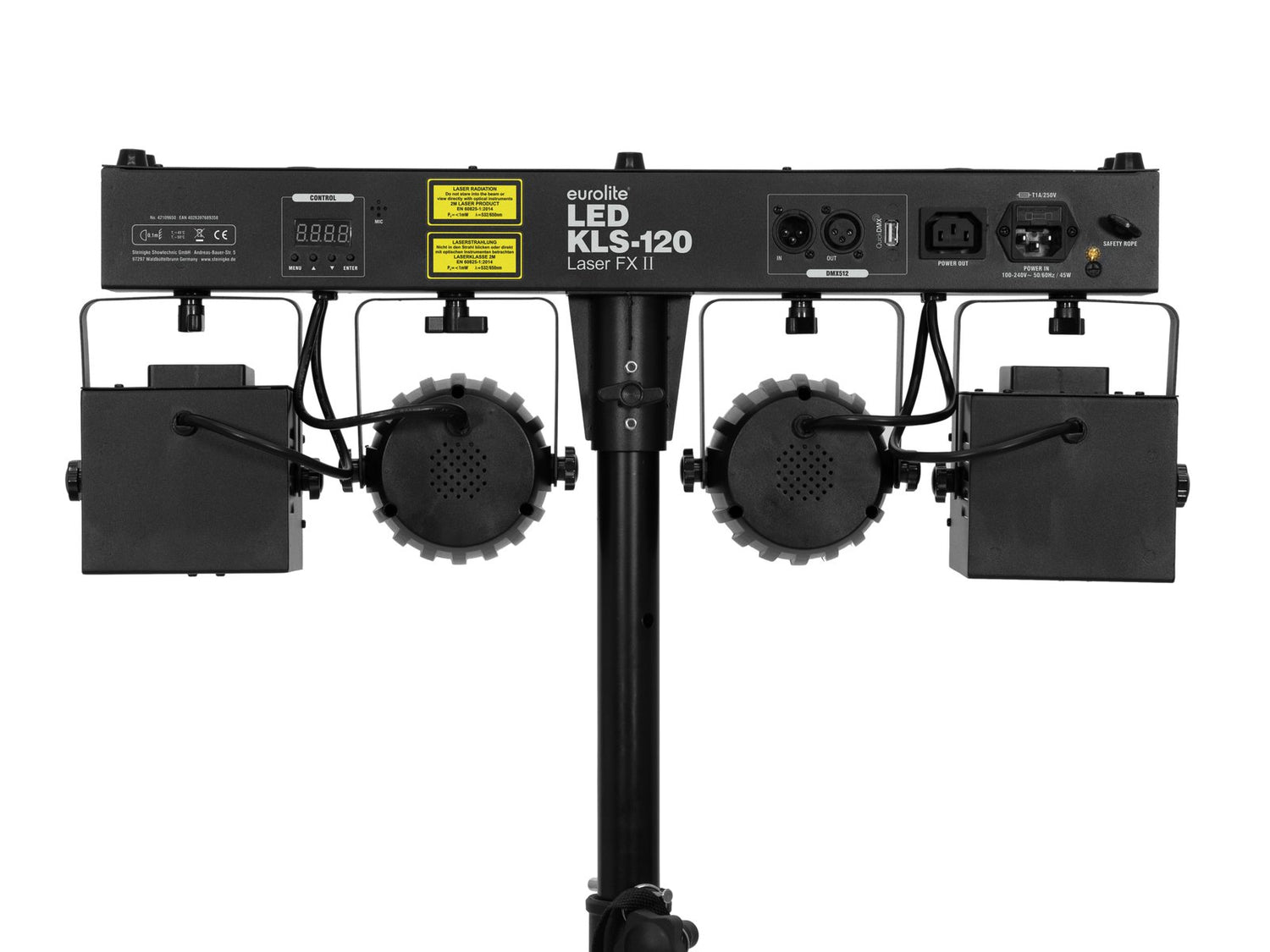

Power connection: Mains connection via IEC plug (M) mounting version, power supply cord with safety plug
Power output: IEC connector (F) mounting version
Device fuse: 5 x 20 mm, T 1 A (replaceable)
Lamp type: LED lamp
DMX channels: 3; 13; 25
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control:

• DMX
• IR remote control
• Stand-alone
• Sound to light via microphone
• Master/slave function
• QuickDMX via USB (optional)
• W-DMX by wireless solution via USB (optional)
• CRMX via LumenRadio via USB (optional)

Pre-programmed in:

• Light Captain
• EASY SHOW 2
• EASY SHOW 3

Projection: Flicker-free
House color: Black
Display type: 4-digit 7-segment LED display
Transport aid: Rubber feet

Dimensions:

• Width: 62.5 cm
• Depth: 15.5 cm
• Height: 22.9 cm

Weight: 4.60 kg
Noise classification: Class 0 (no noise at all)

Remote control:

• Battery: 1 x Button cell 3.0 V CR2025 lithium manganese (built-in)

Spotlight:

• LED type: 3 x 8 W COB (chip-on-board) 4in1 QCL RGBW (homogeneous color mixing)
• Beam angle: 18°
• Beam angle (1/2 peak): 18°
• Beam angle (1/10 peak): 34°

Light output:

• LED type: 4 x 3 W high-power R/G/B/W

Laser:

• Laser class: 2M
• Laser color: Red/Green
• Laser module: Green (G) 14 mW, Red (R) 40 mW

Legal specifications:

• Special product: Not designed for lighting domestic spaces
• Application: Lighting effects for shows
