• Realizzato insieme a Dave Smith
• Suoni analogici Prophet-6
• 2 VCO, 2 VCF, VGA, 2 EG e 1 LFO
• 496 preset
• Effetti Prophet 6
• Modalità Tastiera e Scala

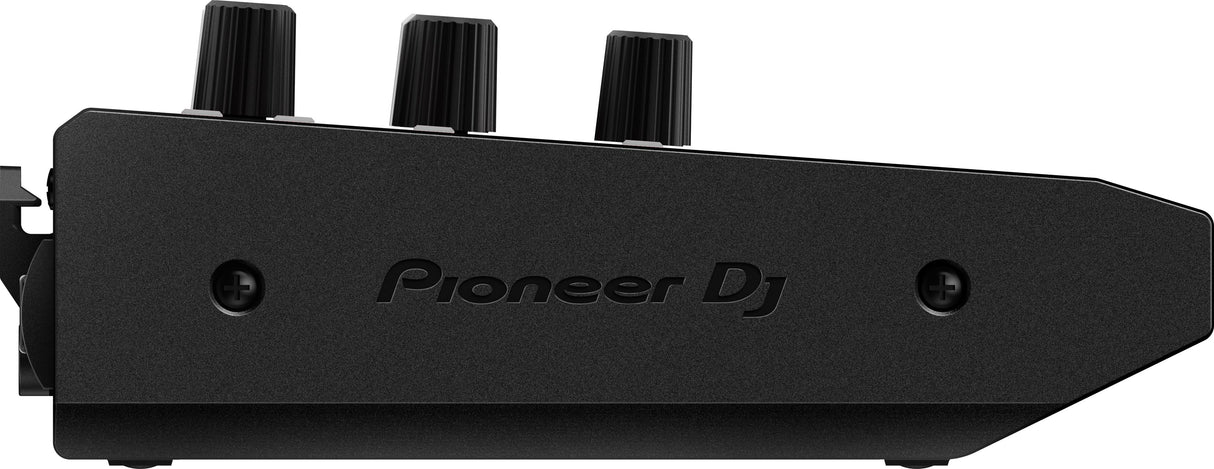

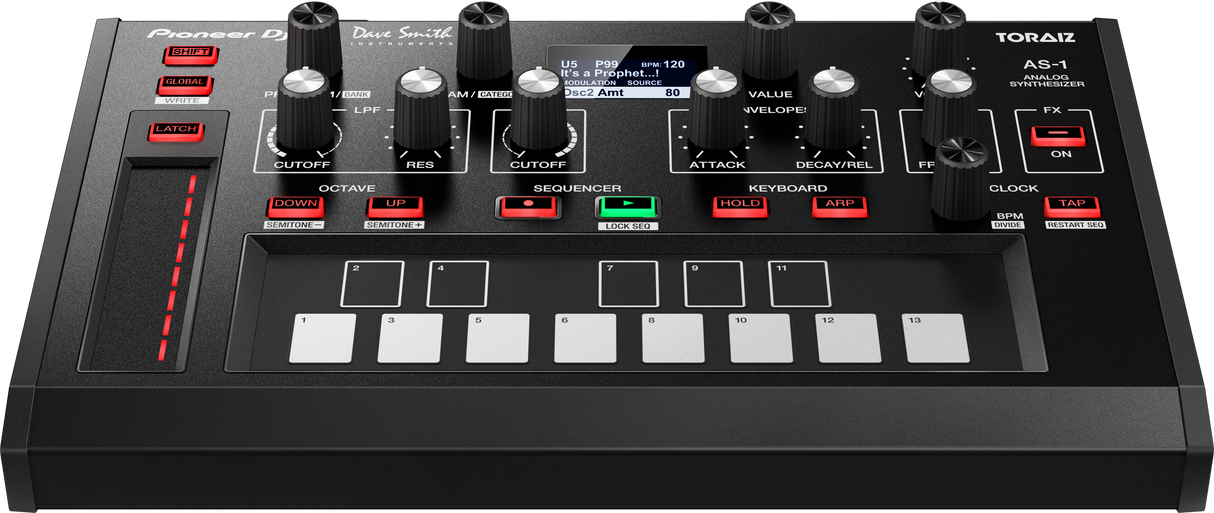

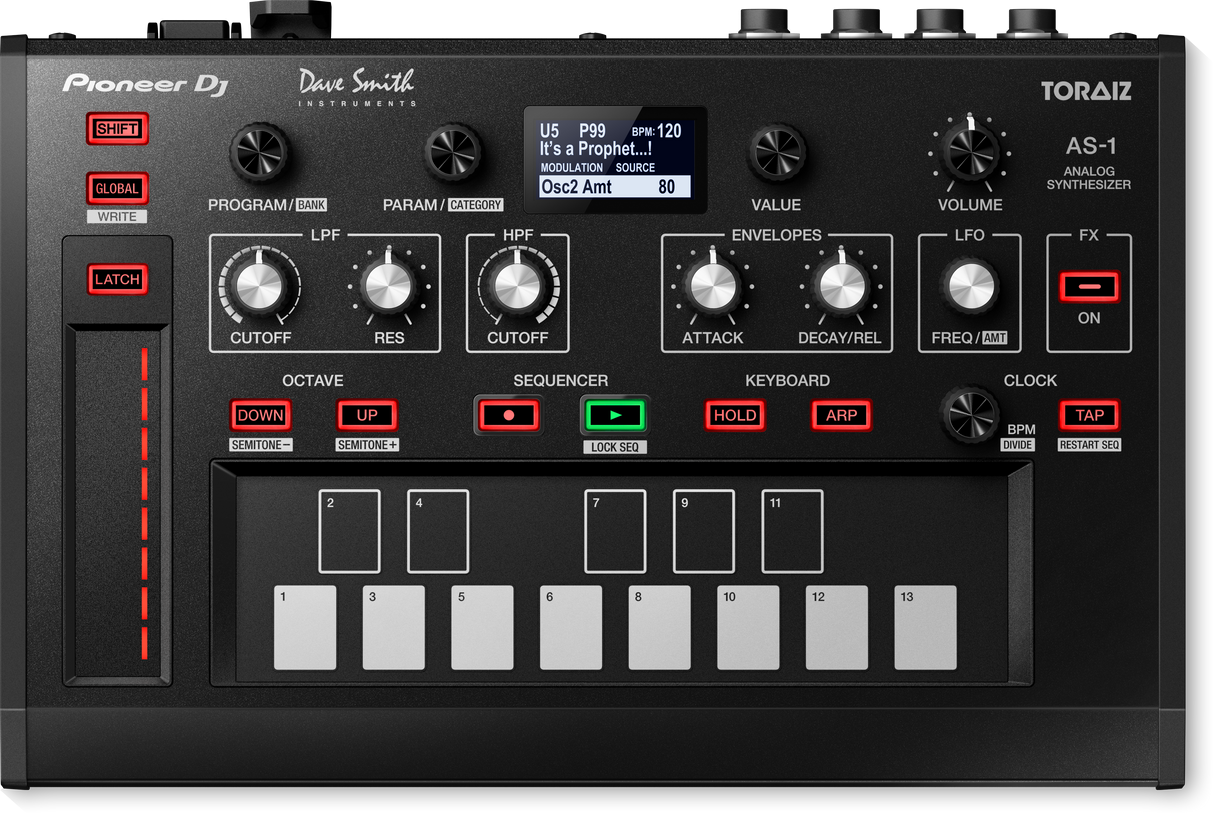

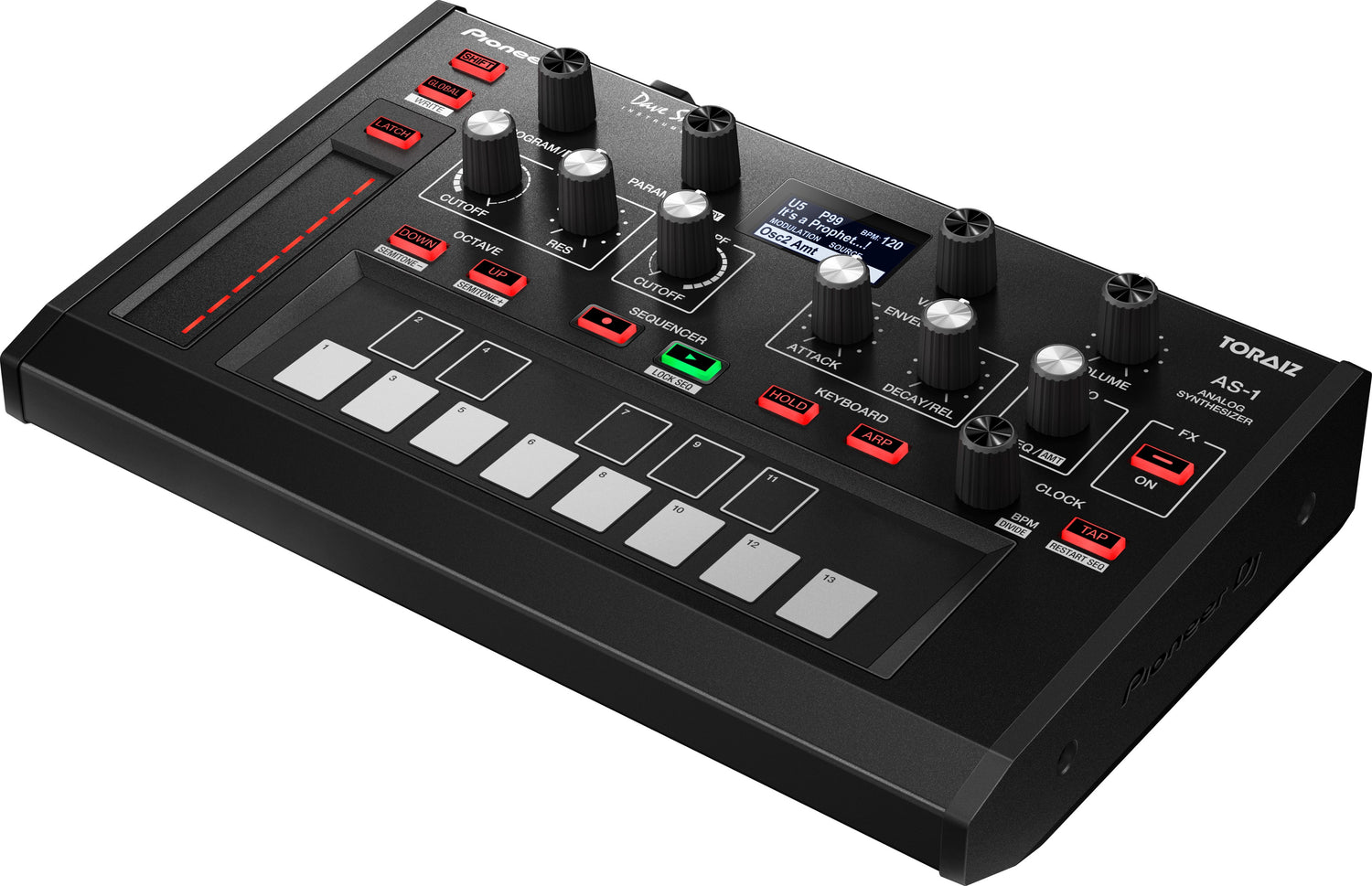

Pioneer TORAIZ AS-1 Sintetizzatore Analogico Monofonico

Pioneer TORAIZ AS-1 Sintetizzatore Analogico Monofonico è il nuovo controller di Pioneer che offre opportunità creative sia in studio che dal vivo sul palco. Sintetizzatore analogico realizzato secondo il sintetizzatore "Dave Smith Prophet 6"

Specifications

Synthesis Parameters
Oscillator 1

- Frequency

- Pulse Width

- Sync (Off, On)

Oscillator 1 Waveshapes (continuously variable)

- Triangle

- Sawtooth

- Variable-width Pulse

Oscillator 2

- Frequency

- Fine

- Pulse Width

- Key Follow (Off, On)

- Low Frequency (Off, On)

Oscillator 2 Waveshapes (continuously variable)

- Triangle

- Sawtooth

- Variable-width Pulse

Oscillators
Slop
Mixer

- Oscillator 1 Level

- Oscillator 2 Level

- Sub Level

- Noise Level

Low-pass Filter

- Cutoff

- Resonance

- Key Amount (Off, Half, Full)

- Velocity (Off, On)

High-pass Filter

- Cutoff

- Resonance

- Key Amount (Off, Half, Full)

- Velocity (Off, On)

Filter Envelope

- Low-pass Filter Amount

- High-pass Filter Amount

- Attack

- Decay

- Sustain

- Release

AMP Envelope

- Amount

- Velocity (Off, On)

- Attack

- Decay

- Sustain

- Release

Glide

- Rate

- Off, On

- Mode (Fixed Rate, Fixed Time, Fixed Rate A, Fixed Time A)

LFO

- Frequency

- Sync (Off, On)

- Initial Amount

LFO Shapes

- Triangle

- Reverse Sawtooth

- Sawtooth

- Square

- Random

LFO Destination

- Oscillator 1 Frequency

- Oscillator 2 Frequency

- Oscillator 1 and 2 Pulse Width

- Low-pass Filter Cutoff

- High-pass Filter Cutoff

- VCA

Modulation Source

- Filter Envelope

- Oscillator 2 Amount

Modulation Destination

- Oscillator 1 Frequency

- Oscillator 1 Shape

- Oscillator 1 Pulse Width

- Low-pass Filter Cutoff

- High-pass Filter Cutoff

Effects
FX 1 Types

- Bucket-brigade Delay

- Distortion

- Ring Modulation

FX 2 Types

- Chorus

- Low Resonance Phaser

- High Resonance Phaser

- Maestro Phaser

Parameters
Each effect has 2 adjustable parameters
Sequencer
Step Length
Up to 64 steps
Parameters

- Key, Velocity, Slew (Off, On) for each step

- BPM (shared with arpeggiator)

- Time Divide (shared with arpeggiator)

Arpeggiator
Mode

- Up

- Down

- Up + Down

- Random

- Assign

Range
1 ~ 3 octaves
Parameters

- BPM (shared with sequencer)

- Time Divide (shared with sequencer)

Performance Controls
Keyboard

- 13-key touch keyboard

- 22 preset scales

- 9 octaves: C0 ~ C9 (use with Oscillator 1 and 2 frequency parameters)

Slider Parameters (multi assignable)

- Oscillator 1 Frequency

- Oscillator 2 Frequency

- Low-pass Filter Amount

- High-pass Filter Amount

- LFO Amount

- FX 1 Mix

- FX 2 Mix

OLED Display
Able to access all parameters
MIDI Controllable Parameters
Aftertouch
Amount
Aftertouch Destination

- Oscillator 1 Frequency

- Oscillator 2 Frequency

- Low-pass Filter Cutoff

- High-pass Filter Cutoff

- VCA

- LFO Amount

Pitch Bend Range
Up to -/+ 12 semitones
Miscellaneous
Key Mode

- Low

- High

- Last

- Low Retrigger

- High Retrigger

- Last Retrigger

Alternative Tuning
17 preset tunings

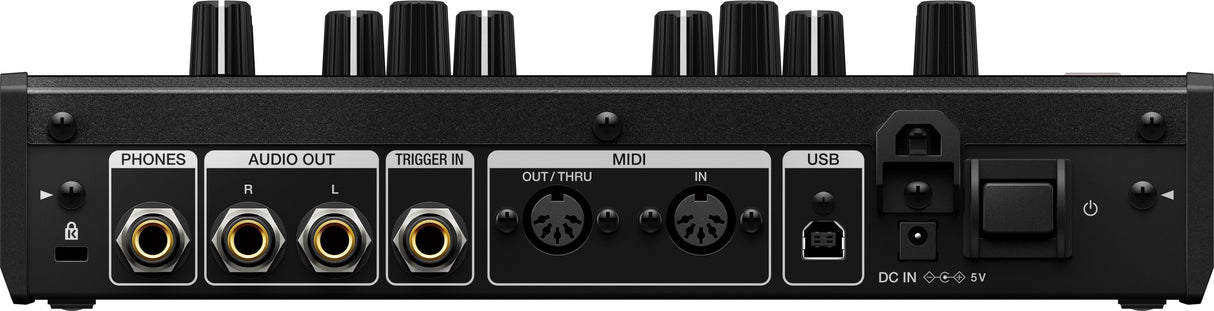

Terminals
Outputs

- 1 AUDIO OUT L/R (1/4 inch TS Jacks)

- 1 PHONES (1/4 inch stereo phone jack)

MIDI

- 1 MIDI IN (5P DIN)

- 1 MIDI OUT/THRU (5P DIN)

USB
1 USB B port
Others
1 TRIGGER IN (1/4 inch TS jack)
Trigger Input

- Able to connect a general foot switch or input audio signals

- Able to set the operation from 4 types:

- Pedal

- Trigger

- Gate

- Trigger-Gate

Power Supply
Included Accessories

- AC adapter

- Power cord

- Quick Start Guide

- warranty
