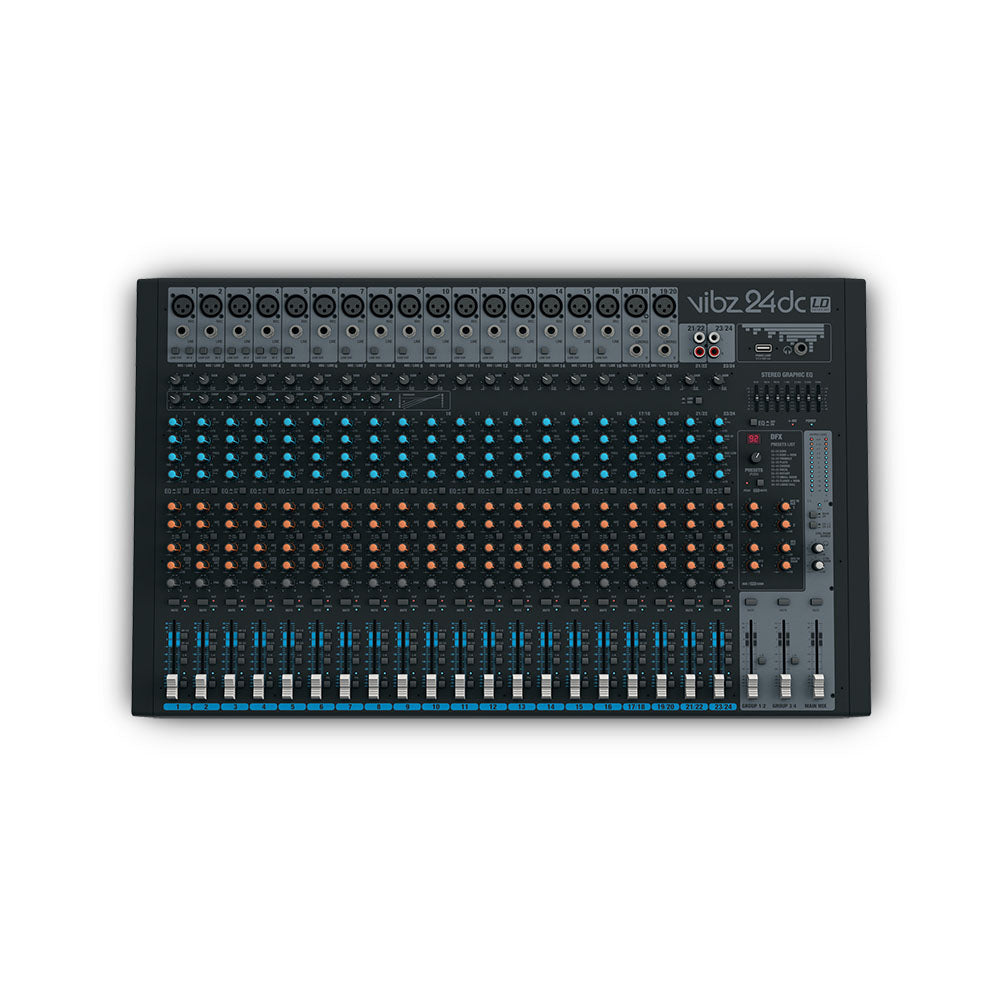

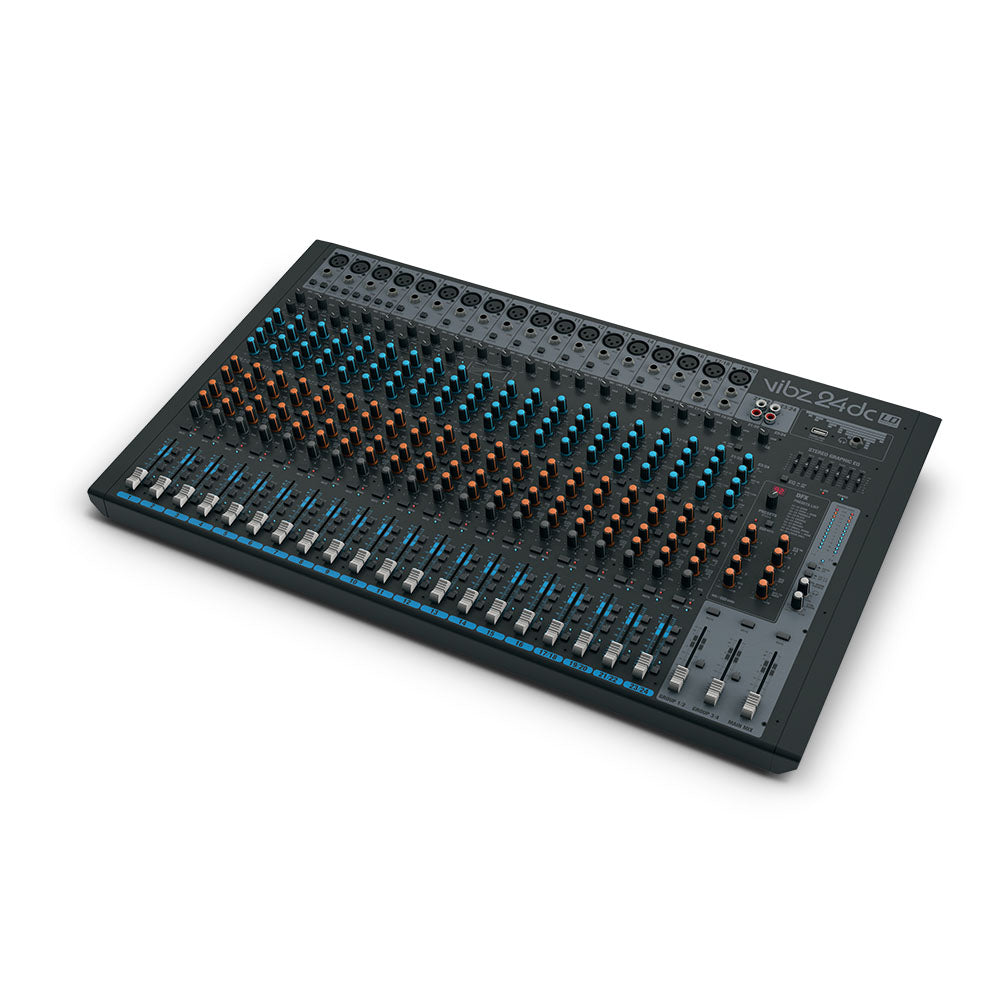

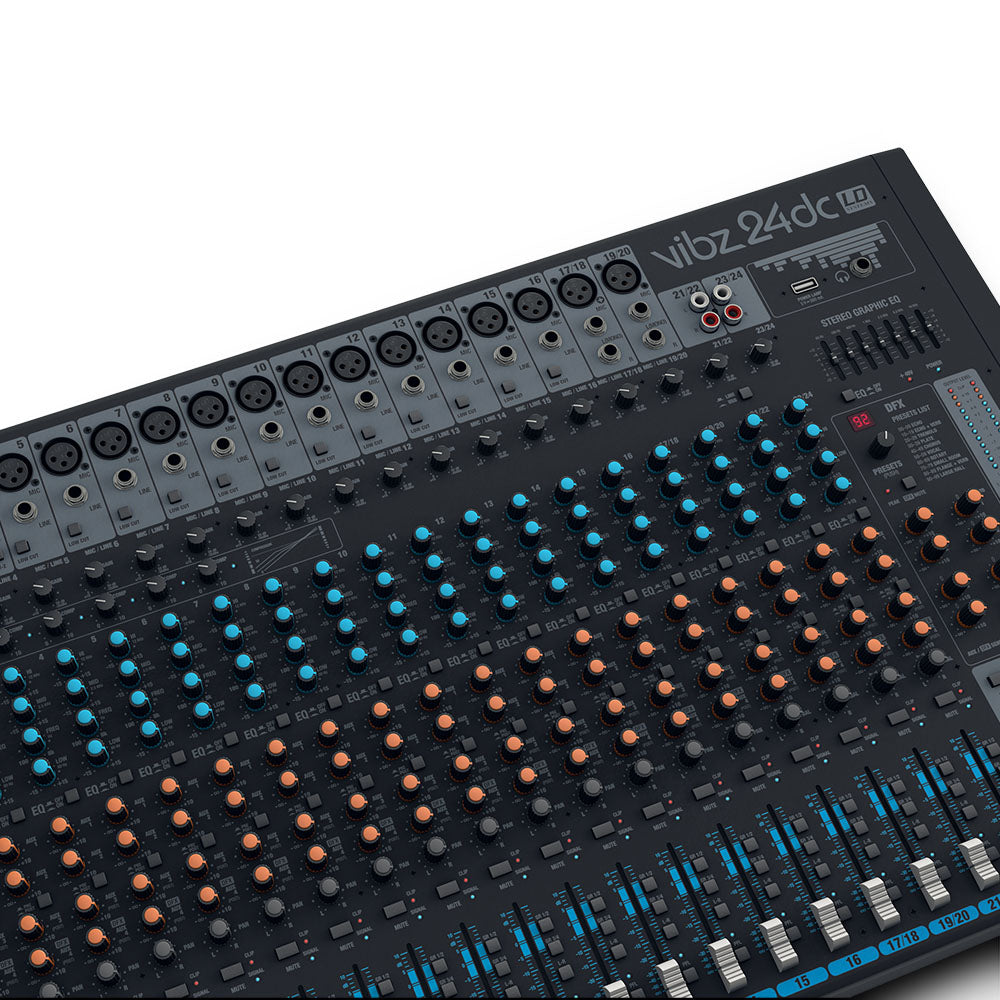

LD Systems VIBZ 24 DC - 24-kanals mixerkonsol med DFX og kompressor
Inkl. moms
Flagskibet i VIBZ-serien af mixerpulte, VIBZ 24 DC, er designet til fremragende lyd i hjemmestudie- og liveanvendelser. Den har 16 monokanaler med 3-bånds EQ og semiparametrisk mellemtone, 4 stereokanaler med 4-bånds EQ, 4 subgrupper, 24-bit digitale effekter med 100 presets samt glidende 65 mm audio taper-fadere.

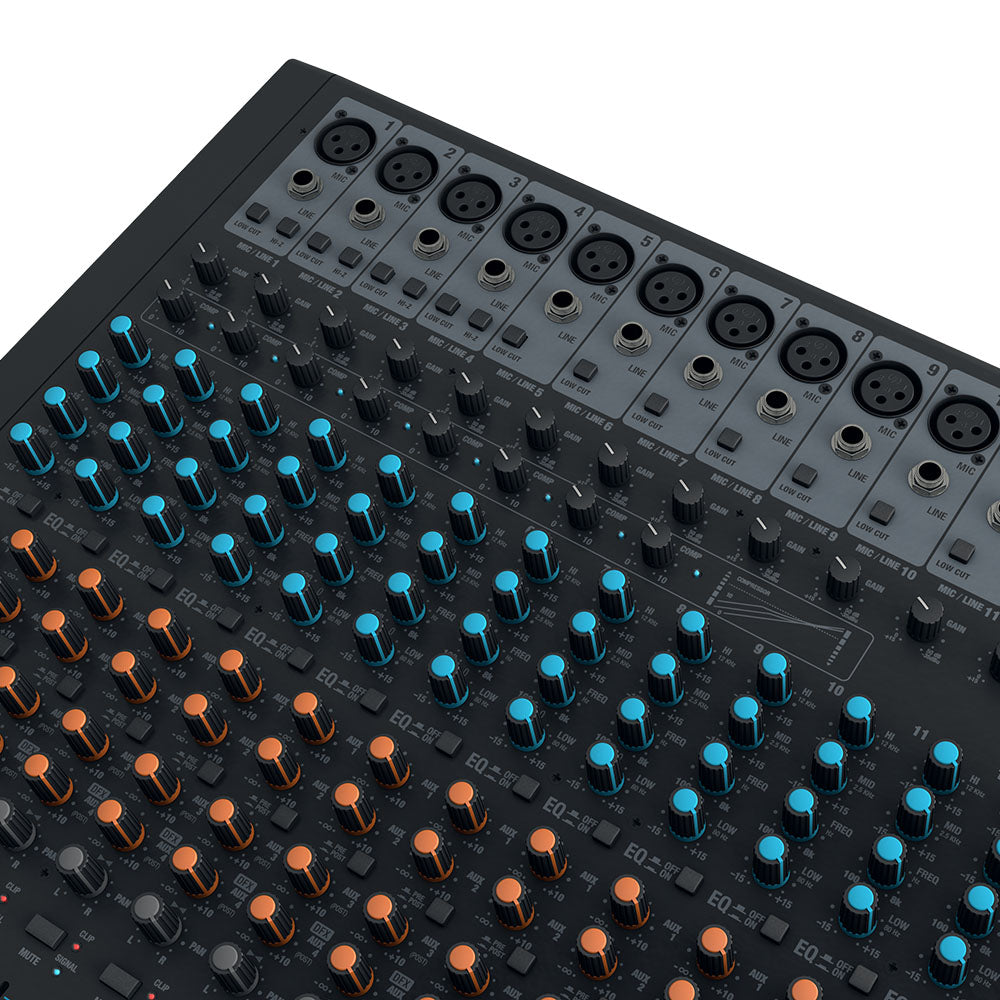

Alle kanaler har højtydende forforstærkere med gain-kontrol, 4 aux-sends, mute, PFL og routing-switches samt signal- og clip-LED'er. To sends kan skiftes mellem pre- eller post-fader for at muliggøre monitorering eller brug af effekter. Monokanalernes XLR-mikrofon- og TRS-line-indgange er elektronisk balancerede, og kanaler 1–8 giver praktisk ét-knaps betjening af den indbyggede kompressor samt individuelle insert-punkter til eksternt processeringsudstyr.

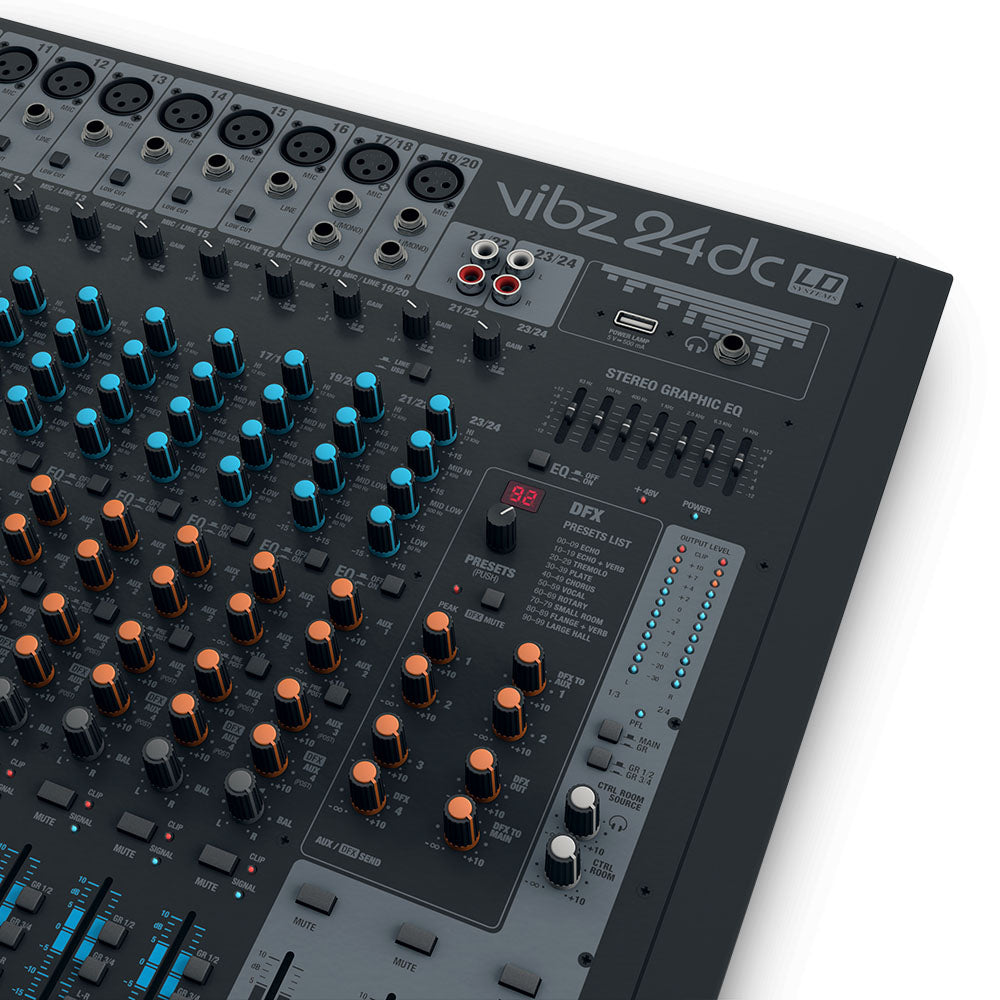

Mastersektionen tilbyder balanceret og ubalanceret main mix samt individuelle gruppeudgange med præcis metering, control room- og hovedtelefonudgange med niveaukontroller samt en global 7-bånds grafisk EQ. VIBZ 24 DC integrerer en multivolts strømforsyning til 100–240 V AC-drift.
- 24-channel mixer with 16 mono and 4 stereo channels
- Balanced mic and line inputs
- 3-band EQ with semi-parametric mids
- 4 aux sends, 2 pre or post fader switchable
- 8 mono channels with inserts and compressor
- Channel routing, mute and PFL switches
- 48V phantom power
- 4 subgroups with individual outputs
- 24-bit digital effects and global 7-band graphic EQ
- Balanced and unbalanced main outputs
- Control room and headphone outputs
- 10 Hz – 45 kHz frequency response
- integrates 16 bit/48 kHz USB audio interface
- 3-band EQ with semi-parametric midrange regulating on mono channels
- 4-band EQ on stereo channels
| Product type | Mixers |
| Type | Home-Recording |
| Type | Live |
| Channels | 24 |
microphone
| Mono Mic and Line Input Channels | 16 |
| Mono Mic input connectors | 6.3 mm TRS |
| Mono Mic input connectors | XLR |
| Mono Mic Input Type | Electronically balanced |
| Mono Mic Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Mic Input | 0 - 50 dB |
| Mono Mic Input Input THD-N | 0.0058% |
| Mono Mic Input Impedance | 4000 Ohm(s) |
| Mono Mic Input S/N Ratio | 113 dB |
| Mono Line Input Type | Electronically balanced |
| Mono Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Line Input | 0 - 50 dB |
| Mono Line Input Input THD-N | 0.0045 % |
| Mono Line Input Impedance | 21000 Ohm(s) |
| Mono Line Input S/N Ratio | 116 dB |
| Mono Channel Equalizer High | +/-15 dB @ 12.000 Hz |
| Mono Channel Equalizer Mid | 200 - 8000 |
| Mono Channel Equalizer Low | +/-15 dB @ 80 Hz |
| Controls Mono Mic and Line Input Channels | 3-band EQ (High, Mid, Low) |
| Controls Mono Mic and Line Input Channels | AUX Send 1-2 pre (AUX2 pre/post switchable) |
| Controls Mono Mic and Line Input Channels | AUX Send 3-4 (post) |
| Controls Mono Mic and Line Input Channels | Bal |
| Controls Mono Mic and Line Input Channels | Channel Fader |
| Controls Mono Mic and Line Input Channels | Fader Routing switch (Group 1/2, Group 3/4, Main L+R) |
| Controls Mono Mic and Line Input Channels | Gain |
| Controls Mono Mic and Line Input Channels | LINE/USB -switch (Channel 21 - 24) |
| Controls Mono Mic and Line Input Channels | PFL / Solo Switch |
| Phantom power | 48 V DC switchable |
| Mono Inserts | 8 |
| Mono Inserts Connectors | 6.3mm jack |
Stereo Channels:
| Stereo Line Input Channels | 4 |
| Stereo Line Input Connectors | 6.3 mm TRS |
| Stereo Line Input Type | Electronically balanced |
| Stereo Line Input Type | Unbalanced |
| Stereo Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range stereo Line Input | 0 - 50 dB |
| Stereo Line Input Input THD-N | 0.0045 % |
| Stereo Line Input Impedance | 37000 Ohm(s) |
| Stereo Line Input S/N Ratio | 116 dB |
| Stereo channel equalizer treble | +/-15 dB @ 12.000 Hz |
| Stereo channel equalizer hi-mids | +/-15 dB @ 3.000 Hz |
| Stereo channel equalizer low-mids | +/-15 dB @ 500 Hz |
| Stereo channel equalizer bass | +/-15 dB @ 80 Hz |
| Controls Stereo Line Input Channels | AUX 1 - 2 switchable Pre/Post |
| Controls Stereo Line Input Channels | AUX/DFX Send 1 - 4 |
| Controls Stereo Line Input Channels | 4-band EQ (High, High-Mid, Low-Mid, Low) |
| Controls Stereo Line Input Channels | Balance |
| Controls Stereo Line Input Channels | Channel Volume |
| Controls Stereo Line Input Channels | EQ on/off |
| Controls Stereo Line Input Channels | GROUP to Main -switch |
| Controls Stereo Line Input Channels | Gain |
| Controls Stereo Line Input Channels | LINE/USB -switch |

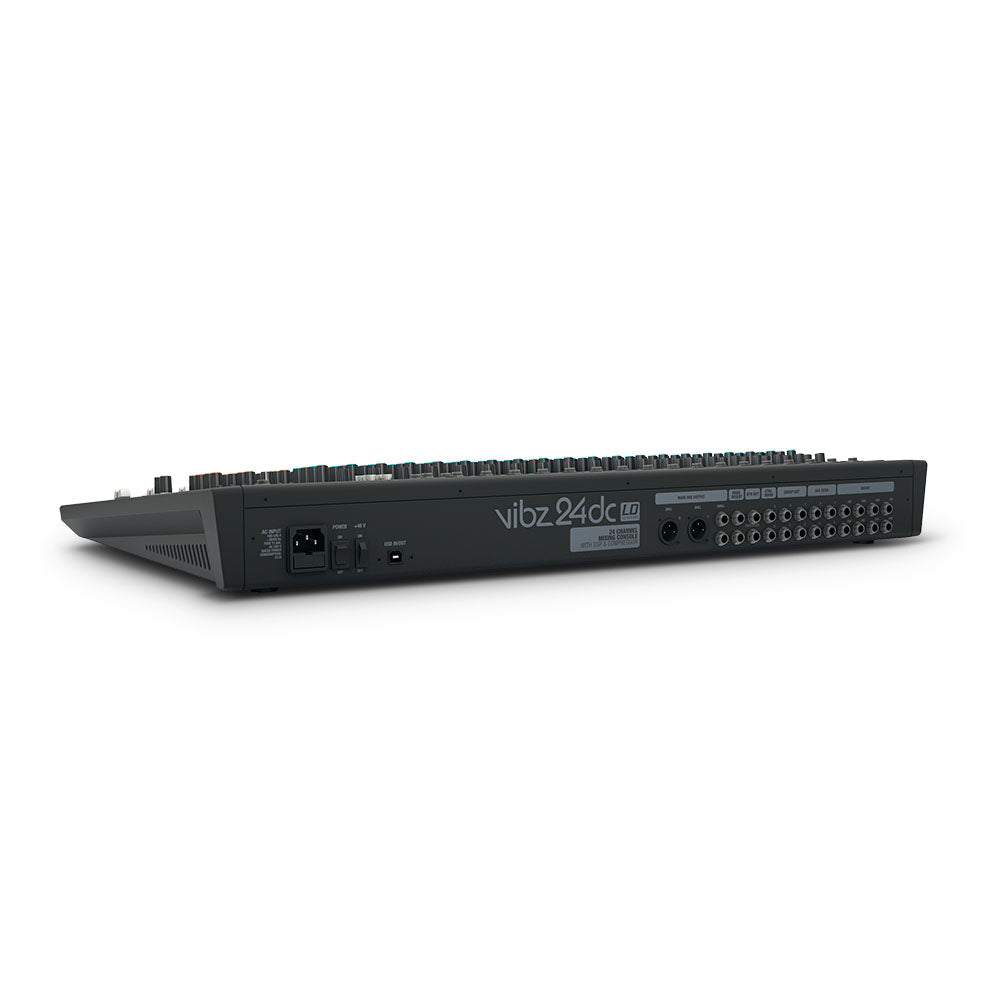

Main Section:
| AUX / Effects Send Channels | 4 |
| AUX / Effects Send Connectors | 6.3 mm TS |
| Stereo AUX Return Channels | 1 |
| Group Out | 4 |
| Group Out Connectors | 4 x 6,3mm TRS |
| Balanced Stereo Main Out | 1 |
| Balanced Stereo Main Out Connectors | XLR |
| Unbalanced stereo Main Outputs | 1 |
| Unbalanced stereo Main Output Connections | 2 x 6.3 mm TS |
| Main-Insert Inputs | 1 |
| Main-Insert Input Ports | 2 x 6.3 mm TRS asymmetrically |
| DFX Out Outputs | 1 |
| DFX Out Output Ports | 6.3 mm TRS |
| USB In/Out In-/Outputs | 1 |
| USB In/Out Ports | USB-B |
| Max. Unbalanced Stereo Main Out Level | 22 dBu |
| Stereo Control Room Out | 1 |
| Stereo Control Room Out Connectors | 2x 6.3 mm TRS |
| Headphones ouput | 1 |
| Headphones outputs | 6.3 mm TRS |
| Digital Effects Processor | Yes |
| Number of Presets | 100 |
| DMX output | 1 |
| Footswitch Connector DFX Mute | 6.3 mm TS |
| Main section controls | 7-band graphic EQ |
| Main section controls | AUX/DFX Send 1 - 4 |
| Main section controls | DFX Mute |
| Main section controls | DFX Presets |
| Main section controls | DFX to Aux |
| Main section controls | DFX to Main |
| Main section controls | EQ on/off |
| Main section controls | GROUP to Main -switch |
| Main section controls | Main Mix Fader |
| Main section controls | Phantom Power |
| Main section controls | Phones/CTRL Fader |
| Main section controls | TK In To Main/To CTRL |
| Main section controls | mains switch |
| Indicators | DFX Peak |
| Indicators | DFX to Main |
| Indicators | PFL indicator |
| Indicators | Phantom Power |
| Indicators | Power |
| Indicators | Signal |
| Power supply | 100 V AC - 240 V AC, 50 - 60 Hz |
| Width | 712 mm |
| Height | 80 mm |
| Depth | 425 mm |
| Weight | 9,442 kg |
