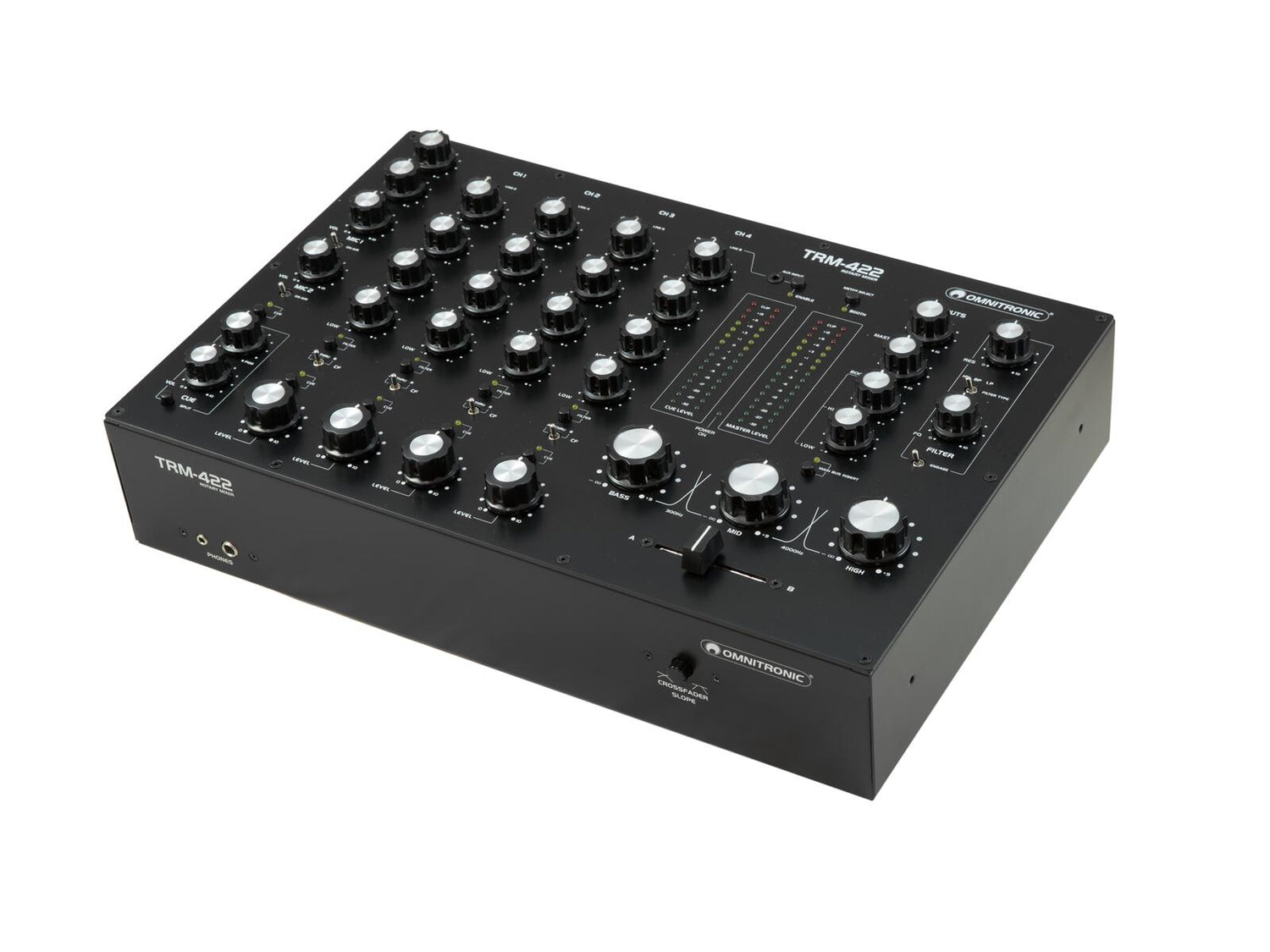

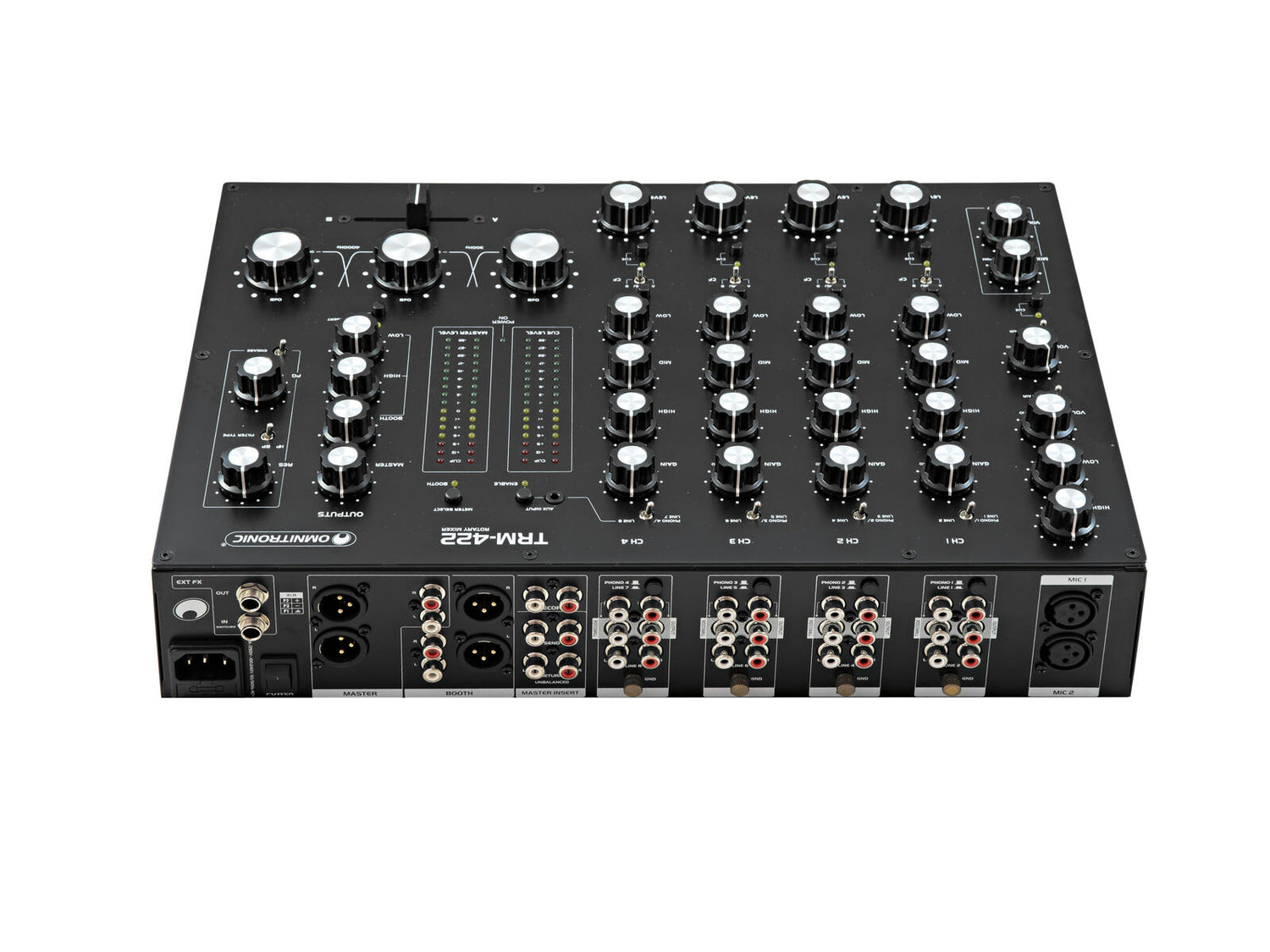

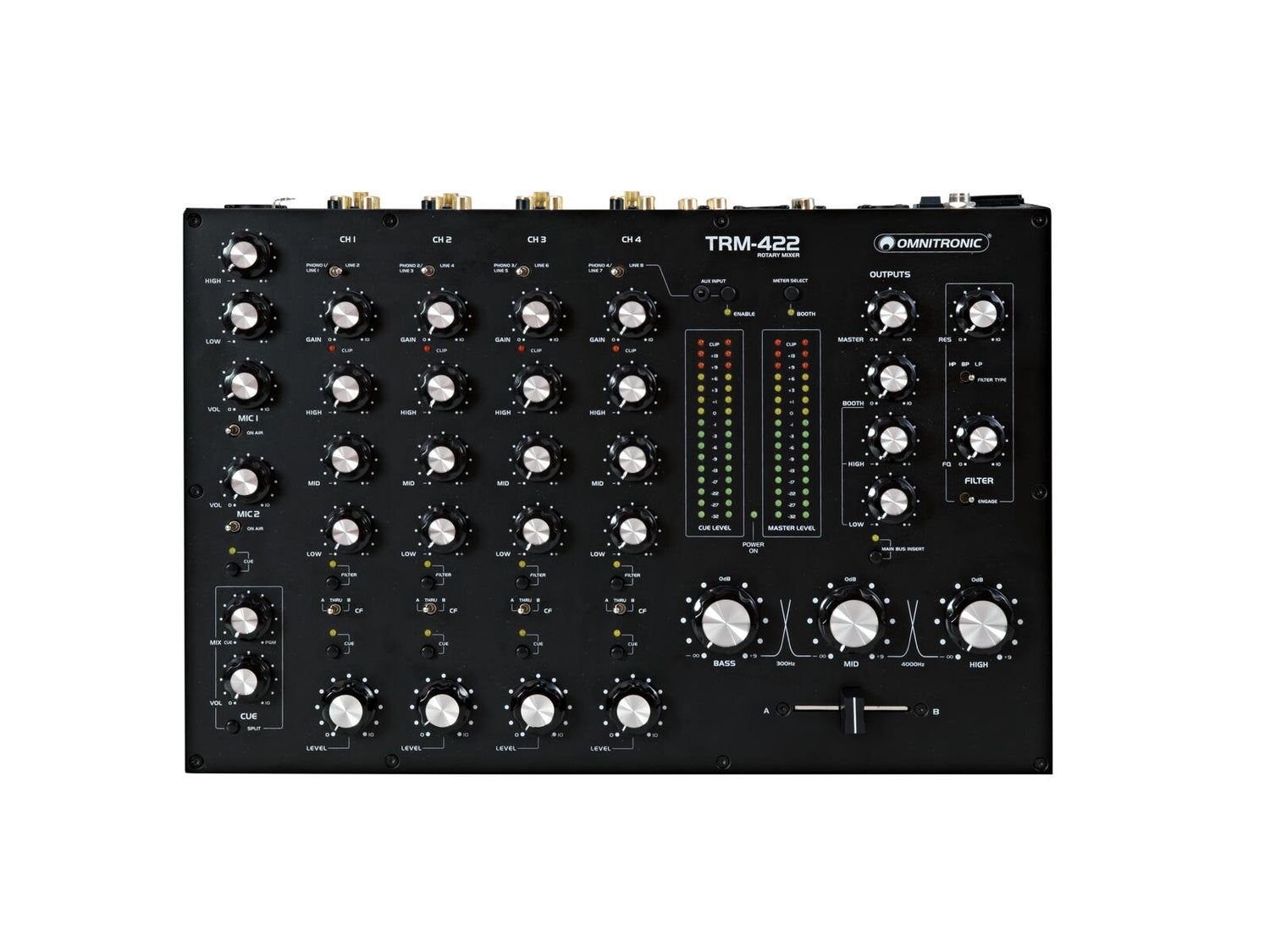

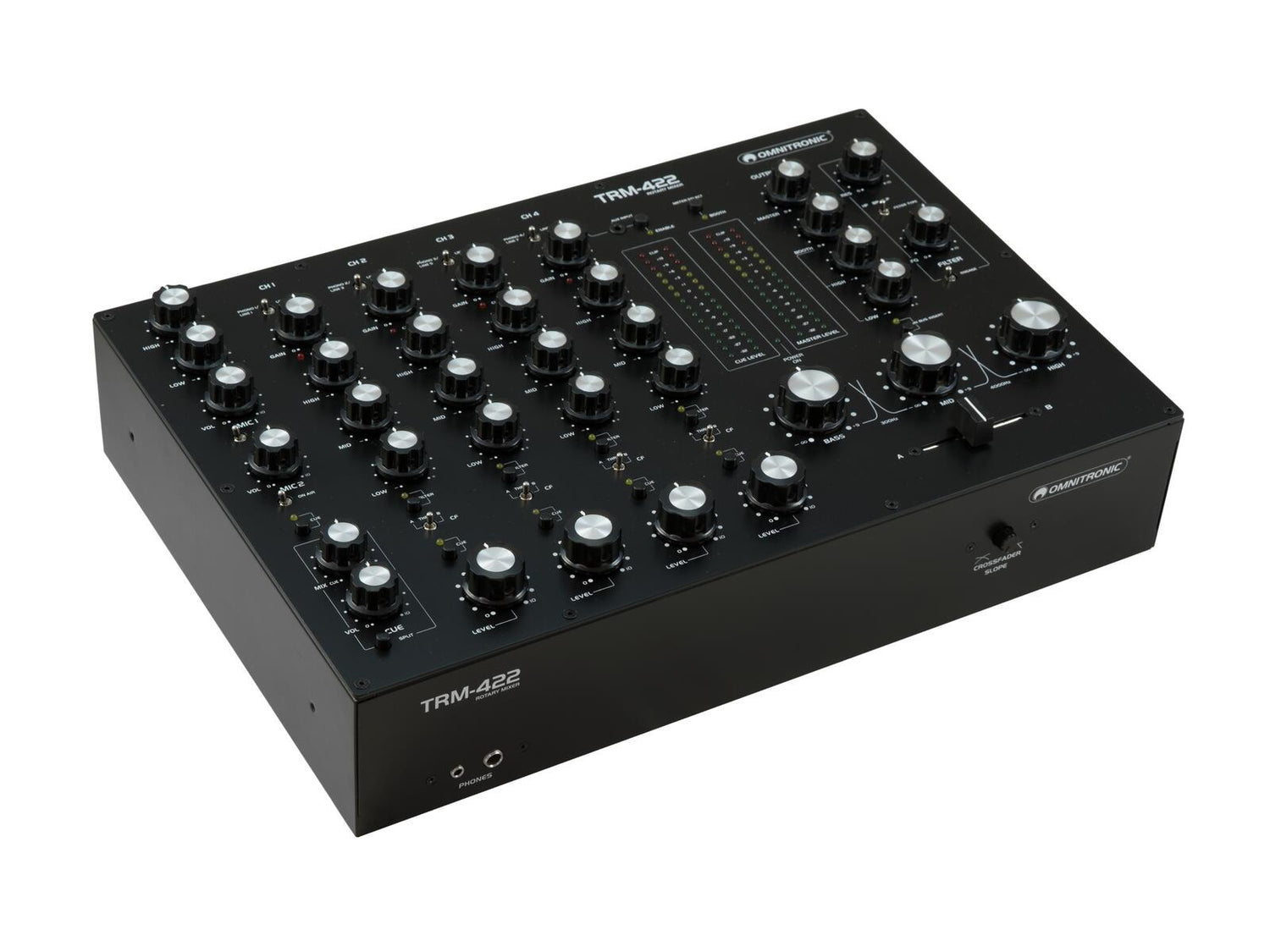

OMNITRONIC TRM-422 4-channel Rotary Mixer
1
di
5
Caricamento...
€766,95
Prezzo unitario
/
Non disponibile
IVA incl. • B2B esente IVA
Spedizione gratuita
Descrizione
Descrizione
4-channel rotary mixer with 3-band frequency isolator and filter section for DJs
- 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- Filter section with resonance and sweep control for creative sound shaping
- 4 stereo input channels with gain control, clip LED, 3-way equalizer and phono/line switching
- 2 microphone input channels with gain control, 2-way equalizer on air switch
- High-grade components ensure long life and excellent sound quality
- 16-digit stereo LED level meter, switchable between master and booth outputs
- Booth output with separate 2-way equalizer and level control
- PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/split option
- Fully assignable VCA crossfader with adjustable curve
- 2 effects send/return paths
- Direct outputs for Timecode applications

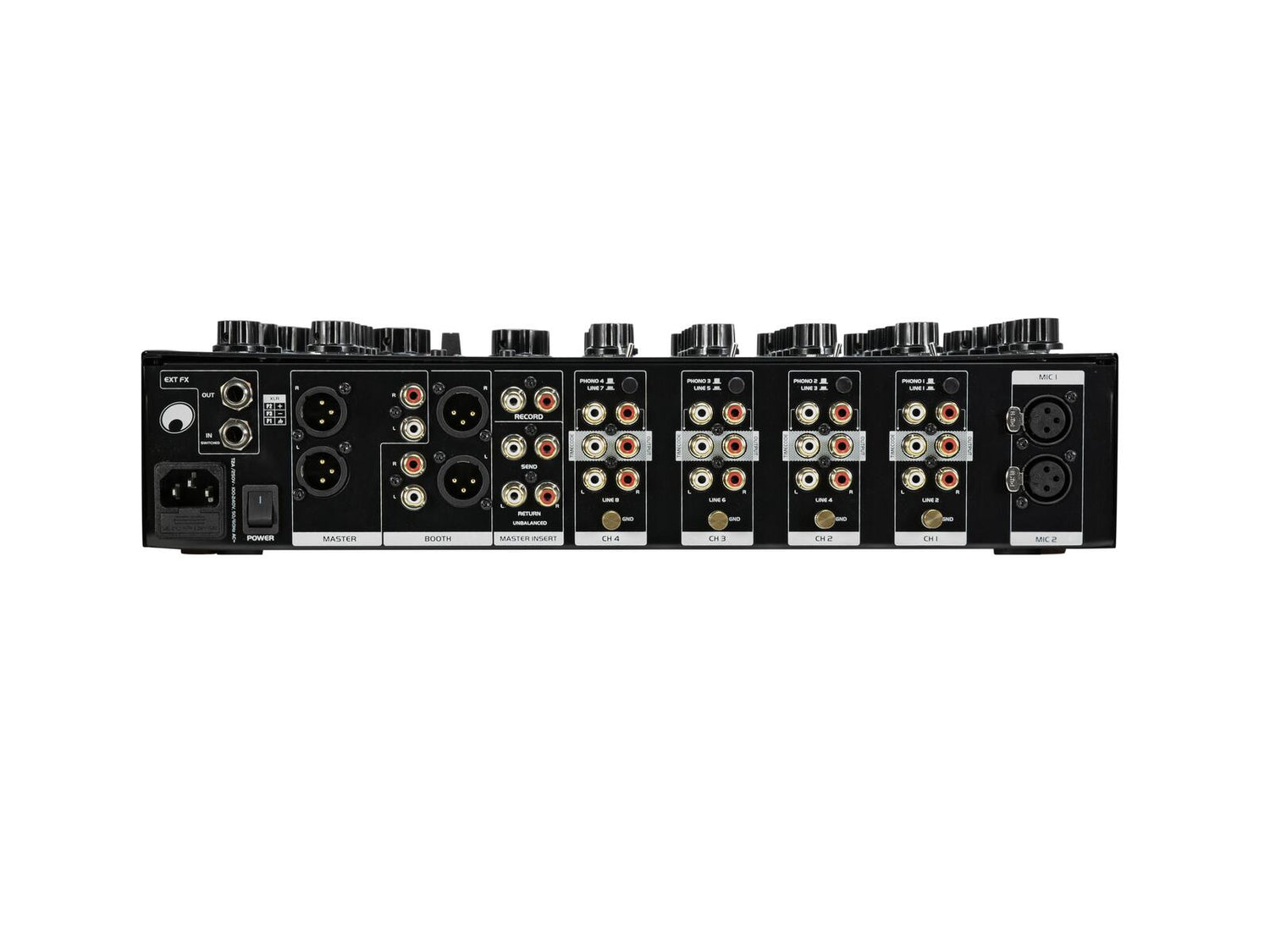

- Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
- DJ filter LPF, BPF, HPF routable
- Desktop console housing
- (19") 48.3 cm rack installation possible
- For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios
Scope of delivery
- 1 x mixer
- 1 x power cord
- 2 x mounting bracket
- 6 x screw
- 8 x RCA cable
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 24 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz microphone 20 - 20000 Hz line 40 - 18000 Hz phono |
| S/N ratio: | >97.2 dB line >91.7 dB microphone |
| THD: | Line <0.04 % at 1 kHz Phono <0.13 % at 1 kHz Microphone <0.008 % at 1 kHz |
| Gain: | Microphone 44 dB Line -16.5 dB to +8.5 dB Phono -48.5 dB to +23.5 dB |
| DJ filter: | Routable: LPF, BPF, HPF |
| Isolators: | Master Gain:- ∞ bis +9 Low/mid 300 Hz, 18db/oct , Butterworth Mid/high 4000 Hz, 18db/oct , Butterworth |
| Housing color: | Black |
| Crosstalk: | >-68 dB |
| Control elements: | Power switch, source selector, crossfader, crossfader selector switch, crossfade curve switch; cue mix split function, tone control |
| Status LED: | Power, master level meter, clip, CUE |
| Connections: | Input: line via 4 x stereo RCA Input: line/phono via 4 x stereo RCA Input: microphone via 2 x 3-pin XLR Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version Output: rec. via 1 x stereo RCA Output: booth via 2 x 3-pin XLR Output: booth via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA Output: AUX sends via 1 x 6.3 mm jack socket (stereo) mounting version Output: AUX returns via 1 x 6.3 mm jack socket (stereo) mounting version Output: Timecode via 4 x stereo RCA |
| Channels: | Input channel: 4 x stereo with line-line/phono switch via RCA, channel control via rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, crossfader selector switch Microphone channel: 2 x mono via XLR, channel control via rotary dial, ON AIR switch Master output: 2 x stereo via XLR, channel control via rotary, cue mix split function Booth output: 2 x stereo via XLR, channel control via rotary Rec. output: 1 x stereo via RCA Headphones output: 1 x stereo via jack, channel control via rotary dial |
| Max. level: | Output: +18 dBu |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible |
| Dimensions: | Width: 41 cm Depth: 28.5 cm Height: 10.5 cm |
| Weight: | 5.99 kg |
