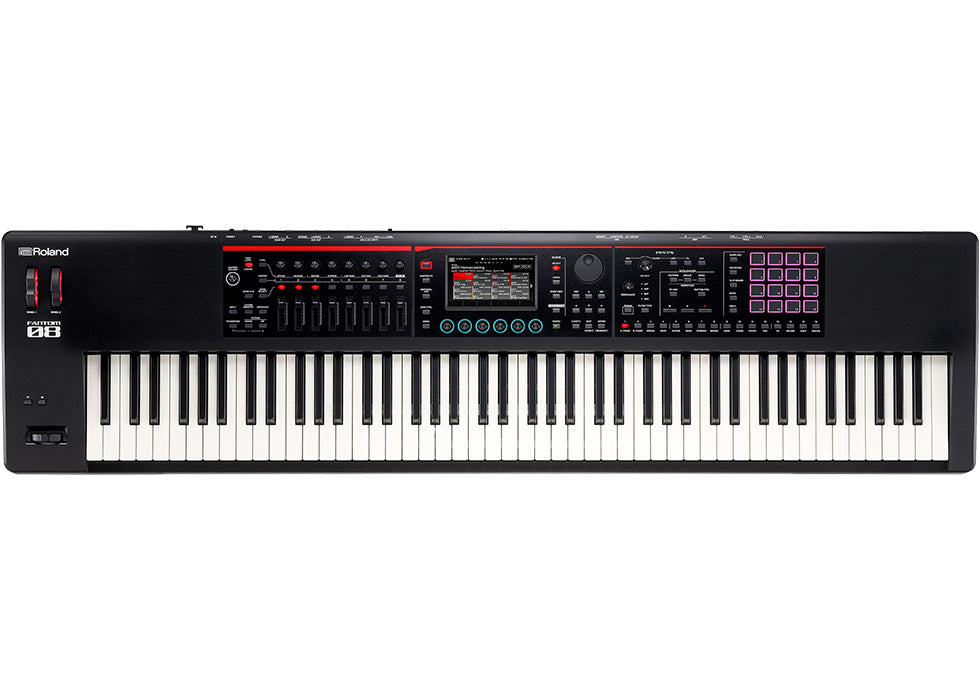

Roland Fantom-08 88 Synthesizer (Black)

• Sonic Power and Sliding Workflow in una workstation sintetizzatore imbottita
• Motore audio a V-Piano
• 3500 voti
• 90 kit di batteria
• 16 strati
• 88 tangenti di alta qualità con sfuggente e sensazione di ibenholdt/avorio
• Le tecnologie avanzate di zen-core e soprannaturali forniscono molti suoni elettronici e acustici

Sintetizzatore Roland Fantom-08 88 (nero)

• Con questo sintetizzatore di Roland, ottieni un sacco di potenza sonora versatile e flusso di lavoro del sintetizzatore scorrevole.
• La tastiera da 88-Tangent di nuova concezione ti dà tutto il necessario per eseguire e creare ad alto livello.
• Le pinze sono realizzate in sensazione di ebano/avorio, sfuggimento completo e aftertouch del canale.
• Con un totale di 3500 voti, 90 kit di tamburi e 90 multi-effetti che non si esauriscono mai le opzioni.
• Copertura e profonda integrazione con la maggior parte dei DAW e dei plug-in.
• Salva e carichi combinazioni di "scena" rapidamente complesse che ricordano parametri, schemi e strati su tutti i 16 livelli.
• L'impressionante DSP può facilmente gestire la polifonia infinita del motore a V-Piano.
• Le tecnologie avanzate e soprannaturali avanzate di Roland forniscono suoni elettronici e acustici -qui hai davvero l'opportunità di giocare in tutto il genere.
• Organo tono virtuale con controllo a barre armonico e funzione di fuoco rapido
• Altre caratteristiche interessanti: touchscreen a colori, cursori multipli, sezione di controllo del synth dedicato, germogli ad alta risoluzione e pad di prestazioni RGB.
• Ci sono 10 pacchetti audio e 15 espansioni d'onda con disponibili da Roland Cloud.
• Disponibile anche in un modello da 76-Tangent.

Sound Generator

ZEN-Core
V-Piano Technology (Only ZONE1)
VTW Organ (Only ZONE2)
SuperNATURAL Acoustic
SuperNATURAL Acoustic Piano (Require adding EXSN01)
SuperNATURAL Electric Piano (Require adding EXSN02)
Various MODEL sound generators (Require adding EXM Series)

* ZEN-Core Tones and Model Tones can import and export.

Expansion

EXZ Series
EXSN Series
EXM Series

* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM's internal memory.

Parts

16 Zones (Internal + External)

Scenes

128 Scenes x 4 Bank

* The Scenes can import and export.

Tones

Over 3,500 Tones
Over 90 Drum kits

Tone Remain

16 parts (16 zones / 16 scenes).

* Tone Remain does not apply to V-Piano and VTW sounds.

Favorite

Rating System: 4 Steps (0-3)

Tone Search / Scene Search

Raiting, Character

Effects

Multi-Effects: 16 systems, 90 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 System, 90 Type
TFX: 1 System, 90 Types
Input MFX: 2 Systems(in Parallel), 90 Types

Chorus: 9 types
Reverb: 7 types
Master Compressor
Master EQ
Input Reverb: 7 types
Input EQ: 2 Systems (in Parallel)

Analog Filter

STEREO
Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass
Drive
Amp

Vocoder

Band: 13, 20, 32
Type: Mono, Stereo
Preset Setting: 10
User Setting: 20

Scene Chain

Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
Set: 100
Marker: 62 (0-9, A-Z, a-z) per 1 Chain Set

SEQUENCER

MIDI Tracks

16 (Internal/External)

Group

16

Pattern

8 (per each Track)

Pattern Length

32 measures

Recording Method

Realtime recording, Step recording, TR-REC

Editing Method

Piano roll edit (Touch Edit / Automation support), Microscope

Song

1 (per Scene)

File format

Original, SMF export/import supported

* PAD Sampler trigger data can be recorded.

SAMPLER - KEYBOARD MULTISAMPLE

Format

16/24-bit linear, 44.1/48kHz, WAV/AIFF

Number of Samples

8,000

Number of Multisamples

128

Sampling Time

The maximum is 2 minutes 44 second (1 Sample)

* A total of approximately 2 GB (Share with Expansion titles)"
* Keyboard Multisample can import and export as ZEN-Core Tone.

SAMPLER - PAD SAMPLER

Format

16-bit linear, 44.1/48kHz, WAV/AIFF import supported

Maximum Polyphony

8

Number of Samples

16 Pads x 4 Banks

Sampling Time

The maximum is 60 minutes (the equivalent of approximately 660 MB).

* A total of approximately 2 GB can be saved (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.

SAMPLER - INTERNAL STORAGE SPACE FOR FILES

Size

2GB

OTHER

Rhythm Pattern

Yes

Arpeggiator

Yes

Chord Memory

Yes

Motional Pad

Yes

PAD Mode

Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play

AIRA LINK

Yes

* When connect to MX-1

CV/Gate Control

2 x CV/Gate or 3 x CV/1 x Gate

Controllers

Pitch Bend/Modulation Lever (*)
Assignable Switch x 2 (S1/S2)
Control Knob x 8
Slider x 8
USB Audio Slider
Wheel x 2 (*)
Function Knob x 6
Sound Modified Knob x 11 (*)
4 x 4 Pad

* 1024 step editing support
It can be use with Cutoff, Resonance, Attack , Decay , Sustain , Release , Amp , FX Depth.

Display

Graphic Type, 7", Wide VGA (800 x 480 dots), backlit LCD (Color/Touch screen, Wallpaper support)

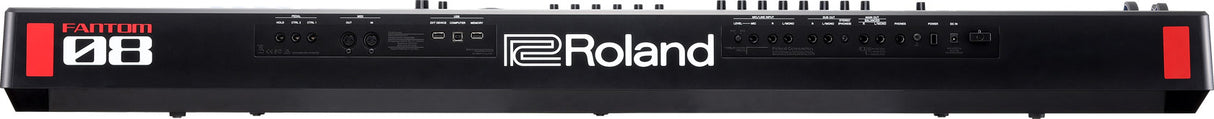

Connectors

Headphones Jack: Stereo 1/4-inch phone type
MAIN OUT Jacks (L/MONO, R) (1/4-inch phone type)
MAIN OUT Jacks (L, R) (XLR type)
SUB OUT1 Jacks (L, R) (1/4-inch phone type)
SUB OUT2 Jacks (L, R) (1/4-inch phone type)
ANALOG OUTPUT Jacks(1,2)(1/4-inch phone type)
Mic/Line Input Jacks: (1,2) (1/4 inch phone type/XLR type)
2 x CV OUT, 2x GATE OUT
FOOT PEDAL JackS(HOLD, CTRL1,CTRL2,CTRL3) * 1024 Step value support
MIDI connectors (IN, OUT1, OUT2/THRU) * High-resolution velocity data output support
USB MEMORY Port
USB COMPUTER Port (AUDIO/ MIDI)

3 x External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.

Audio Interface

Max 24 bit/96 KHz
Record 16 Stereo Channel
Playback 3 Stereo Channel

External Memory

USB Flash drive (sold separately)

Power Supply

AC 117–240V, 50/60Hz

Power Consumption

50 W

Accessories

Owner's manual
Power Cord

Options (sold separately)

Keyboard Stand: KS-G8B, KS-10Z, KS-12
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash drive (*)

* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.

SIZE AND WEIGHT

Width

1,432 mm
56-7/16 inches

Depth

439 mm
17-5/16 inches

Height

153 mm
6-1/16 inches

Weight

27.7 kg
61 lbs 2 oz
